CASE-IH® Compatible
Feeder House Chains Only Set - Black Pin

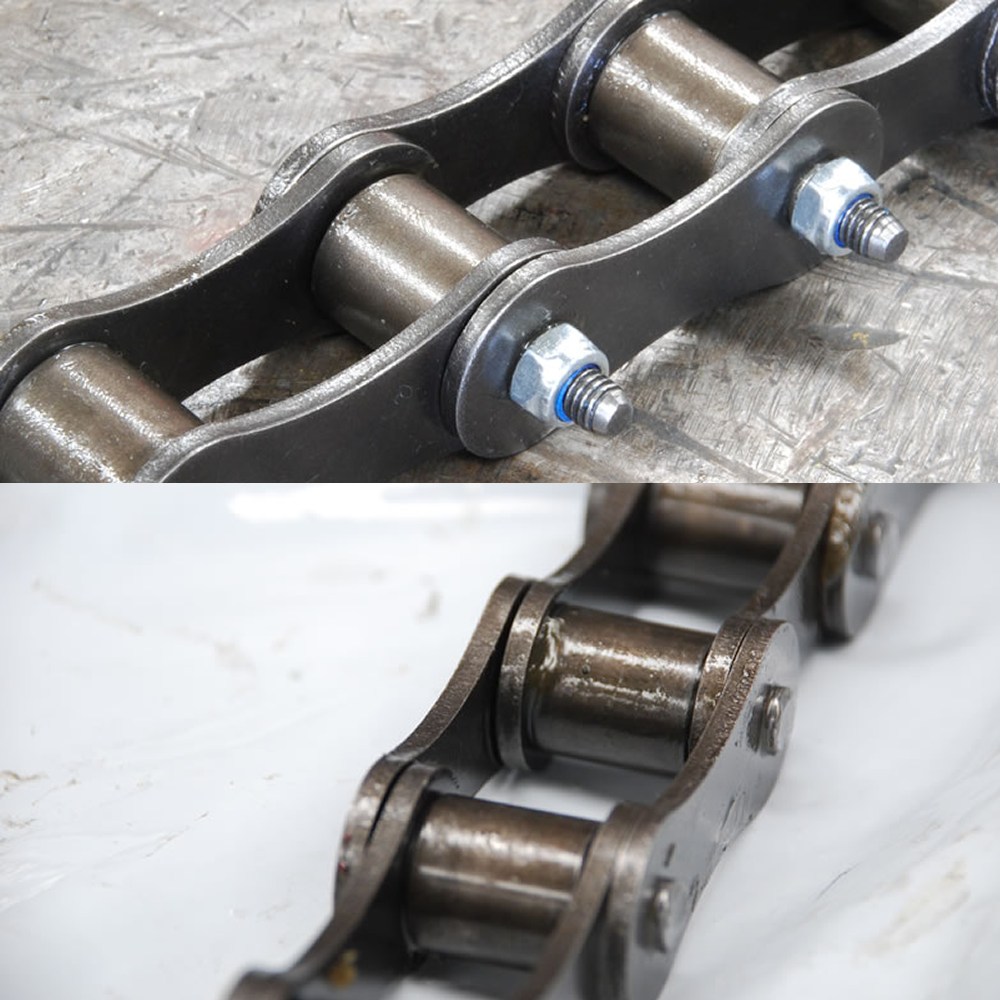

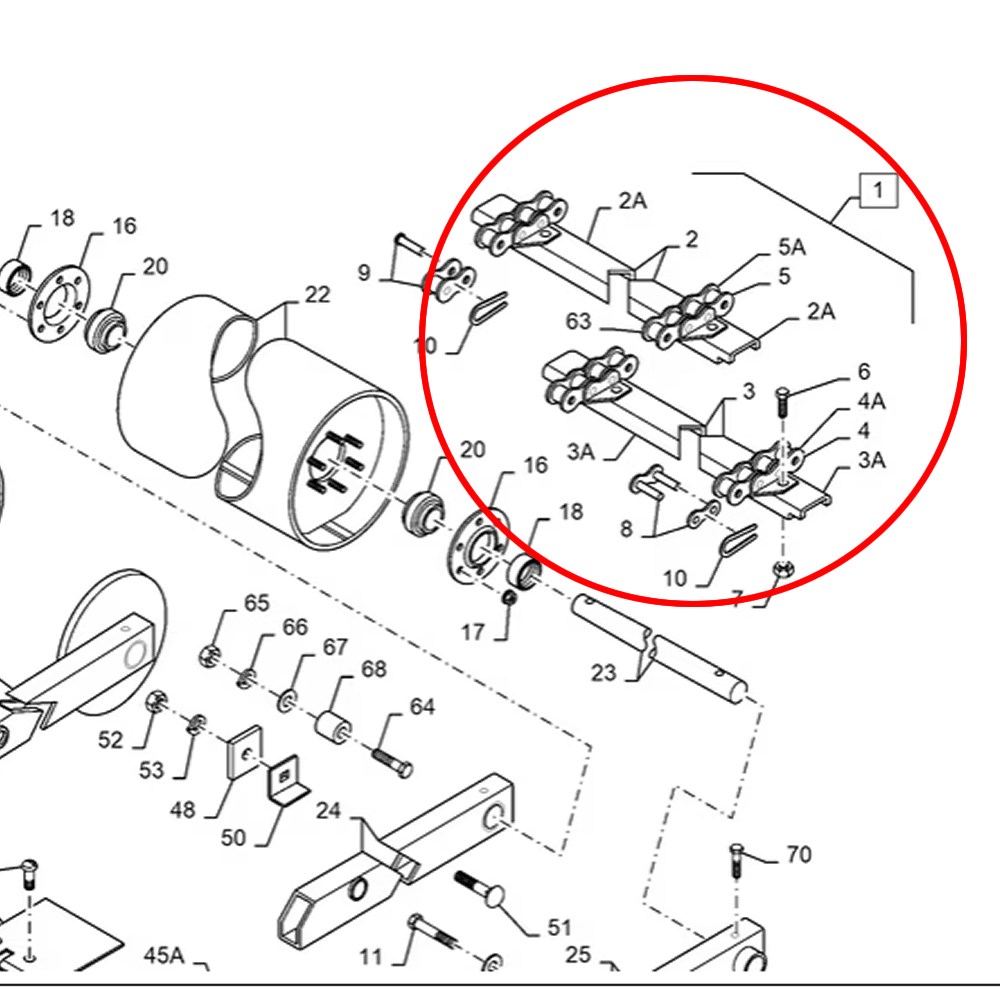

C&M replacement black pin feeder house chains only to suit the front feeder house on CASE-IH Mid-Series combine harvesters.This is a set of three (3) replacement chains with the same spacing and attachment holes as the Case-IH original chain.
You can re-chain your assembly using the original Case-IH slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade black-pin chain. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.
| Part Numbers |
Notes |
Fitment |
| 118661A1 |
Outer Chain - 60" Feeder |
CHAIN A557, 75 Links x 41.4mm = 3105mm x 2 Required |
| 1989529C |
Center Chain - 60" Feeder |
CHAIN A557, 75 Links x 41.4mm = 3105mm x 1 Required |
| 1989520C1 |
Outer Chain - 54.4" Feeder |
CHAIN A557, 69 Links x 41.4mm = 2856mm x 2 Required *Chain to be shortened |
| 1989519C1 |
Center Chain - 54.5" Feeder |
CHAIN A557, 69 Links x 41.4mm = 2856mm x 1 Required *Chain to be shortened |
Models
| Series |
Models |
Serial/Year |
Notes |
| Case 21 Series |
2188 |
(01/95-12/97) |
60" Feeder 3 Chain Upgrade Option |
|
2188 |
(01/95-12/97) |
54.5" Feeder Chain - Must be shortened |
| Case 23 Series |
2377 |
BTW HAJ292001&HAJ300000. |
60" Feeder |
|
2388 |
BSN JJC0276540 BTW HAJ292001 & HAJ300000 |
60" Feeder |
|
2388 |
BSN JJC0276640 (10/97-12/04) |
54.5" Feeder Chain - Must be shortened |
| Case 25 Series |
2588 |
ASN HAJ300001 |
|
| Case 88 Series |
5088 |
(04/07 - 01/12) |
Non-Stone Trap |
|
6088 |
(12/07 - 12/11) (04/07 - 01/12) |
Non-Stone Trap |
|
7088 |
(12/07 - 12/11) (04/07 - 01/12) |
Non-Stone Trap |
| Case 130 Series |
5130 |
(01/12 - 12/12) (01/12 - 12/13) (01/13 - 03/14) |
Including Stone Trap |
|
6130 |
(01/13 - 08/15) (01/13 - 03/14) |
Including Stone Trap |
|
7130 |
(01/11 - 06/15) (01/12 - 12/12) |
Including Stone Trap |
| Case 140 Series |
5140 |
(03/14 - 10/15) |
|
|
6140 |
(01/12 - 12/12) (03/14 - 10/15) |
|
|
7140 |
(03/14 - 10/15) |
|
Features

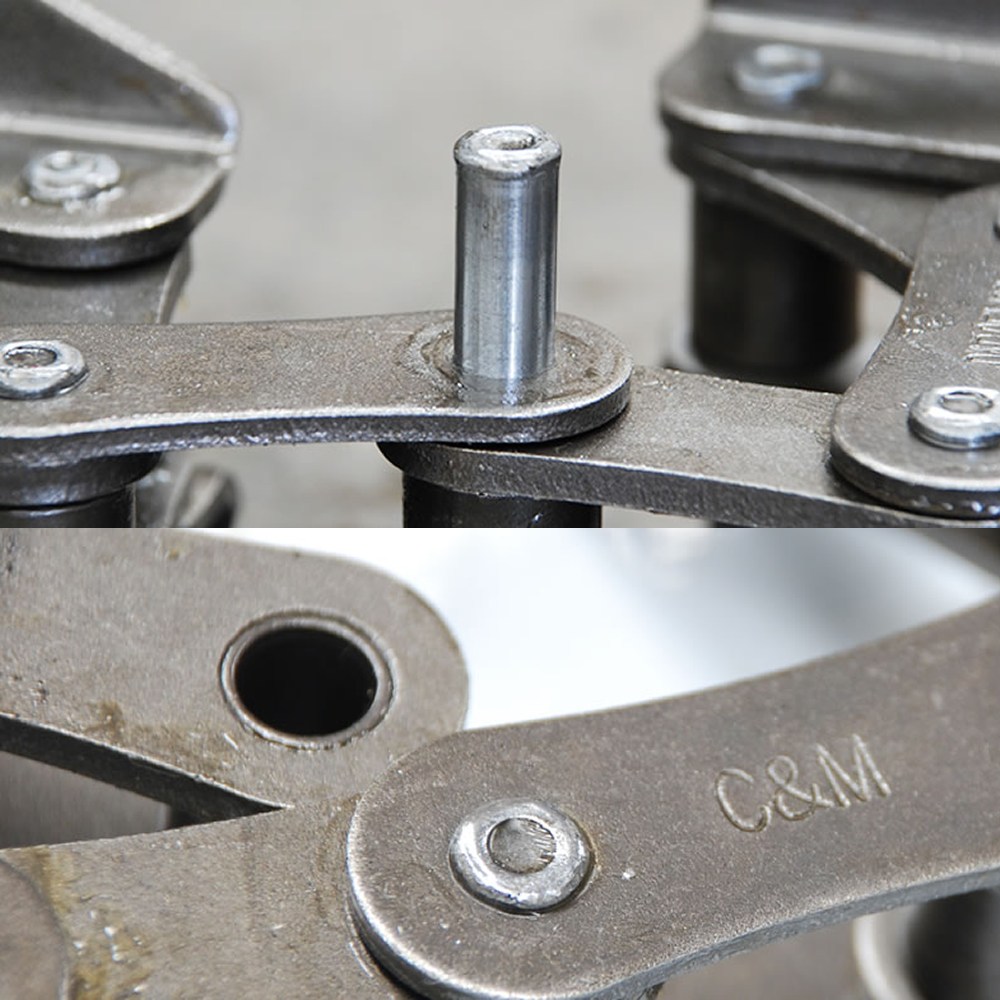

- Premium grade black-pin chain
- Connectors & half links included
- Fasteners not included
Warranty Policy
Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.
This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.
Conditions of warranty
| FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY. |
Process
In the event of a defect which may result in a warranty claim:
- The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
- At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
- The Warranty is not transferable to any third party or subsequent purchaser.
