CASE-IH® Compatible

Feeder House Chain Assembly - Chrome Pin

60" FEEDER

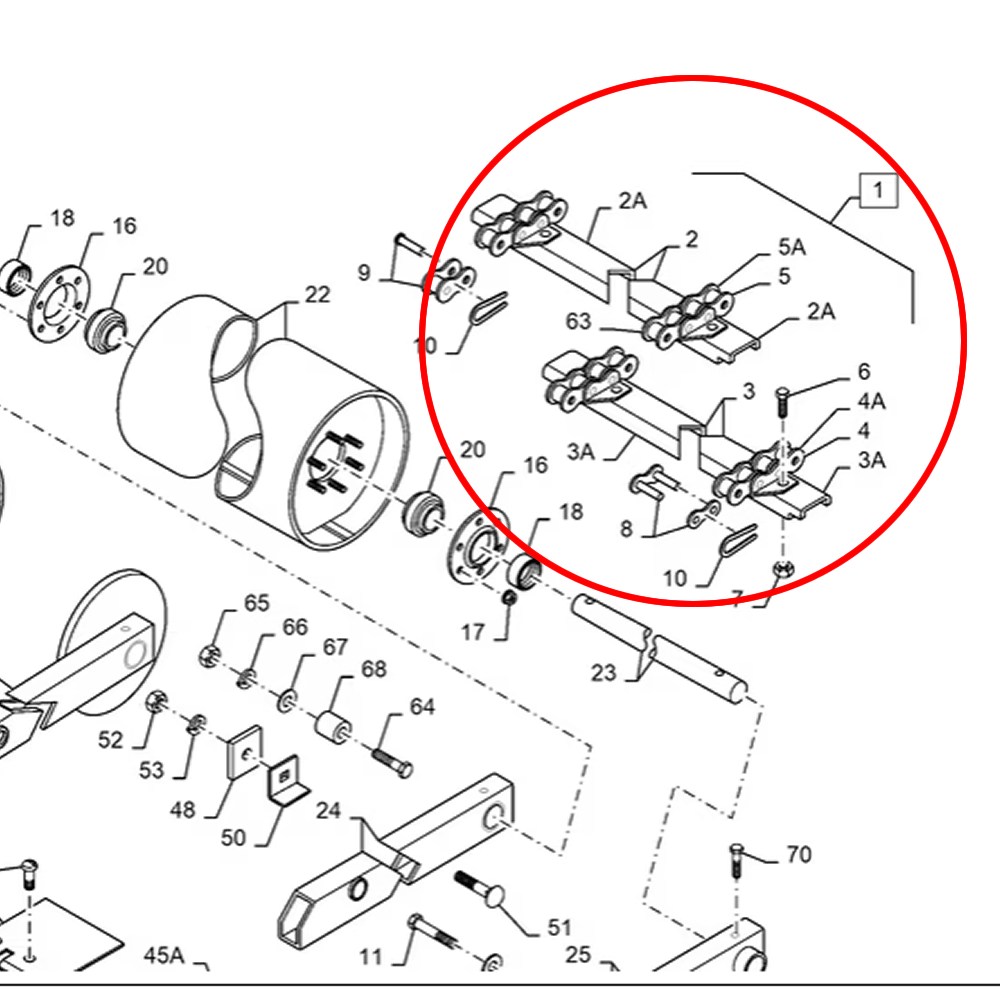

C&M replacement complete chrome-pin feeder house chain assembly to suit the front feeder house on CASE-IH® Mid-Series combine harvesters.This is a set of three (3) replacement chains fitted with G350 roll-serrated electroplated u-bars with the same spacing as the Case-IH® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chrome-pin chain and high performance rolled-serrated 6mm grade 350 u-bar slats. We guarantee the quality of this assembly, however we recommend you fit a new sprocket at the time of installation.

Part Numbers	Notes	Fitment
195670A1	60" Feeder House Chain Web Assembly - 3-Strand 76 Links - Serrated	60" Feeder
84207192	60" Feeder House Chain Web Assembly - 3-Strand 76 Links - Serrated	60" Feeder

Series	Models	Serial/Year	Notes
CASE-IH® 1600 Series	1680	01/86-07/89	With 3 chain conversion
CASE-IH® 2100 Series	2188	(01/95 - 12/97)	With 3 chain conversion
CASE-IH® 2300 Series	2377	BTW HAJ292001&HAJ300000.
	2388	BSN JJC0276540 BTW HAJ292001 & HAJ300000
CASE-IH® 2500 Series	2588	ASN HAJ300001 10/06-12/06
CASE-IH® 88 Series	5088	(04/07 - 01/12)
	6088	(12/07 - 12/11) (04/07 - 01/12)
	7088	(12/07 - 12/11) (04/07 - 01/12)

Features

• Fits combines with 60" feeder house - without rock trap
• Premium grade chain

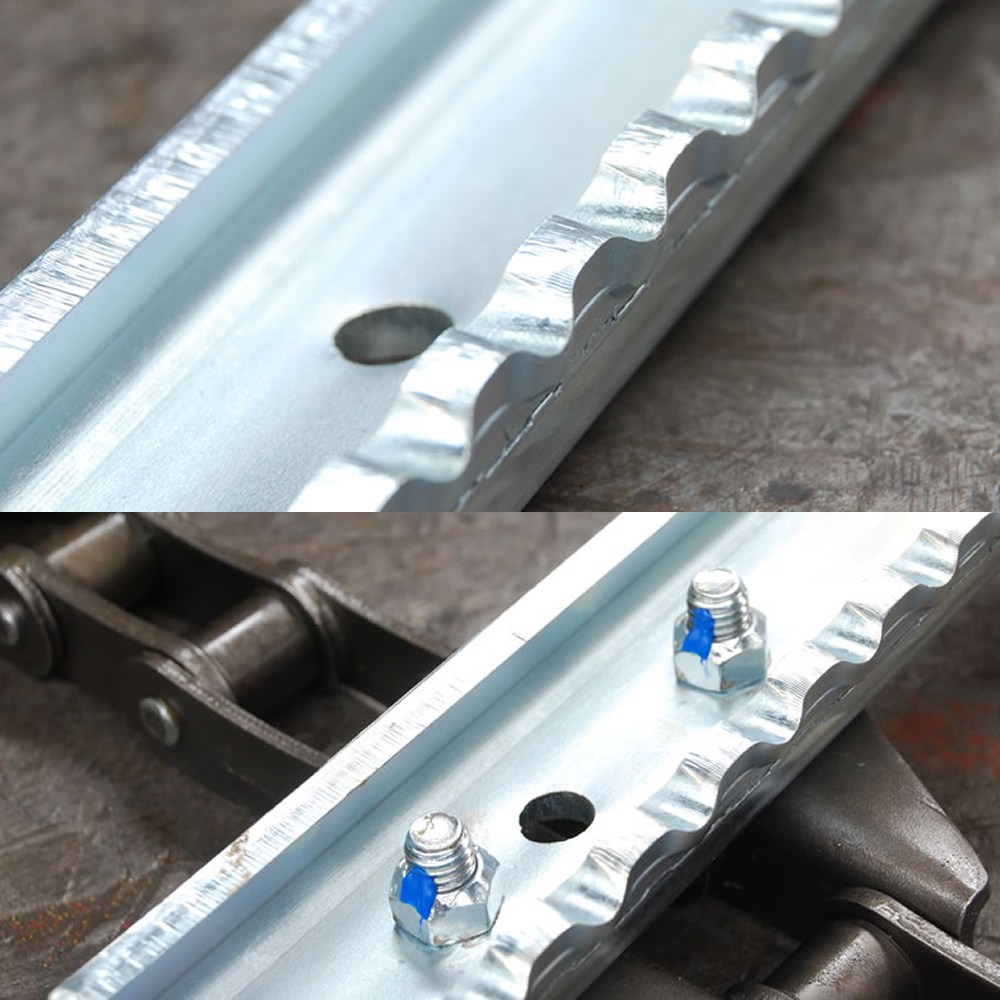

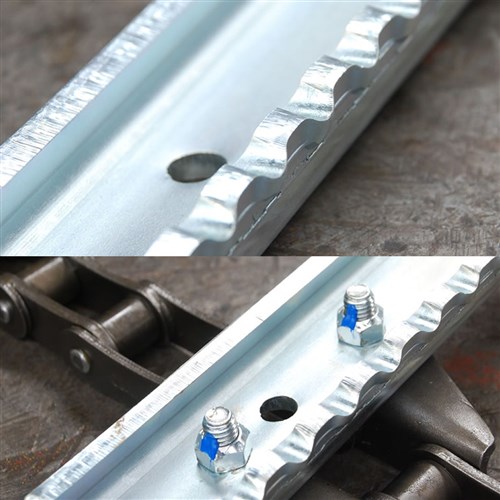

• Electroplated rolled serration 6mm u-bar
• Slat material grade 350 350MPa yield strength
• Connectors & half links included
• Bolted assembly ready to install.

C&M Technical Specifications

Item	Details	Notes
CM035OEMCP	Case-IH® Mid	60" feeder
Chain Brand	AMEC	Stamped C&M

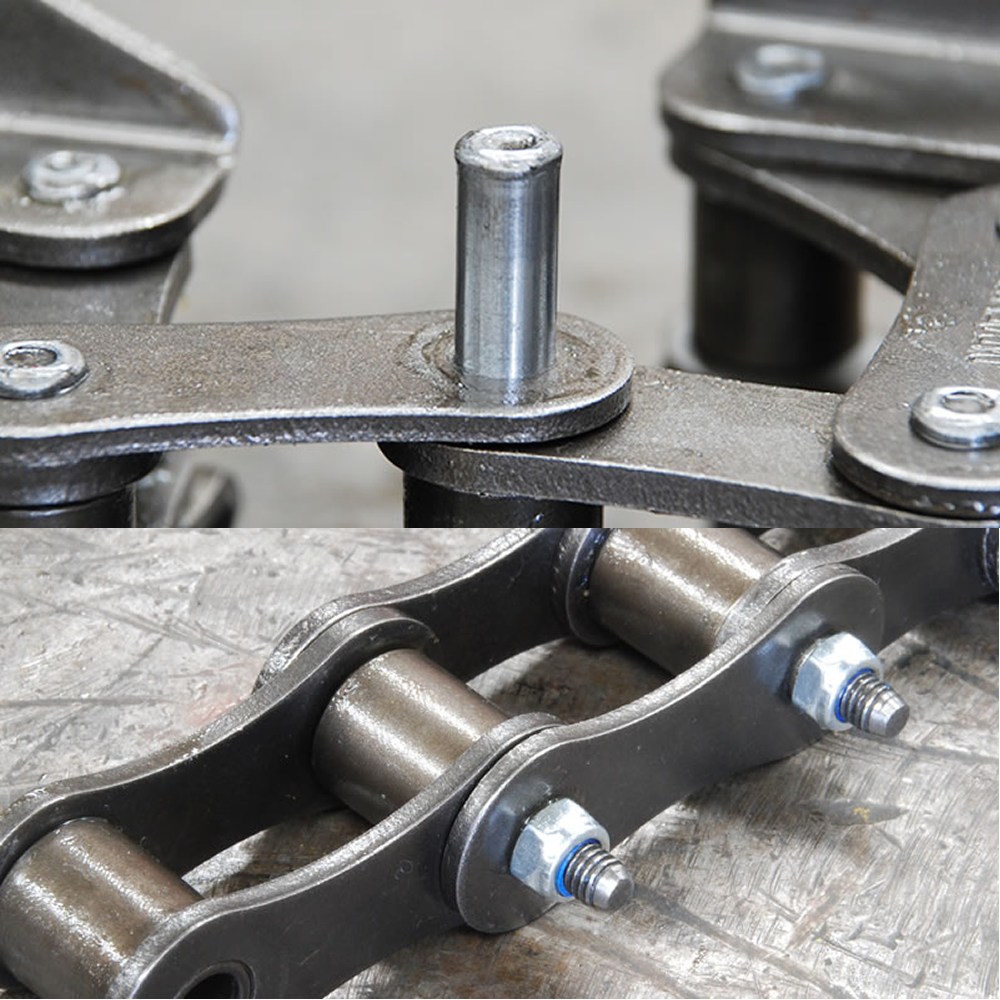

Chain Type	A557	Chrome Pin
Chain Assembly	3 Chain with bars
Attachment Pattern	6-2/4-6	Same as Case-IH OEM
Number of Pitches	76	Including Connectors
Supplied Connectors	3 x Conns 6 x Offset Links	Threaded
Assembly Width (Overall)	1055mm	41.50"
Number of bars	24
Chain centre to centre	18-1/8"	461mm
Bar Type	6mm U-Bar G350	Roll serrated & electroplated
Bolts	96 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	96 x M10 Cone lock	Torque prevailing

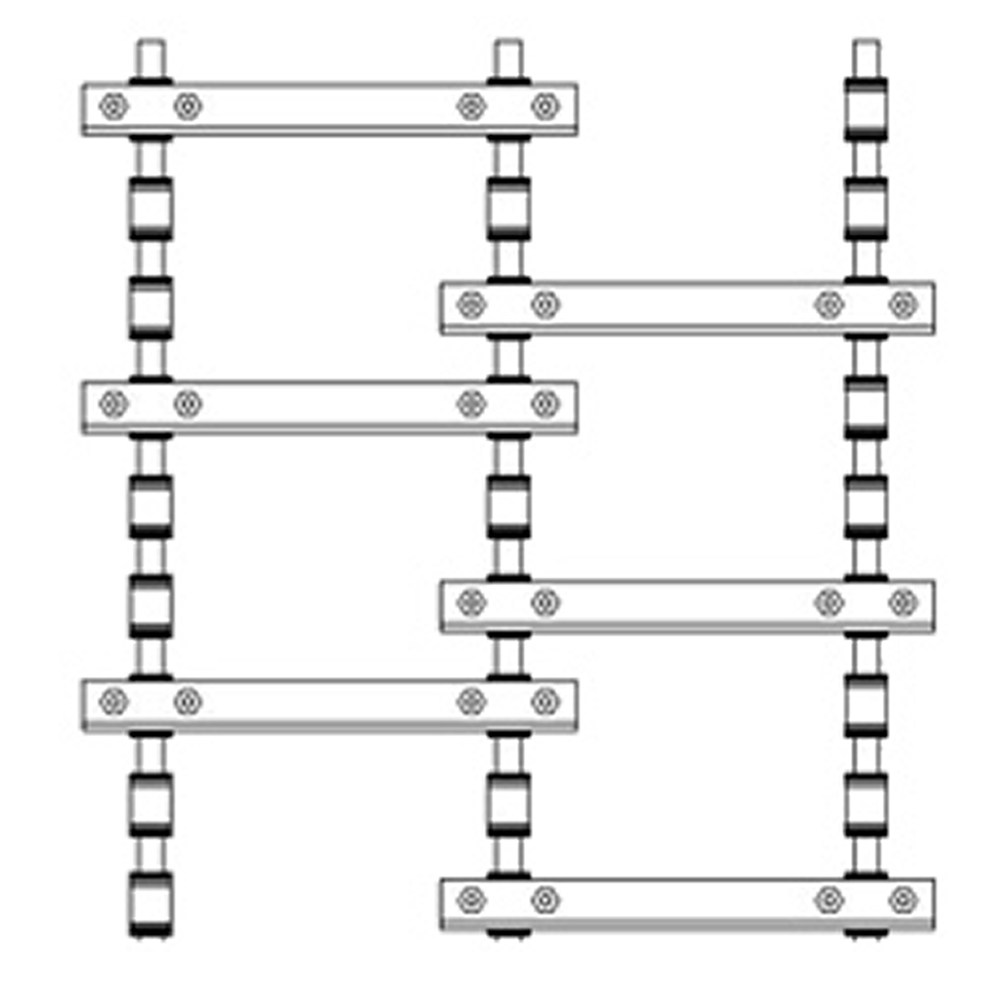

Build Sheet-24Bar (Same as OE)

Build Sheet- 26Bar (Replaced by 24Bar)

CH283 195670A2 195670A1
