CASE-IH® Compatible
Feeder House Chain Assembly - Black Pin

WITH ROCK TRAP

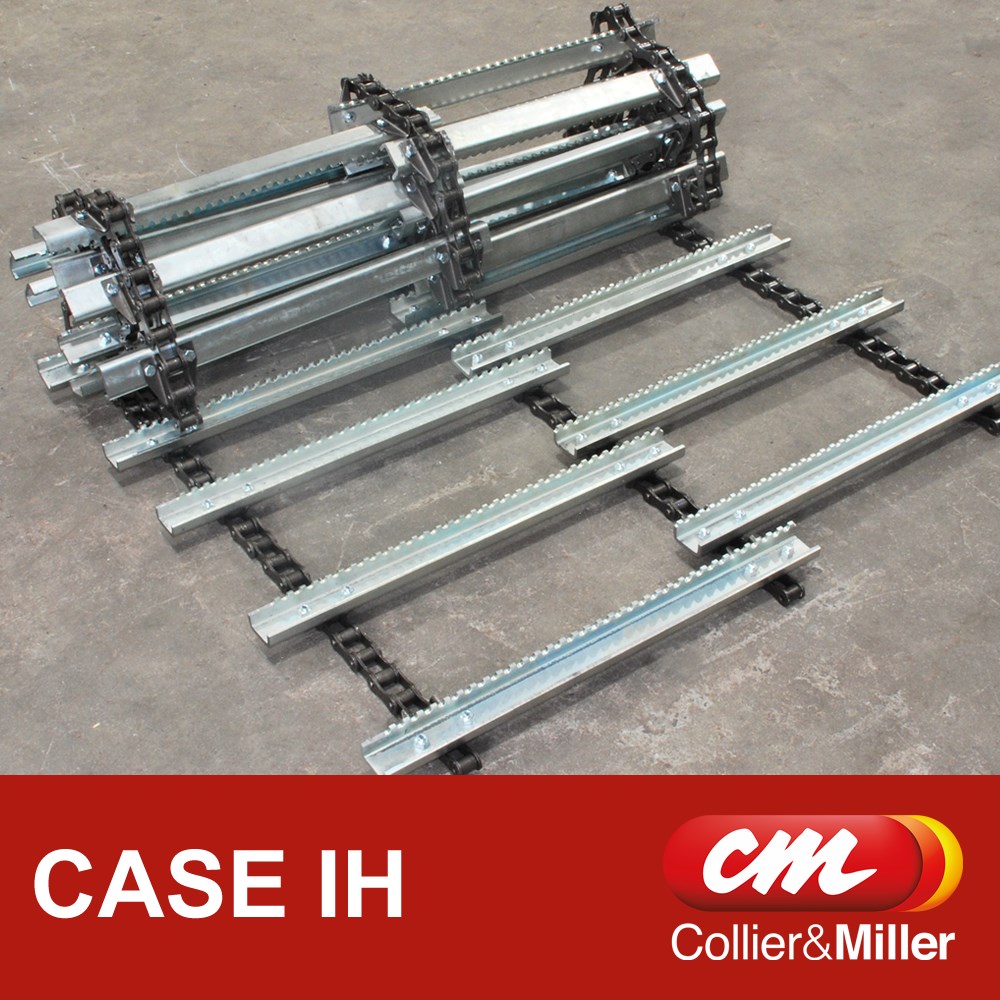

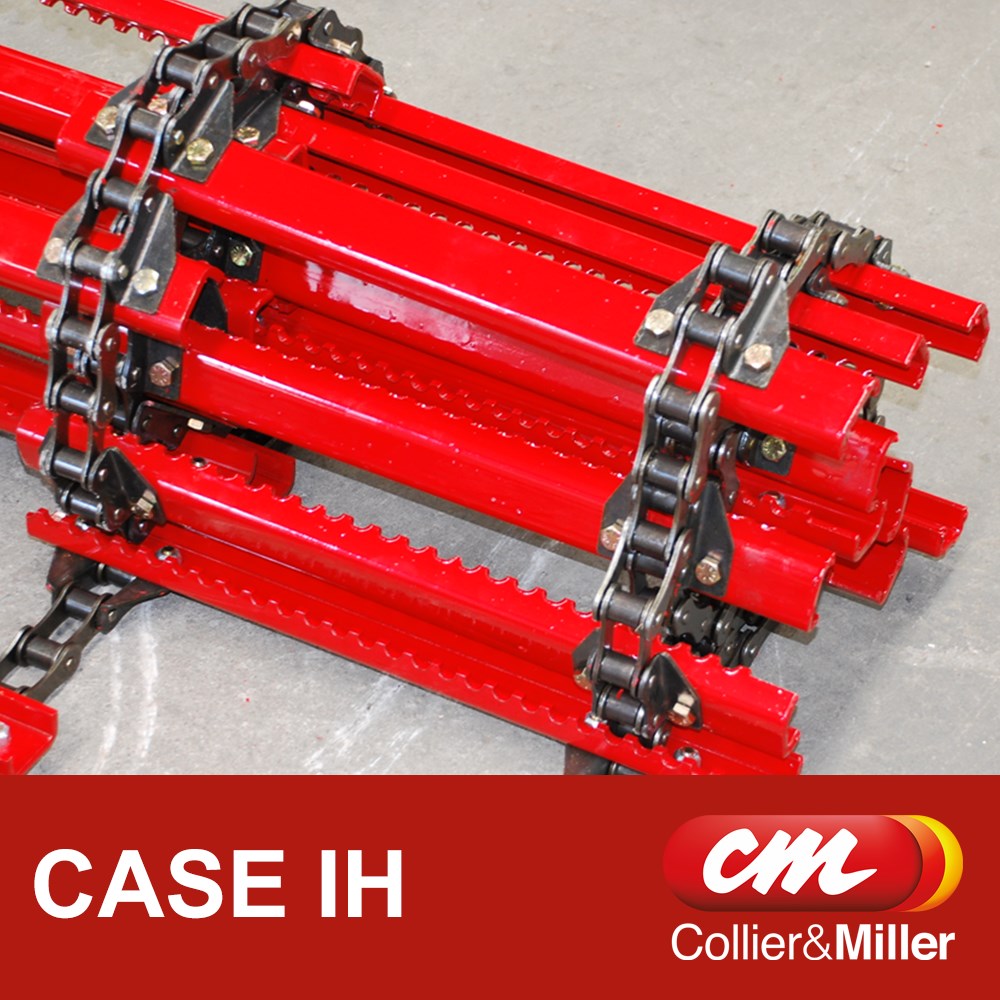

C&M replacement complete feeder house chain assembly to suit the front feeder house on Case-IH 130 & some early model 140 series combine harvesters. This is a set of three (3) replacement chains fitted with grade 350 electroplated 6mm roll-serrated U-Bar slats with the same spacing as the case original chain.

This chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chain and electroplated serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.

This chain assembly has the bar spacing of 130 series and some 140 series combine harvesters. Later models were supplied with wider spacing (less bars) than the 130 Series and early 140 series machines.

Part Number

• 84207192

Series	Models	Serial/Year
CASE-IH®130 Series	6130	6130 - COMBINE - TIER 2 COMMON CAB (01/13 - 02/14)
		6130 - COMBINE - TIER 4 COMMON CAB (EU) (01/13 - 03/14)
		6130 - COMBINE TIER 2 (01/12 - 12/12)
	6130	6130 - COMBINE TIER 4 (01/12 - 12/12)
	7130	7130 - COMBINE - TIER 2 COMMON CAB (01/11 - 02/14)
		7130 - COMBINE TIER 2 (01/12 - 12/12)
CASE-IH® Series	6140	6140 - COMBINE - TIER 2 (03/14 - 10/15)
	7140	7140 - COMBINE - TIER 2 (03/14 - 10/15)

• Fits Feeder House with Rock-Trap
• Premium grade pin chain
• Premium Electroplated roll formed 6mm seratted U-Bar
• Connectors & Half Links Included
• Bolted assembly ready to install
• Connectors & Half Links Included
• OEM is 12 LH Slats * Note we may supply this with 13 slats
• OEM is 12 RH Slats * Note we may supply this with 13 slats

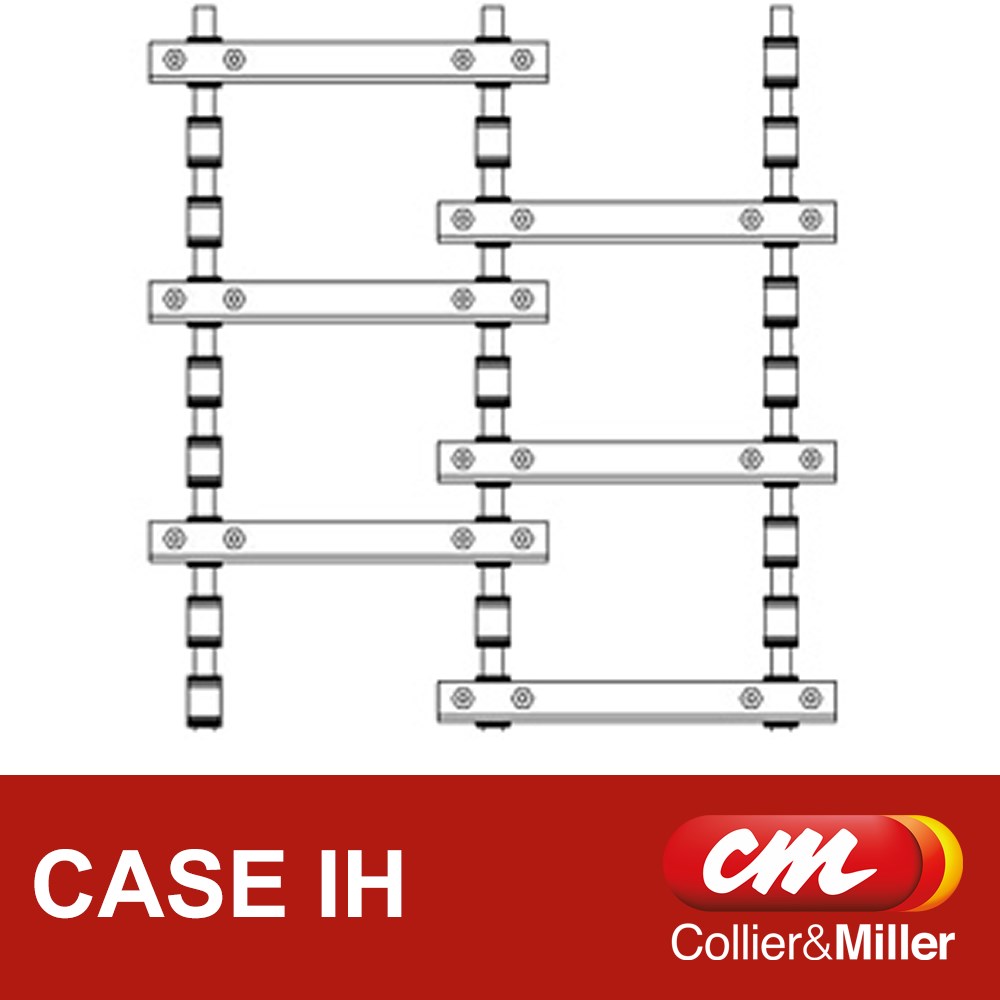

• 76 Links 6-2/4-6 Spacing

Technical Specifications

Item	Details	Notes
CM036OEM	Case-IH® Mid Series Chains	130 & early 140 series with rock trap
Chain Brand	AMEC	Stamped C&M

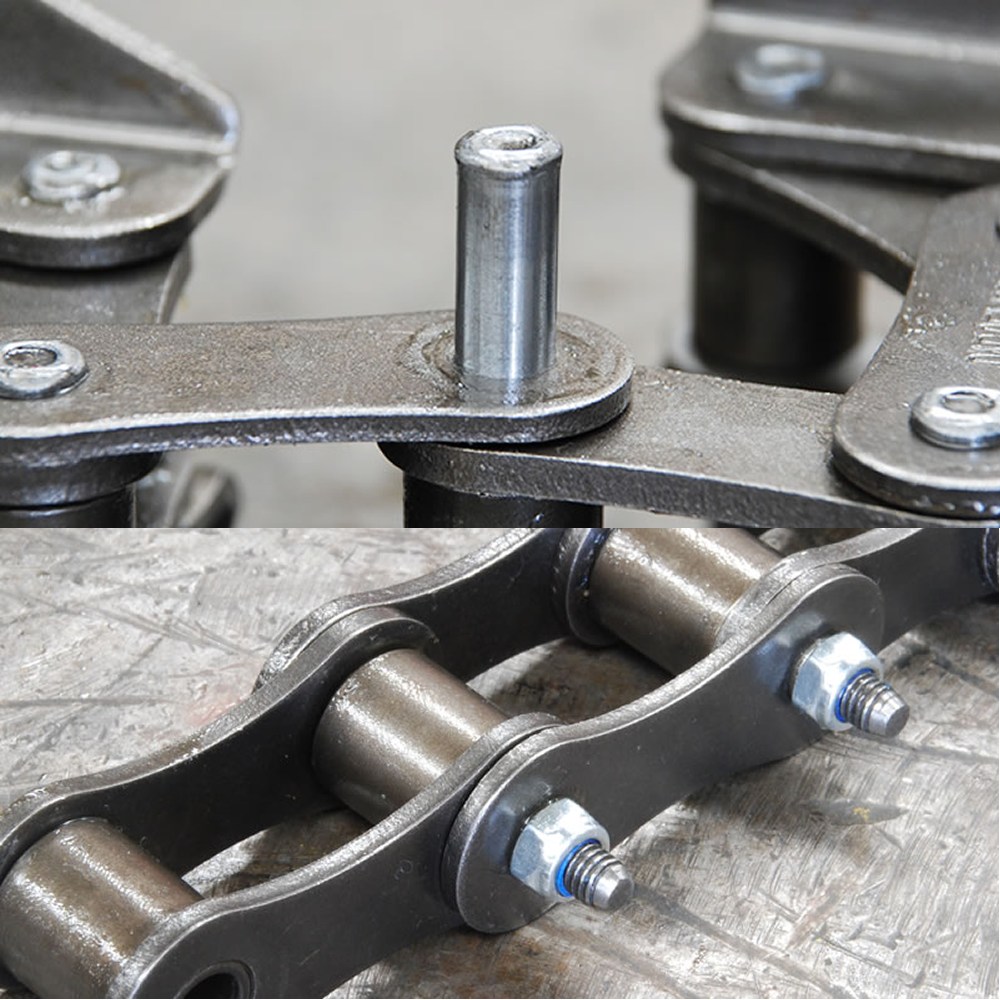

Chain Type	A557	Black Pin
Chain Assembly	3 Chain with bars
Attachment Pattern	6-2/4-6
Number of Links	76	Including Connectors
Supplied Connectors	3 x Conns 6 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	24
Chain centre to centre	461mm + 461mm

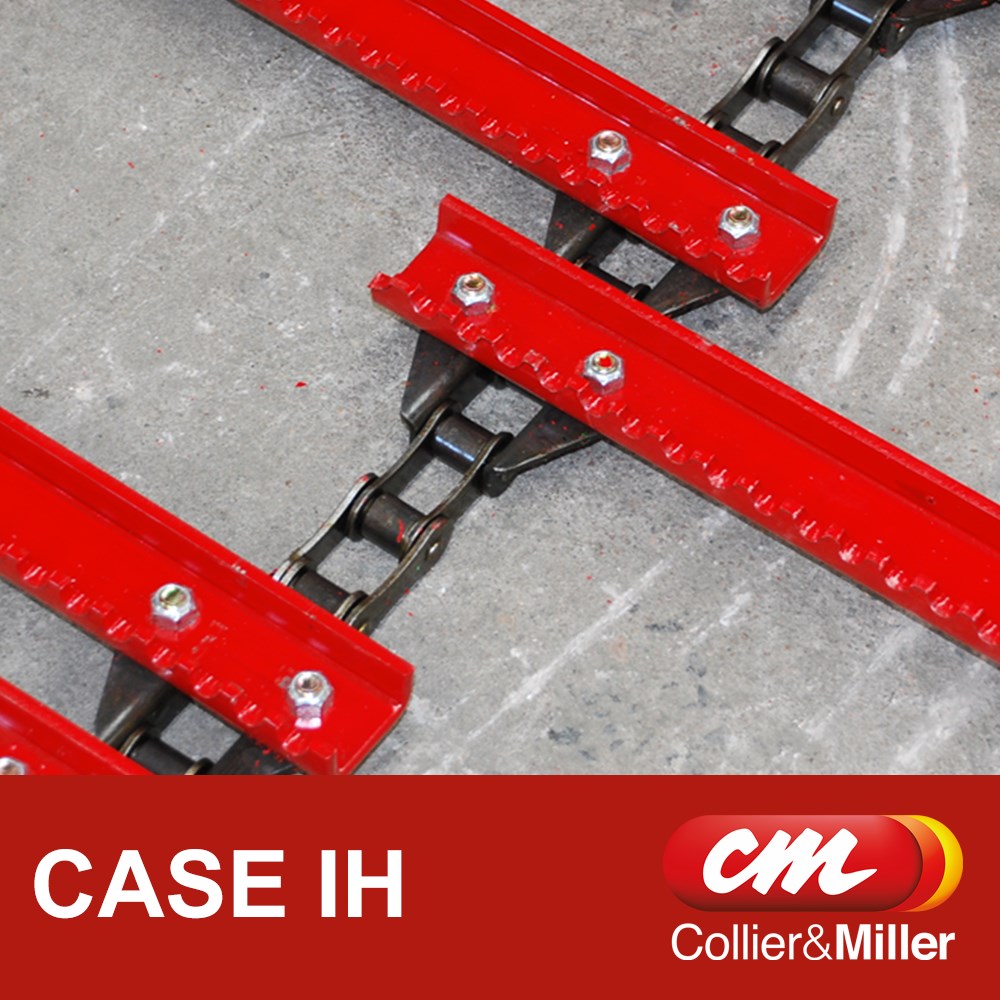

Slat Type	6mm U-Bar	Roll-Serrated & Electroplated
Bolts	96 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	96 x M10 Cone lock	Torque prevailing

Build Sheet

84207192

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
