CASE-IH® Compatible

Feeder House Chains Only Set - Black Pin

WITH ROCK TRAP

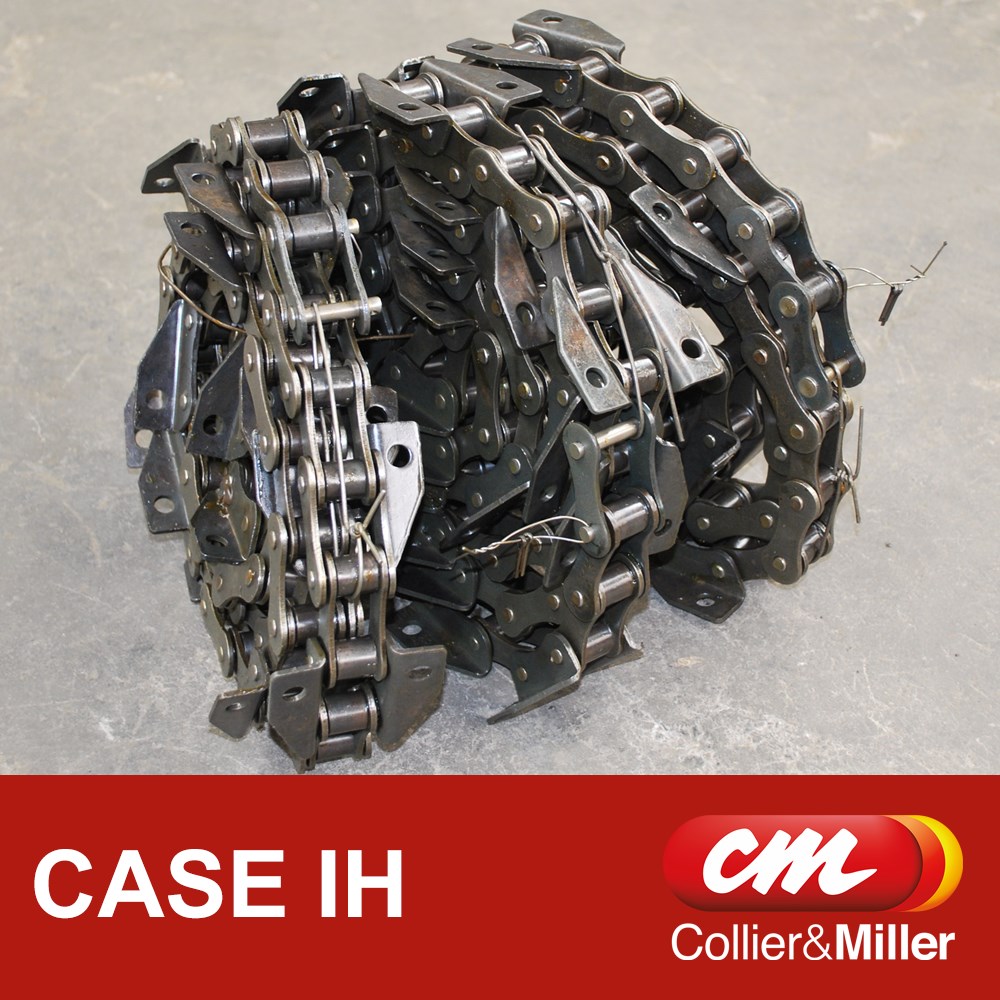

C&M replacement black pin feeder house chains only to suit the front feeder house on Case-IH 130 & some early model 140 series combine harvesters. This is a set of three (3) replacement chains with the same spacing as the case original chain.

You can re-chain your assembly using the original Case-IH® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chrome-pin chain. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.

Part Numbers	Notes	Fitment
118661A1	Outer Chain with rock trap	CHAIN A557, 75 Links x 41.4mm = 3105mm x 2 Required
1989529C	Center Chain with rock trap	CHAIN A557, 75 Links x 41.4mm = 3105mm x 1 Required

Series	Models	Serial/Year	Notes
Case 21 Series	2188	(01/95-12/97)	60" Feeder 3 Chain Upgrade Option
	2188	(01/95-12/97)	54.5" Feeder Chain - Must be shortened
Case 23 Series	2377	BTW HAJ292001&HAJ300000.	60" Feeder
	2388	BSN JJC0276540 BTW HAJ292001 & HAJ300000	60" Feeder
	2388	BSN JJC0276640 (10/97-12/04)	54.5" Feeder Chain - Must be shortened
Case 25 Series	2588	ASN HAJ300001
Case 88 Series	5088	(04/07 - 01/12)	Non-Stone Trap
	6088	(12/07 - 12/11) (04/07 - 01/12)	Non-Stone Trap
	7088	(12/07 - 12/11) (04/07 - 01/12)	Non-Stone Trap
Case 130 Series	5130	(01/12 - 12/12) (01/12 - 12/13) (01/13 - 03/14)	Including Stone Trap
	6130	(01/13 - 08/15) (01/13 - 03/14)	Including Stone Trap
	7130	(01/11 - 06/15) (01/12 - 12/12)	Including Stone Trap
Case 140 Series	5140	(03/14 - 10/15)
	6140	(01/12 - 12/12) (03/14 - 10/15)
	7140	(03/14 - 10/15)

Features

• C&M quality chain

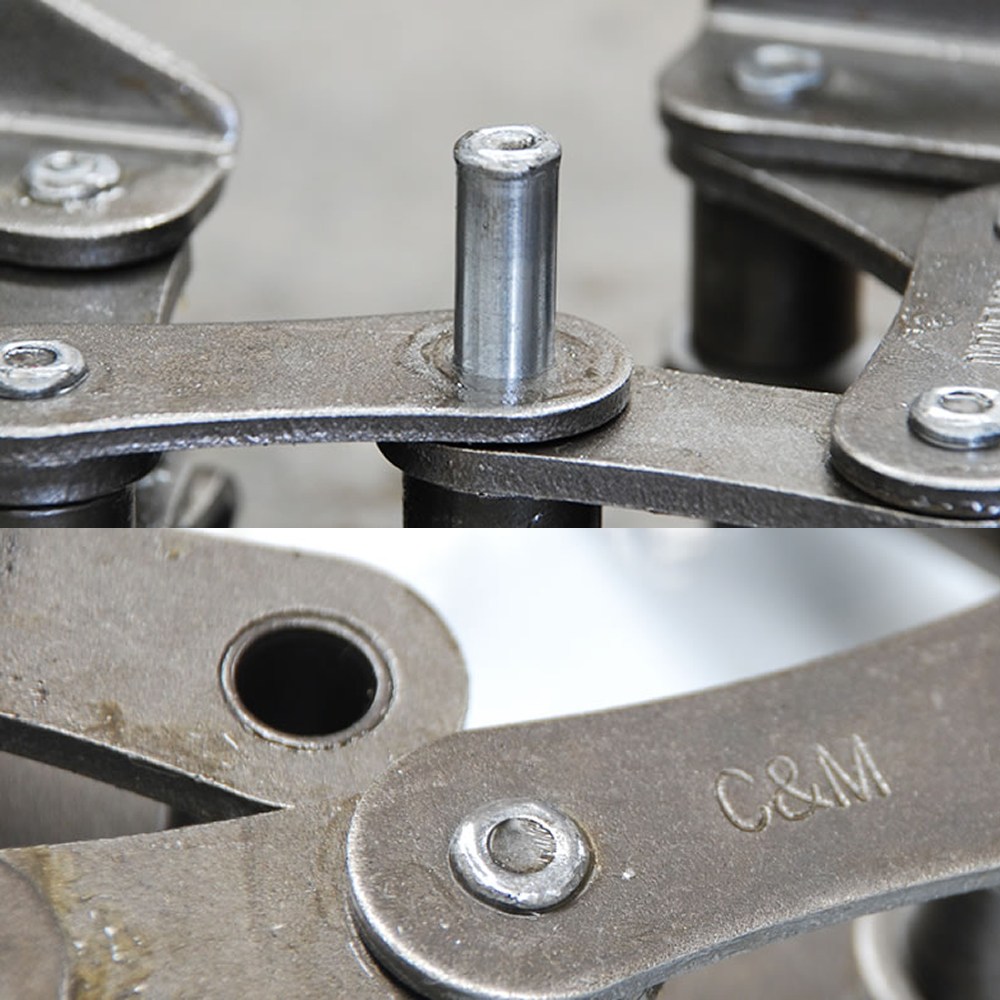

• Premium grade black-pin chain
• Connectors & half links included
• Fasteners not included

C&M Technical Specifications

Item	Details	Notes
CM036OEMCO	Case-IH® Mid Series	WITH ROCK TRAP
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Black Pin
Chain Assembly	3 Chain with bars

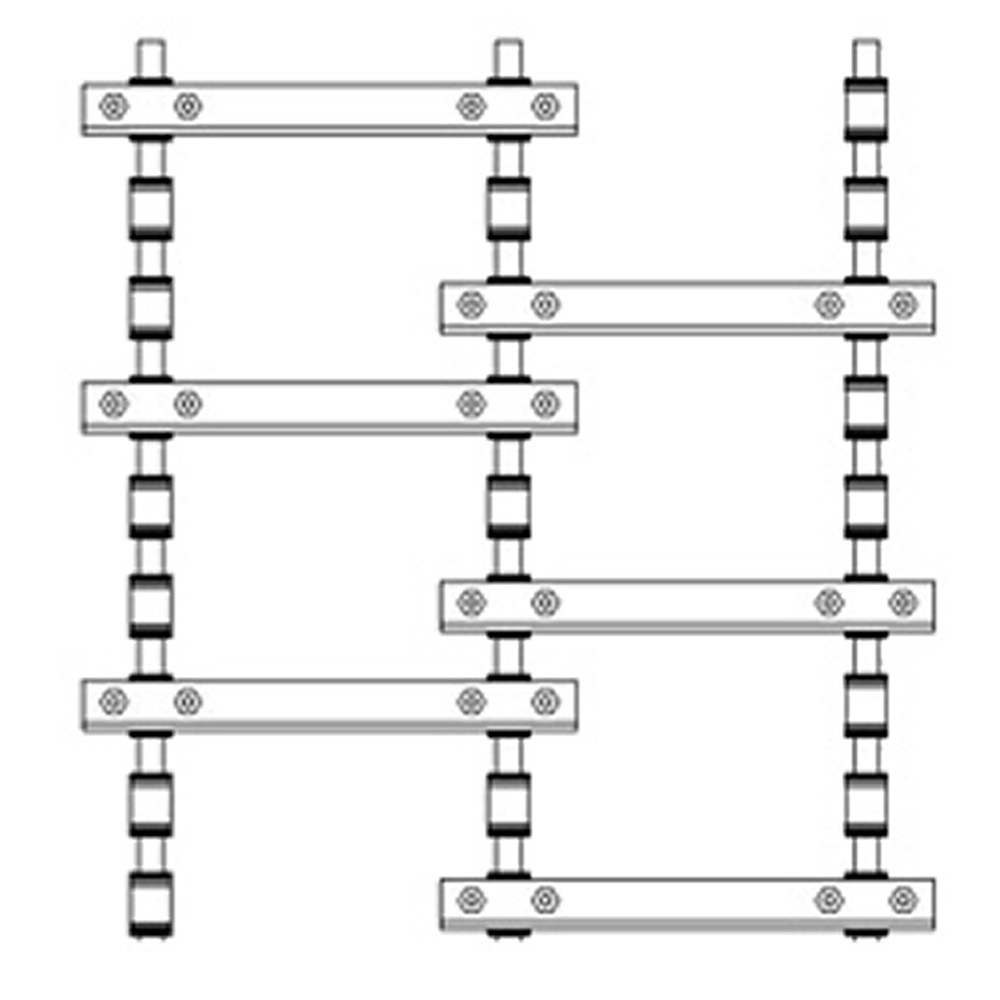

Attachment Pattern	6-2/4-6	Same as Case-IH OEM
Number of Pitches	76	Including Connectors
Supplied Connectors	3 x Conns 6 x Offset Links	Threaded
Assembly Width (Overall)	1055mm	41.50"
Number of bars	24
Chain centre to centre	461mm + 461mm	18.125" + 18.125"
Bar Type	6mm U-Bar	G350 Roll serrated & electroplated
Bolts	96 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	96 x M10 Cone lock	Torque prevailing

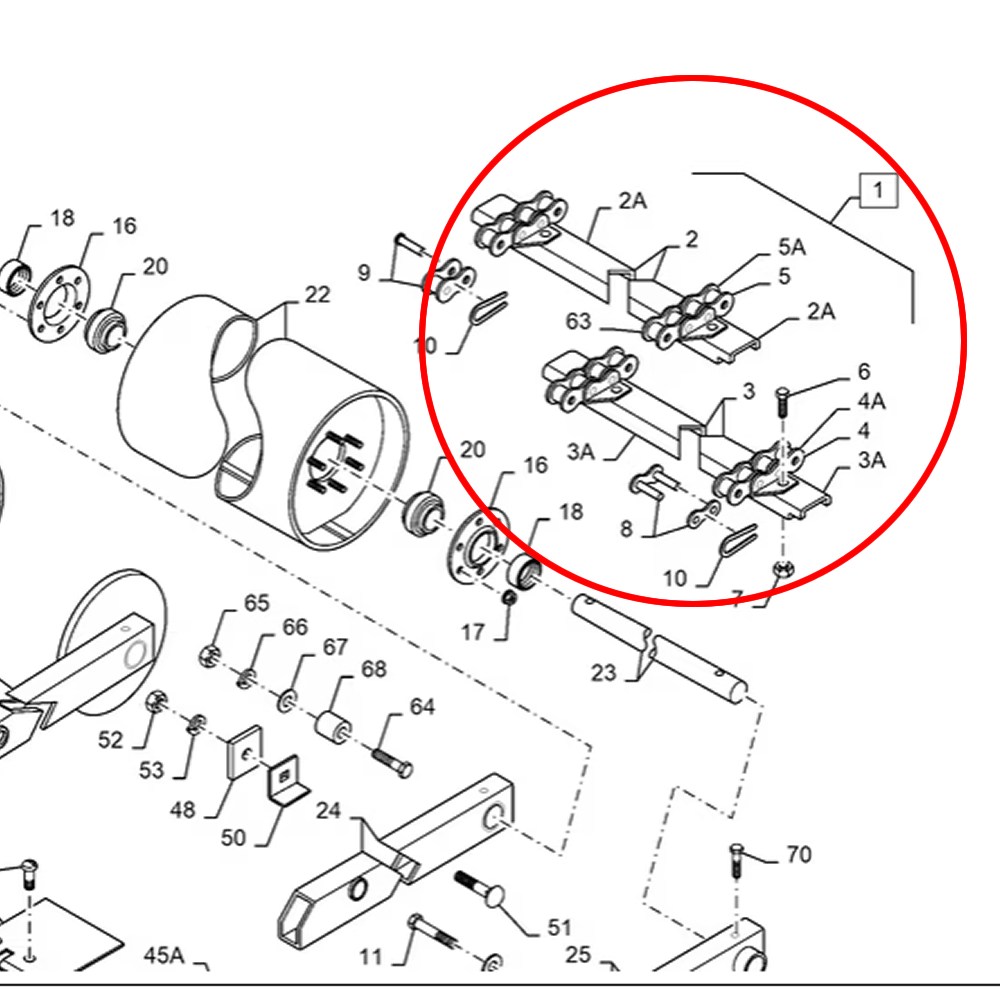

Build Sheet

118661a1 1989529C1

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
