CASE-IH® Compatible
Feeder House Chain Assembly - Black Pin

NON ROCK TRAP

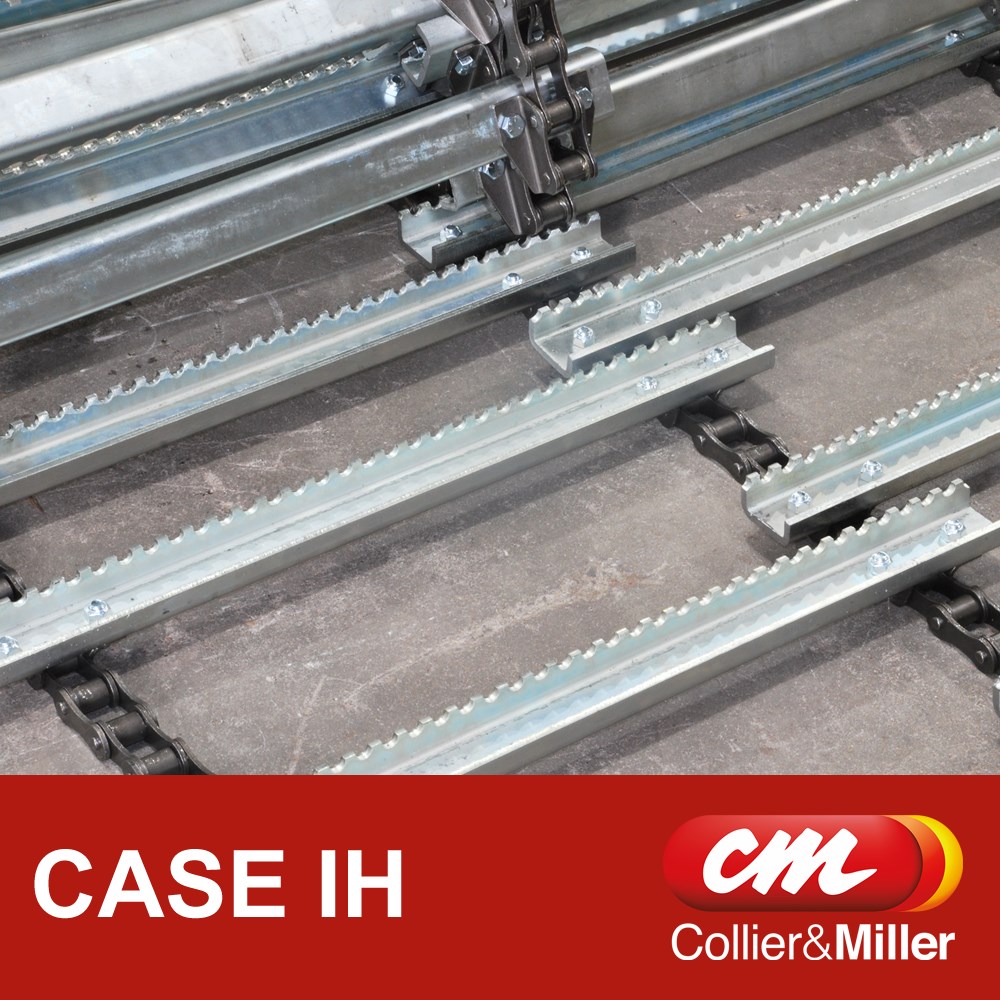

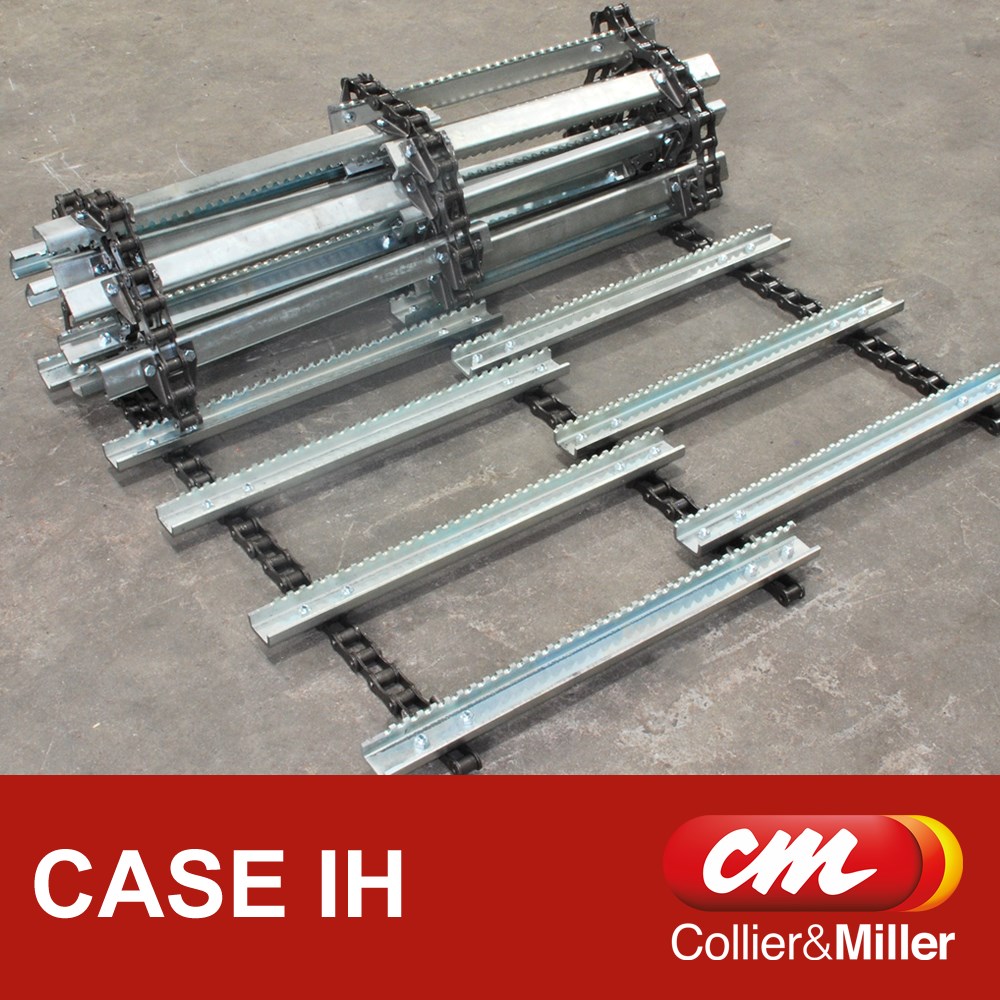

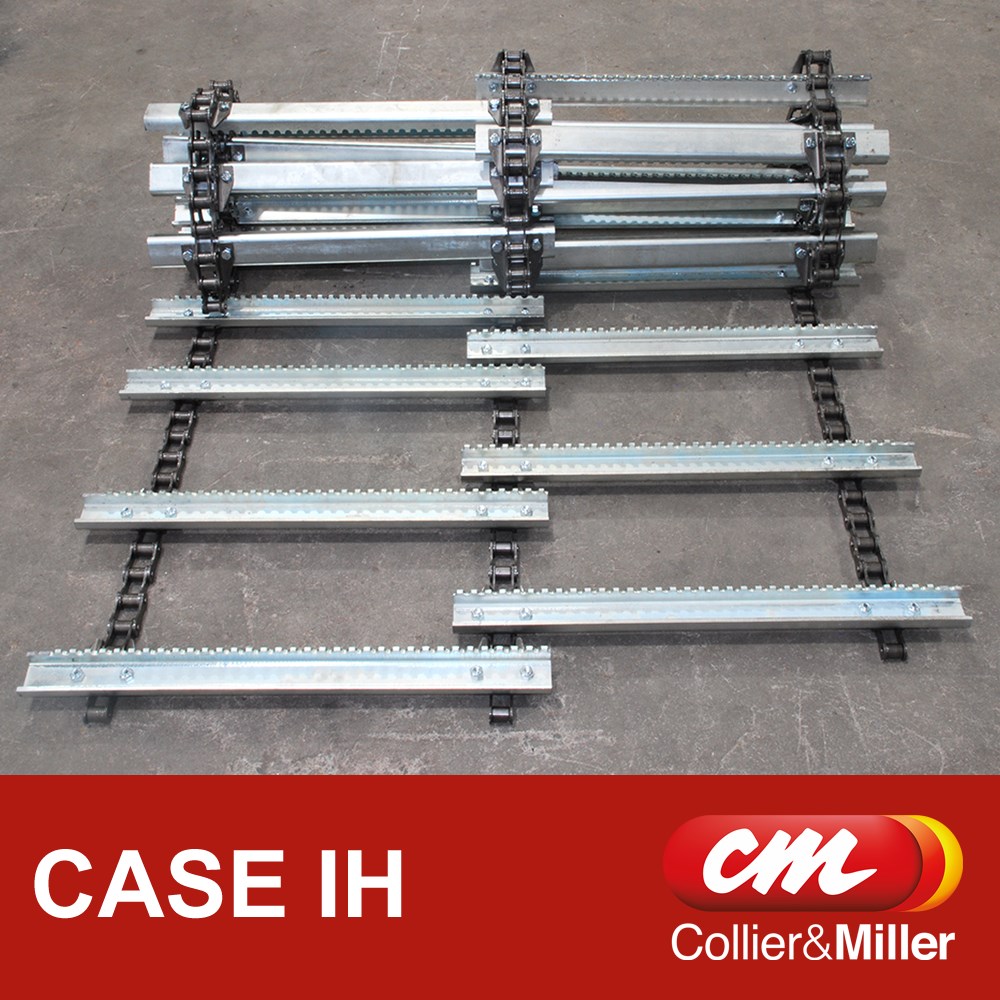

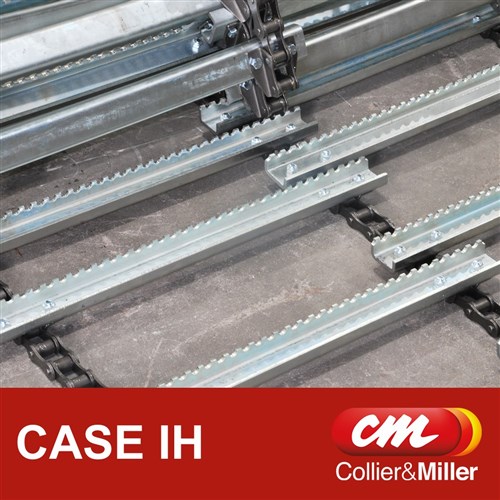

C&M replacement complete feeder house chain assembly to suit the front feeder house on Case-IH 130 & some early model 140 series combine harvesters. This is a set of three (3) replacement chains fitted with grade 350 electroplated 6mm roll-serrated U-Bar slats with the same spacing as the case original chain.

This chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade black-pin chain and electroplated serrated 6mm U-Bar slats. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.

Part Number

• 84346485

Series	Models	Serial/Year
CASE-IH® 130 Series	6130	6130 - COMBINE - TIER 2 COMMON CAB (01/13 - 02/14)
		6130 - COMBINE - TIER 4 COMMON CAB (EU) (01/13 - 03/14)
		6130 - COMBINE TIER 4 (01/12 - 12/12)
		6130 - COMBINE TIER 2 (01/12 - 12/12)
	7130	7130 - COMBINE - TIER 2 COMMON CAB (01/11 - 02/14)
		7130 - COMBINE TIER 2 (01/12 - 12/12)
CASE-IH® 140 Series	6140	6140 - COMBINE - TIER 2 (03/14 - 10/15)
	7140	7140 - COMBINE - TIER 2 (03/14 - 10/15)

• Fits Feeder House without Rock-Trap
• Premium grade black-pin chain
• Electroplated roll formed 6mm seratted U-Bar
• Bolted assembly ready to install
• 3 x Connectors & 6 x Half Links Included
• 28 bars
• 88 Links 6-2/4-6 Spacing as per OEM chains

Item	Details	Notes
CM037OEM	Case-IH® Mid Series Chains	130 & early 140 series
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Black Pin
Chain Assembly	3 Chain with bars

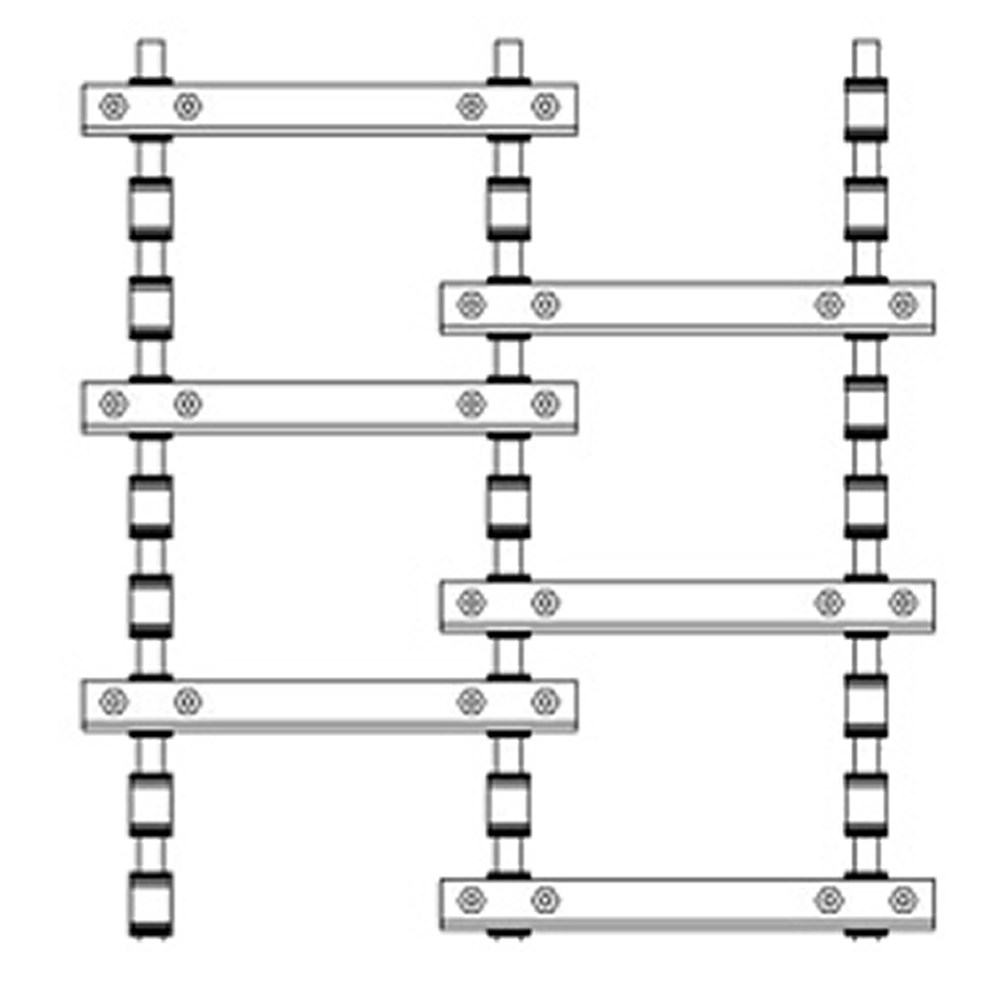

Attachment Pattern	8-6/2-8
Number of Links	88	Including Connector

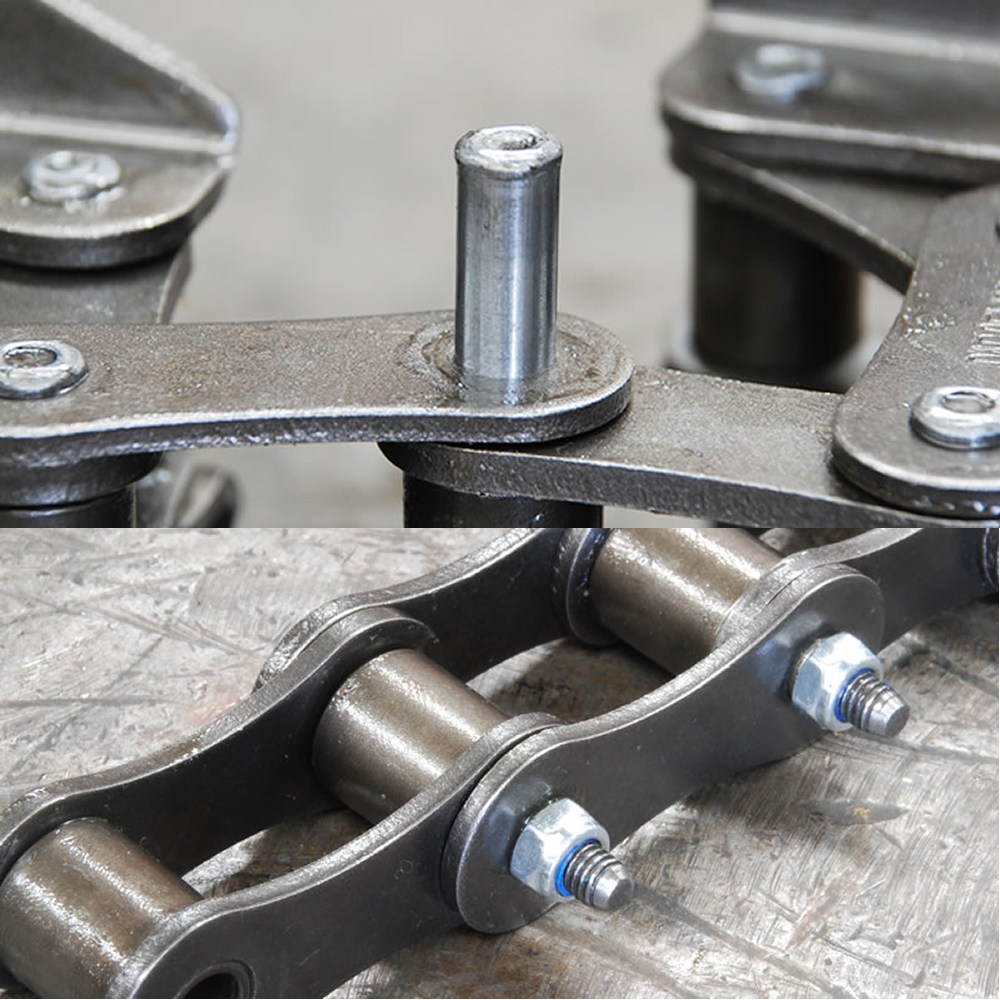

Supplied Connectors	3 x Conns 6 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	28
Chain centre to centre	461mm
Slat Type	6mm U-Bar	Roll-Serrated & Electroplated
Bolts	112 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	112 x M10 Cone lock	Torque prevailing

Build Sheet

84346485

Product Warranty

The Collier & Miller warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrant that it will repair or replace (whichever it deems advisable) any product manufactured or imported by Collier & Miller which proves to be defective in material or workmanship within a period on one (1) from the date of the original purchase on the invoice. This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose.

Conditions

1. The warranty covers normal use and does not cover damage or defect which is the result of alteration, accident , neglect, improper installation, operation or maintanance.
2. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.
3. Collier & Miller neither assumes or authorizes any other person to give any warranty or to assume any other obligation on its behalf

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR, FITTED WITH NEW SPROCKETS AND INSTALLED BY A SUITABLY QUALIFIED PERSON. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
