CASE IH FEEDER CHAINS ONLY A557 6-2/4-6 3 ROW 87L 28ATT CASE 140 150 NO ROCK TRAP

A557 6-2/4-6 3 ROW 87L 28ATT CASE 140 150 NO ROCK TRAP

Product Code: CM037OEMCO

Detail
Technical
Interchange

CASE-IH® 5130 6130 7130 5130 6140 7140 Compatible

Feeder House Chains Only Set

NON ROCK-TRAP

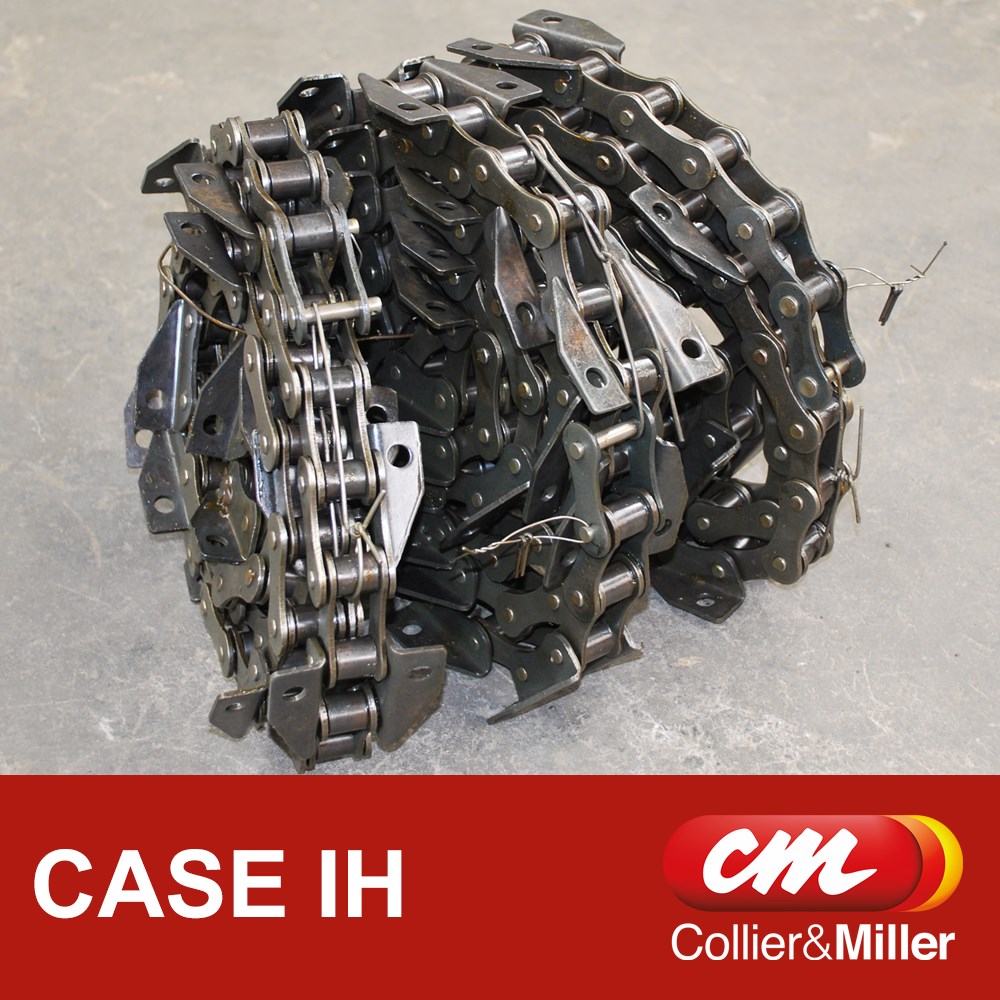

C&M replacement black pin feeder house chains only to suit the front feeder house on Case-IH 130 & some early model 140 series combine harvesters. This is a set of three (3) replacement chains with the same spacing as the case original chain.

You can re-chain your assembly using the original Case-IH® slats. This chains only assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chrome-pin chain. We guarantee the quality of these unit, however we recommend you fit new sprockets at the time of installation.

Part Number

84361383 84361382

Series	Models	Serial/Year
CASE-IH® 130 Series	6130	6130 - COMBINE - TIER 2 COMMON CAB (01/13 - 02/14)
		6130 - COMBINE - TIER 4 COMMON CAB (EU) (01/13 - 03/14)
		6130 - COMBINE TIER 4 (01/12 - 12/12)
		6130 - COMBINE TIER 2 (01/12 - 12/12)
	7130	7130 - COMBINE - TIER 2 COMMON CAB (01/11 - 02/14)
		7130 - COMBINE TIER 2 (01/12 - 12/12)
CASE-IH® 140 Series	6140	6140 - COMBINE - TIER 2 (03/14 - 10/15)
	7140	7140 - COMBINE - TIER 2 (03/14 - 10/15)

Features

C&M quality chain
Non-Rock-Trap model
Premium grade black-pin chain
Connectors & half links included
Fasteners not included

Item	Details	Notes
CM037OEMco	Case-IH® Mid Series Chains	130 & early 140 series
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Black Pin
Chain Assembly	3 Chain	No Bars
Attachment Pattern	8-6/2-8
Number of Links	88	Including Connector
Supplied Connectors	3 x Conns 6 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	28	Not included
Chain centre to centre	461mm + 461mm
Slat Type	6mm U-Bar	Not included
Bolts	112 x M10X25 Class 10.9	Not included
Nuts	112 x M10 Cone lock	Not included
