New Holland® Compatible
Feeder House Chain Assembly - CR 9000 Series

17.125" CHAIN CENTRES

C&M aftermarket complete feeder house chain to fit New Holland® CR9000 series combine harvesters with a 17.125" chain centres. This is a complete set of three (3) replacement chains fitted with 6mm roll-serrated electroplated U-bars. Bar spacing is the same as the New Holland® original chain.

This complete feeder house chain assembly is supplied with connectors and half links for each strand. This assembly is assembled in Australia from premium black-pin chain. We guarantee the quality of these units, however we recommend you fit a new sprocket at the time of installation.

Part Numbers

• 87372056

Series	Models	Serial/Year
New Holland® CR70	CR7090	17.125" Chain Centres
New Holland® CR60	CR6090	17.125" Chain Centres
New Holand® CR9	CR940, CR960	17.125" Chain Centres
New Holland® CR90	CR9040, CR9060	17.125" Chain Centres

Features

• C&M Assembled In Australia
• Premium grade pin chain

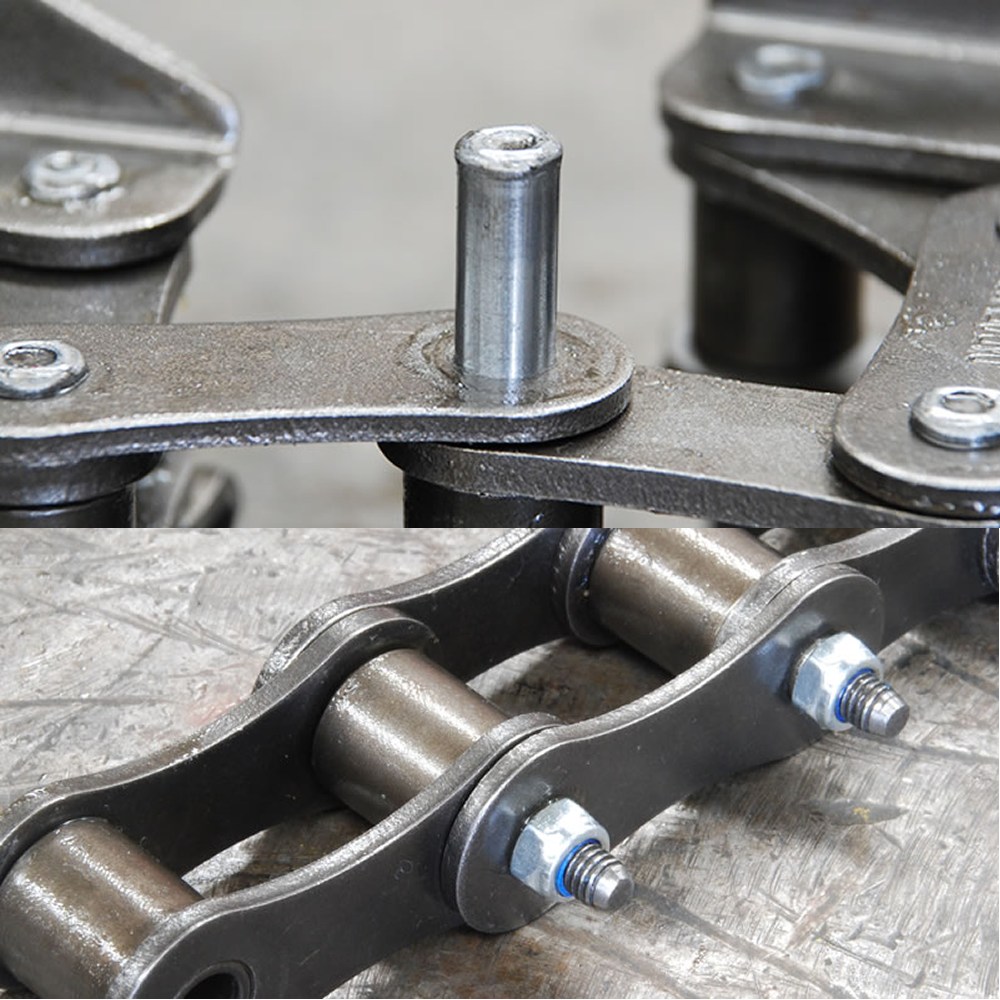

• 3 x Connectors & 6 x Half Links Included

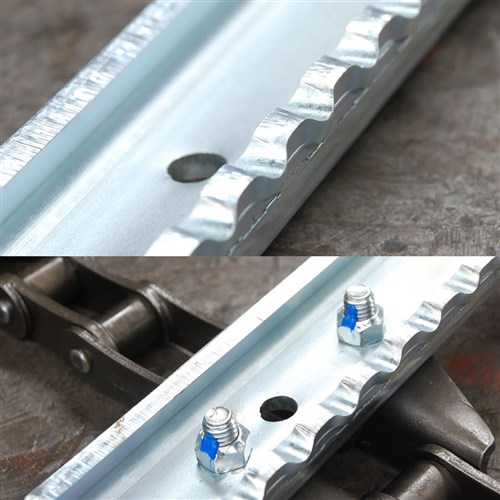

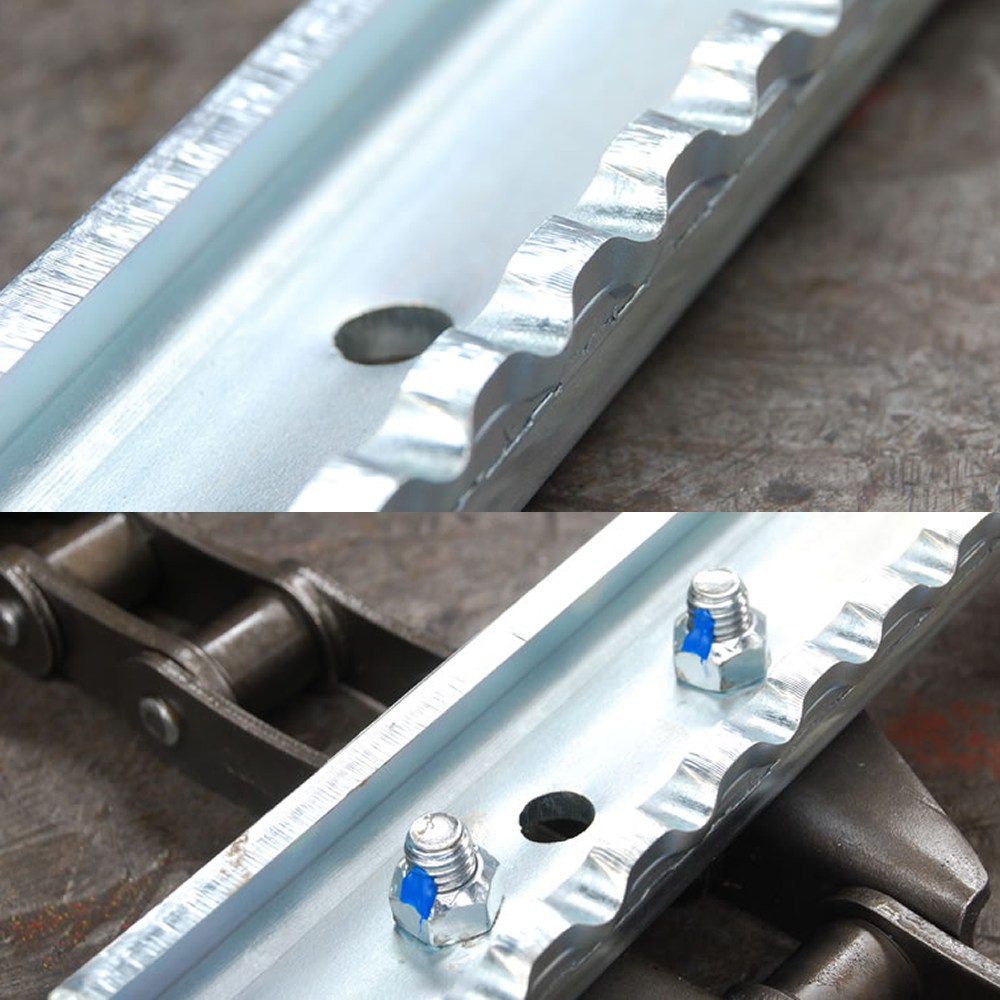

• Premium 6mm roll-serrated electroplated u-bars
• Same spacing as New Holland® OEM Assembly
• All fasteners are hi-tensile, threadlocked and use cone-lock nuts
• Bolted assembly ready to install

Item	Details	Notes
CM059OEM	New Holland CR9000 Series	17.125" chain centres
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Black Pin
Chain Assembly	3 Chain with bars

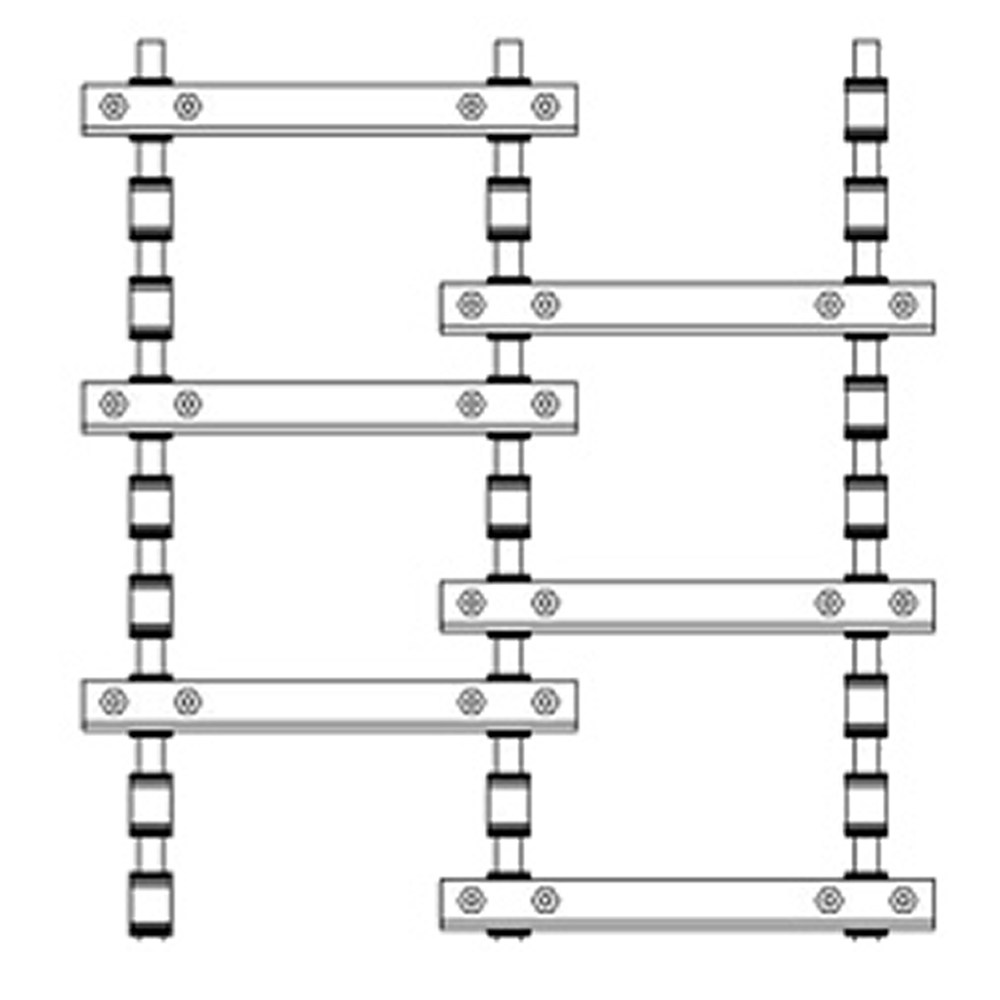

Attachment Pattern	6-2/4-6
Number of Links	112	Including Connectors
Supplied Connectors	3 x Conns 6 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	36
Chain centre to centre	17.125"	435mm
Slat Type	6mm U-Bar	Roll-Serrated & Electroplated
Bolts	144 x M10X25 Class 10.9	Threadlocker Pre-Treated
Nuts	144 x M10 Cone lock	Torque prevailing

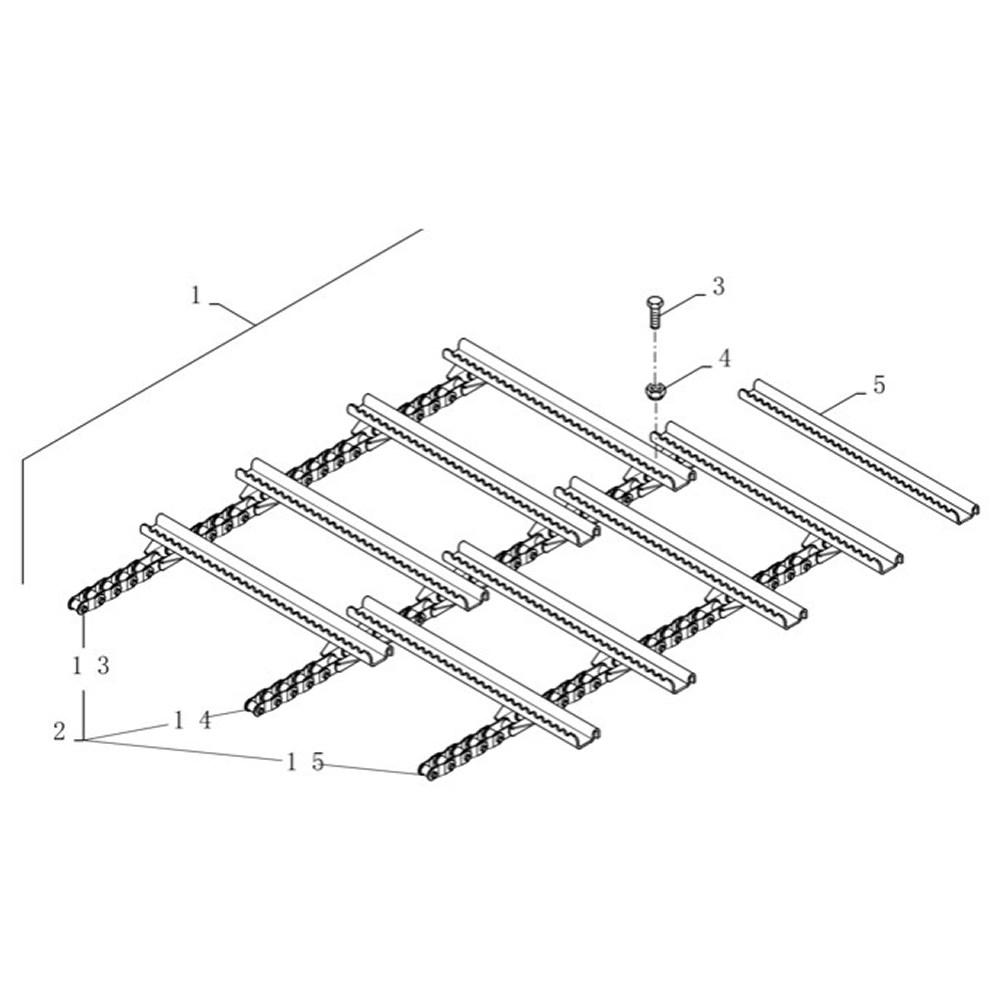

Build Sheet

87372056

Product Warranty

The Collier & Miller warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrant that it will repair or replace (whichever it deems advisable) any product manufactured or imported by Collier & Miller which proves to be defective in material or workmanship within a period on one (1) year from the date of the original purchase on the invoice. This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose.

Conditions

1. The warranty covers normal use and does not cover damage or defect which is the result of alteration, accident , neglect, improper installation, operation or maintanance.
2. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.
3. Collier & Miller neither assumes or authorizes any other person to give any warranty or to assume any other obligation on its behalf

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR, FITTED WITH NEW SPROCKETS AND INSTALLED BY A SUITABLY QUALIFIED PERSON. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
