New Holland® Compatible

Feeder House Chains Only Set - Chrome Pin

WITHOUT DYNAMIC FEED ROLL

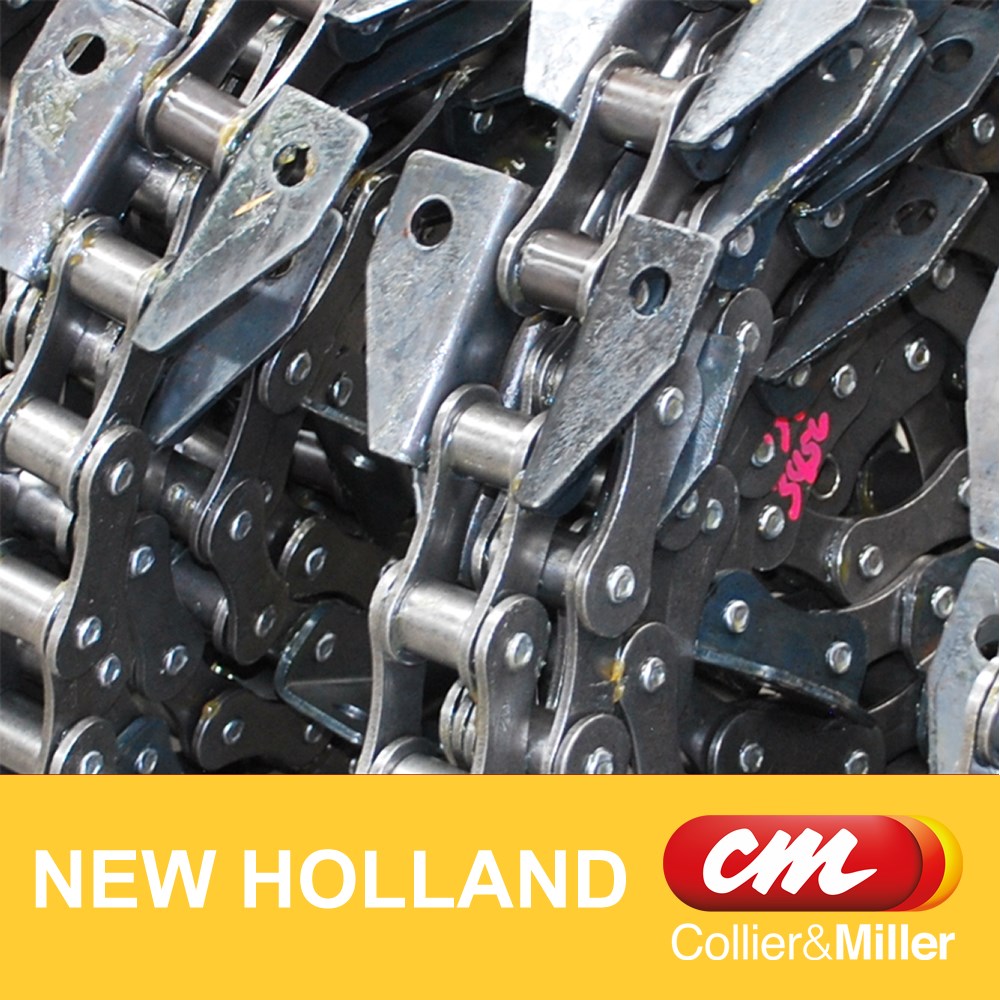

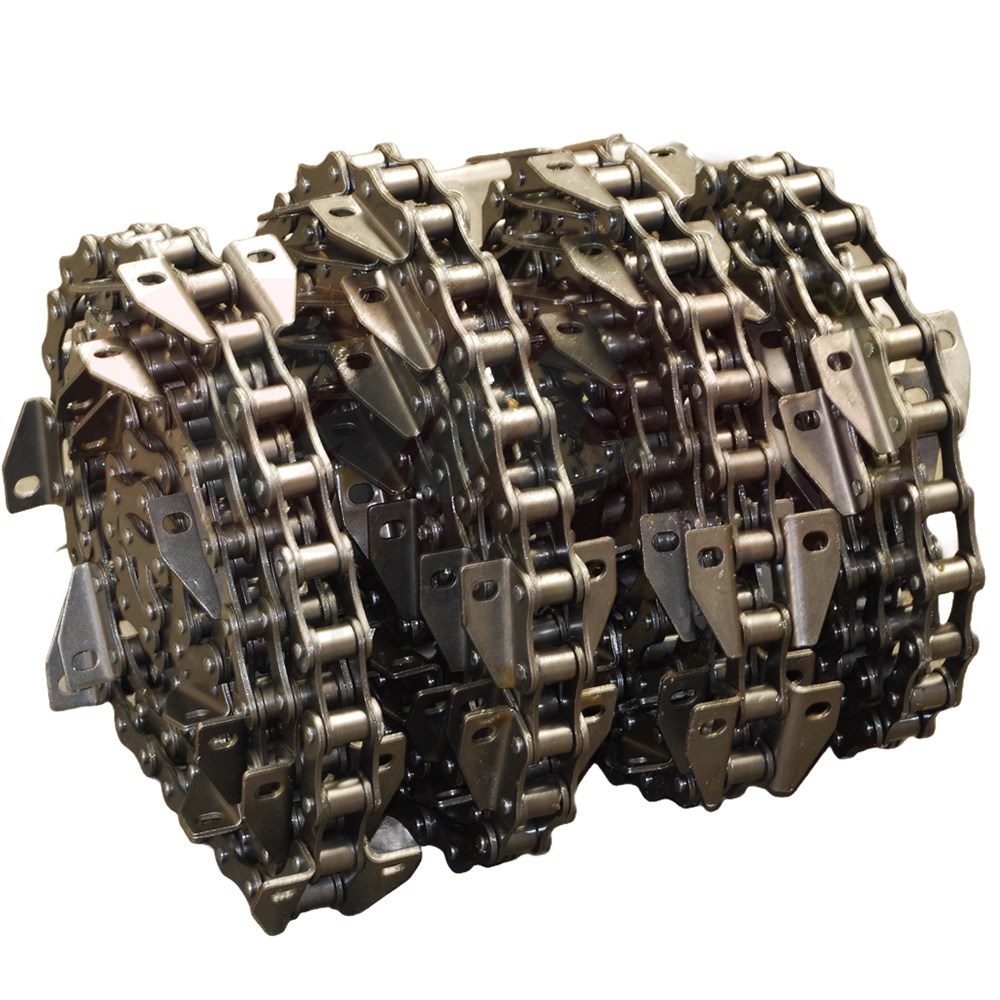

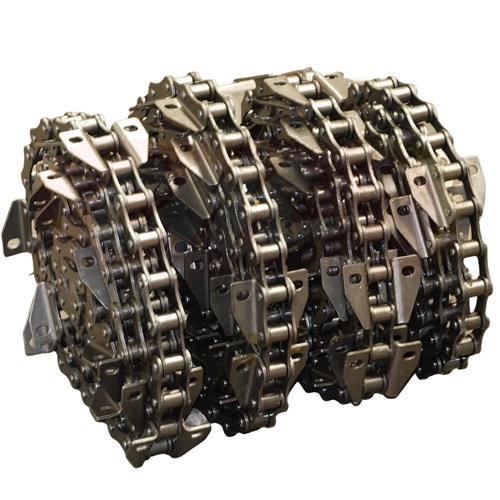

C&M replacement feeder house chains only set to fit the front feeder house on New Holland® CR series combine harvesters. This is a set of four (4) replacement chains with the same spacing and attachment holes as the New Holland® original chain.

You can re-chain your assembly using the original New Holland® slats. This chains only set is supplied with threaded connectors and half links for each strand. We supply these chains in Australia from premium grade chrome pin chain. We warranty the quality of these unit, however we recommend you fit new sprockets at the time of installation.

* This 'chains-only' set accepts 42 bars as used on combines with dynamic feed roll.

Part Numbers	LOCATION FROM OPERATORS SEAT	QTY INCLUDED
84326168	RIGHT HAND	1
84326150	CENTER	2
84326169	LEFT HAND	1

Series	Models	Serial/Year
New Holland® CR80	CR8090	4 CHAIN NO DFR
New Holland® CR90	CR9070 CR9080 CR9090	4 CHAIN NO DFR
New Holland® CR8.	CR8.90	4 CHAIN NO DFR
New Holland® CR9.	CR9.80, CR9.90	4 CHAIN NO DFR
New Holland® CR10.	CR10.90	4 CHAIN NO DFR

Features

• Fits Feeder House NO DFR
• Premium grade chain

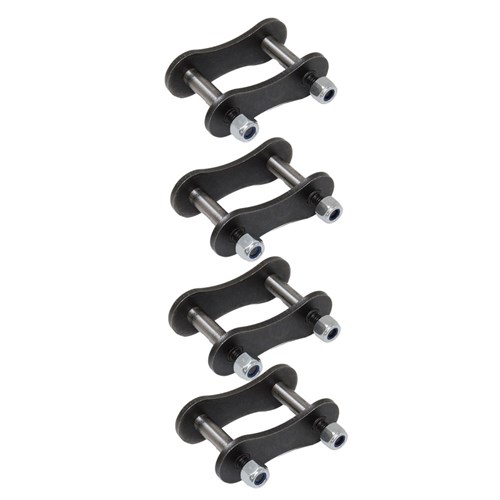

• Threaded connectors x 4

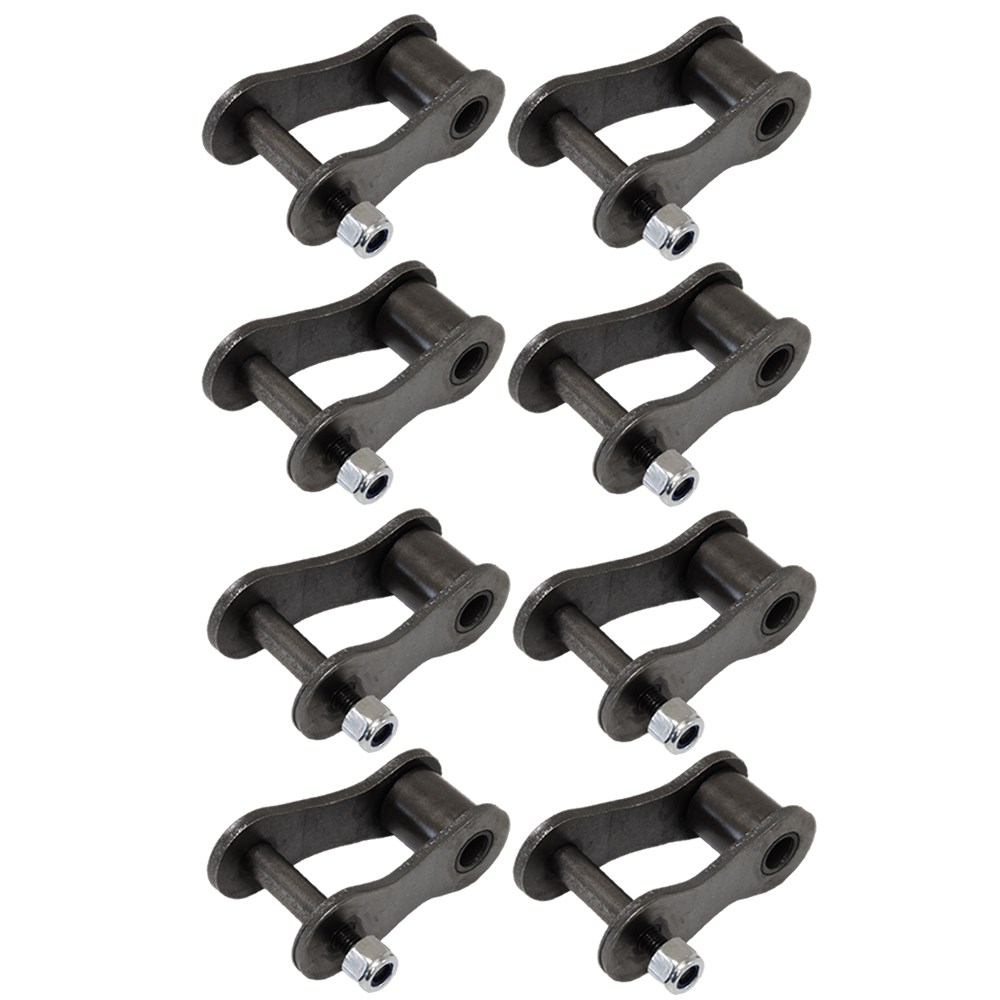

• Threaded half links x 8
• Fasteners not included
• Center stamped pins
• Solid bushings
• Chrome Pins

C&M Technical Specifications

Item	Details	Notes
CM061OEMCP	New Holland® Cr Series	Without DFR
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Chrome Pin
Chain Assembly	4 Chains set	No bars
Attachment Pattern	8-4-4-8	Same as Case-IH OEM
Number of Pitches	112	Including Connectors
Supplied Connectors	4 x Conns 8 x Offset Links	Threaded
Assembly Width (Overall)	1208mm	47.55"
Number of bars	42	Bars not included
Chain centre to centre	377mm+377mm+377mm
Bar Type	6mm U-Bar G350	Not included
Bolts	168 x M10X25 Class 10.9	Not included
Nuts	168 x M10 Cone lock	Not included

Build Sheet

84326168 84326150 84326169

Product Warranty

The Collier & Miller warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrant that it will repair or replace (whichever it deems advisable) any product manufactured or imported by Collier & Miller which proves to be defective in material or workmanship within a period on one (1) year from the date of the original purchase on the invoice. This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose.

Conditions

1. The warranty covers normal use and does not cover damage or defect which is the result of alteration, accident , neglect, improper installation, operation or maintanance.
2. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.
3. Collier & Miller neither assumes or authorizes any other person to give any warranty or to assume any other obligation on its behalf

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR, FITTED WITH NEW SPROCKETS AND INSTALLED BY A SUITABLY QUALIFIED PERSON. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
