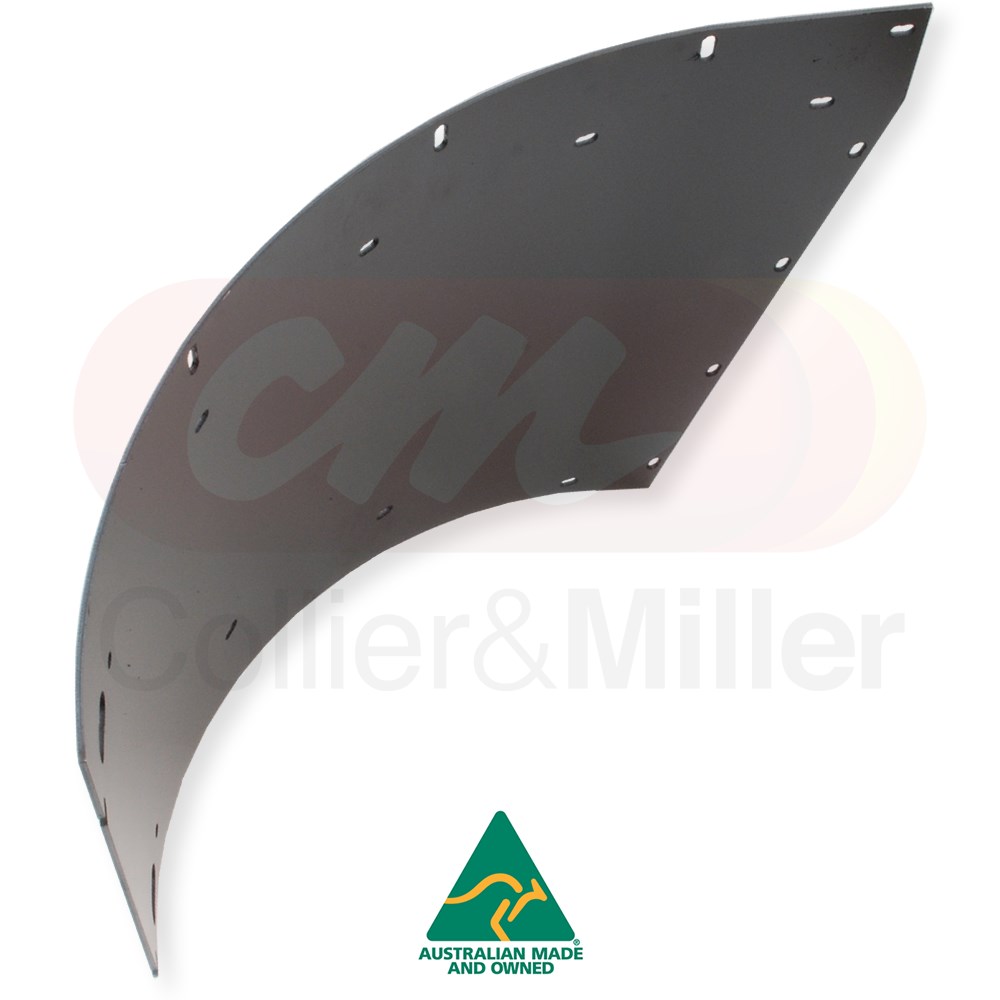

Case-IH® Compatible Stainless Steel Incline Elevator Head Front Cover
Repair the grain transition area at the top of the incline elevator with this C&M made in Australia stainless steel front cover. Designed for selected Case-IH® mid-series Axial-Flow combines, this direct-fit replacement suits compatible 1680, 1688, 2188, 2377, 2388, 2577 and 2588 models and replaces OEM part number 1319941C1.
Manufactured by C&M at our engineering facility in Griffith, NSW, the cover replaces the original mild steel component with heavy-duty stainless steel construction. This extended wear design provides increased resistance to abrasive grain movement, corrosion and premature thinning in the incline elevator head.
A worn front cover can allow grain and dust to escape from the elevator head and may expose adjoining components to additional wear. Replacing the cover before the material wears through helps maintain an enclosed grain path and supports reliable movement into the grain tank.

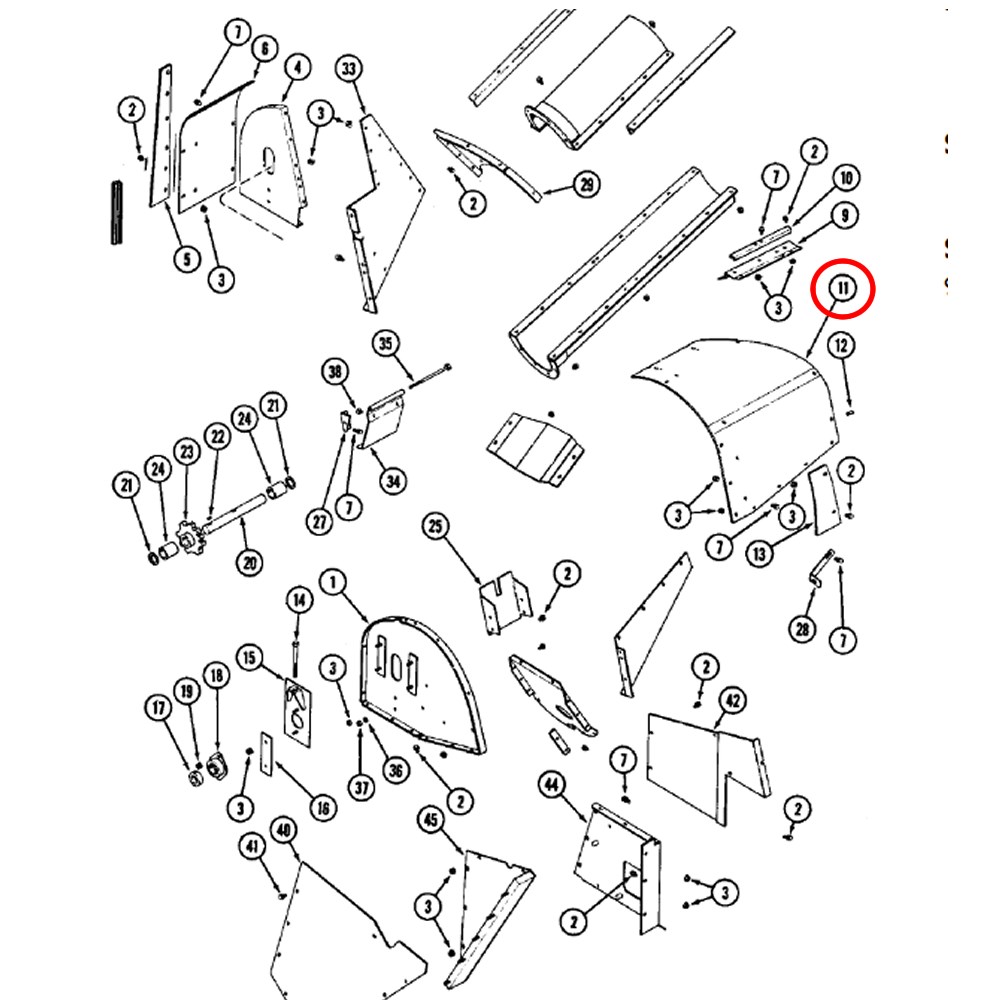

Case-IH® OEM Cross-Reference
Replaces OEM Part Number: 1319941C1
Compatible Case-IH® Combine Harvesters
Stainless Steel Incline Elevator Head Front Cover Compatibility
| Series |
Models |
Application |
| Case-IH® 1600 Series |
1680, 1680E, 1682, 1688 |
Mid-series Axial-Flow |
| Case-IH® 2100 Series |
2188 |
Mid-series Axial-Flow |
| Case-IH® 2300 Series |
2377, 2388, 2388AFX |
Mid-series Axial-Flow |
| Case-IH® 2500 Series |
2577, 2588 |
Mid-series Axial-Flow |
Confirm the combine model and existing incline elevator head configuration before ordering.
Technical Specifications & Features
- Product Type: Incline elevator head front cover.
- Manufacturer: C&M made in Australia at our Griffith, NSW engineering facility.
- Material: Heavy-duty stainless steel for improved corrosion and abrasion resistance.
- Wear Protection: Extended wear construction for a high-velocity grain transition area.
- Application: Front cover for the incline elevator head on compatible Case-IH® combines.
- Fitment: Precision manufactured as a direct-fit replacement.
- OEM Reference: Replaces 1319941C1.
- Shipping: Available for fast Australia-wide shipping from Collier & Miller.
The C&M Difference
This C&M made in Australia component is manufactured around the fit and function of the original cover. Mounting points, folded profiles and critical dimensions are checked to provide a practical direct-fit replacement. Stainless steel construction also provides an extended wear option for an area continuously exposed to abrasive crop movement.
Expert Maintenance Review
The incline elevator head changes the direction of grain before it enters the grain tank, making the internal covers vulnerable to polishing and gradual wall thinning. Inspect the existing front cover for worn sections, cracking, distorted mounting holes, loose fasteners and signs of grain or dust leakage.
When the cover is removed, check the incline elevator chain, paddles, upper sprockets, bearings and shafts. A stretched chain, damaged paddle or worn sprocket can allow excessive movement inside the head and may increase contact with the replacement cover.
Recommended Maintenance Check
Inspect the rear cover and adjoining seals while the elevator head is open. Replacing worn covers or damaged sealing components together helps maintain an enclosed grain path and can reduce the risk of repeat repairs during harvest.
Installation Tip
Clean the mounting surfaces and compare the folded profile and bolt-hole positions with the original cover before installation. Tighten the mounting hardware evenly, then rotate the elevator by hand to confirm adequate chain and paddle clearance before operating the combine.
Case-IH® names and OEM part numbers are used for identification and compatibility reference purposes only. This is an aftermarket replacement product and is not represented as a genuine Case-IH® component.
