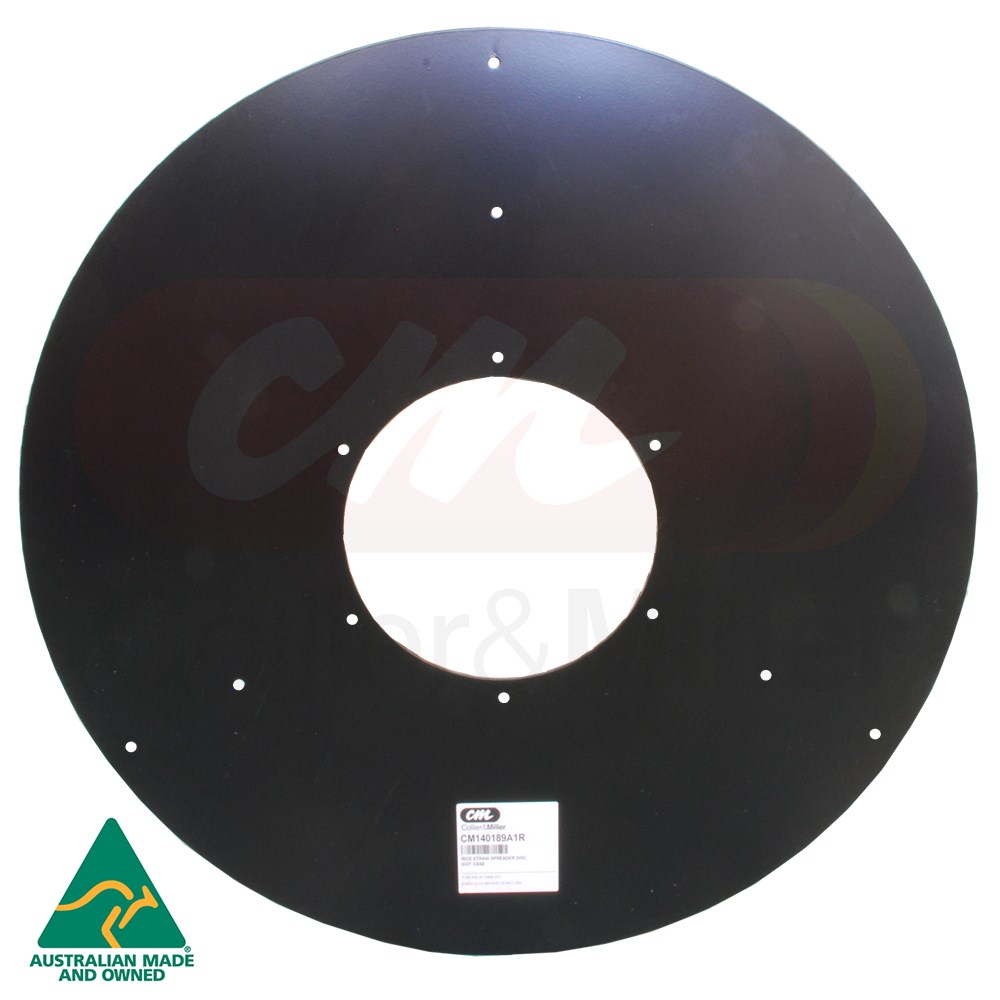

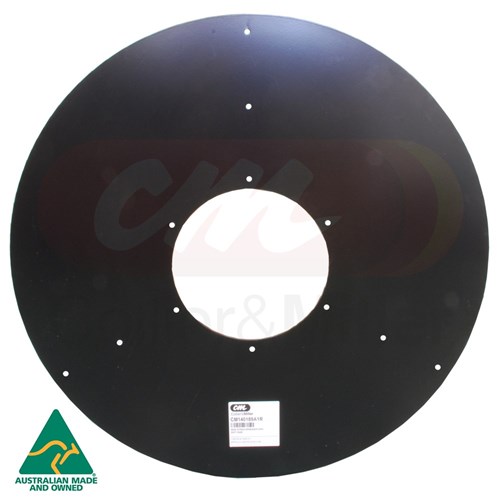

Rice Specification Straw Spreader Disc
C&M aftermarket, Australian made straw spreader disc to suit popular Case IH combine harvesters.This straw spreader disc has been specially manufactured to provide increased service life when stripping rice. Using 4mm 5083 H321 grade high strength Aluminium plate, the disc is supplied laser cut to mount the spreader bats in one postion only.The reduction of mounting holes reduces accelerated wear around unused bat mounting holes.
Designed to be mounted to later model combines with the variable speed straw spreader, they can also be mounted to the earlier models with the fixed speed. Some additional drilling may be required by the customer allowing for re positioning of the spreader bat if required.
Part number
Models
Series |
Models |
Serial/Year |
Case 10 Series |
7010, 8010, 8010-AFX |
|
Case 16 Series |
1666, 1688 |
|
Case 21 Series |
2166, 2188 |
|
Case 23 Series |
2365, 2366, 2377, 2388 |
|
Case 25 Series |
2577, 2588 |
|
Case 88 Series |
5088, 6088, 7088 |
|
Case 130 Series |
5130, 6130, 7130 |
|
Case 140 Series |
5140, 6140, 7140 |
|
Case 150 Series |
5150, 6150, 7150 |
|
Case 230 Series |
7230, 8230, 9230 |
|
Case 240 Series |
7240, 8240, 9240 |
|
Case 250 Series |
7250, 8250, 9250 |
|
Features
- C&M made in Australia
- 4mm Aluminium plate
- Powdercoated black finish
- Less holes equal increased service life
