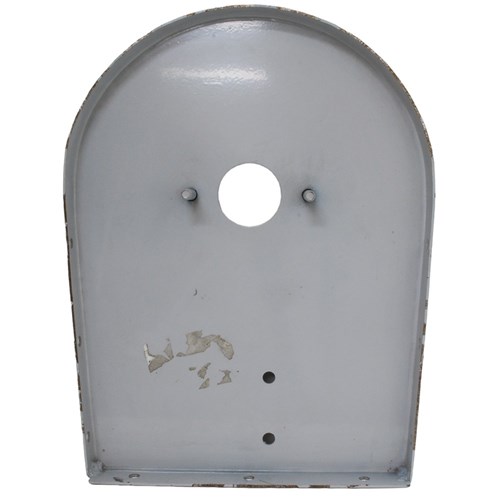

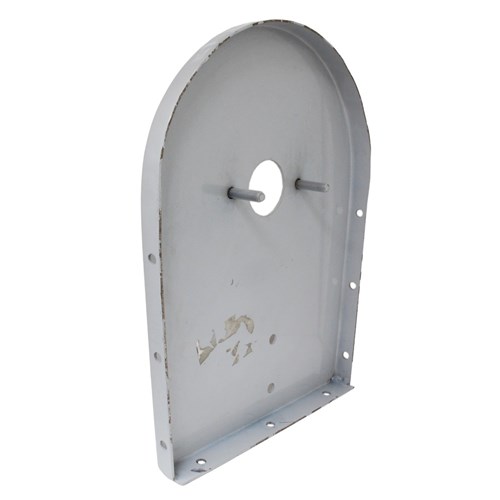

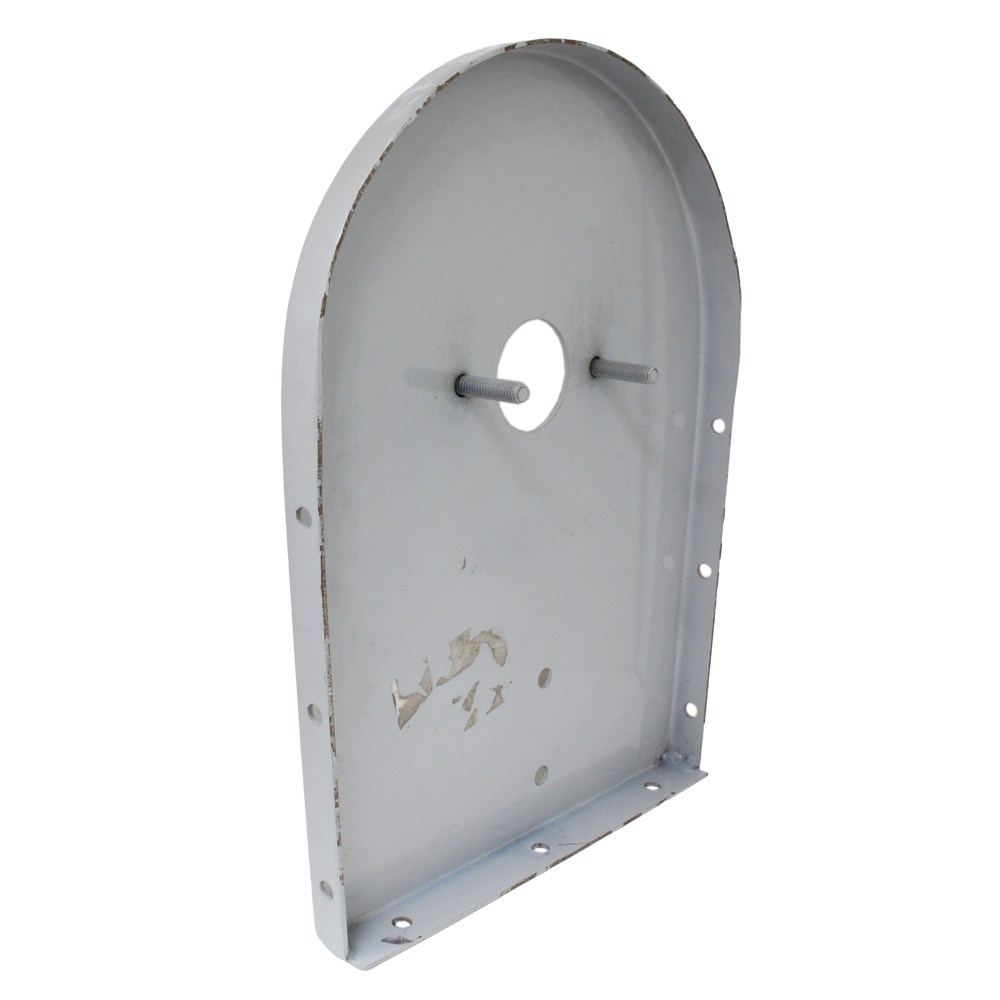

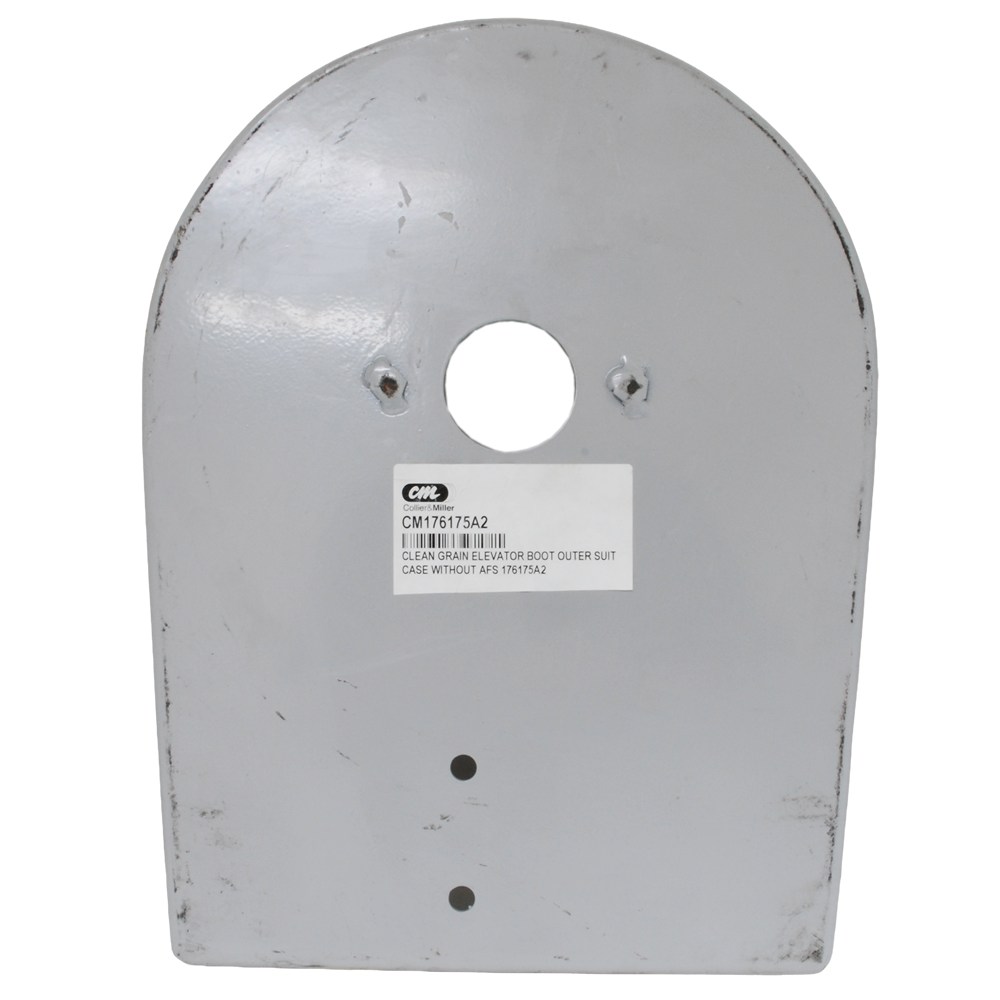

Case-IH® Compatible Clean Grain Elevator Side Plate (Outer)
Restore the efficiency of your grain handling system with this premium quality aftermarket clean grain elevator side boot plate. Specifically engineered for Case-IH® mid-series Axial-Flow combines (Non-AFS models), this quality outer side plate is the professional solution for refurbishing worn elevator boots.
This component is a precision-engineered direct replacement for worn components that have thinned over time due to constant grain contact. By utilizing high-quality materials, this side plate will ensure ensure your elevator boot remains in top condition and provides a significantly longer service life during high-capacity harvesting.
Case-IH® OEM Cross-Reference
Replaces OEM Part Number: 176175A2
Elevator Side Plate Compatibility: Case-IH Non-AFS Mid-Series
| Series |
Models |
Specification |
| Case-IH® 2100 Series |
2188 |
Non-AFS Models |
| Case-IH® 2300 Series |
2377, 2388 |
Non-AFS Models |
| Case-IH® 2500 Series |
2577, 2588 |
Non-AFS Models |
Technical Specifications & Features
- Quality: Premium aftermarket replacement part.
- Application: Specifically designed for Non-AFS (Advanced Farming Systems) boot configurations.
- Mounting: Precision 2-bolt hole pattern for direct-fit replacement.
- Wear Rating: Extended wear construction to resist high-velocity grain abrasion.
- Build Quality: Refurbishment part designed to repair worn components and restore boot integrity.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The clean grain elevator boot is a primary wear zone where the elevator paddles pick up grain from the cross auger. Over time, the outer side plates suffer from extreme abrasion thinning, which can lead to grain leakage and structural failure of the elevator leg. We recommend inspecting the boot side plates for "paper-thin" sections during every preventative maintenance check.
Upgrading to this high-performance aftermarket plate is a strategic way to save money by avoiding the cost of a complete elevator boot replacement. This high-strength plate restores the original profile of the elevator leg, ensuring smooth grain handling and maintaining your machine in top condition for a trouble-free harvest.
Installation Tip: Check the Gasket
When installing the new 176175A2 outer side plate, ensure the mounting surface is clear of old grain dust and rust scale. We recommend applying a high-quality sealant or new gasket to the mating surface to prevent fine seed leakage. This is the ideal time to check your clean grain elevator chain and paddles for wear to ensure maximum elevator capacity.
