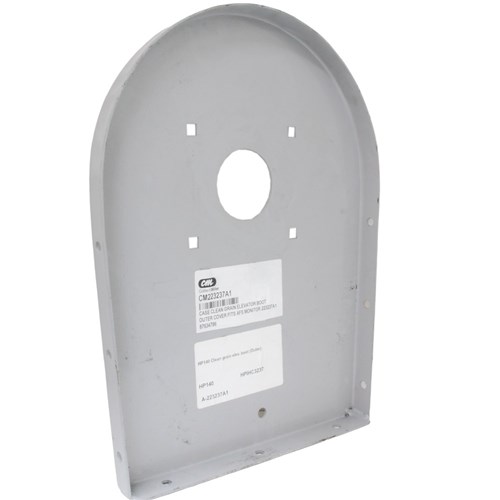

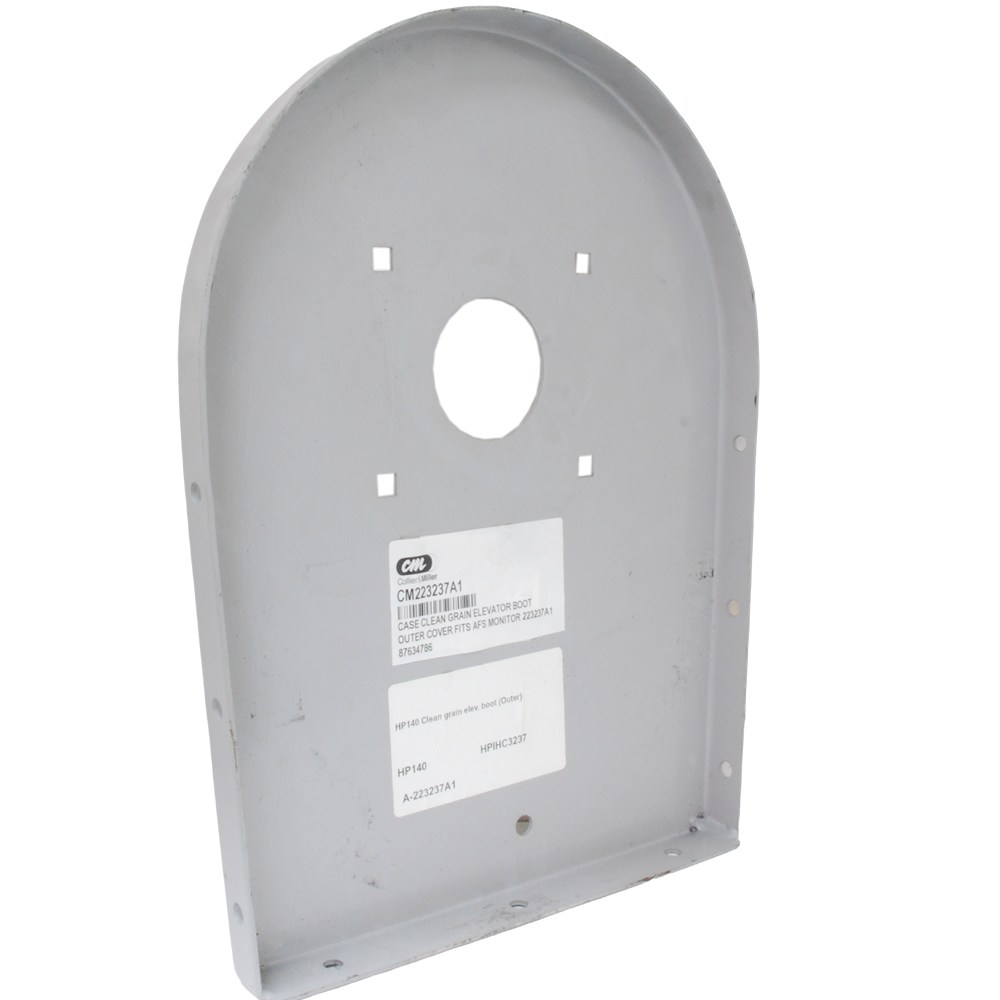

Case-IH® Compatible Clean Grain Elevator Side Plate (Outer AFS)
Restore the efficiency of your grain handling system with this premium quality aftermarket clean grain elevator side boot plate. Specifically engineered for Case-IH® mid-series Axial-Flow combines equipped with the Advanced Farming System (AFS), this high-performance outer side plate is the professional solution for repairing worn components within the elevator boot assembly.
This component is a precision-engineered direct replacement for factory plates that have thinned over time due to constant grain contact. By utilizing quality materials, this side plate provides superior abrasion resistance, ensuring your elevator boot remains in top condition and provides a significantly longer service life during high-capacity harvesting operations.
Case-IH® OEM Cross-Reference
Replaces OEM Part Numbers: 87634786, 223237A1
Elevator Side Plate Compatibility: Case-IH AFS Mid-Series
| Series |
Models |
Specification |
| Case-IH® 2100 Series |
2144, 2166, 2188 |
AFS Equipped Models |
| Case-IH® 2300 Series |
2344, 2365, 2366, 2377, 2388 |
AFS Equipped Models |
| Case-IH® 2500 Series |
2577, 2588 |
AFS Equipped Models |
Technical Specifications & Features
- Quality: Premium quality aftermarket replacement part.
- Application: Specifically designed for AFS (Advanced Farming System) boot configurations.
- Mounting: 4-bolt mount pattern for a high-strength secure fitment.
- Wear Rating: Extended wear construction to resist high-velocity grain abrasion.
- Build Quality: Refurbishment part designed to repair worn components and restore boot structural integrity.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review

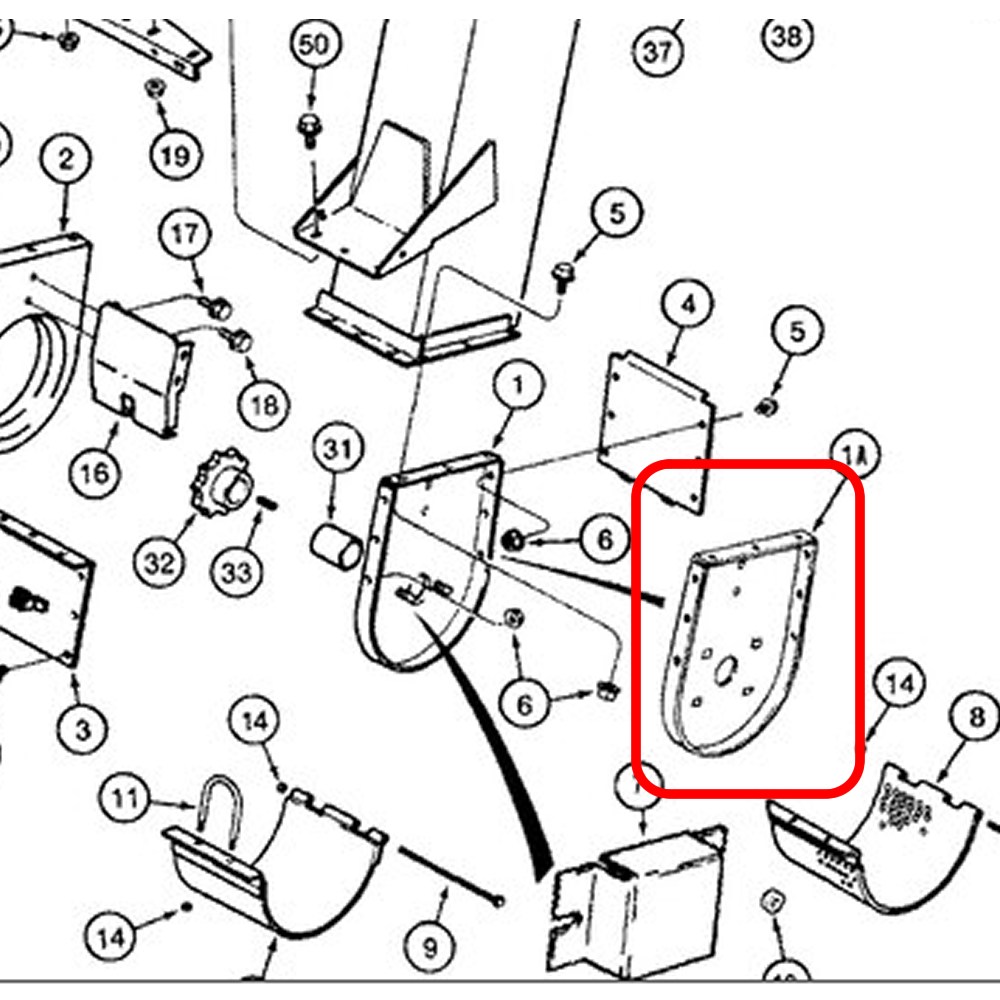

The clean grain elevator boot is a critical wear zone where the elevator paddles sweep grain from the cross auger. On AFS-equipped machines, the side plate must maintain a precise profile to ensure accurate sensor readings and efficient material flow. Over time, the outer side plates suffer from extreme abrasion thinning. We recommend inspecting these plates for "paper-thin" sections or holes during every preventative maintenance check to prevent grain leakage.
Upgrading to this high-performance aftermarket plate is a strategic way to save money by avoiding the excessive cost of a complete OEM elevator boot replacement. This high-strength plate restores the original integrity of the elevator leg, ensuring smooth grain handling and keeping your machine in top condition for a trouble-free harvest.
Installation Tip: Verify AFS Compatibility
This plate features the specific 4-bolt mount required for AFS-equipped mid-series combines. Before installation, ensure the mounting surface is clear of old grain dust and rust scale. This is the ideal time to check your clean grain elevator chain and paddles for wear to ensure maximum elevator capacity and sensor accuracy.
