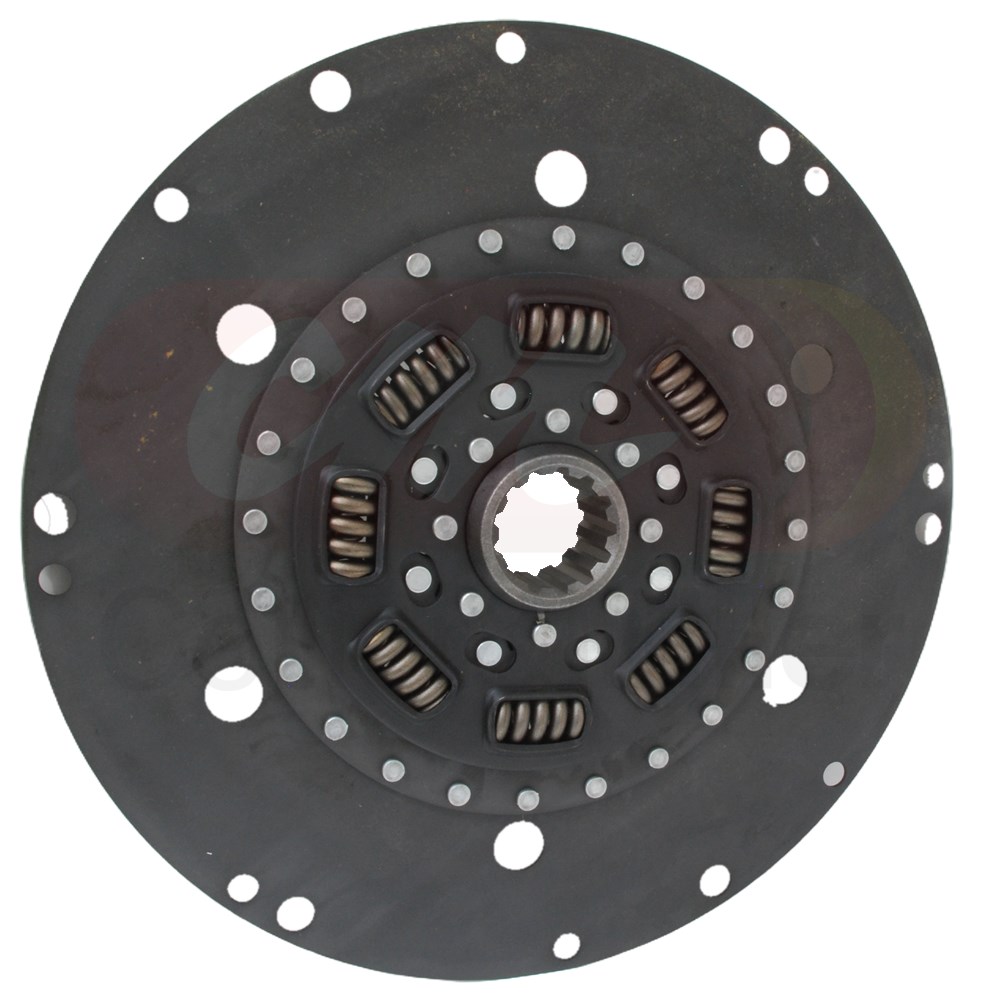

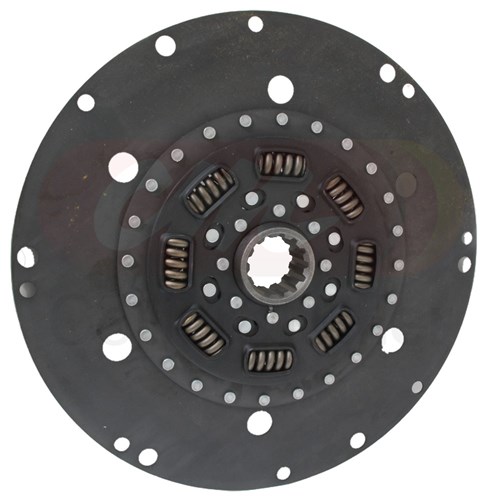

CASE-IH® Compatible PTO Clutch Disc Drive Plate
Keep your
power transmission system in top condition with this premium aftermarket PTO clutch disc assembly. Specifically engineered for Case IH® mid-series Axial-Flow combines, this fully assembled drive plate is a critical solution for restoring reliable ground drive performance.
A common cause of slipping ground drive or loss of power is a worn PTO clutch disc. Implementing proactive
preventative maintenance by replacing these components ensures an
extended service life for your driveline. This high-quality replacement is precision-machined and hardened to provide a direct-fit solution that meets or exceeds original performance standards.
CASE-IH® OEM Cross-Reference
Replaces OEM Part Numbers: 184429C2, 128307FP
355mm PTO Clutch Disc for Case IH 1680, 1688, 2188, 2388, 2588 Combine Models
| Series |
Models |
Details |
| Case-IH® 1600 Series |
1620, 1640, 1640E, 1644, 1660, 1666, 1670, 1680, 1688 |
Power Transmission |
| Case-IH® 2100 Series |
2144, 2166, 2188 |
Power Transmission |
| Case-IH® 2300 Series |
2344, 2365, 2366, 2377, 2388 |
Power Transmission |
| Case-IH® 2500 Series |
2577, 2588 |
Power Transmission |
Technical Specifications & Features
- Quality Assurance: Manufactured to keep your equipment in top condition.
- Configuration: 13-Tooth internal spline with 8 heavy-duty pressure plate springs.
- Dimensions: 355mm (14") Diameter | 1.750" Spline Diameter | 1.400" Hub Length.
- Durability: Precision-machined and hardened for superior service life.
- Installation: Fully assembled and ready for direct fitment.
- Available for fast Australia-wide dispatch from Collier & Miller.
Expert Maintenance Review
To keep your power transmission system in top condition, we recommend a thorough inspection of your pressure plate and release bearings during the installation of this part.
Standard preventative maintenance for this assembly includes checking for spline wear on the input shaft. Replacing worn companion parts simultaneously ensures an extended service life for your new components and prevents unnecessary downtime during the harvest window.
Recommended Maintenance Upgrade
We specifically recommend replacing the PTO Drive Shaft when installing a new clutch disc to ensure maximum driveline integrity.
View Compatible PTO Drive Shaft
