PTO DRIVE SHAFT SUIT CASE IH COMBINE 192816C1 192816C2

COMBINE 192816C1 192816C2

Product Code: CM192816C1

Detail

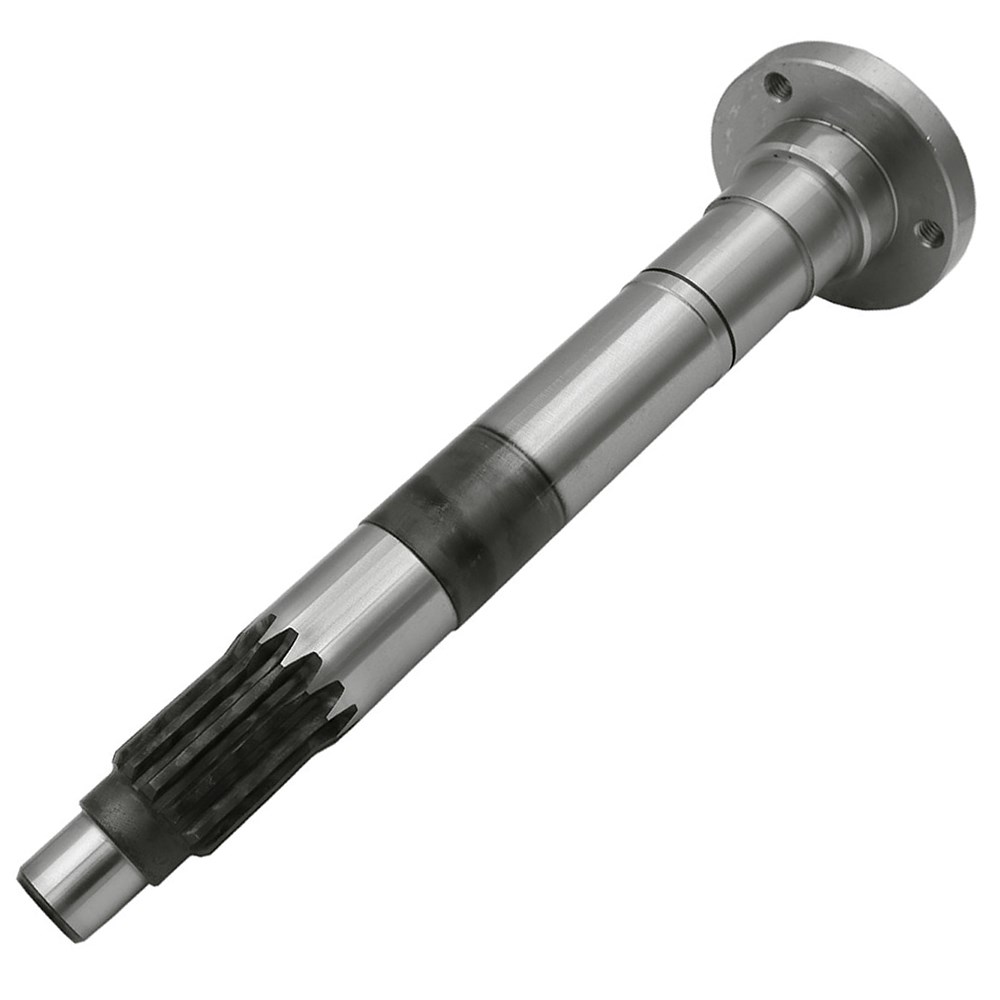

CASE-IH® Compatible Transmission PTO Drive Shaft

Keep your power transmission system in top condition with this premium aftermarket PTO drive shaft. Specifically engineered for Case IH® mid-series Axial-Flow combines, this heavy-duty shaft ensures reliable power transfer and consistent driveline performance.

This transmission PTO drive shaft is a direct-fit aftermarket solution designed to meet or exceed OEM specifications. By replacing worn or damaged shafts in the drive train, you maintain equipment reliability and protect your power train components from the vibrations and failures associated with driveline wear.

CASE-IH® OEM Cross-Reference

Replaces OEM Part Numbers: 192816C1, 192816C2

Transmission PTO Drive Shaft for Case IH 1460, 1688, 2188, 2388, 2588 Models
Series	Models	Axial-Flow
Case-IH® 1400 Series	1420, 1440, 1460, 1470, 1480	All Units
Case-IH® 1600 Series	1620, 1620E, 1640, 1640E, 1660, 1670, 1680, 1680E, 1688	All Units
Case-IH® 2100 Series	2144, 2166, 2188	All Units
Case-IH® 2300 Series	2344, 2365, 2366, 2377, 2388	All Units
Case-IH® 2500 Series	2577, 2588	All Units

Technical Specifications & Features

Quality Assurance: Precision engineered to keep your equipment in top condition.
Shaft Dimensions: 415mm (16.33") Overall Length | 1.750" Spline Diameter.
Spline Configuration: 13-Tooth Spline | 1.60" Spline Length.
Fitment Details: Compatible with 5/16" x 2-1/8" woodruff key.
Hardware Requirement: Accepts 3 x 1/2"-13 UNC x 2-1/2" Grade 8 bolts.
Extended Service Life: Heavy-duty construction for primary power transmission assemblies.
Available for fast Australia-wide dispatch from Collier & Miller.

Expert Maintenance Review

To keep your power transmission system in top condition, we recommend inspecting the PTO Clutch Disc and input shaft bearings whenever the drive shaft is removed.

Standard preventative maintenance includes checking for spline wear and ensuring the Grade 8 mounting bolts are torqued to specification. Replacing worn components simultaneously ensures an extended service life for your driveline and prevents costly harvest-time failures.
