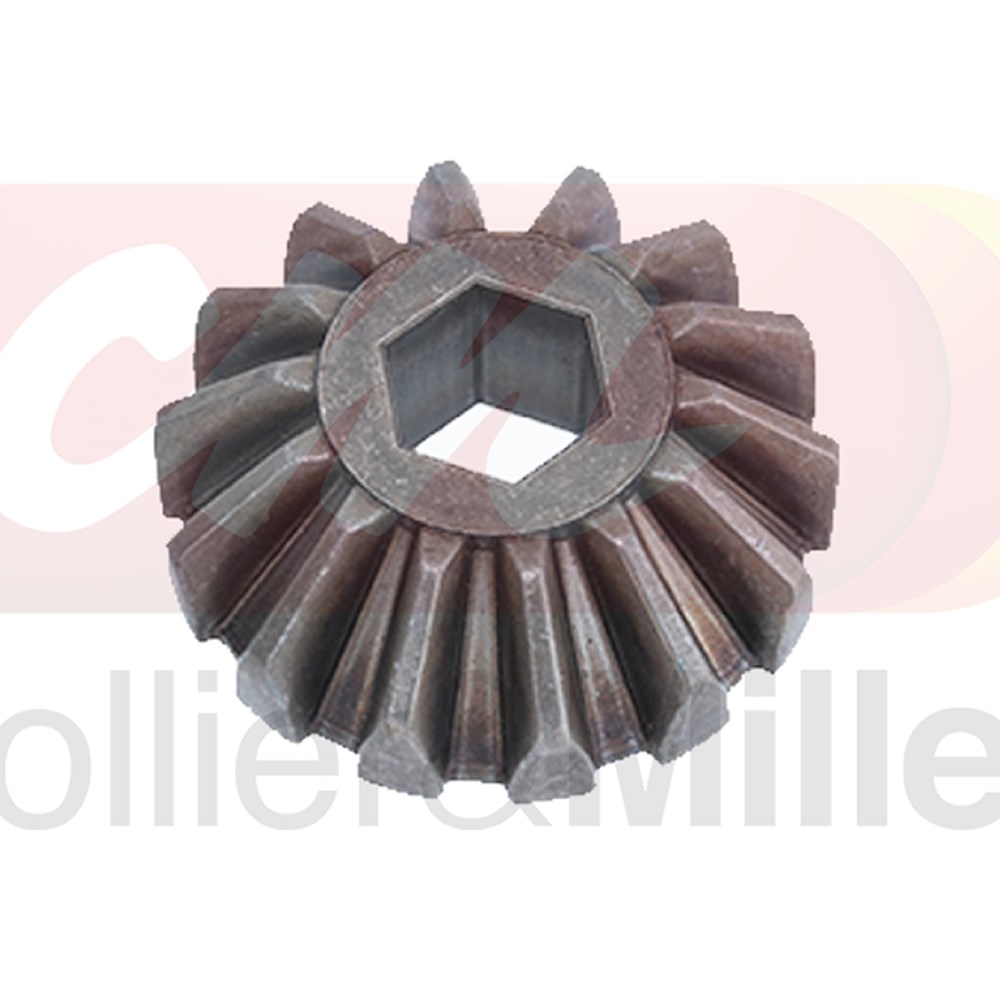

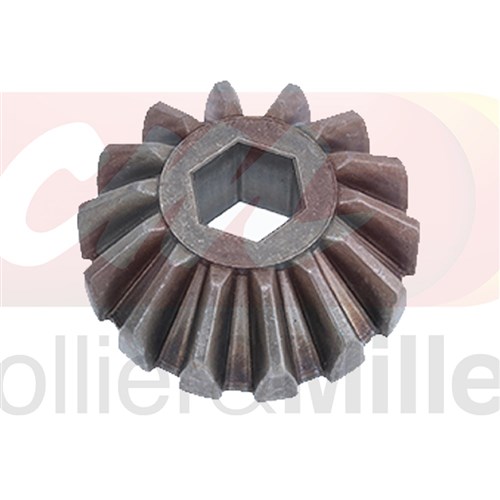

CASE-IH® Compatible Auger Bed Bevel Gear (.875" Hex)
Ensure precise drive timing for your cleaning shoe and grain bed augers with this high-quality aftermarket bevel gear. Designed specifically for Case IH® mid-series and legacy combines, this 14-tooth gear provides a durable, precision-fit replacement.
This premium bevel gear features a 14-tooth configuration and a .875" (7/8") Hex bore, making it compatible with both the shaker shaft and the grain bed augers on several Case IH® models. Engineered for reliable power transfer, it is built to withstand the demanding conditions of harvest across a wide range of series.
Case-IH® Model Compatibility
Replaces OEM Part Numbers:
- 1300639C1, 185410C1, 188424C1, 194194C1, 84135539, 84135540, 87375653
Case IH 14-Tooth Bevel Gear with 7/8 inch Hex Bore for 1460, 1680, 2388, 5088, 7150 Models
| Series |
Models |
Serial/Year |
| Case-IH® 1400 Series |
1420, 1440, 1460, 1470, 1480, 1482 |
|
| Case-IH® 1600 Series |
1620, 1620E, 1640, 1640E, 1644, 1660, 1660E, 1666, 1670, 1680, 1680E, 1682, 1688 |
|
| Case-IH® 2100 Series |
2144, 2166, 2188 |
|
| Case-IH® 2300 Series |
2344, 2365, 2366, 2377, 2388 |
|
| Case-IH® 2500 Series |
2577, 2588 |
|
| Case-IH® 88 Series |
5088, 6088, 7088 |
|
| Case-IH® 130 Series |
4130, 5130, 6130, 7130 |
|
| Case-IH® 140 Series |
5140, 6140, 7140 |
|
| Case-IH® 150 Series |
4150, 5150, 6150, 7150 |
|
Technical Specifications
- Tooth Count: 14 Tooth precision drive gear.
- Bore Type: .875" (7/8") Hex bore for positive shaft engagement.
- Application: Direct fit for both shaker shaft and bed auger drive systems.
- Durability: Manufactured for high-performance and extended wear life.
- Available for fast Australia-wide dispatch from Collier & Miller.
