MacDon® & Case-IH® Compatible Cross Auger Tube Repair Kit
Simplify your header maintenance with this premium C&M Australian-made cross auger tube repair kit. Specifically engineered for MacDon® and Case-IH® draper fronts fitted with optional cross augers, this kit provides a convenient solution for replacing worn 1" hex bushes within the auger tube assembly.

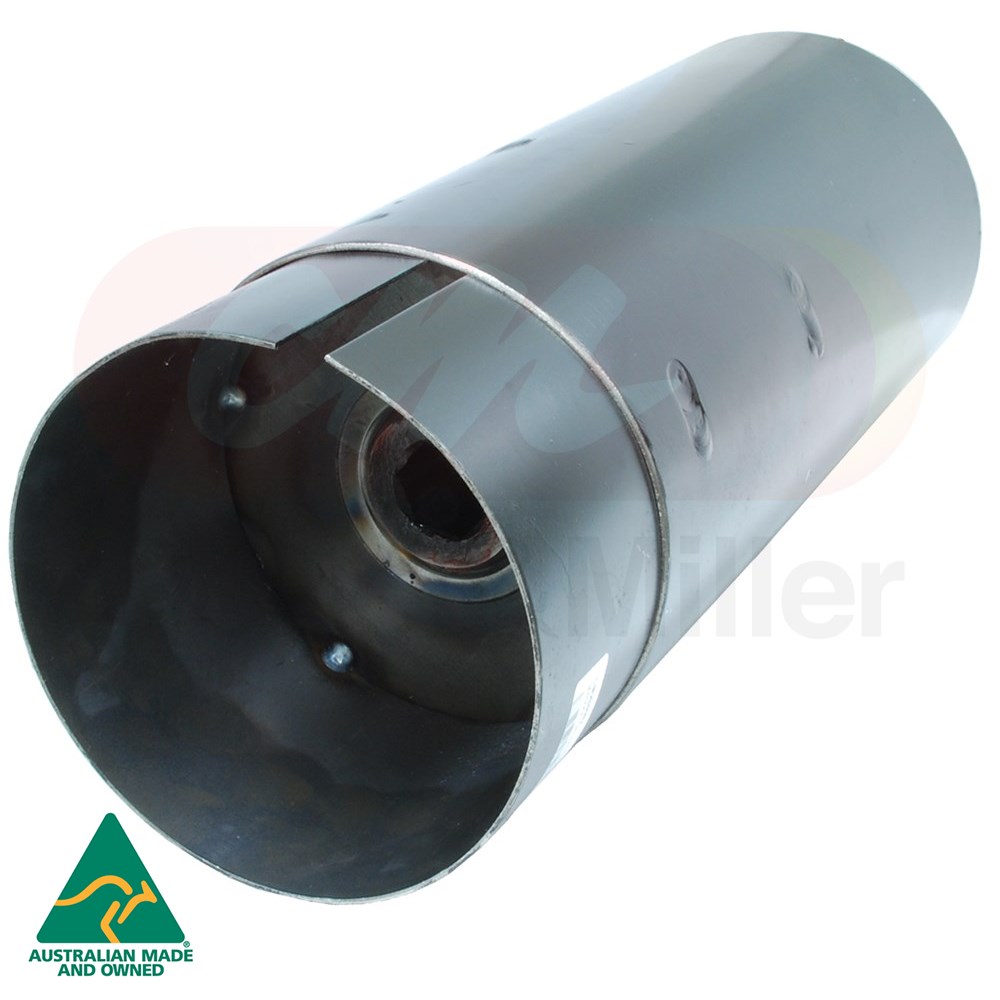

This innovative kit features a weld-in tube section and a greaseable, bolt-in hardened hex bush. Unlike standard fixed-bush designs, our modular assembly allows for easy future replacements of the bush without additional welding. This high-performance upgrade ensures your cross auger drive remains positive and reliable, keeping your equipment in top condition.
OEM Cross-Reference & Compatibility
Replaces OEM Part Numbers: 335589, 294682
RH Auger Tube Compatibility: Case IH & MacDon Series
| Brand & Model |
30' Front |
35' Front |
40' Front |
45' Front |
| Case-IH 2142, 2152, 2162 |
87585171 |
87585178 |
87585179 |
N/A |
| MacDon D50, D60, D65 |
132300 |
132336 |
165436 |
N/A |
| MacDon FD70, FD75, FD1 |
132300 |
132336 |
165436 |
165436 |
| MacDon D1 Series |
294436 |
294437 |
294438 |
294518 |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made in Griffith, NSW.
- Tube Dimensions: 152mm (6") Outer Diameter | 2mm Wall Thickness | 390mm Overall Length.

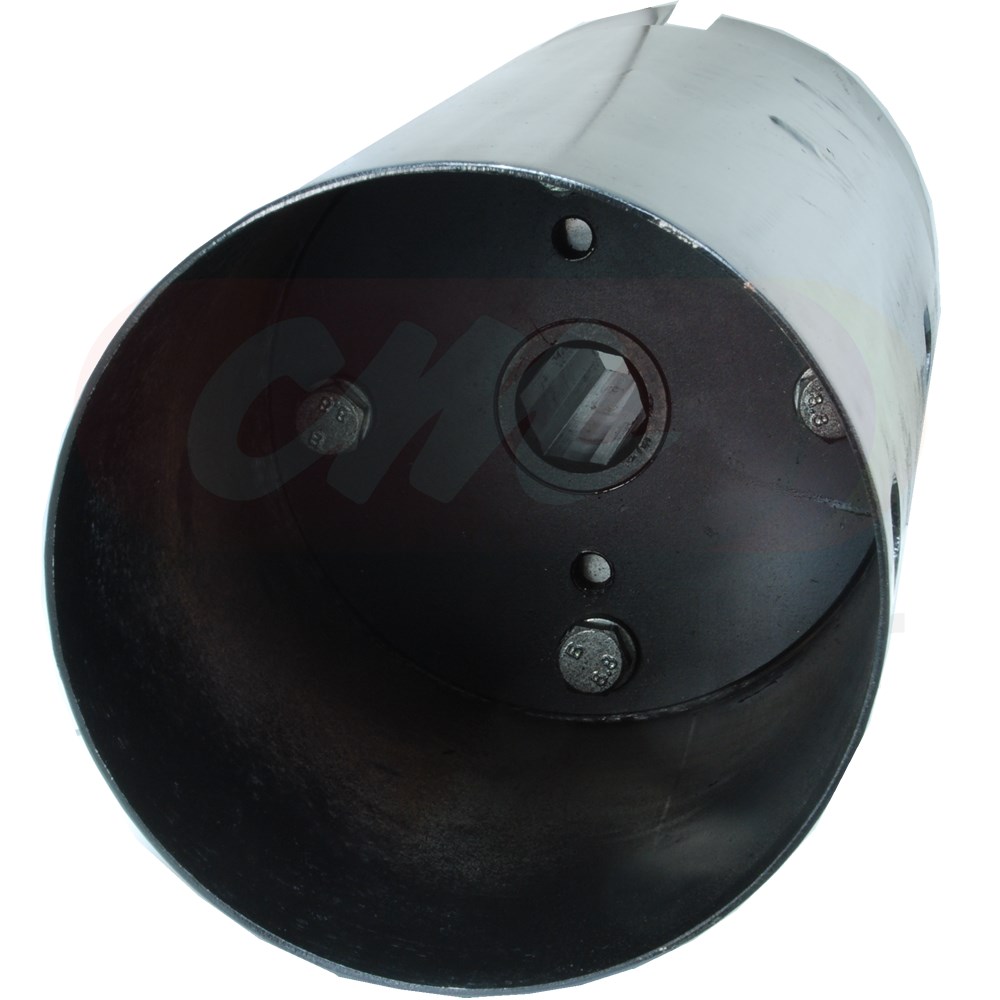

- Bush Design: Greaseable, hardened hex bush bolted in with 4 fasteners.

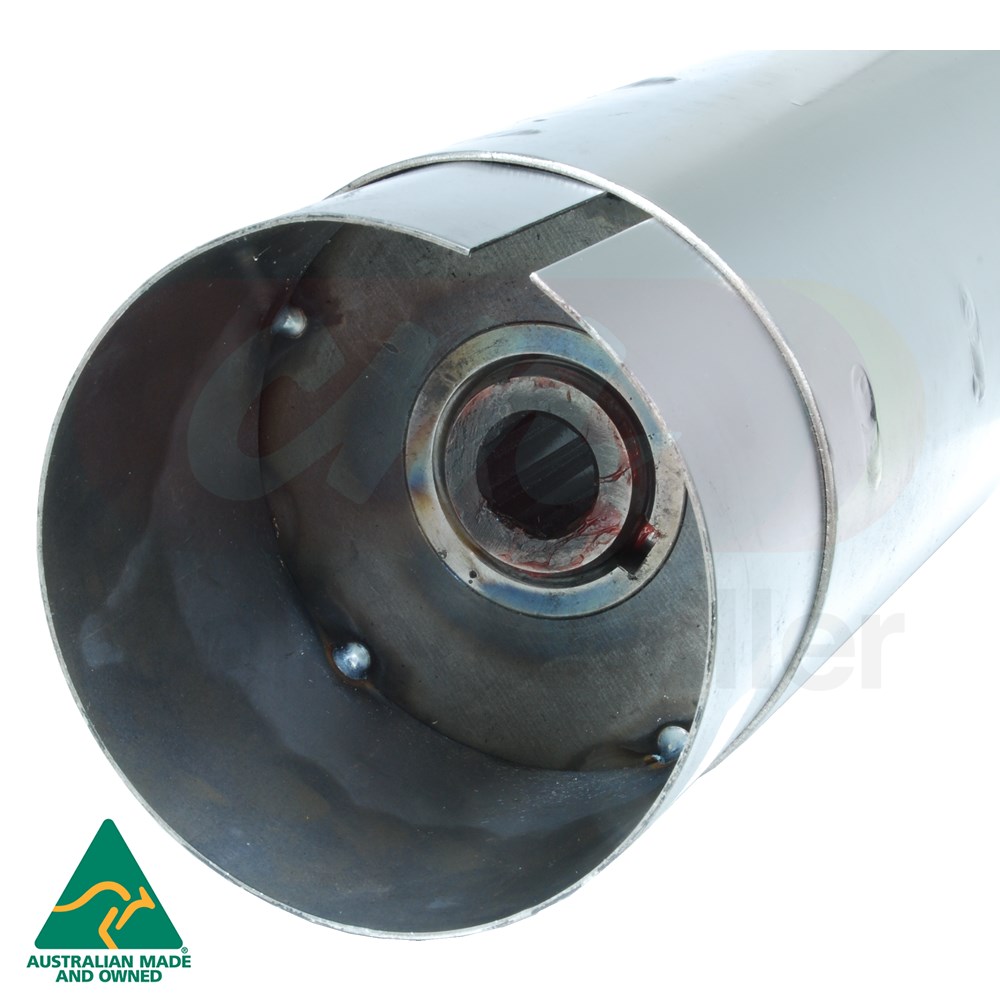

- Build Quality: Precision stepped tube for seamless insertion and welding.
- Maintenance Benefit: Allows for rapid bush replacement in the future without tube removal.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The cross auger hex bush is a primary wear point that transmits high torque through the cross auger system. Over time, the internal hex profile becomes rounded due to abrasion and constant vibration, leading to slippage and drive failure. We recommend inspecting the hex bush for "slop" or backlash during every preventative maintenance check.
Upgrading to this high-strength weld-in kit is a high-performance choice. The inclusion of a hardened, greaseable bush significantly extends the service life of the drive junction. By making the bush a bolt-in component,Future maintenance becomes a simple task, ensuring your cross auger stays in top condition without the need for repetitive welding repairs.
Installation Tip: Precision Cutting

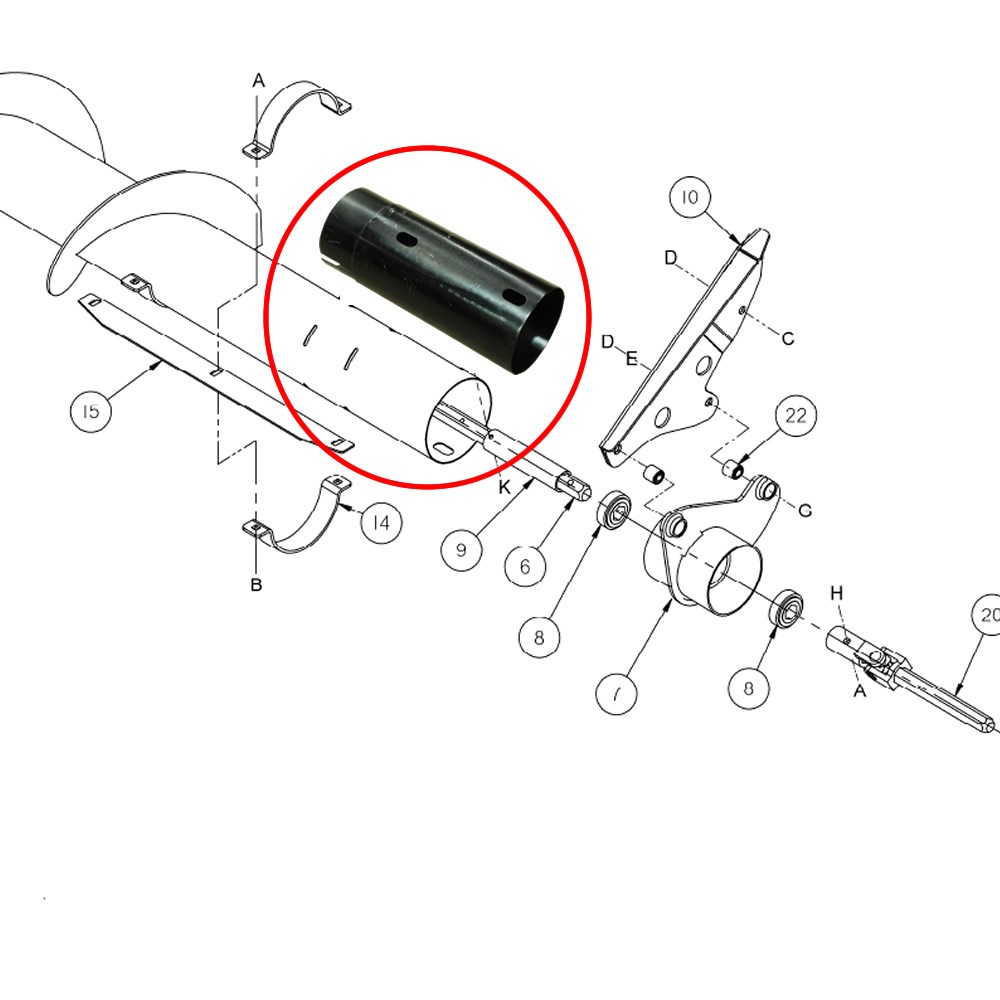

To ensure a reinforced and perfectly aligned repair, cut the existing auger tube back exactly 315mm. Ensure the cut is square to the tube axis. Because the C&M tube is stepped, it will slide into the original housing for a strong weld joint. Always verify the alignment of the 1" hex shaft before final welding to ensure a smooth extended wear drive operation.
