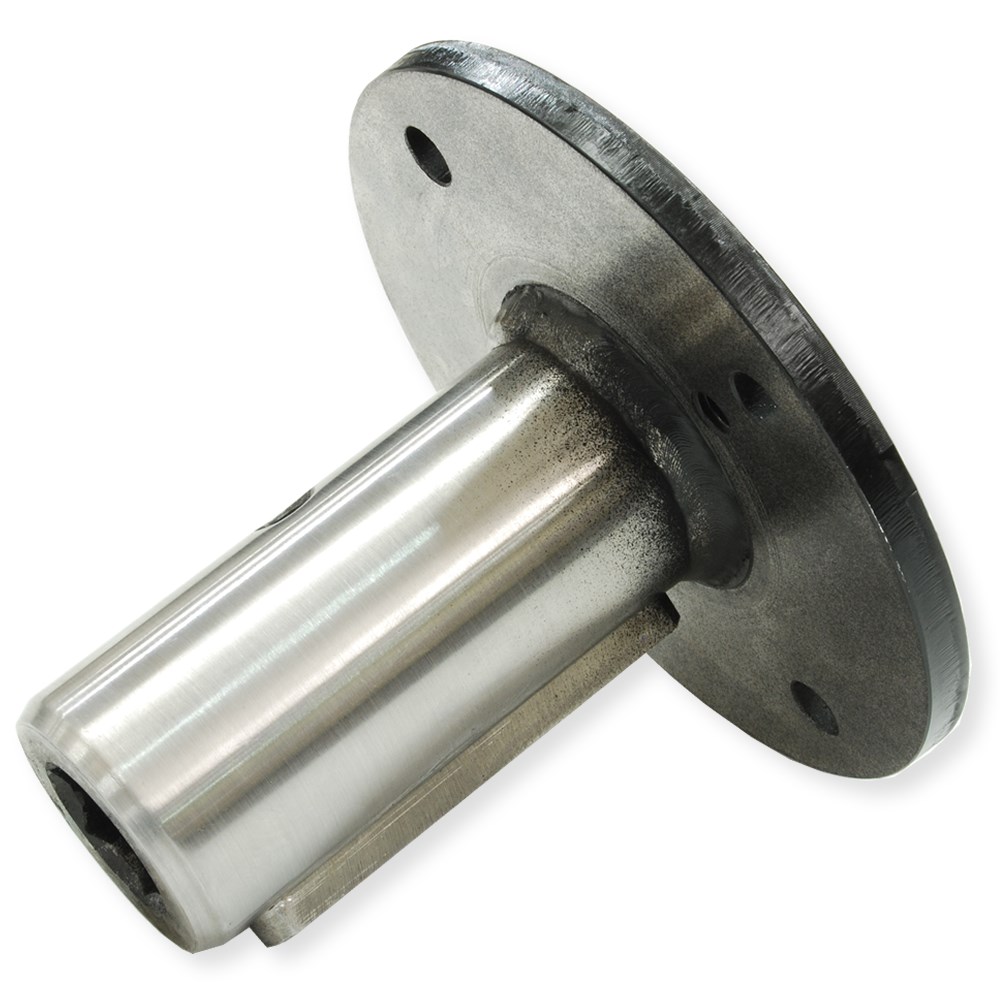

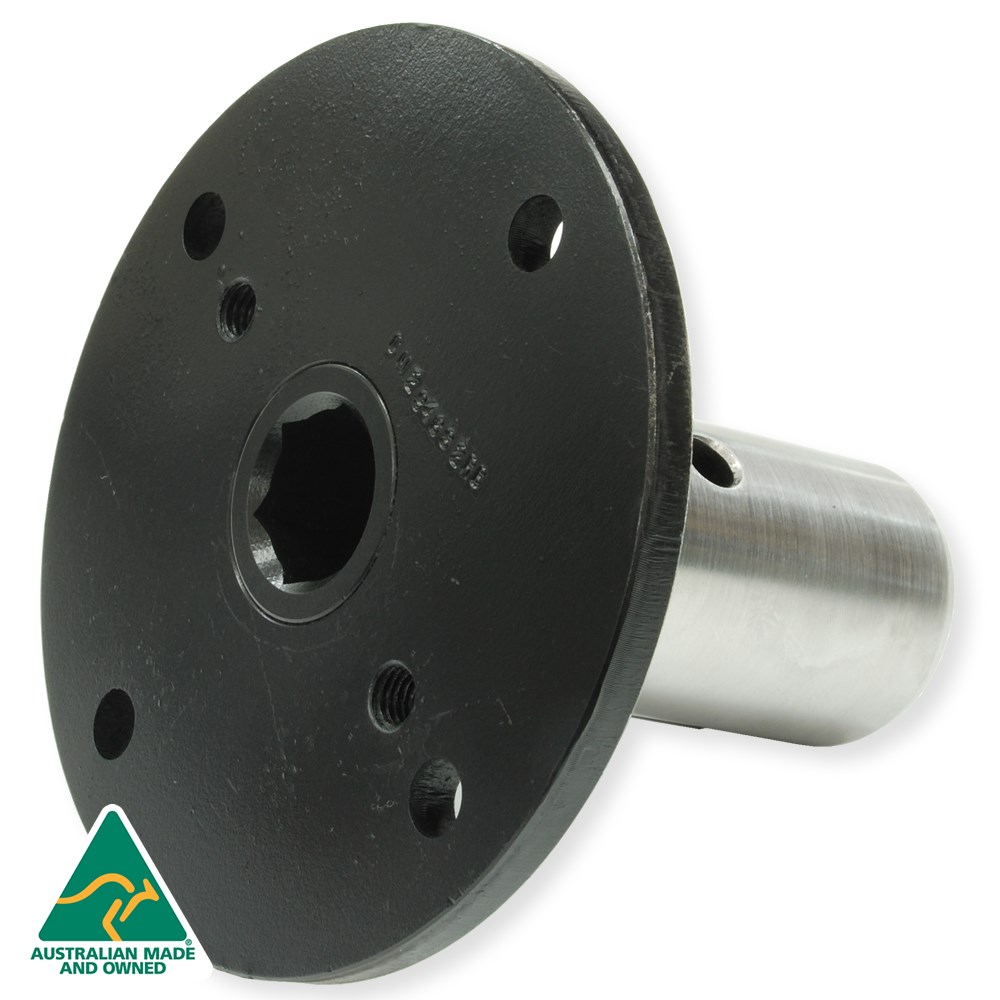

Replacement 1" Hex Bush Kit For Cross Auger Repair Kit
Maintain peak drive performance in your header with this premium C&M Australian-made hex bush replacement kit. Specifically engineered for MacDon® and Case-IH® draper fronts already equipped with the C&M modular cross auger repair system, this kit allows for the rapid replacement of the primary wear component without additional welding.
Manufactured in our Griffith factory from hardened steel, this 1" hex bush is designed to provide a high-strength connection to the auger drive shaft. By utilizing this bolt-in design, you can overcome the common issues of internal rounding and slippage, ensuring an extended wear life and keeping your grain handling system in top condition during high-capacity harvesting.
MacDon® & Case-IH® Model Compatibility
Hex Bush Compatibility: Case IH & MacDon Modular Repair Systems
| Series |
Models |
Width Specification |
| Case-IH 21 Series |
2142, 2152, 2162 |
30', 35', 40' Fronts |
| MacDon D Series |
D50, D60, D65 |
30', 35', 40' Fronts |
| MacDon FD Series |
FD70, FD75, FD1 |
30', 35', 40', 45' Fronts |
| MacDon D1 & FD1 |
D130, D135, D140, D145, FD130, FD135, FD140, FD145 |
30', 35', 40', 45' Fronts |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- System Compatibility: Fits the C&M 6" (152mm) Cross Auger Repair Kit.
- Bush Size: 1" Precision Hex Bore for positive drive engagement.
- Installation: Bolt-in design using 4 x high-tensile fasteners.
- Performance: Hardened material construction for superior abrasion resistance.
- Maintenance Benefit: Fast change-out reduces downtime during harvest.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The 1" hex bush is the critical sacrificial wear point within the cross auger assembly. Constant torque and vibration eventually lead to the rounding of the hex internal profile, which can cause intermittent drive failure. We recommend inspecting the hex bush for "backlash" or rounding during every preventative maintenance check to ensure consistent crop feeding.
Upgrading to this high-performance bolt-in kit is a smart choice for large-scale operations. Once the initial C&M internal hub is installed, replacing this extended wear bush becomes a simple field task, ensuring your header remains in top condition without the need for specialized tools or welding. This modular approach provides a significantly longer service life for the overall auger assembly.
Installation Tip: Fastener Security
When installing your new 1" replacement hex bush, always use new high-tensile fasteners and apply a medium-strength thread locker. Because this bush transmits high levels of torque, ensuring the four mounting bolts remain tight is essential for preventing vibration. A secure, high-strength fitment ensures a smooth and reliable harvest.
