Draper Drives & Tensioners

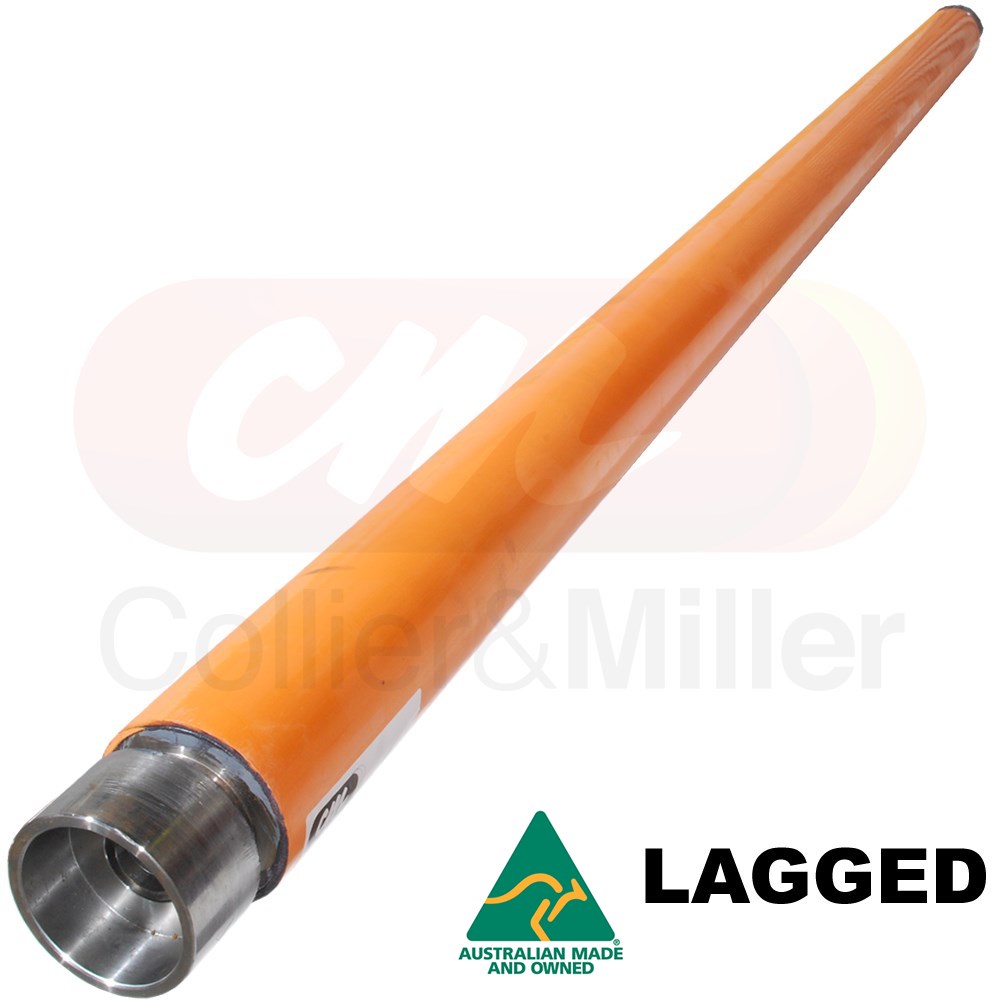

CENTRE FEED DRIVE ROLL LAGGED

78.5" X 3" MACDON D1 & FD1 FM100 FLOAT MODULE LAGGED

Product Code: CM335637
  $1800.00
EACH inc GST
Afterpay Logo
4 payments of $450.00
In Stock Low Stock Contact Us Please See Attributes 21
Increase value Decrease value

  • Detail

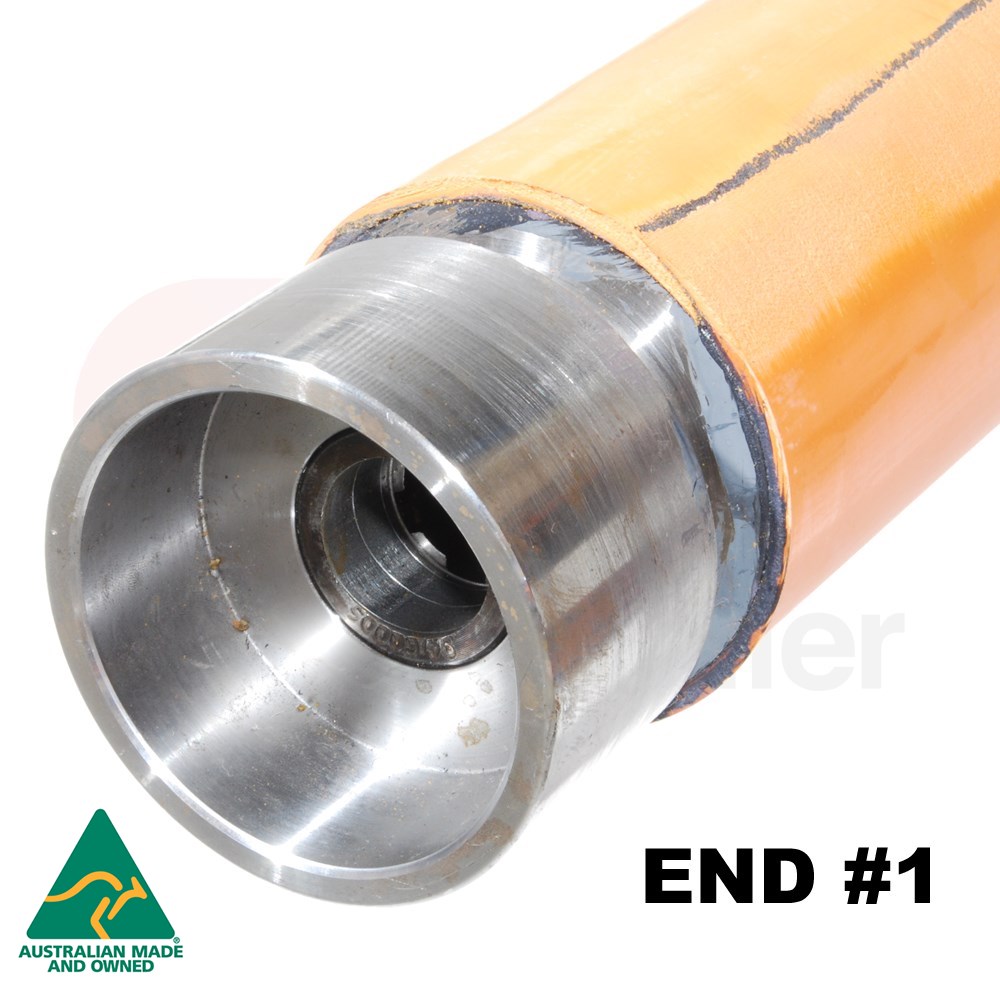

C&M aftermarket center feed belt drive roller to suit FM100 float modules fitted to Macdon® cutting platforms. This centre feed drive roller takes the 78.5" centre belt, and has been machined specifically with a hardened splined bush on the drive end to allow for positive drive and improved service life.

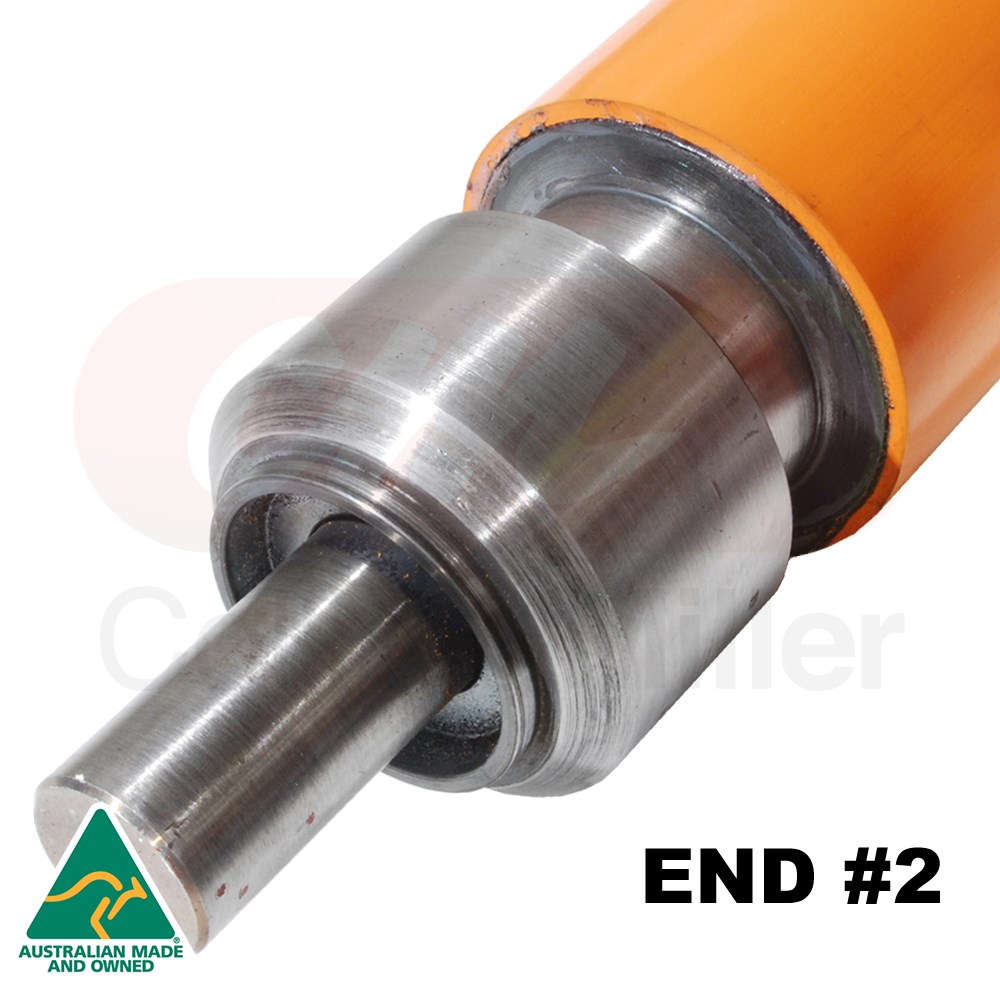

Measuring 3" in diameter, features a V groove on either end, allowing it to either take the OEM centre belt with two V guides, or the aftermarket belt with a single V guide.

Part numbers
  • Macdon 335637
Application
  • FM100 Center Feed Belt Drive Roller
Models

Series Models Serial/Year
Macdon D1 Series D125, D130, D135, D140, D145
Macdon FD1 Series FD125, FD130, FD135, FD140, FD145

Features
  • C&M Australian Made
  • 1" x Z6 Spline Hub
  • Lagged
  • V-Groove each end
  • Accepts double Vee & single Vee matting
