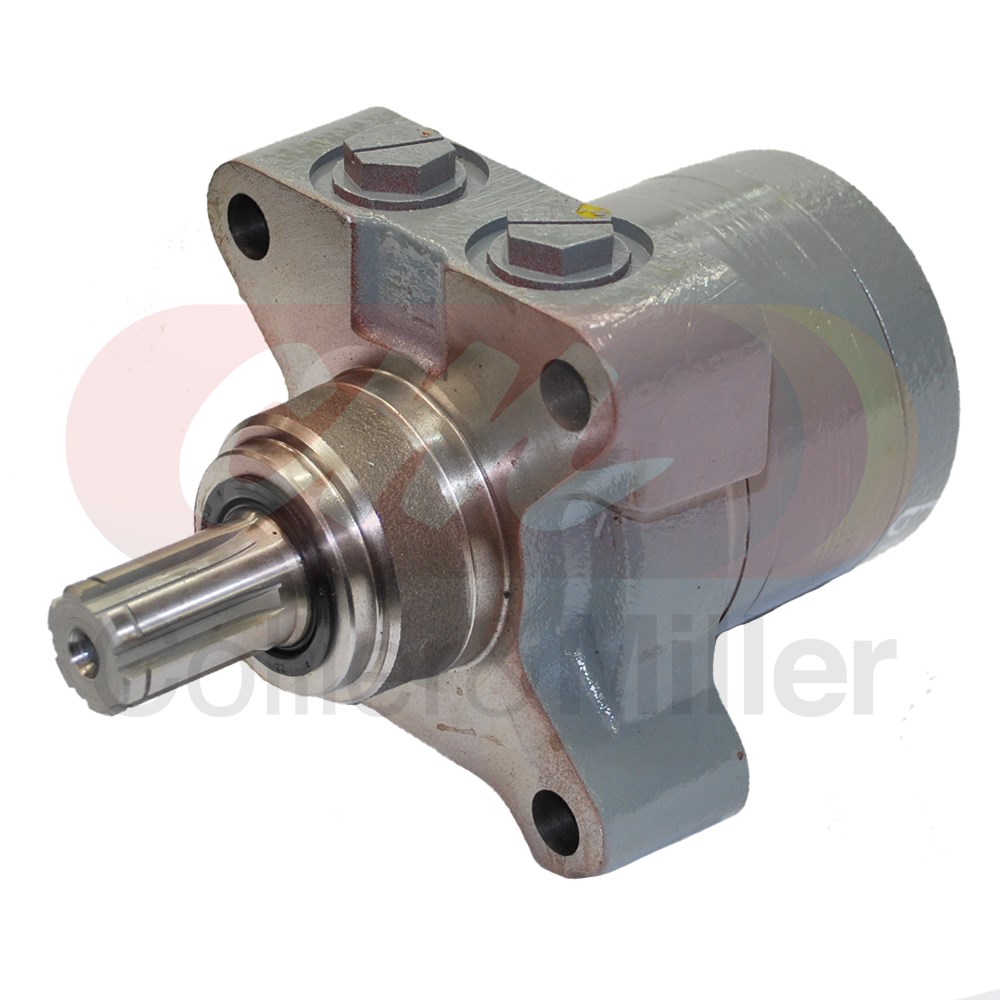

Aftermarket centre feed drive motor, to suit common Macdon CA20 & CA25 combine adaptors and CNH draper headers.
Part numbers:
- Macdon 133615, 245122,
- Case-IH 47677821, 51588696, 7627787
Fitment
Models:
| Brand |
Models |
Serial/Years |
| Macdon Combine Adaptors |
CA20, CA25, FM100 |
|
| Macdon D Series |
D50, D60, D65 with CA20 or CA25 combine adaptor |
After 174610- |
| Macdon FD Series |
FD70, FD75 with CA20 or CA25 combine adaptor |
After 174610- |
| Macdon D1 Series |
D1 All Widths with FM100 float module |
All |
| Case |
2142, 2152, 2162 (09/06 - 11/11) |
After Y7ZN00301- |
| New Holland |
82C, 83C, 86C 82C, 83C, 84C, 86C |
All |
Features:

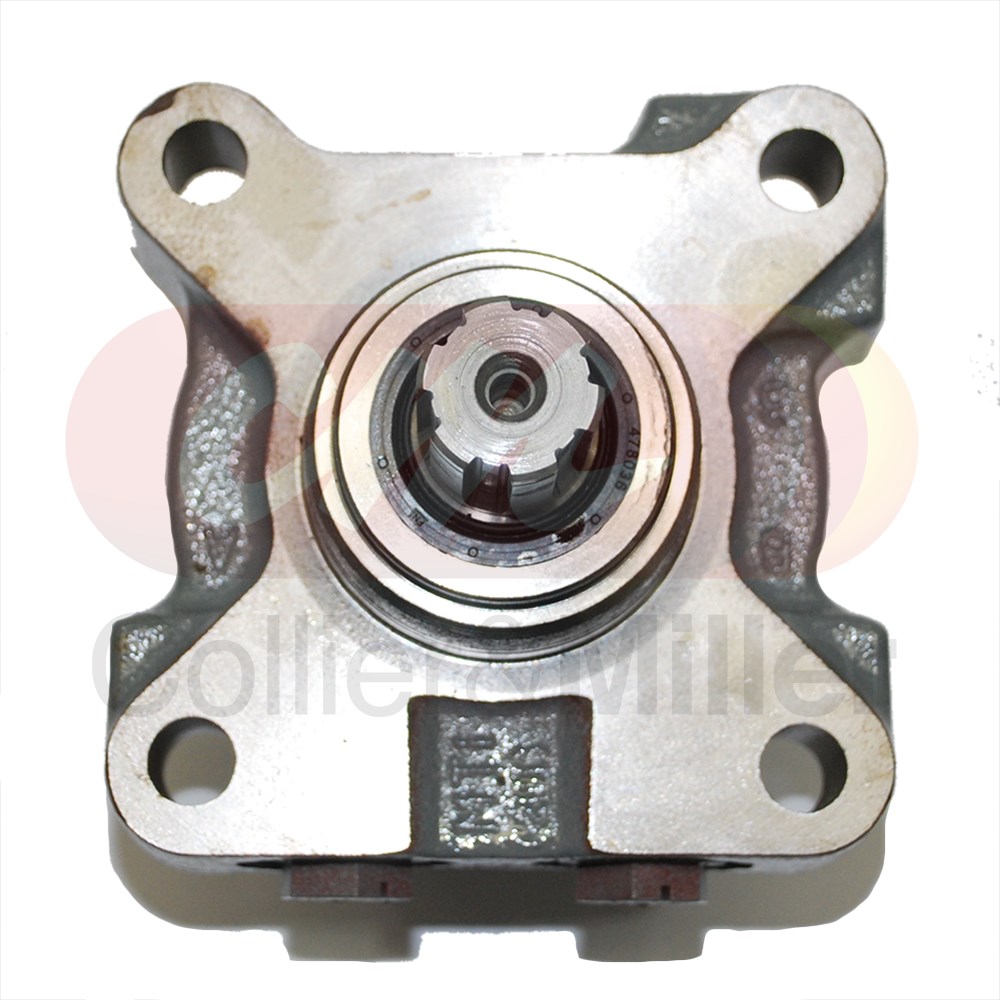

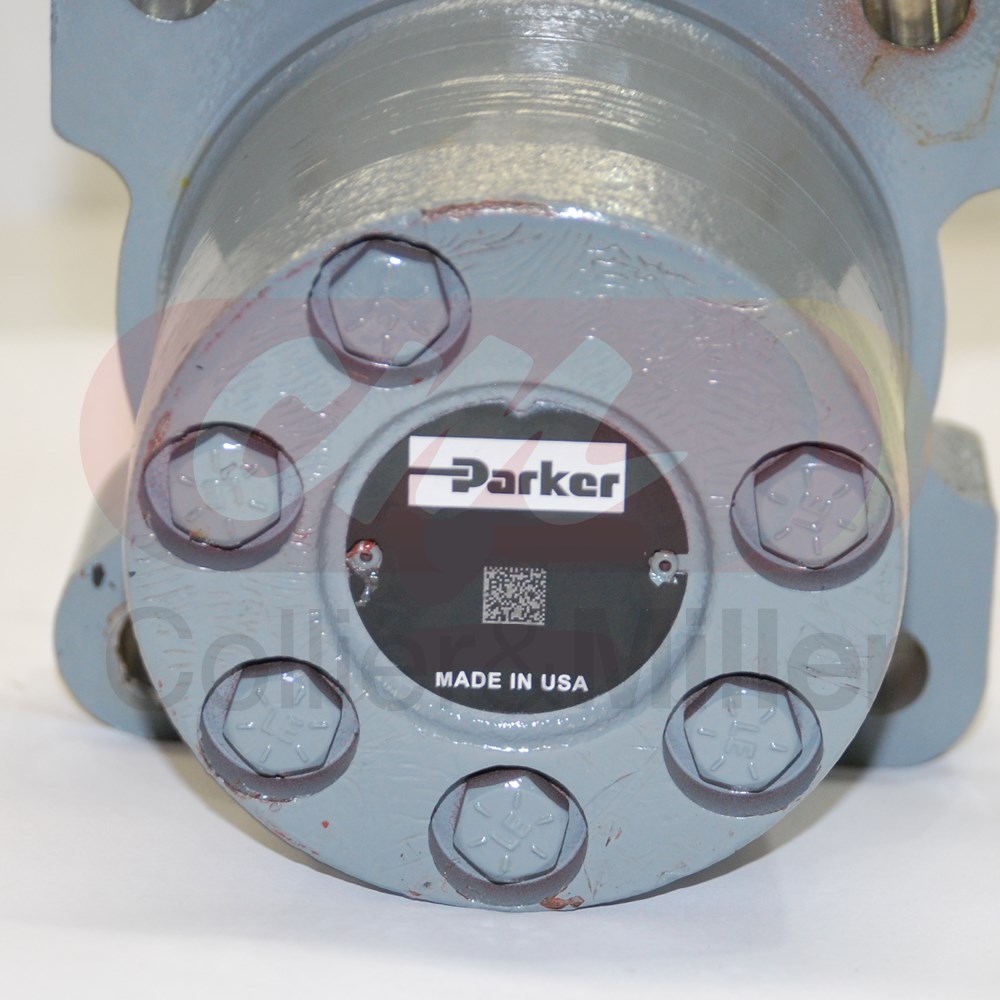

- Parker TE Series
- Wheel mount
- 65cc 4.0ci
- Wheel mount

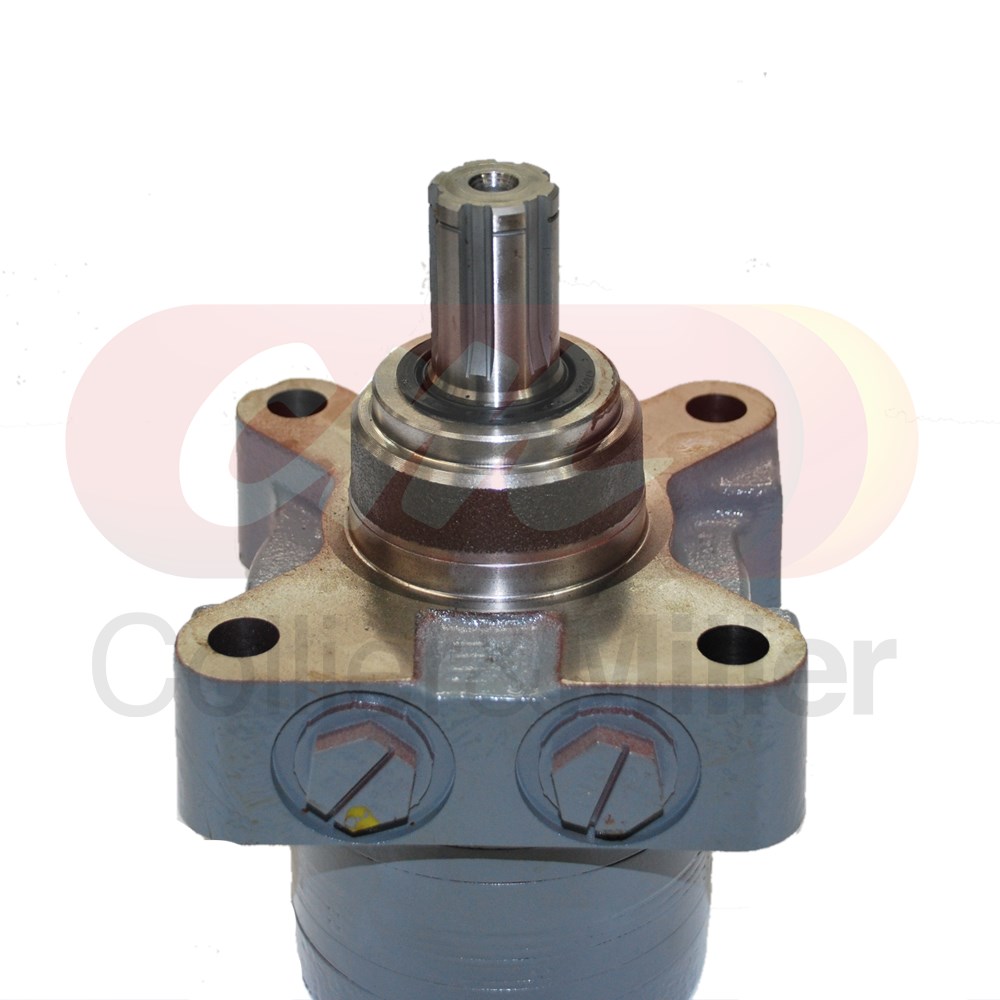

- 1" 6B Splined shaft
- Side ports 2x7/8-14 UNO
- Standard rotation

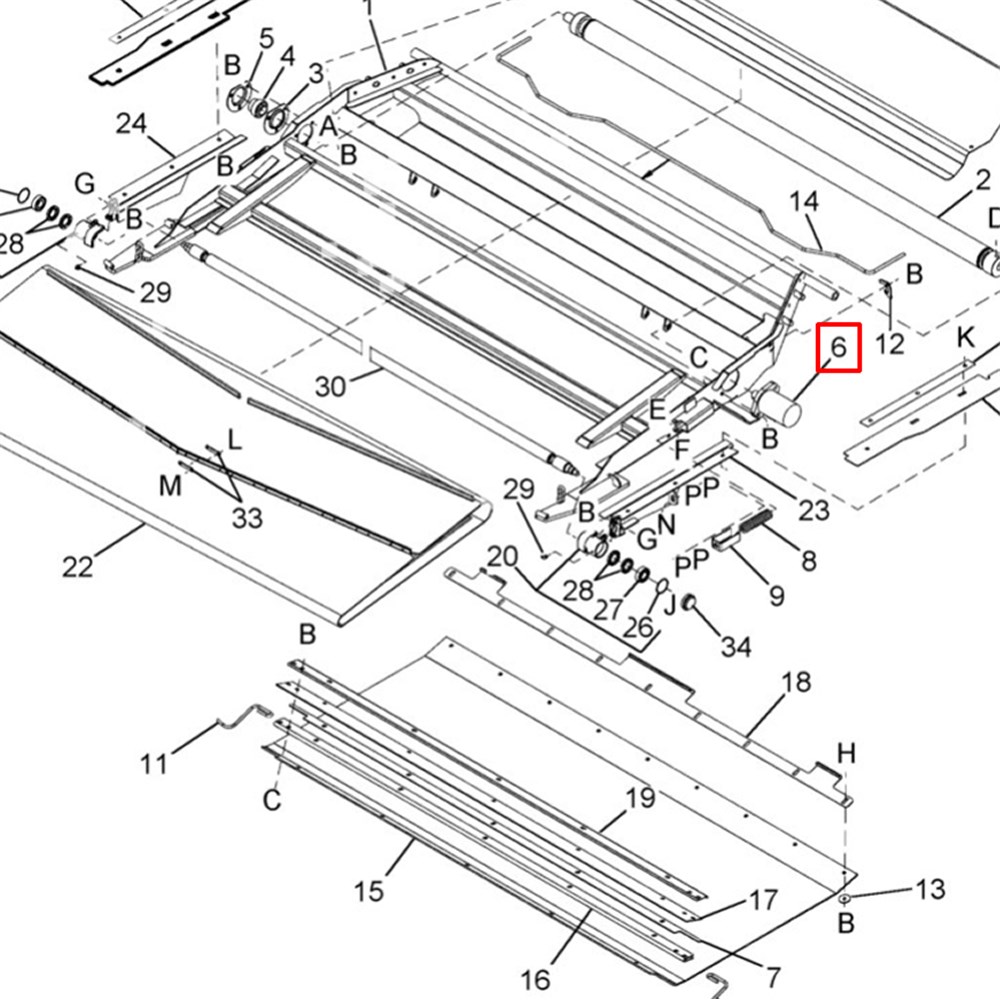

Macdon fitting notes.
Roller alignment must be checked and feed draper motor shim kit (MD #304748) installed if required. Misalignment of the feed draper drive motor and drive roller causes stress in the motor shaft and roller bore, leading to premature wear and failure. The kit provides the required shims when replacing a failed feed draper drive motor or driver roller, or to correct misalignment between the drive motor and drive roller. See instruction MD #215035 for installation. Includes eight 0.6 mm shims (NSS), eight 0.4 mm shims (NSS), 4 flange nuts (MD #21452), and 4 hex nuts
(MD #135927).
