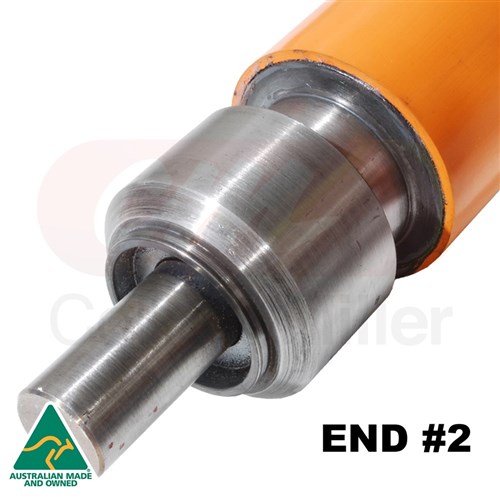

C&M aftermarket center feed belt drive roller to suit FM100 float modules fitted to Macdon® cutting platforms. This centre feed drive roller takes the 78.5" centre belt, and has been machined specifically with a hardened splined bush on the drive end to allow for positive drive and improved service life.

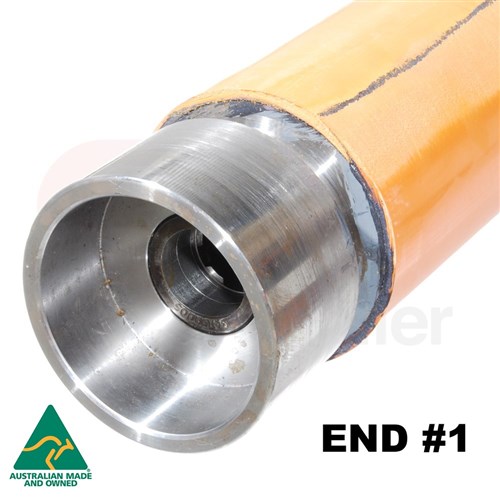

Measuring 3" in diameter, features a V groove on either end, allowing it to either take the OEM centre belt with two V guides, or the aftermarket belt with a single V guide.
Part numbers
Application
- FM100 Center Feed Belt Drive Roller
Models
| Series |
Models |
Serial/Year |
| Macdon D1 Series |
D125, D130, D135, D140, D145 |
|
| Macdon FD1 Series |
FD125, FD130, FD135, FD140, FD145 |
|
Features
- C&M Australian Made
- 1" x Z6 Spline Hub

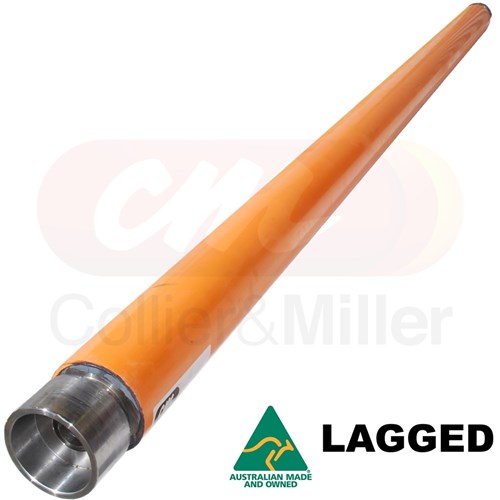

- Lagged
- V-Groove each end
- Accepts double Vee & single Vee matting
