Case-IH® & New Holland® Compatible High Capacity Vertical Unloading Auger

Increase unloading performance with this premium high-capacity vertical unloading auger, designed as a direct-fit replacement for selected Case-IH® Axial-Flow and New Holland® CR Series combine harvesters. Featuring hardened 8-spline drive hubs and Wear-resistant flighting, this extended-wear auger delivers exceptional durability and reliable grain handling in demanding harvesting conditions.

Manufactured with heavy-duty 6.3 mm left-hand flighting, this vertical unload auger is dynamically balanced to reduce vibration while maintaining smooth, high-capacity grain transfer. The abrasion-resistant Hardox® steel provides significantly improved wear life over conventional mild steel flighting, helping reduce maintenance costs and maximise uptime during harvest.

Case-IH® & New Holland® OEM Cross-Reference

Replaces OEM Part Numbers:
47886360, 5142798, 47886358, 47745640, 51427981, 51443673

Additional Reference:
WN-47886360, AE230

Compatible Case-IH® Combine Harvesters

Compatible New Holland® Combine Harvesters

Technical Specifications

• Brand: A&I Products®
• Component: High Capacity Vertical Unloading Auger
• Material: Wear-resistant steel flighting
• Flighting Direction: Left Hand
• Overall Length: 41.25" (1,048 mm)
• Flight Diameter: 15.5" (394 mm)
• Centre Tube Diameter: 4.5" (114 mm)
• Flight Thickness: 6.3 mm

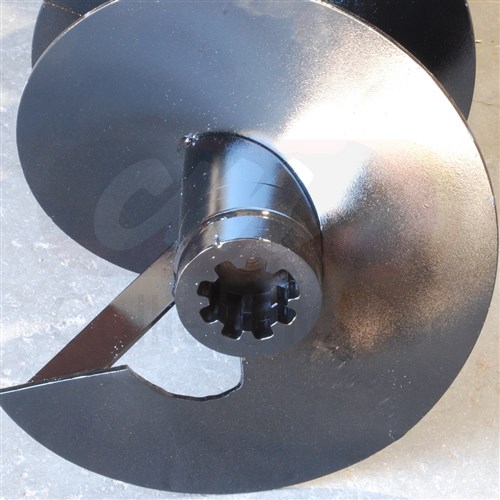

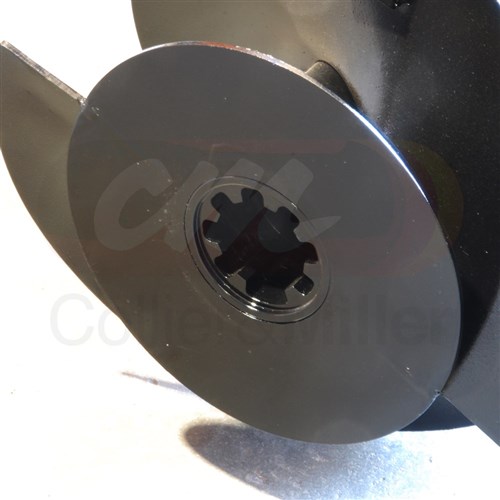

• Drive Hub: Hardened 8-spline
• Balance: Dynamically balanced
• Replacement Type: Premium aftermarket direct-fit replacement

Features & Benefits

• Quality aftermarket replacement
• Heavy-duty Hardox® wear-resistant flighting
• High-capacity unloading performance
• Extended service life in abrasive grain handling applications
• Hardened 8-spline drive hubs for reliable power transmission
• Dynamically balanced to minimise vibration and improve smooth operation
• Direct replacement for OEM unloading augers
• Suitable for both Case-IH® and New Holland® combines listed above

Expert Maintenance Review

Vertical unloading augers are subjected to high loads and continuous abrasion during grain unloading. Inspect the flighting for thinning, excessive wear, cracks and damage around the spline hubs. Worn augers reduce unloading efficiency and increase stress on the unloading gearbox, bearings and drive components. Replacing the auger before significant wear develops helps maintain fast unloading speeds and reliable machine operation.

Installation Tip

When replacing the unloading auger, inspect the upper and lower bearings, gearbox, drive couplings and spline engagement for wear. Correct alignment and proper bearing condition will maximise the service life of the new auger and ensure smooth unloading performance.

Collier & Miller stocks a comprehensive range of genuine A&I Products® replacement parts for Case-IH® and New Holland® combine harvesters, with fast Australia-wide shipping.
