Case-Compatible Repair Hub

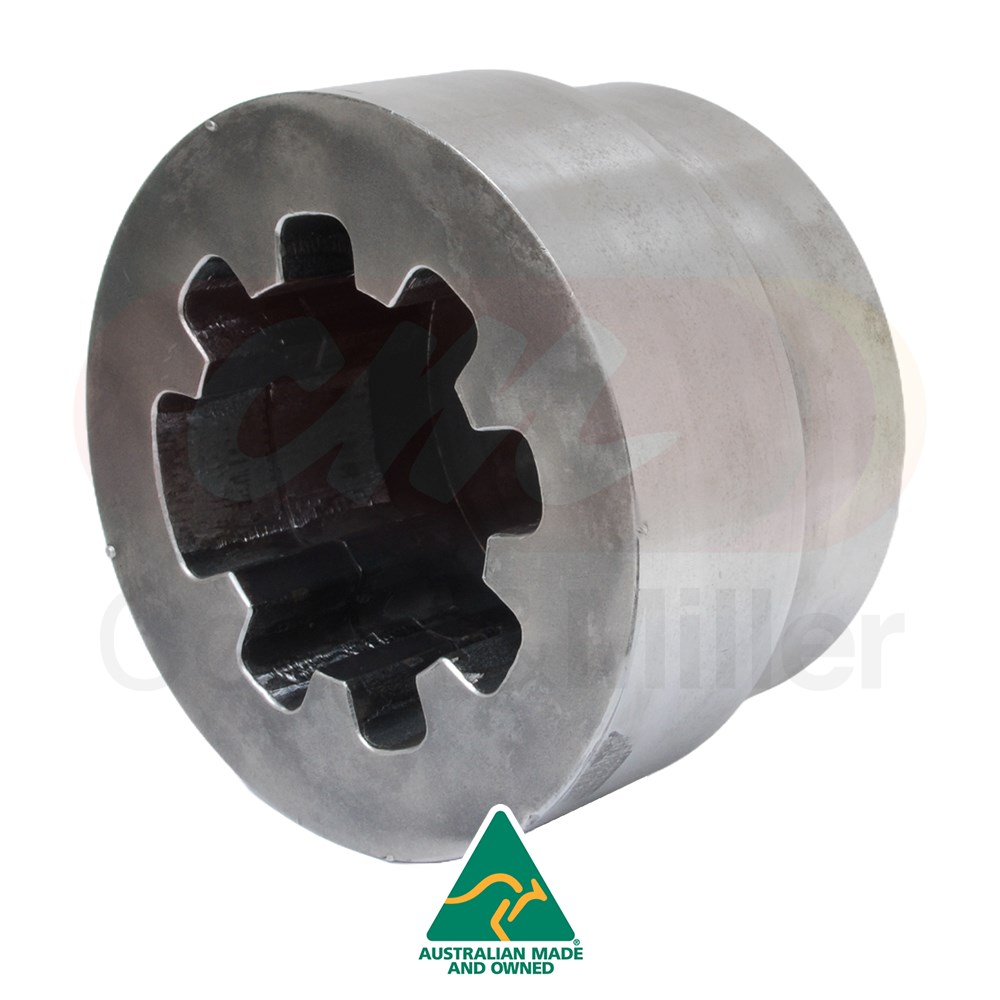

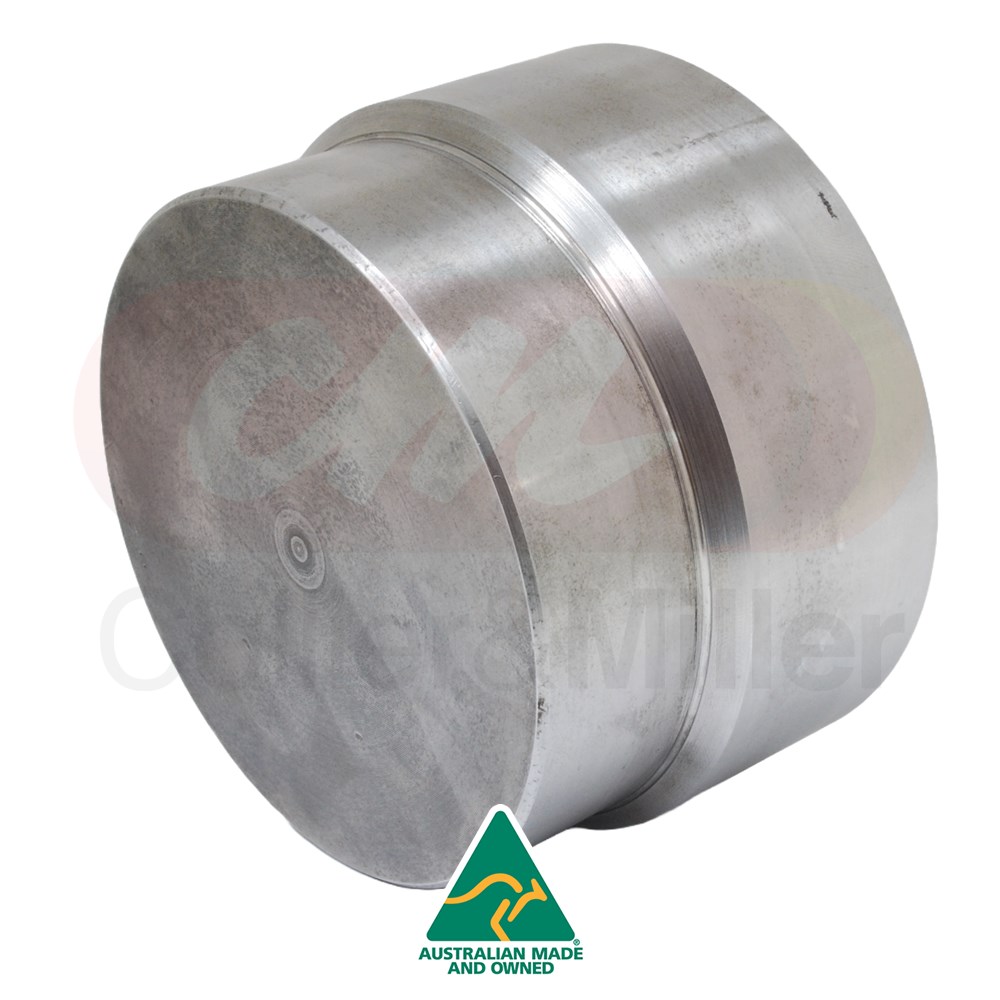

Bisalloy400 8 Spline Hub for Unloading Auger
C&M made in Australia replacement 8T hub to fit vertical unloading augers on Case-IH® and New Holland® flagship combine harvesters. This weld-in hub can be used to upgrade earlier model augers supplied with the 24 spline bush. Case-IH® upgraded later models to this spline for increased service life. When installing this bush it must be used in conjunction with 47745647 bush to adapt from 24 spline gearbox shaft to 8 spline auger.
Part number
| Series |
Models |
Serial Year |
| Case-IH® 230 Series |
7230, 8230, 9230 |
Upgrade from 24 Spline to 8 Spline |
| Case-IH® 240 Series |
7240, 8240, 9240 |
Upgrade from 24 Spline to 8 Spline |
| New Holland® CR |
9.90 10.90 |
Upgrade from 24 Spline to 8 Spline |
Features
- C&M made in Australia
- Bialloy 400
- Length Overall = 2.82"
- Length Spigot = 1.125" - not including bevel
- Diameter Overall = 4.500"
- Diameter Spigot = 4.125"
