GLEANER REAR FEEDER CHAIN A557 8-4-4-8 4 ROW 85L 32B AGCO GLEANER S96 S97 S98

A557 8-4-4-8 4 ROW 85L 32B AGCO GLEANER S96 S97 S98

Product Code: CM71486836

Detail
Technical
Interchange
Downloads

AGCO Gleaner® Compatible

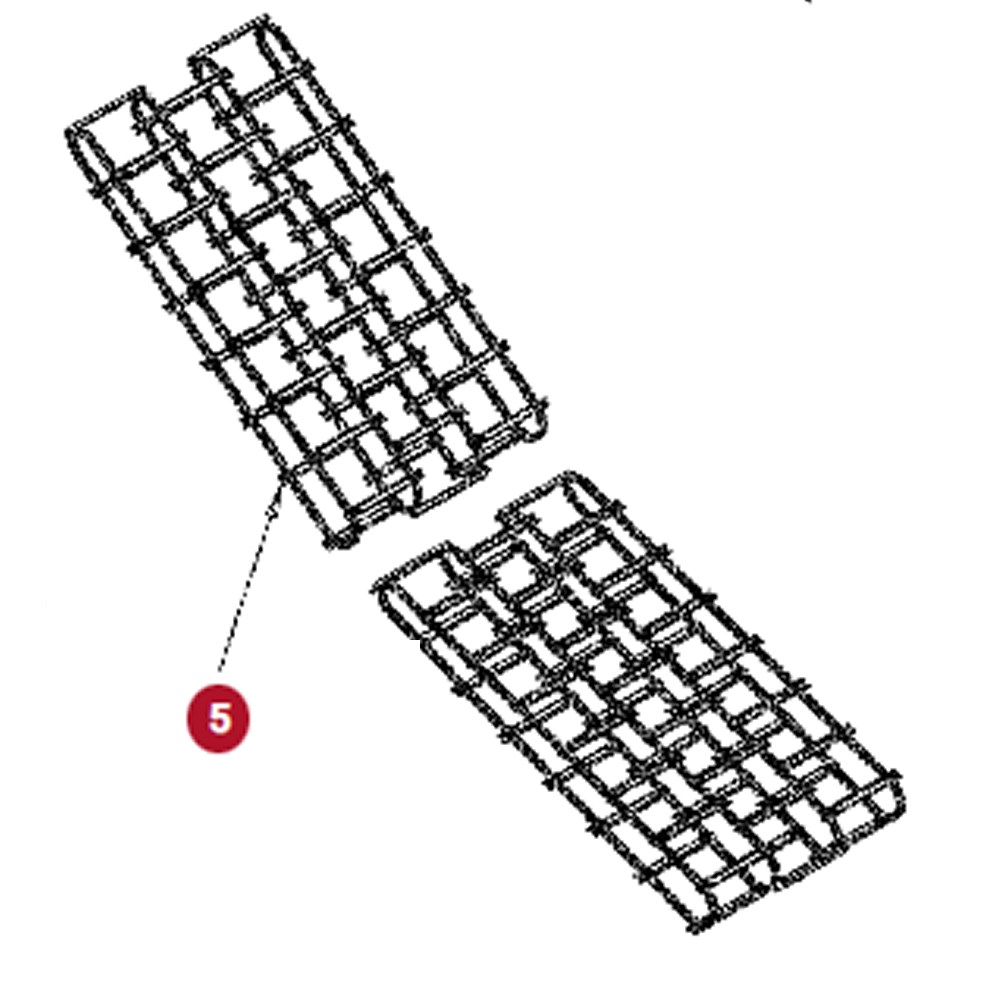

Feeder House Chain Assembly - Rear Chain

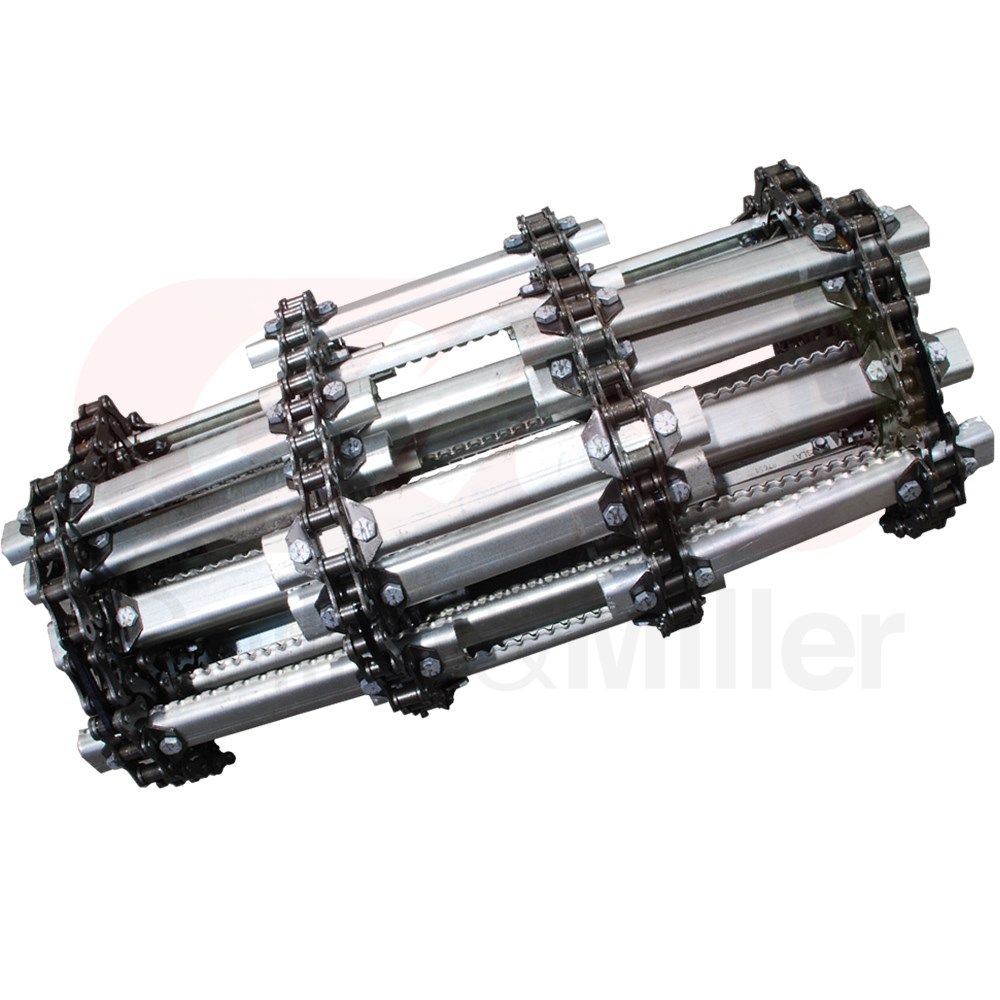

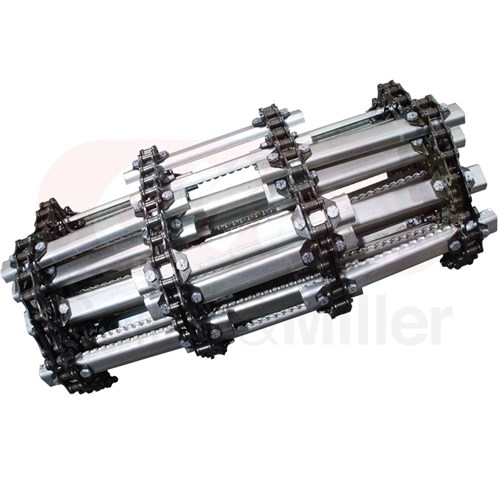

C&M replacement complete feeder house chain assembly to suit the rear conveyor on AGCO Gleaner® combine harvesters .This is a set of four (4) replacement chains fiited with electroplated 6mm roll-serrated u-bar slats with the same spacing as the AGCO Gleaner® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation

Part Number

71486836

Series	Models	Serial/Year
Gleaner S9	S96	(2016) (GHTVX101-GHTVX999), (2017) (HHTV6101-HHTV6999) , (2018-2023) (JHTV6101-PHTV6999)
	S97`	(2016) (GHTVX101-GHTVX999), (2017) (HHTV6101-HHTV6999) , (2018-2023) (JHTV6101-PHTV6999)
	S98	(2017) (HHTV8101-HHTV8999), (2018-2023) (JHTV8101-PHTV8999)

Features

Quality A557 Chrome Pin Chain
Same spacing as the OEM chain
6mm roll-serrated & electroplated bars
4 x Connectors 8 x Offset Links
High tensile fasteners
Ready to install

C&M Technical Specifications

Item	Details	Notes
CM71486836	Gleaner S9 Series	Rear Feeder x 4 Chain
Chain Brand	AMEC	Stamped C&M
Chain Type	A557	Chrome Pin
Chain Assembly	4 Chain with bars
Attachment Pattern	8-4-4-8	Same as AGCO OEM
Number of Pitches	85	Including Connectors
Supplied Connectors	4 x Conns 8 x Offset Links	Threaded
Assembly Width (Overall)
Number of bars	32
Chain centre to centre	264MM + 264MM + 264MM
Bar Type	6mm U-Bar G350	Roll serrated & electroplated
Bolts	128 x CM121 1/2" X 1.0" UNC GRADE 8	Threadlocker Pre-Treated
Nuts	128 x NCCN12 1/2" CONE LOCK NUT	Torque prevailing
