GLEANER FRONT FEEDER CHAIN A557 8-4-4-8 4 ROW 106L 39B AGCO GLEANER S96 S97 S98

A557 8-4-4-8 4 ROW 106L 39B AGCO GLEANER S96 S97 S98

Product Code: CM71486837

Detail
Technical
Interchange

Gleaner® Compatible

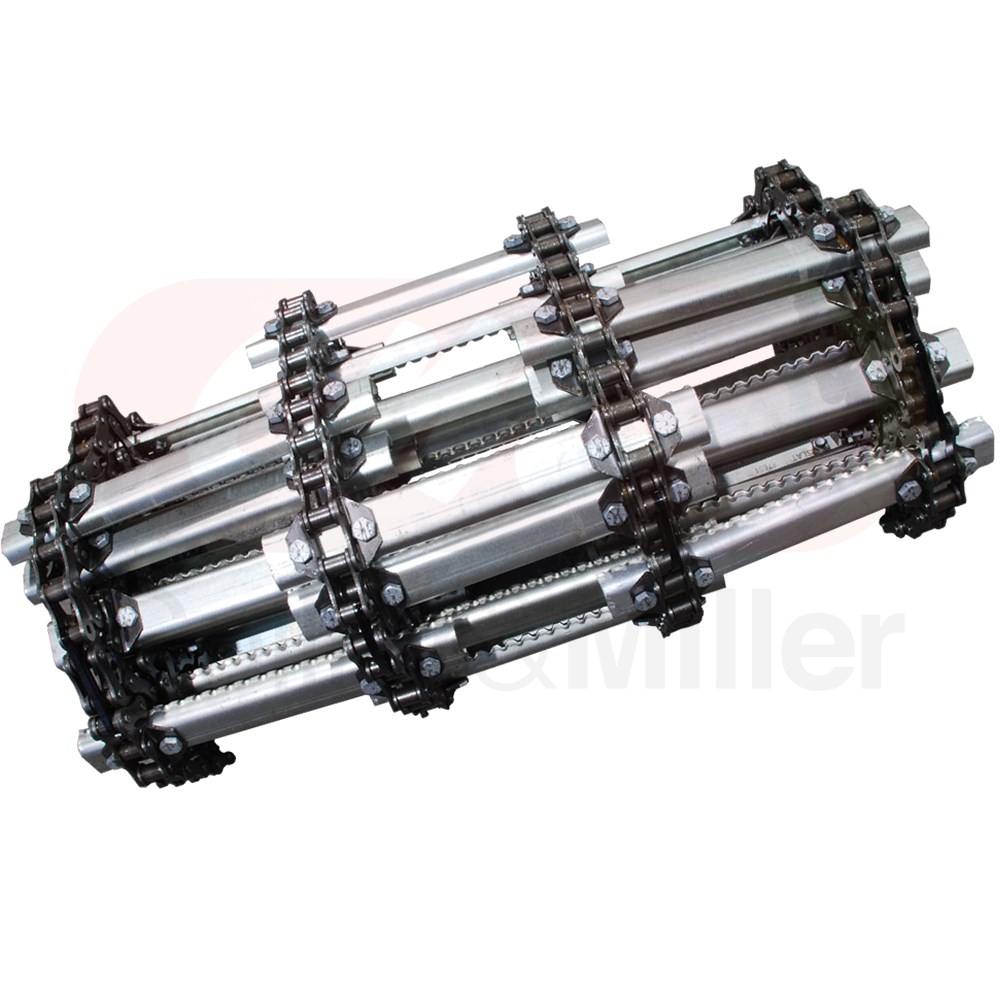

Feeder House Chain Assembly - Front Chain

C&M replacement complete feeder house chain assembly to suit the front conveyor on AGCO Gleaner® combine harvesters .This is a set of four (4) replacement chains fiited with electroplated 6mm roll-serrated u-bar slats with the same spacing as the AGCO Gleaner® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation

Part Number

71486837

Series	Models	Serial/Year
Gleaner® S9	S96	(2016) (GHTVX101-GHTVX999), (2017) (HHTV6101-HHTV6999) , (2018-2023) (JHTV6101-PHTV6999)
	S97`	(2016) (GHTVX101-GHTVX999), (2017) (HHTV6101-HHTV6999) , (2018-2023) (JHTV6101-PHTV6999)
	S98	(2017) (HHTV8101-HHTV8999), (2018-2023) (JHTV8101-PHTV8999)
		S98 TRANSVERSE COMBINE (2018-2024) (JHTV8101-RHTV8999)

Features

Quality A557 Chrome Pin Chain
Same spacing as the OEM chain
6mm roll-serrated & electroplated bars
4 x Connectors 8 x Offset Links
High tensile fasteners
Ready to install

Item	Details	Notes
CM71486837	Gleaner Front Feeder Chain	4 Chain
Chain Type	CA557	Chrome Pin
Chain Assembly	4 Chain with bars
Attachment Pattern	8-4-4-8
Number of Links	106	Including Connector
Number of slats	39
Assembly Width (Overall)
Chain centre to centre	264mm + 264mm + 264mm
Slat Type	6mm U-Bar	Roll-Serrated & Electroplated
Supplied Connectors	4 x Conns 8 x Offset Links	Chrome pin threaded
Bolts	156 x UNC 1/2" x 1.00" Grade 8	Threadlocker Pre-Treated
Nuts	156 x UNC 1/2" Cone lock	Torque prevailing
