Case-IH® Compatible Cleaning Fan Drive Pulley Sheave (305mm)
Maintain the efficiency of your cleaning fan drive with this high-quality aftermarket pulley sheave. Specifically engineered for Case-IH® mid-series Axial-Flow combines, this inner sheave includes the integrated hub and bushing for a complete replacement solution.
This 305mm sheave is manufactured to meet or exceed OEM specifications, providing a precision fit and reliable variable-speed drive performance. It is a direct-fit replacement for several standard CNH part numbers, ensuring a reliable drive across generations of Case-IH® models from the 1600 series through to the modern 160 series.
Case-IH® Model Compatibility
Replaces OEM Part Numbers: 84556153, 154552C1, 154552C2, WN-154552C2, HP086
Case IH Inner Fan Pulley Sheave for 1680, 2388, 5088, 7150, 7160 Models
| Series |
Models |
Serial/Year |
| Case-IH® 1600 Series |
1620, 1644, 1660, 1680, 1688 |
Axial-Flow |
| Case-IH® 2100 Series |
2144, 2166, 2188 |
Axial-Flow |
| Case-IH® 2300 Series |
2344, 2366, 2377, 2388 |
Axial-Flow |
| Case-IH® 2500 Series |
2577, 2588 |
Axial-Flow |
| Case-IH® 88 Series |
5088, 6088, 7088 |
|
| Case-IH® 130 Series |
4130, 5130, 6130, 7130 |
|
| Case-IH® 140 Series |
5140, 6140, 7140 |
|
| Case-IH® 150 Series |
5150, 6150, 7150 |
|
| Case-IH® 160 Series |
5160, 6160, 7160 |
|
Technical Specifications

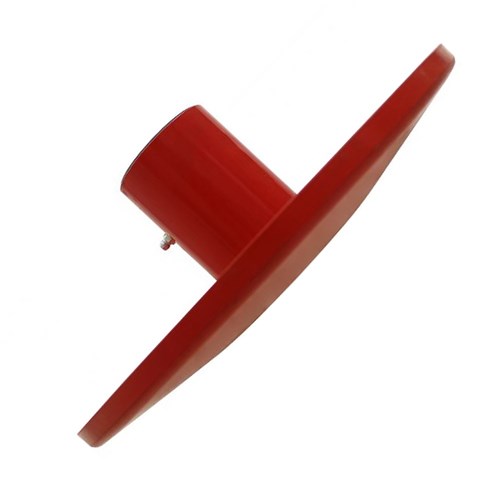

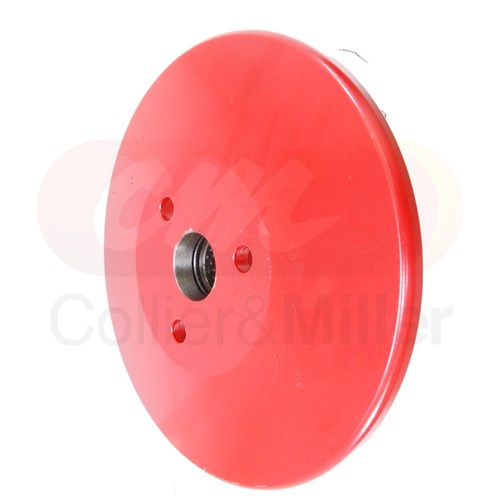

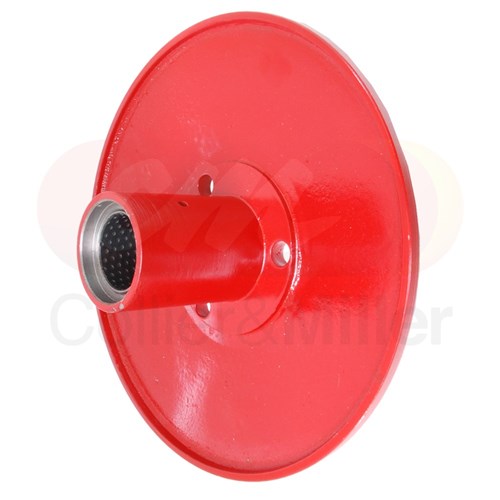

- Description: 305mm Inner sheave assembly with integrated hub and bush.
- Bushing Dimensions: ID 44.32mm x OD 48.97mm x Length 30.2mm.
- Direct Fit: Replaces original Case-IH® variable speed drive components.
- Available for fast Australia-wide dispatch from Collier & Miller.
