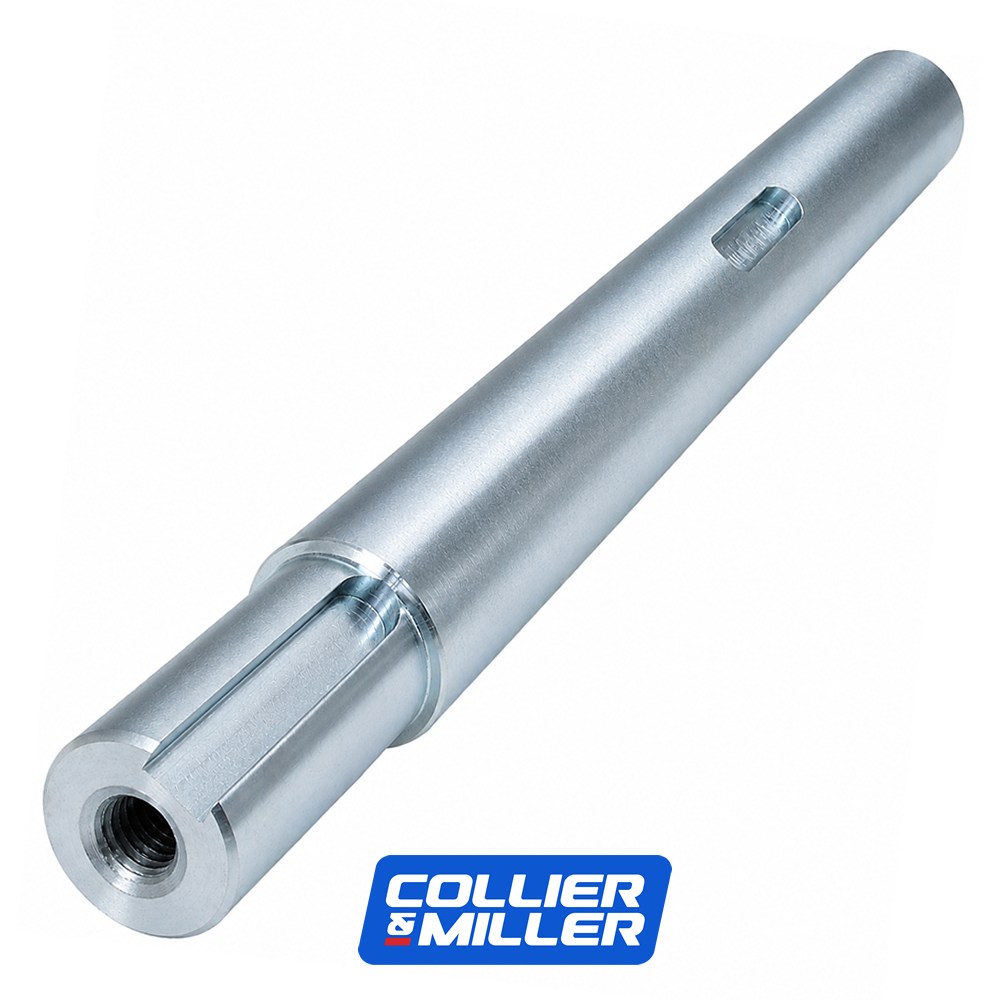

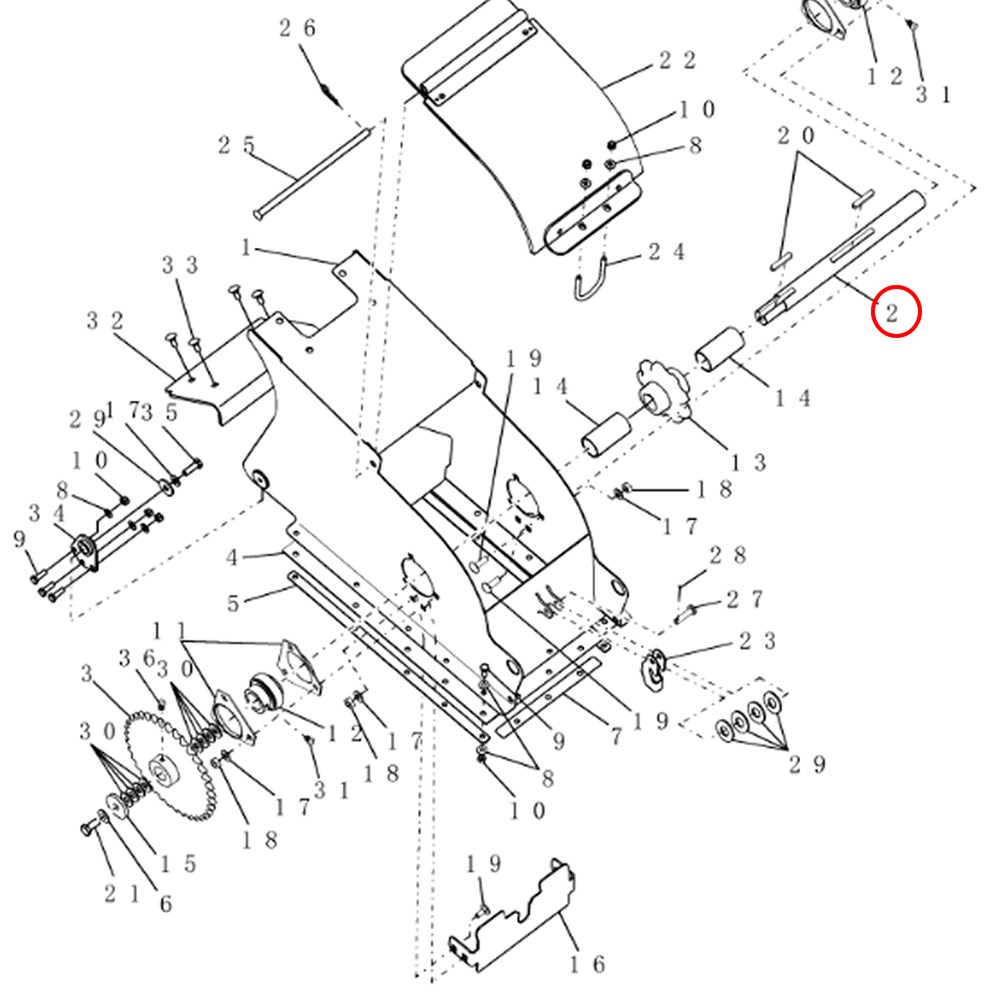

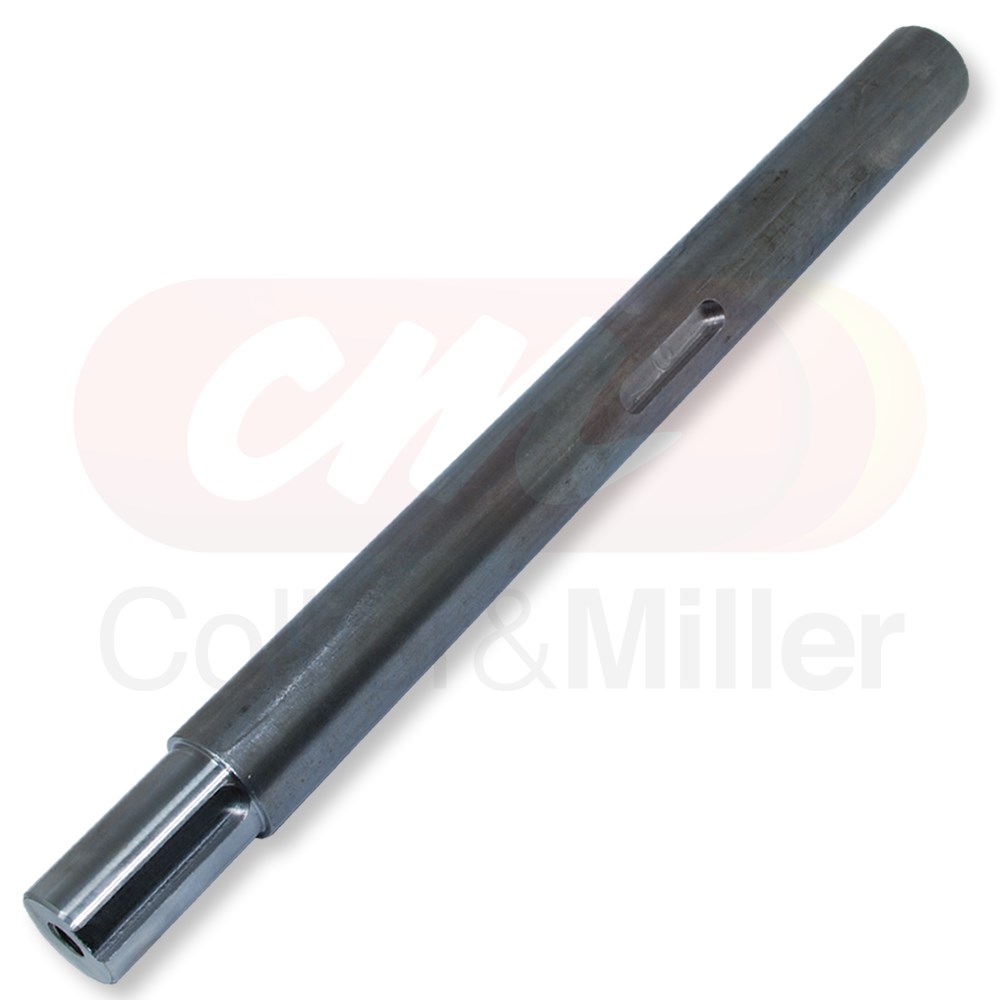

CASE-IH® Compatible Clean Grain Elevator Top Shaft – 86998178
C&M made in Australia clean grain elevator top shaft to suit CASE-IH® Flagship combine harvesters. Manufactured at our Griffith, NSW engineering facility from 4140 bright bar, this direct-fit replacement is made to the required dimensions to restore the clean grain elevator drive and help keep the grain handling system in top condition.

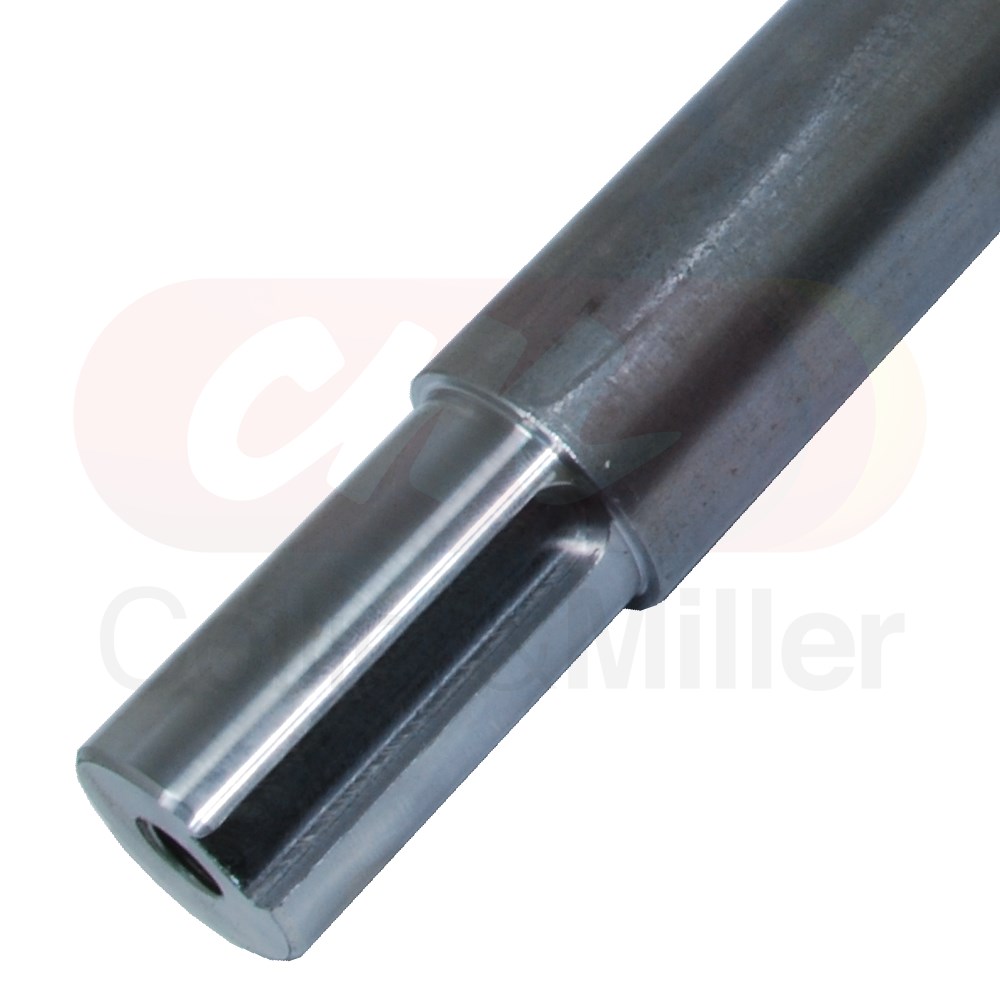

The shaft features an electroplated zinc finish and accurately machined bearing surfaces, keyways and threaded mounting points. It is designed as a direct replacement for OEM 86998178 across selected CASE-IH® 10, 120, 230, 240 and 250 Series combines.
CASE-IH® OEM Cross-Reference
Replaces OEM Part Number:
Machine Compatibility
CASE-IH 7010, 7120, 7230, 8240 and 9250 clean grain elevator top shaft compatibility
| Series |
Models |
Serial / Fitment Notes |
| CASE-IH® 10 Series |
7010, 8010, 8010 AFX |
|
| CASE-IH® 120 Series |
7120, 8120, 9120 |
|
| CASE-IH® 130 Series |
7130 |
|
| CASE-IH® 230 Series |
7230, 8230, 9230 |
|
| CASE-IH® 240 Series |
7240, 8240, 9240 |
|
| CASE-IH® 250 Series |
7250, 8250, 9250 |
|
Technical Specifications & Features
- C&M made in Australia at our Griffith, NSW engineering facility
- Direct-fit replacement for OEM 86998178
- Clean grain elevator top shaft
- Manufactured from 4140 bright bar
- Electroplated zinc finish
- Overall length: 402mm
- Main shaft diameter: 35mm
- Stepped shaft diameter: 30mm

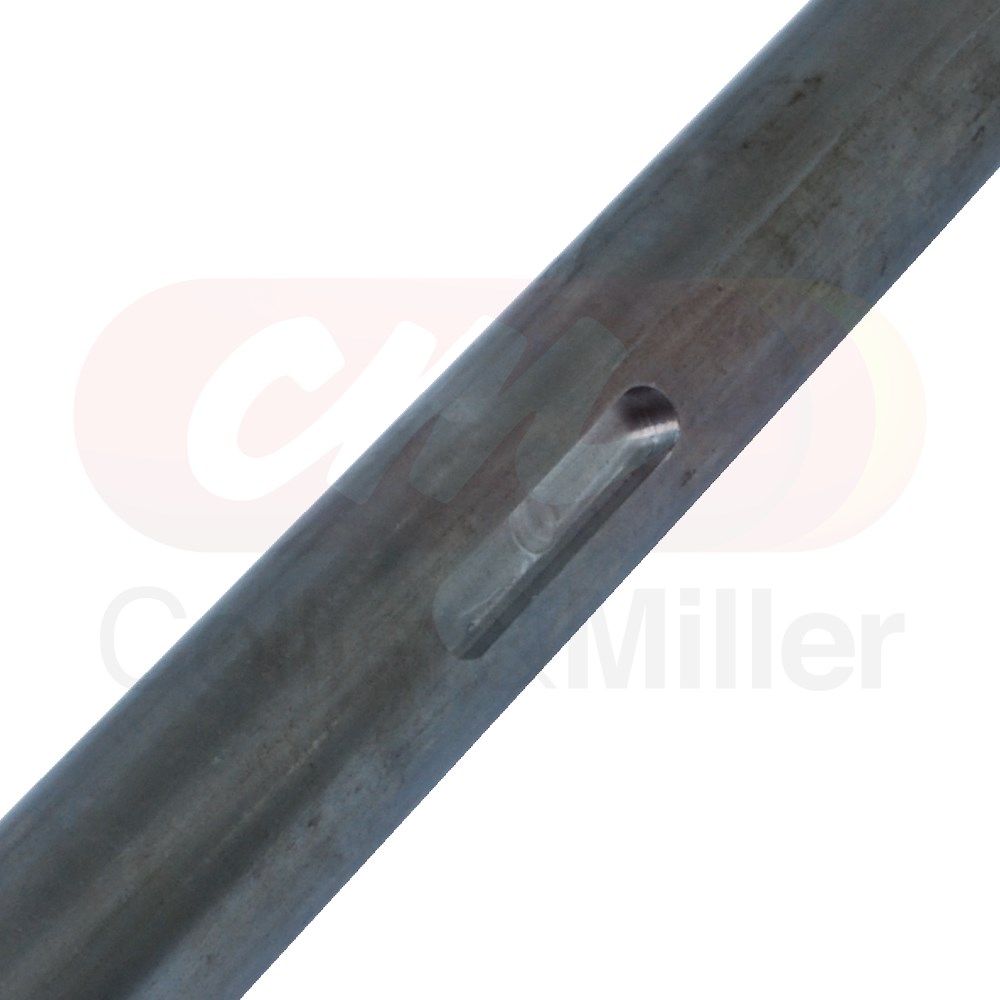

- Keyway slots: 10mm x 5mm
- Thread: M12 x 1.75, 40mm deep
- Accepts M12 x 1.75 x 25mm hex bolt
The C&M Difference
This elevator shaft is manufactured by C&M in Griffith, NSW from 4140 bright bar rather than being treated as a generic replacement component. Critical shaft diameters, keyways and threaded mounting points are machined to provide a direct-fit replacement for the original clean grain elevator top shaft.
The electroplated zinc finish provides corrosion protection to the finished component, while the 4140 steel construction provides a strong foundation for the shaft's working surfaces and drive connections.
Expert Maintenance Review
When replacing the clean grain elevator top shaft, inspect the keyways and adjoining sprocket or drive components for fretting, movement or excessive wear. Also check the bearing locations for scoring or looseness and inspect the elevator chain and sprockets while the upper elevator assembly is accessible.
A worn sprocket, bearing or loose keyed connection can place additional load on a new shaft and contribute to accelerated wear through the clean grain elevator drive.
Recommended Maintenance Check:
Inspect the upper and lower clean grain elevator sprockets, bearings and elevator chain when replacing the top shaft. Worn sprocket teeth or excessive chain wear can increase loading on the shaft and adjoining drive components.
Installation Tip
Before assembly, make sure the keyways and mating components are clean and free from burrs or damage. Check that the sprocket and bearings fit correctly on their respective shaft surfaces and that the keyed components are fully seated. After assembly, rotate the elevator drive by hand where practical to confirm correct alignment and free movement before returning the machine to service.
CASE-IH® is a registered trademark of CNH Industrial America LLC. OEM names and part numbers are quoted for reference purposes only. This C&M aftermarket component is not a genuine CASE-IH® part. Confirm machine compatibility before ordering.
