Case-IH® Compatible Sieve Frame Bushing Kit

Restore the stability and performance of your cleaning shoe with this comprehensive aftermarket sieve frame bushing kit. Specifically designed for Case IH® mid-series Axial-Flow combines, this kit provides a high-quality replacement for worn-out original rubber-to-metal bonded bushings.

This complete kit includes the primary sieve frame support bushings required to maintain proper oscillation and alignment. Engineered to meet or exceed OEM specifications, these bushings are a direct-fit solution for 21, 23, 25, 88, 130, and 140 series machines, helping to eliminate excessive vibration and premature frame wear.

Case-IH® Mid-Series Model Compatibility

Replaces OEM Part Numbers: 87299946, B94707A, 87376924, 87538599

Sieve Frame Bushing Kit for Case IH 2188, 2388, 5088, 7140 Models

Series	Models	Serial Range
Case-IH® 21 Series	2144, 2166, 2188	All Models
Case-IH® 23 Series	2344, 2366, 2377, 2388	2377 SN: HAJ0292001> | 2388 SN: <JJC0276540 & HAJ0292001
Case-IH® 25 - 140 Series	2577, 2588, 5088, 6088, 7088, 5130, 6130, 7130, 5140, 6140, 7140	All Models

Kit Contents & Technical Dimensions

Bush Ref	Qty	Dimensions

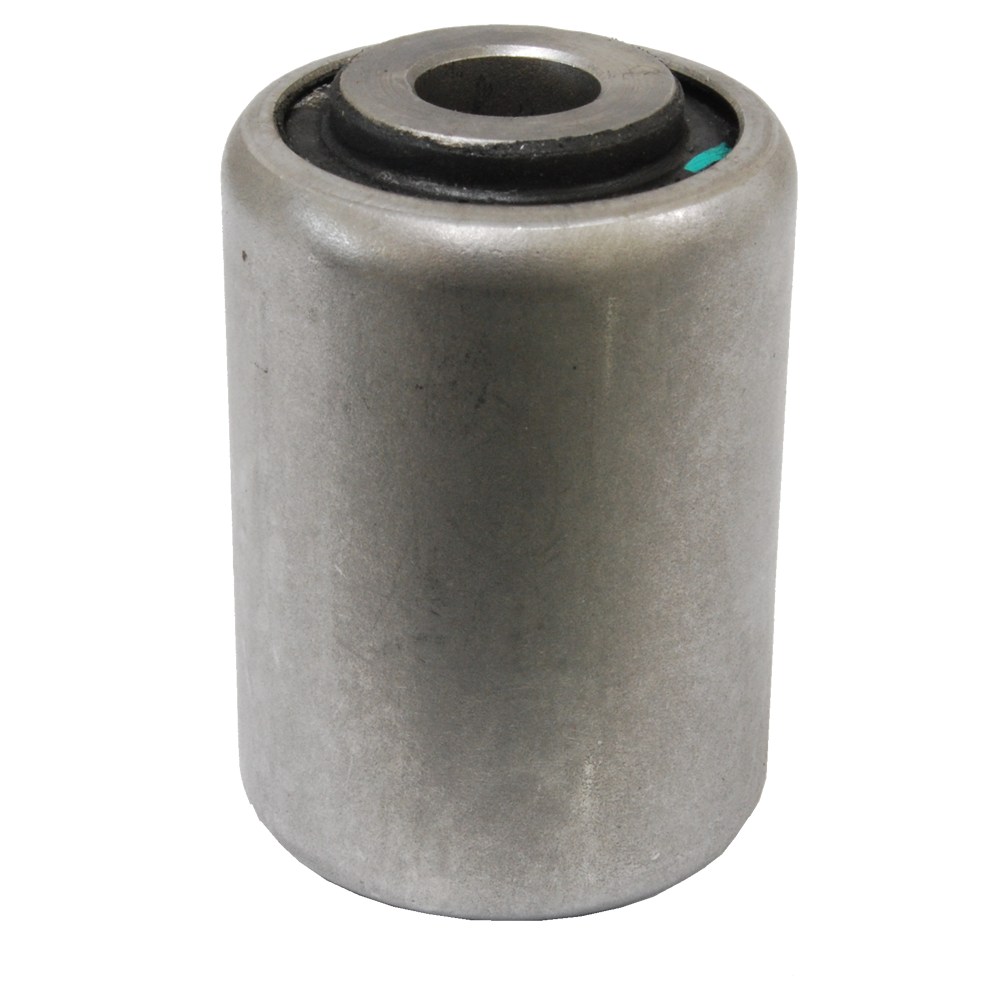

87376924	2	ID 16mm | OD 50.8mm | Length 76.2mm

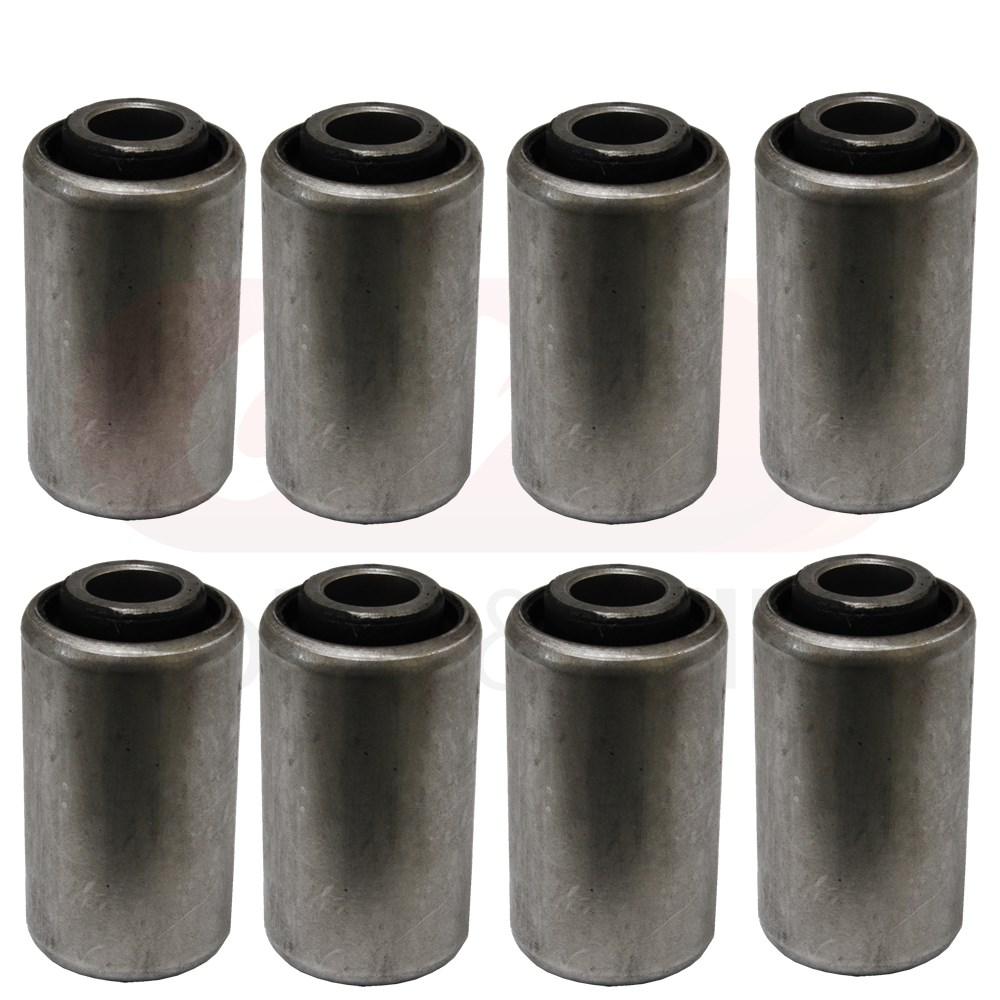

87538599 (1330323C2)	8	ID 16mm | OD 38.1mm | Length 73mm
87538600	10	ID 16mm | OD 32.7mm | Length 58.7mm

Features

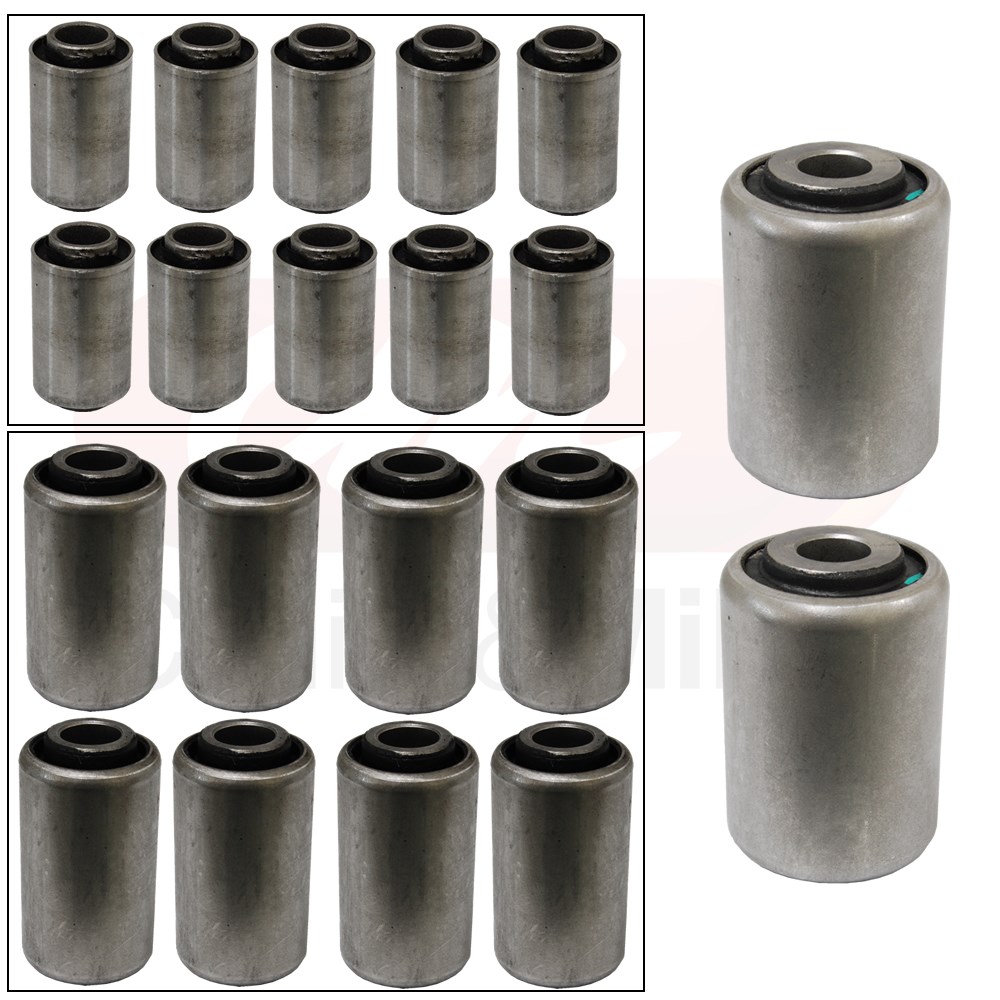

• Complete 20-piece bushing kit for a total sieve frame overhaul.
• High-durability rubber-to-metal bonded construction for optimal vibration dampening.
• Precision manufactured for exact fitment based on OEM serial number breaks.
• Available for fast Australia-wide dispatch from Collier & Miller.
