CASE-IH® Compatible Shaker Hanger Arm Kit
Restore smooth oscillation to your cleaning system with this comprehensive aftermarket shaker hanger arm kit. Specifically designed for Case IH® combine harvesters, this kit provides a high-quality replacement for worn pivot points to prevent shaker frame damage and excessive vibration.
This C&M aftermarket kit is a direct-fit solution for Case IH® shaker arms, featuring premium needle bearings and oil seals to ensure extended service life in harsh harvest conditions. Each kit is supplied with all necessary components for a complete rebuild of the pivot assembly.
Model Compatibility
Replaces OEM Part Numbers: B953532, 1979251C1
Shaker Hanger Arm Kit for Case IH Mid-Series and Flagship Combines
| Series |
Models |
Serial / Year |
| Case-IH® Mid-Series |
1680, 1688, 2188, 2388, 2588 |
All Units |
| Case-IH® Flagship |
7088, 7120, 8120, 9120, 7230, 8230, 9230 |
All Units |

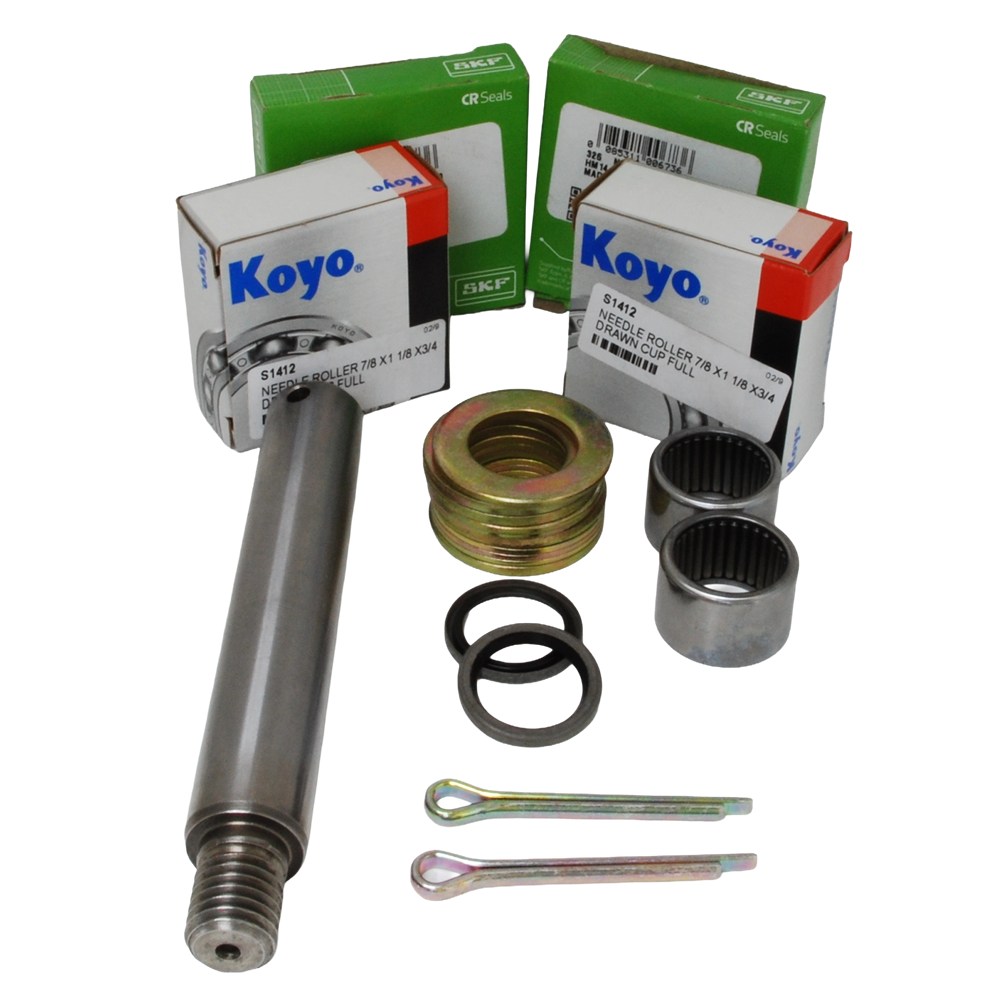

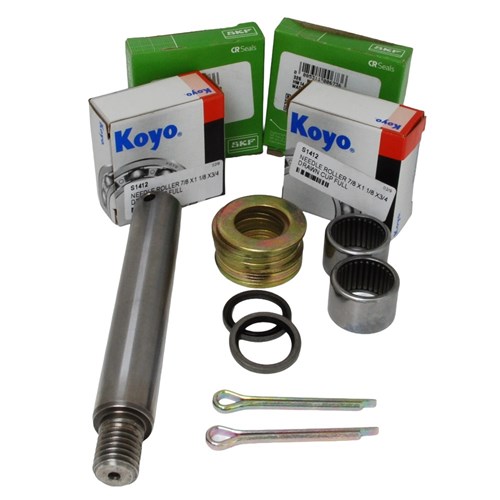

Kit Contents & Component Part Numbers
| Part Number |
Description |
Qty |
| 1979251C1 |
Shaft for chaffer lever |
1 |
| G10642 |
Needle Bearing - 22mm ID x 28mm OD x 19mm W |
2 |
| 86624166 |
Washer |
4 |
| 372756R91 |
Oil Seal - 20.45mm ID x 28.68mm OD x 3.17mm Thick |
2 |
| 87613199 |
Washer - 0.91" ID x 1.5" OD x 0.12" Thk |
6 |
| 87399 |
Cotter Pin - 4.76mm OD x 44.45mm L |
2 |
Features
- Complete rebuild kit for shaker hanger arm pivot points.
- High-quality needle bearings and seals for high-vibration applications.
- Direct replacement for Case IH OEM part numbers B953532 and 1979251C1.
- Available for fast Australia-wide dispatch from Collier & Miller.
