Aftermarket high wear plate assembly located in the transition area on Case-NH Flagship combine harvesters.Continuing a philosphy of replacing OEM parts with better performing alternatives.
This extended wear plate assembly is manufactured using stainless steel for increased service life. Mounted to the rotor feed plate (PN CM84555218) and part of the cone inlet feeder section this part used stainless steel in high wear aea's and high tensile rod for the pivot, an extension lip has also been added over the hinge area to prevent the excessive wear.
Part numbers
- Standard Wear 87522176
- High Wear 87568249
- Substitutions 87484453 87484454

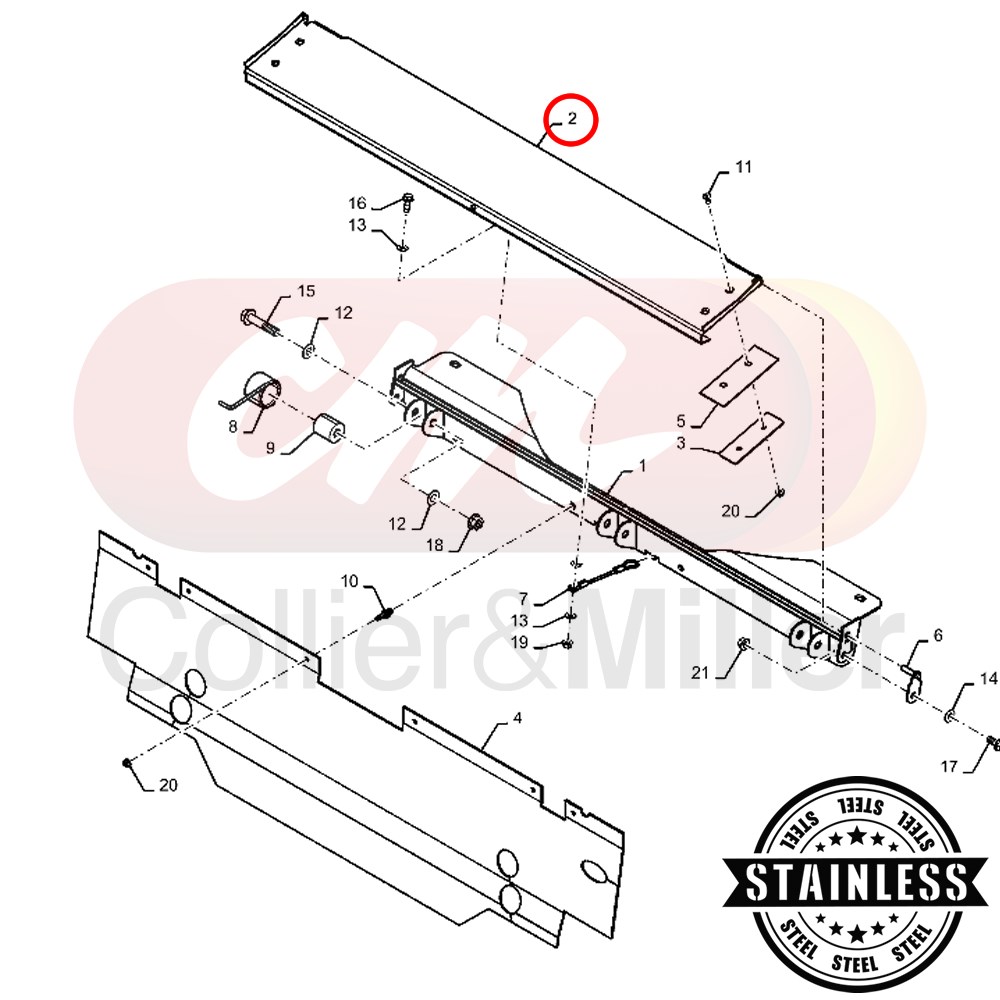

Includes Part Numbers
- #3 Plate 87106848
- #5 Seal 87280910

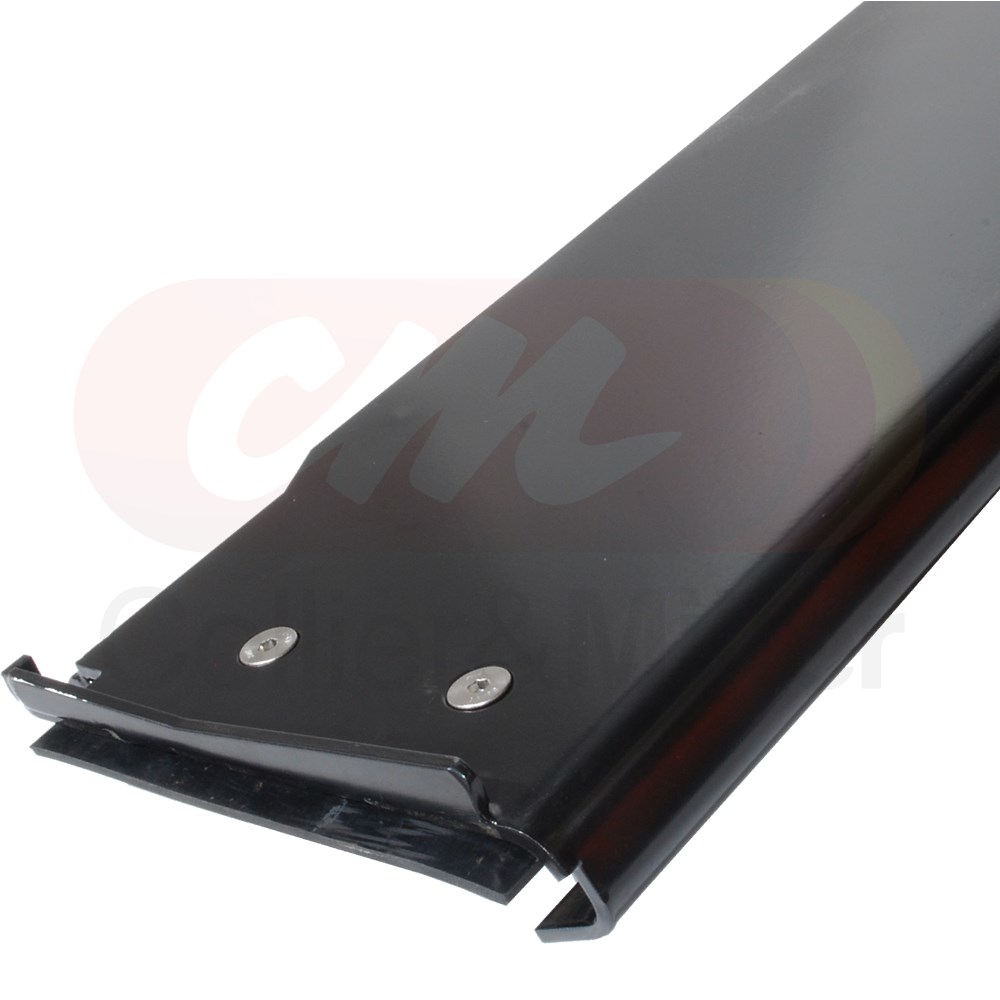

- #11 Hex Socket Screw 412495
- #20 Flange nut 8761210
Models
| Series |
Models |
Serial/Year |
| Case 10 Series |
7010, 8010, AFX8010 |
|
| Case1 20 Series |
7120, 8120, 9120 |
|
| Case 230 Series |
7230, 8230, 9230 |
|
| Case 240 Series |
7240, 8240, 9240 |
|
| Case 250 Series |
7250, 8250,9250 |
|
Features
- Stainless steel
- High tensile rod

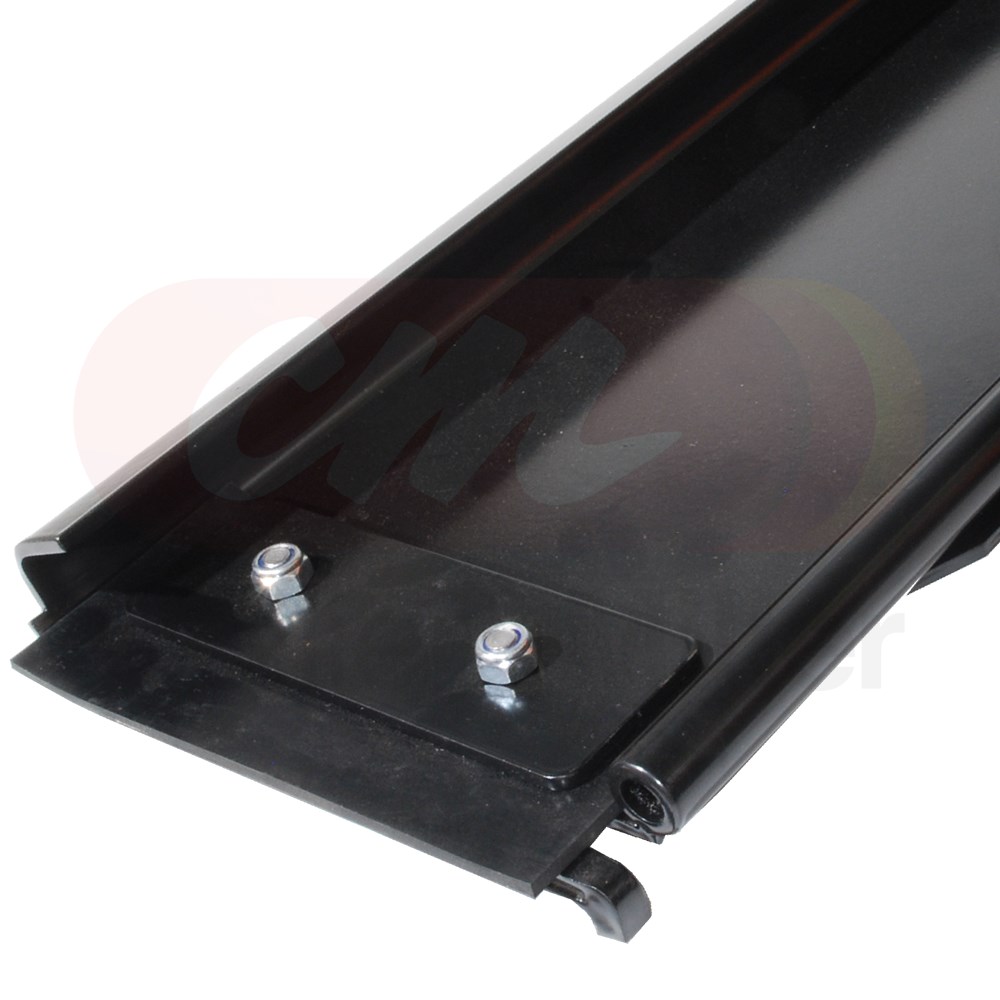

- Extended lip for extra wear protection on hinge
- Supplied with seals each side.
