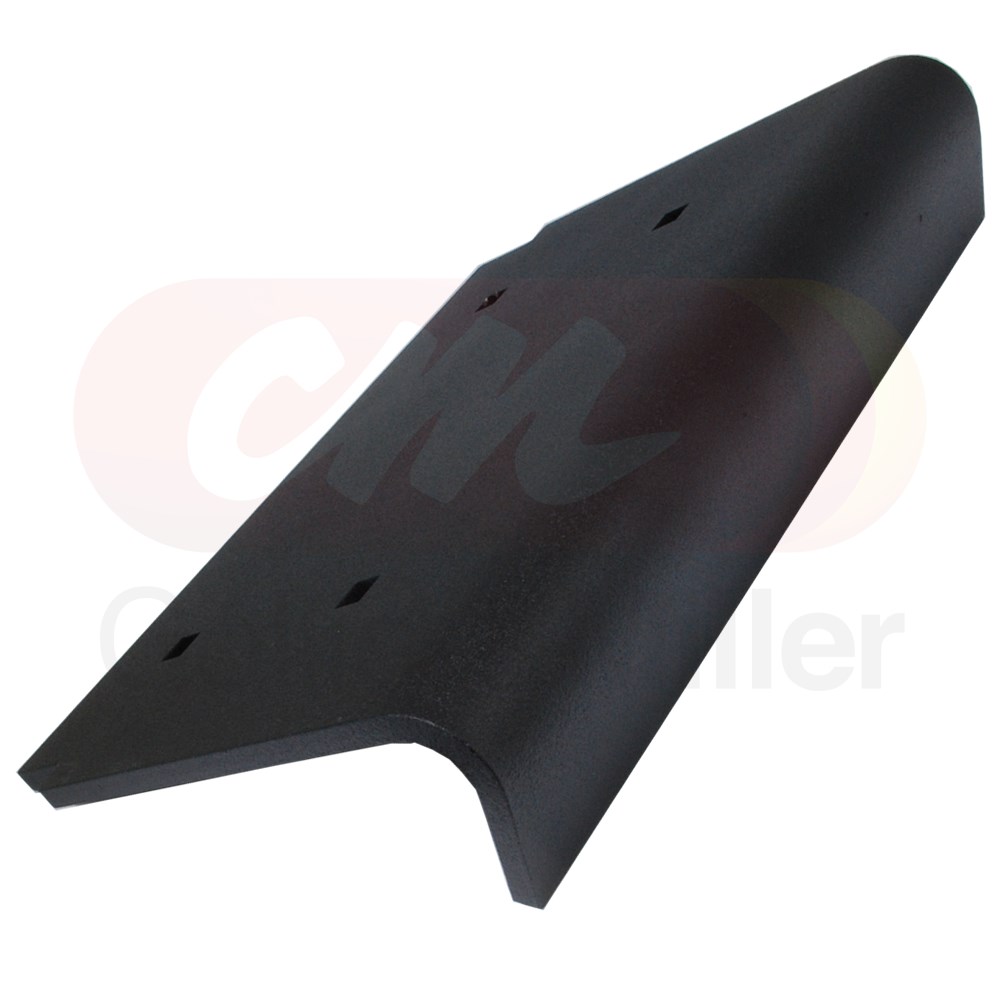

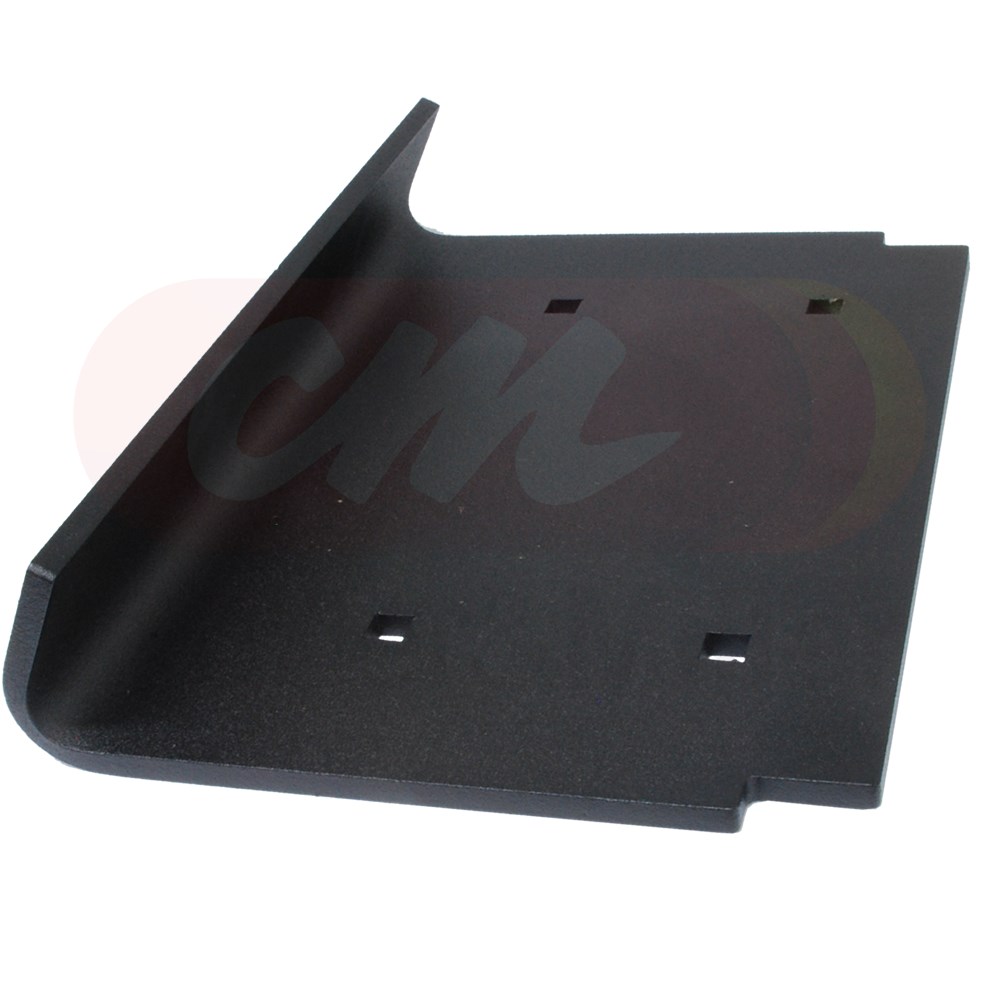

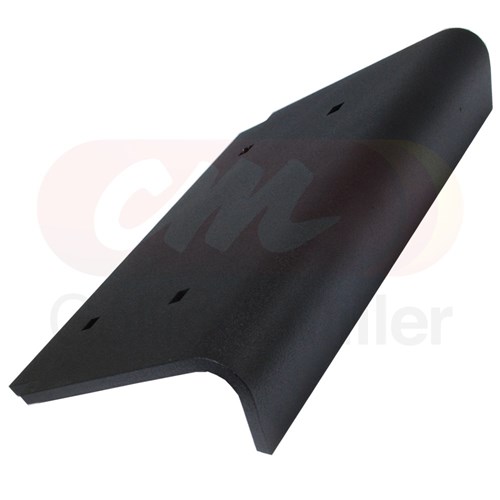

Case-IH® Compatible Stainless Steel Clean Elevator Top Wear Plate
Protect your elevator head from abrasive grain wear with this premium C&M Australian-made top wear plate. Specifically engineered for Case-IH® Flagship combine harvesters, this abrasion-resistant component is a high-performance alternative to standard factory units.
Manufactured in our Griffith factory from heavy-duty 6mm T304 stainless steel, this wear plate provides a significant upgrade over original equipment. The increased thickness and high-grade material ensure this extended wear solution can withstand the most demanding harvest conditions, offering a longer service life for your clean grain handling system.
Case-IH® OEM Cross-Reference
Replaces OEM Part Number: 87733824
Top Wear Plate Compatibility: Case IH Flagship Models
| Series |
Models |
Serial/Reference |
| Case-IH® 10 Series |
7010, 8010, AFX8010 |
Standard Fitment |
| Case-IH® 120 Series |
7120, 8120, 9120 |
Standard Fitment |
| Case-IH® 230 Series |
7230, 8230, 9230 |
Standard Fitment |
| Case-IH® 240 Series |
7240, 8240, 9240 |
Standard Fitment |
| Case-IH® 250 Series |
7250, 8250, 9250 |
Standard Fitment |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: 6mm T304 Stainless Steel for maximum abrasion resistance.
- Wear Rating: Extended wear configuration for high-yield environments.
- Build Quality: Precision-cut for a direct-fit replacement within the elevator head.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review

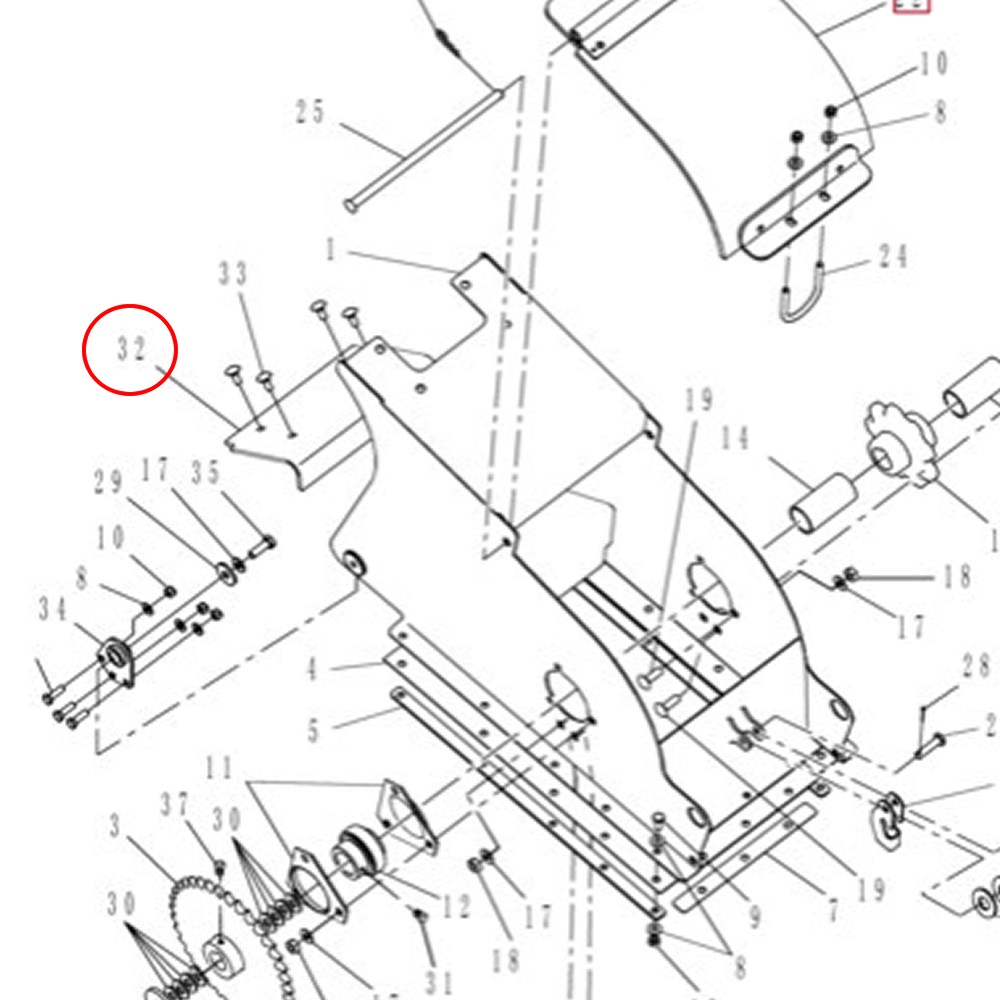

The elevator top wear plate is the primary contact point for grain as it is discharged from the elevator chain into the tank. Standard plates often suffer from "burn-through" in high-capacity machines, which can lead to damage of the elevator head housing. We recommend inspecting this plate for thinning or holes during every preventative maintenance cycle.
Upgrading to this 6mm stainless steel plate is a high-strength choice that resists the "scouring" effect of abrasive crops much more effectively than carbon steel. This extended wear component keeps your elevator assembly in top condition, preventing costly mid-harvest housing repairs and maintaining optimum crop flow throughout the season.
Installation Tip
When installing this new 6mm wear plate, ensure it is seated flush against the elevator head frame. Any gaps can allow grain to trap behind the plate, leading to internal corrosion or uneven wear. Checking the condition of your Elevator Head Cover and Side Plates at the same time is recommended for a complete system refresh.
