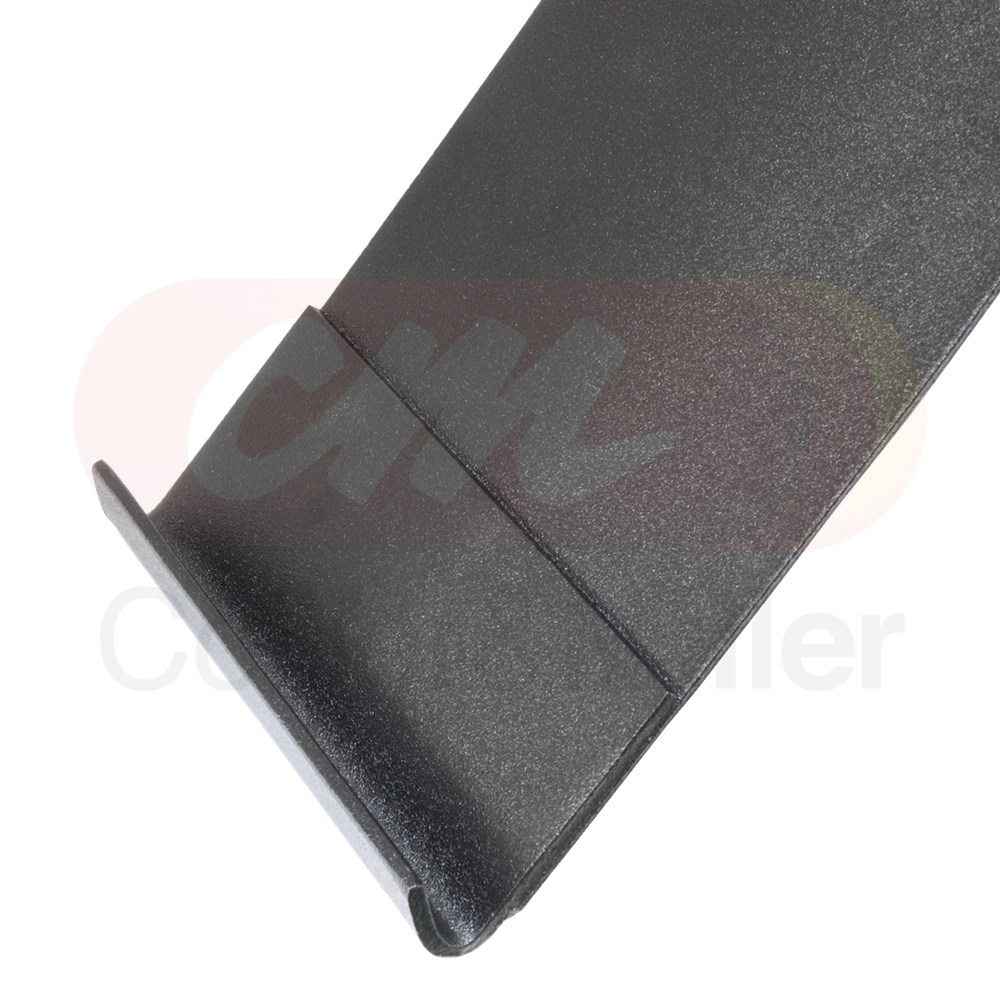

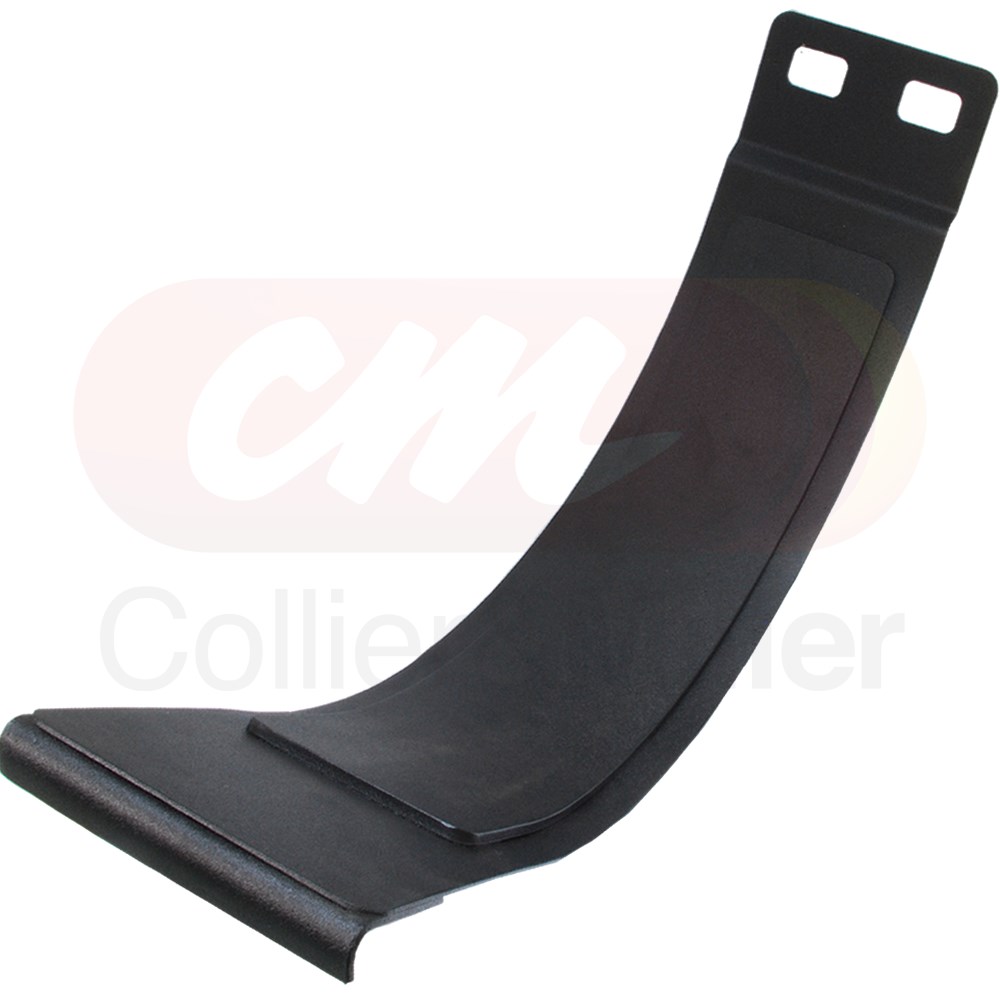

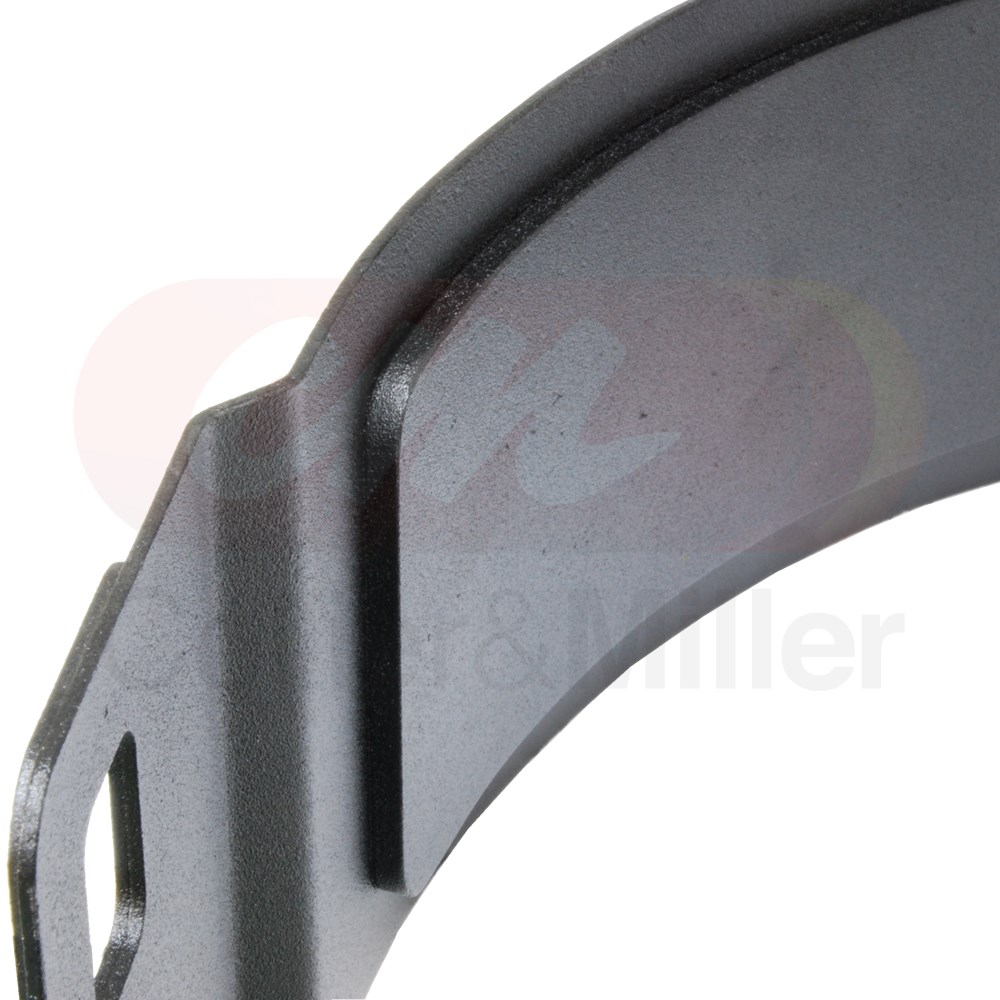

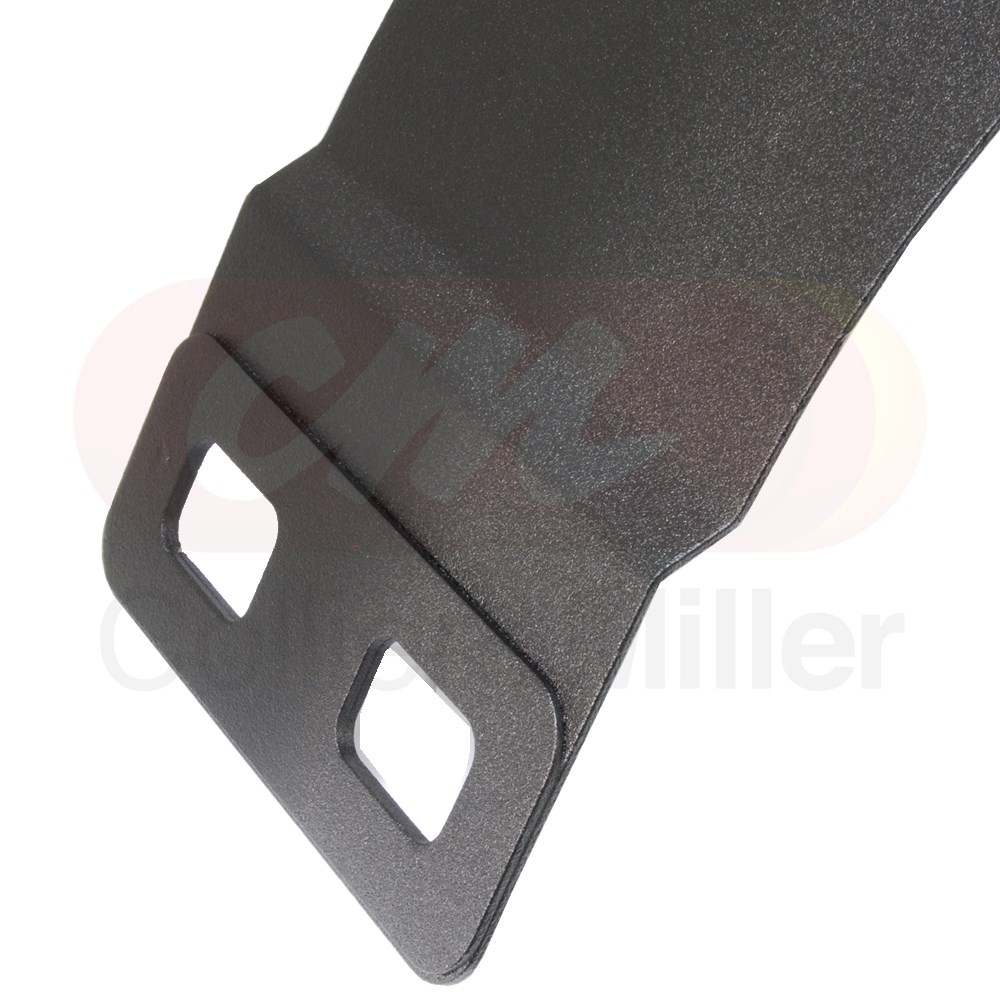

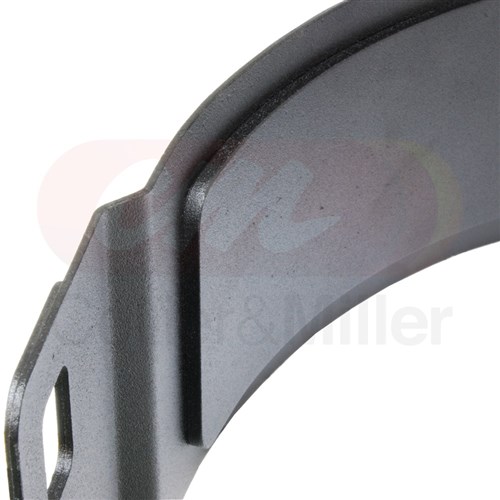

Case-IH® Compatible Stainless Steel Tailings Elevator Access Panel (120mm)

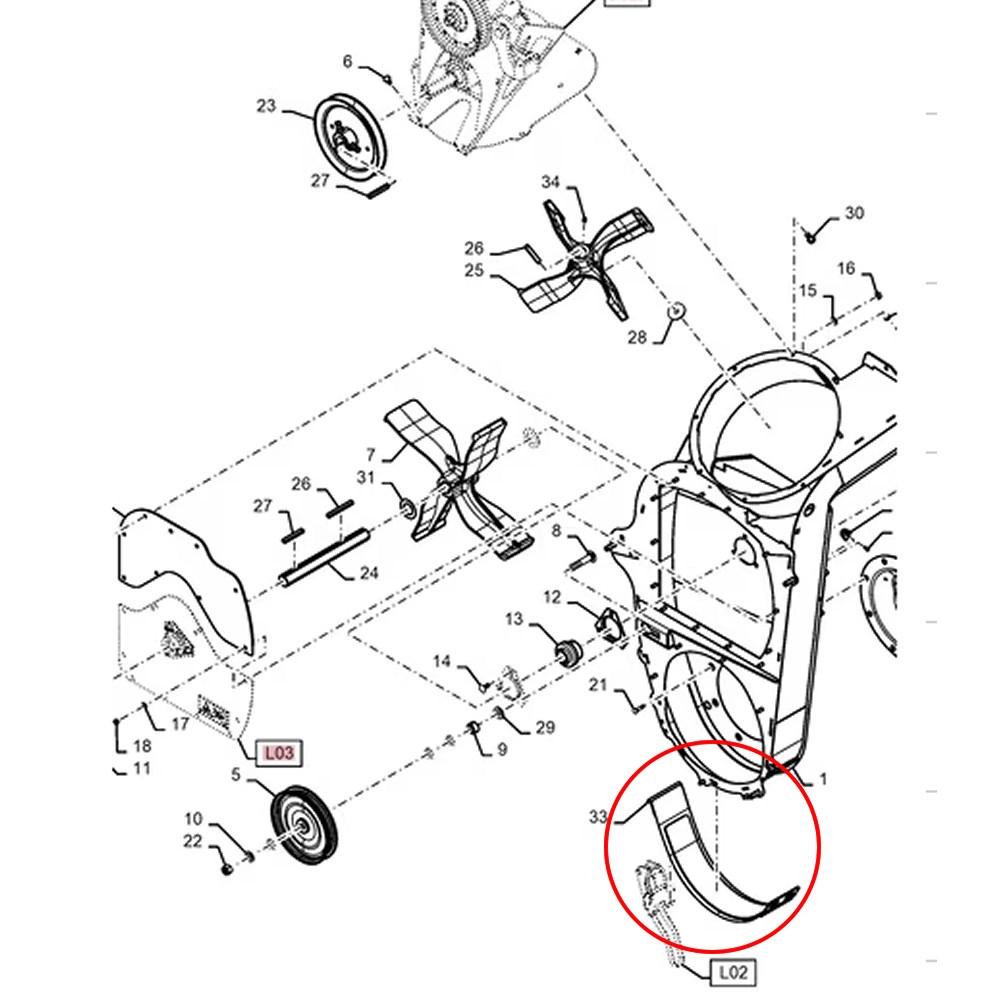

Keep your tailings system accessible and reliable with this premium C&M Australian-made tailings elevator access door. Specifically designed for Case-IH® Flagship combine harvesters, this extended wear stainless steel panel fits the tailings processor housing assembly, providing a high-strength alternative to standard factory components.
Manufactured in our Griffith factory, this 120mm wide access panel is engineered to withstand the high-velocity abrasive flow within the tailings processor. By utilising high-grade stainless steel, this unit eliminates the common issues of rusting and latch-point thinning found in standard steel doors, ensuring a longer service life and consistent performance during harvest.
Case-IH® OEM Cross-Reference
Replaces OEM Part Numbers: 87728882, 87736624
Tailings Access Panel Compatibility: Case IH Flagship Models
| Series |
Model |
Serial/Year Range |
| Case-IH® 10 Series |
7010, 8010, AFX8010 |
SN HAJ2022929 & After |
| Case-IH® 120 Series |
7120, 8120, 9120 |
08/08 - 04/12 |
| Case-IH® 230 Series |
7230, 8230, 9230 |
03/12 - 03/13 (T2 & T4) |
| Case-IH® 240 Series |
7240, 8240 |
09/14 - 05/18 (T2 & T4B) |
| Case-IH® 250 Series |
7250, 8250, 9250 |
10/18 > (T2 & T4) |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Material: High-grade Stainless Steel for maximum abrasion resistance.
- Wear Rating: Extended wear configuration for heavy-duty tailings processing.
- Dimensions: 120mm Width for precise fitment on flagship housings.
- Build Quality: Precision laser-cut for seamless operation and easy access.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The tailings elevator access panel is a critical point for monitoring tailings flow and performing internal inspections. Because it is located on the processor housing, it is subject to constant high-impact grain flow that can thin the metal around the sealing edges. We recommend checking the seal integrity and latch operation during every preventative maintenance cycle.
Upgrading to a stainless steel access door is a high-performance choice that prevents the door from becoming "seized" or thinned due to corrosion. This extended wear solution keeps your tailings system in top condition, ensuring the door remains easy to open for inspections while maintaining a dust-tight seal throughout the season.
Maintenance Tip
When installing a new access panel, ensure the housing rim is clean and free of old crop residue to maintain a proper seal. This is also an ideal time to inspect the tailings processor paddles and internal liners for wear, as these components work together to ensure efficient crop return.
