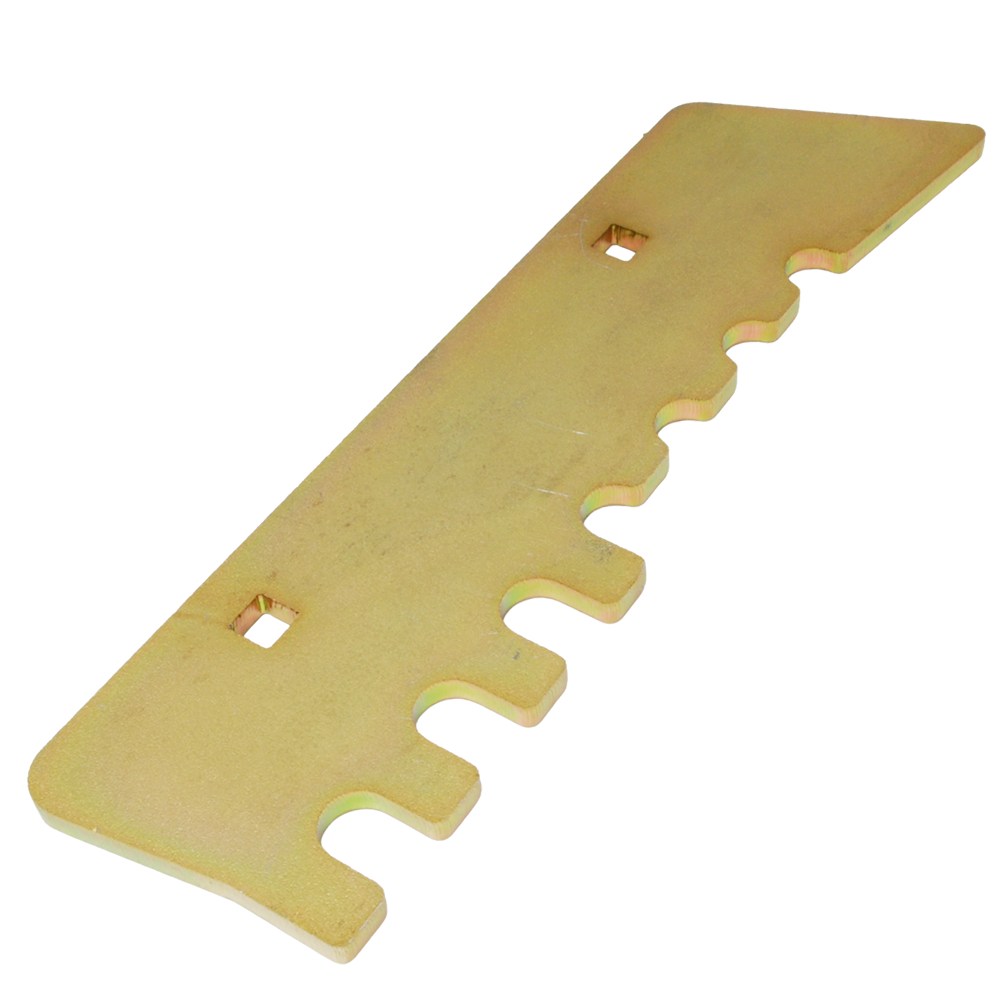

Fendt® Compatible Rotor Feeder High Wear Plate
C&M made in Australia high wear rotor feeder plate to suit Fendt® IDEAL™ 7, 8, 9 and 10 combine harvesters fitted with high wear rotors. Manufactured at our Griffith, NSW engineering facility, this plate is a direct-fit replacement for OEM part number ACX2296690.
Precision laser cut from 6mm Bisalloy 400, the plate is designed for the high-wear rotor feeder application where abrasive crop flow can steadily wear the original component. The hard wear-resistant material provides increased resistance to abrasion and is intended to extend service life compared with a standard mild-steel wear plate.
Fendt® OEM Cross-Reference
Replaces OEM Part Numbers:
Machine Compatibility
Fendt® IDEAL™ high wear rotor feeder plate fitment
| Series |
Models |
Configuration |
| Fendt® IDEAL™ |
7, 8, 9, 10 |
All high wear rotor configurations |
Technical Specifications & Features
- C&M made in Australia at our Griffith, NSW engineering facility
- Direct-fit replacement for ACX2296690
- Manufactured from 6mm Bisalloy 400
- Precision laser cut
- Designed for high wear rotor feeder applications
- Wear-resistant material provides increased abrasion resistance
- Gold passivated finish
- Fasteners not included
- Accepts 8mm x 25mm cup head high tensile bolt
The C&M Difference
This rotor feeder wear plate is manufactured by C&M in Griffith, NSW as a direct-fit replacement for the original high wear component. Using 6mm Bisalloy 400 provides a hardened wear surface suited to areas exposed to continuous crop abrasion, helping increase the working life of the plate before replacement is required.
Expert Maintenance Review
The rotor feeder wear plate should be checked during pre-season servicing and whenever the feeder area is opened for inspection. Look for thinning, worn-through sections, cracking around mounting holes and uneven wear across the crop-contact surface.
Installation Tip
Fasteners are not included. The plate accepts 8mm x 25mm cup head high tensile bolts. Before installation, clean the mounting surface and check for distortion or elongated mounting holes. Loosely install the fasteners first, confirm the plate is sitting correctly against the feeder structure, then tighten evenly.
Fendt® and IDEAL™ are trademarks of their respective owners. OEM part numbers are quoted for identification and cross-reference purposes only. This product is an aftermarket replacement manufactured by Collier & Miller and is not represented as a genuine Fendt® part.
