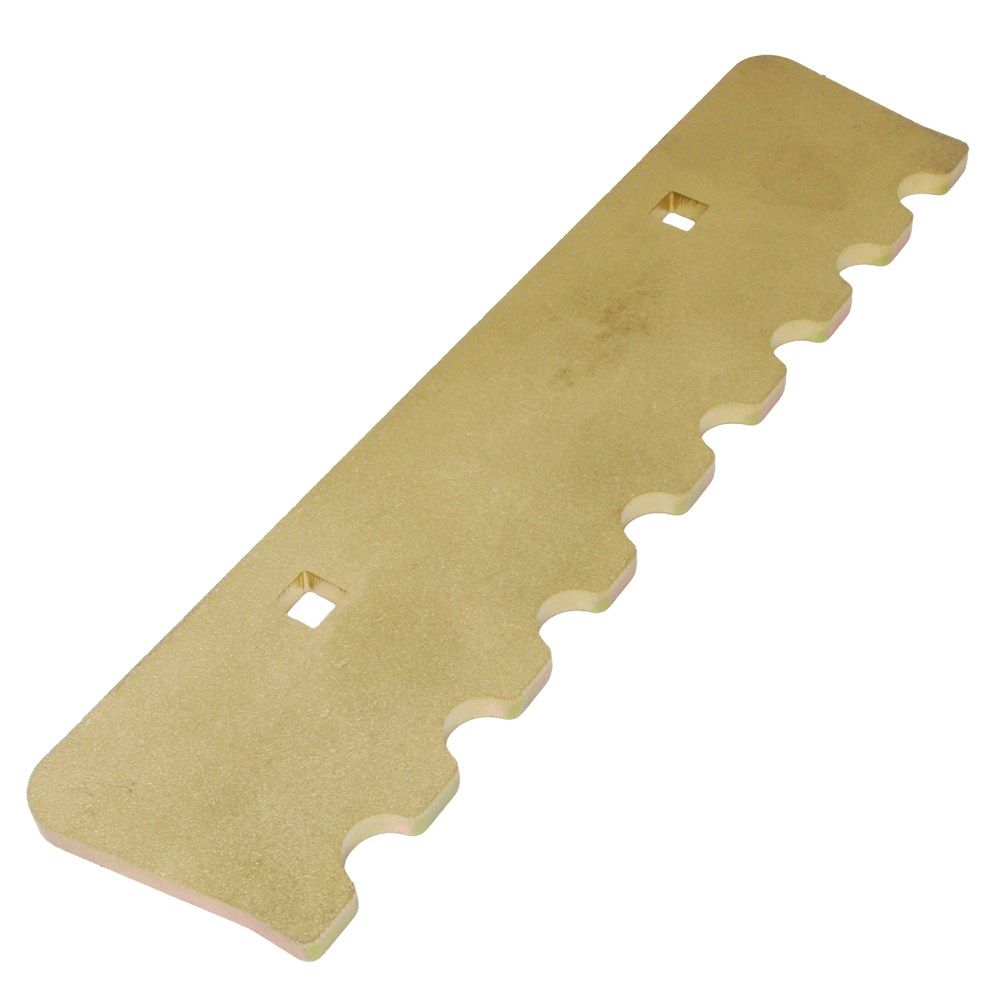

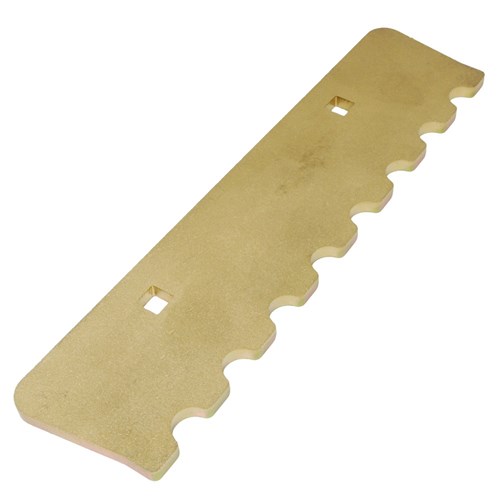

Fendt® Compatible Rotor Feeder High Wear Plate
C&M made in Australia high wear rotor feeder plate to suit Fendt® IDEAL™ 7, 8, 9 and 10 combine harvesters fitted with high wear rotors. Manufactured at our Griffith, NSW engineering facility, this plate is a direct-fit replacement for OEM part number ACX2296860.
Precision laser cut from 6mm Bisalloy 400, the plate is designed for the high-wear rotor feeder application where abrasive crop flow can steadily wear the original component. The hardened wear-resistant material provides increased resistance to abrasion and is designed to extend service life in this demanding wear area.
Fendt® OEM Cross-Reference
Replaces OEM Part Numbers:
Machine Compatibility
Fendt® IDEAL™ high wear rotor feeder plate fitment
| Series |
Models |
Configuration |
| Fendt® IDEAL™ |
7, 8, 9, 10 |
All high wear rotor configurations |
Technical Specifications & Features
- C&M made in Australia at our Griffith, NSW engineering facility
- Direct-fit replacement for ACX2296860
- Manufactured from 6mm Bisalloy 400
- Precision laser cut
- Designed for high wear rotor feeder applications
- Wear-resistant material provides increased abrasion resistance
- Gold passivated finish
- Fasteners not included
- Accepts 8mm x 25mm cup head high tensile bolt
The C&M Difference
This rotor feeder wear plate is manufactured by C&M in Griffith, NSW as a direct-fit replacement for the original high wear component. The 6mm Bisalloy 400 construction provides a hardened wear surface suited to continuous crop abrasion, helping increase resistance to wear through the feeder area.
Expert Maintenance Review
Inspect the rotor feeder wear plate during pre-season servicing and whenever the feeder area is opened for maintenance. Check for thinning, worn-through sections, cracking around mounting holes and uneven wear across the crop-contact surface.
Installation Tip
Fasteners are not included. The plate accepts 8mm x 25mm cup head high tensile bolts. Clean the mounting surface before installation and check for elongated mounting holes or distortion. Loosely fit all fasteners first, confirm the plate is correctly positioned, then tighten evenly.
Fendt® and IDEAL™ are trademarks of their respective owners. OEM part numbers are quoted for identification and cross-reference purposes only. This product is an aftermarket replacement manufactured by Collier & Miller and is not represented as a genuine Fendt® part.
