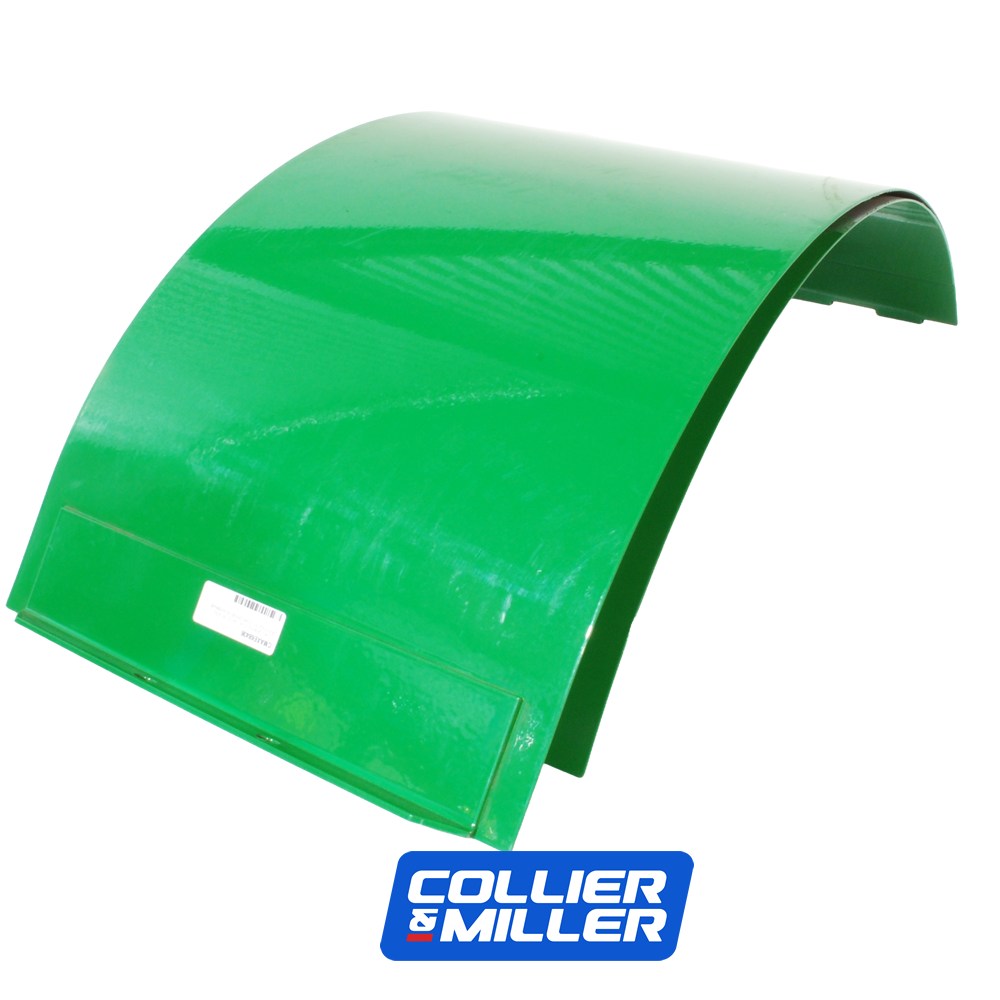

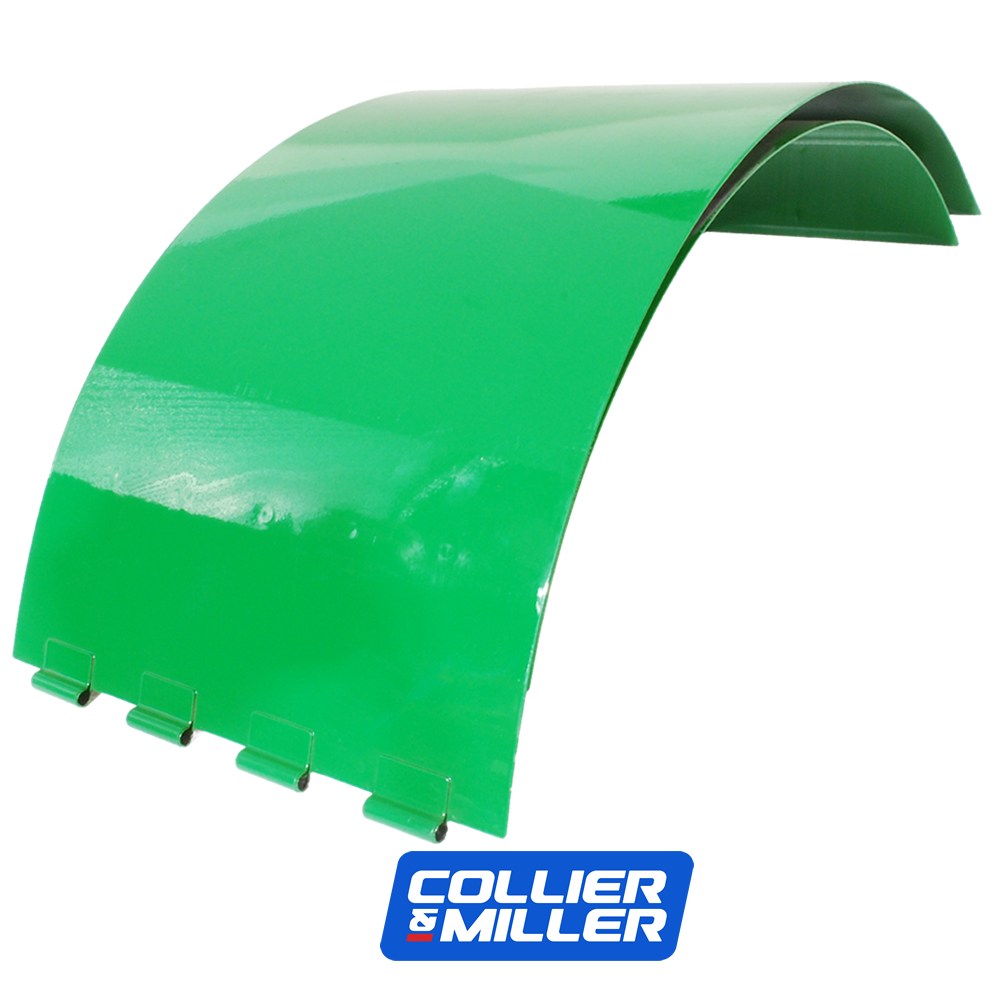

John Deere® Compatible Stainless Steel Elevator Door (X9 Series)
Optimise your grain handling system with this premium C&M Australian-made stainless steel clean grain elevator door. Specifically engineered for John Deere® X9 Series combine harvesters, this non-perforated door panel is the professional solution for repairing worn components at the base of the elevator boot.
Manufactured in our Griffith factory from grade 304 stainless steel, this solid, non-perforated door delivers superior abrasion resistance compared to standard factory parts. While stainless steel offers natural protection against the elements, its primary benefit in the clean grain leg is maintaining a polished, ultra-smooth surface. This high material density prevents the internal scouring and friction caused by constant crop flow, keeping your loading system in top condition for a significantly longer service life.

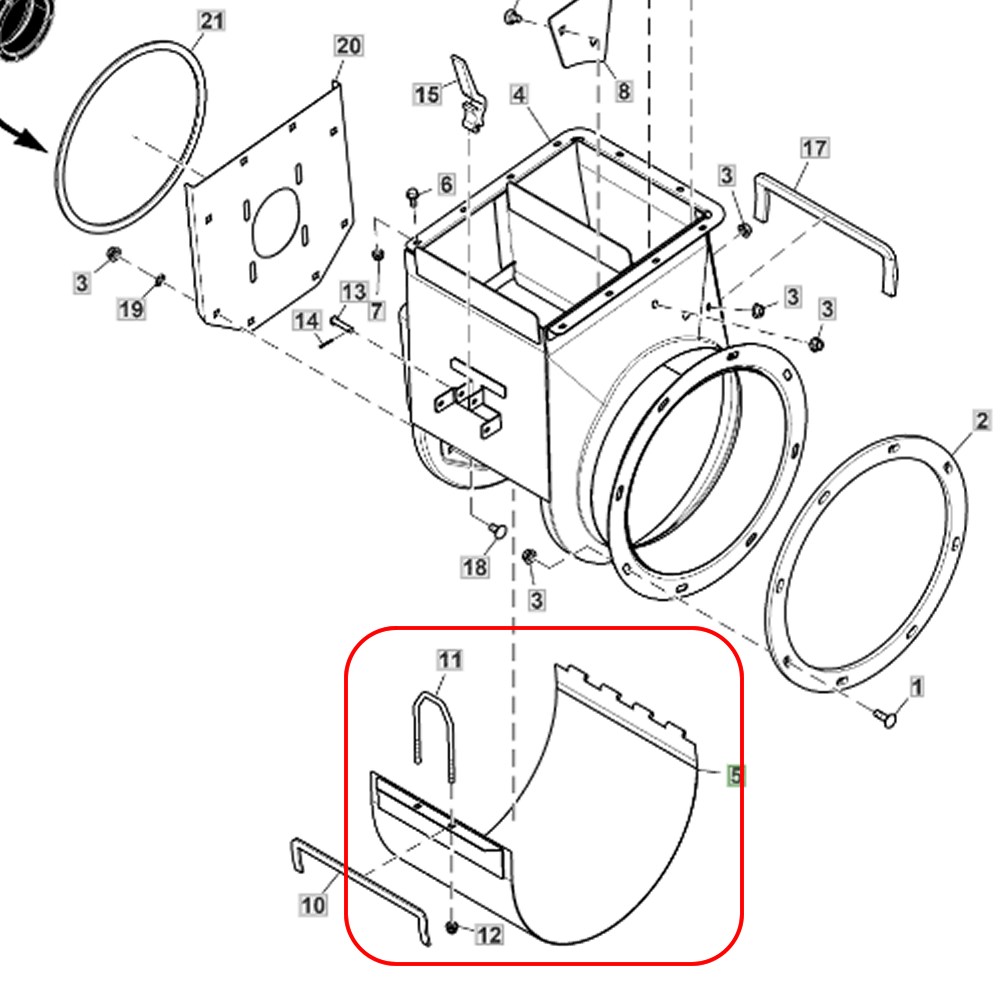

John Deere® OEM Cross-Reference
Replaces OEM Part Number: AXE68346
Clean Grain Elevator Door Compatibility: John Deere X9 Series
| Series |
Models |
Specification |
| John Deere® X9 Series |
X9 1000, X9 1100 |
Non-Perforated Clean Grain Leg |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Design: Non-perforated solid face ensures maximum grain retention and flow integrity.
- Material: Heavy-gauge Grade 304 Stainless Steel for high-wear protection.
- Fitment: Precision-cut direct replacement for original factory boot doors.
- Wear Rating: Extended wear configuration designed for high-capacity harvesting.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The non-perforated door on the clean grain elevator boot is a primary friction point where high-capacity elevator paddles sweep grain upward toward the tank. On ultra-high-throughput machines like the X9 series, standard steel doors thin out rapidly under intense grain abrasion, leading to sudden bottom-end grain leakage. We recommend a close look at the lower boot latch and door face during every preventative maintenance window to catch thinning before harvest commences.
Upgrading to this high-performance stainless steel door is a strategic choice to save money on maintenance overheads. The dense grade 304 material preserves the original contour of the elevator boot, preventing the drag and "rust-pitting" that can occur during the off-season. This ensures the entire assembly remains in top condition, securing a trouble-free and reliable longer service life.
Installation Tip: Flush Hinge Fitment
When installing your new AXE68346 stainless steel non-perforated door, thoroughly clear the boot frame flange of all packed scale and old crop debris. A perfectly flush, high-strength seal is vital to prevent high-speed grain leaks. This is the ideal time to check your clean grain elevator chain and paddles for wear to ensure your high-capacity system handles the upcoming harvest at maximum throughput.
