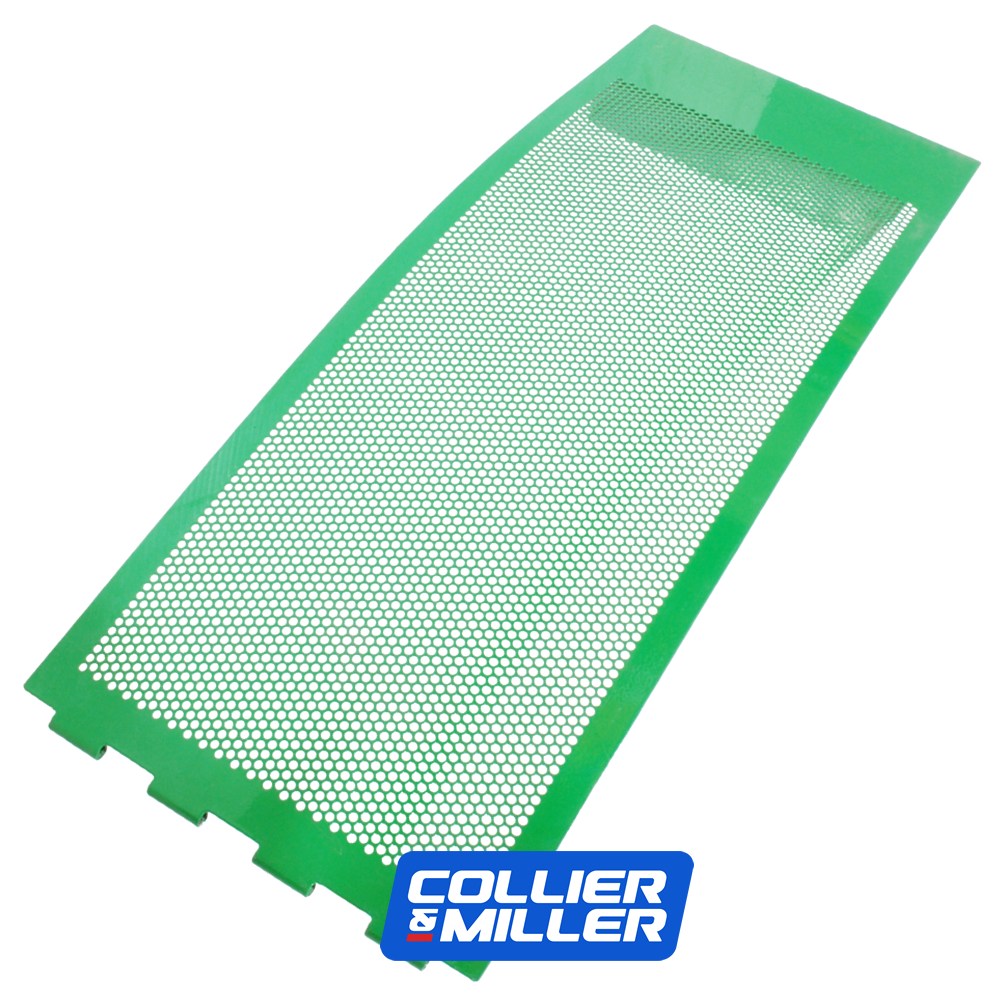

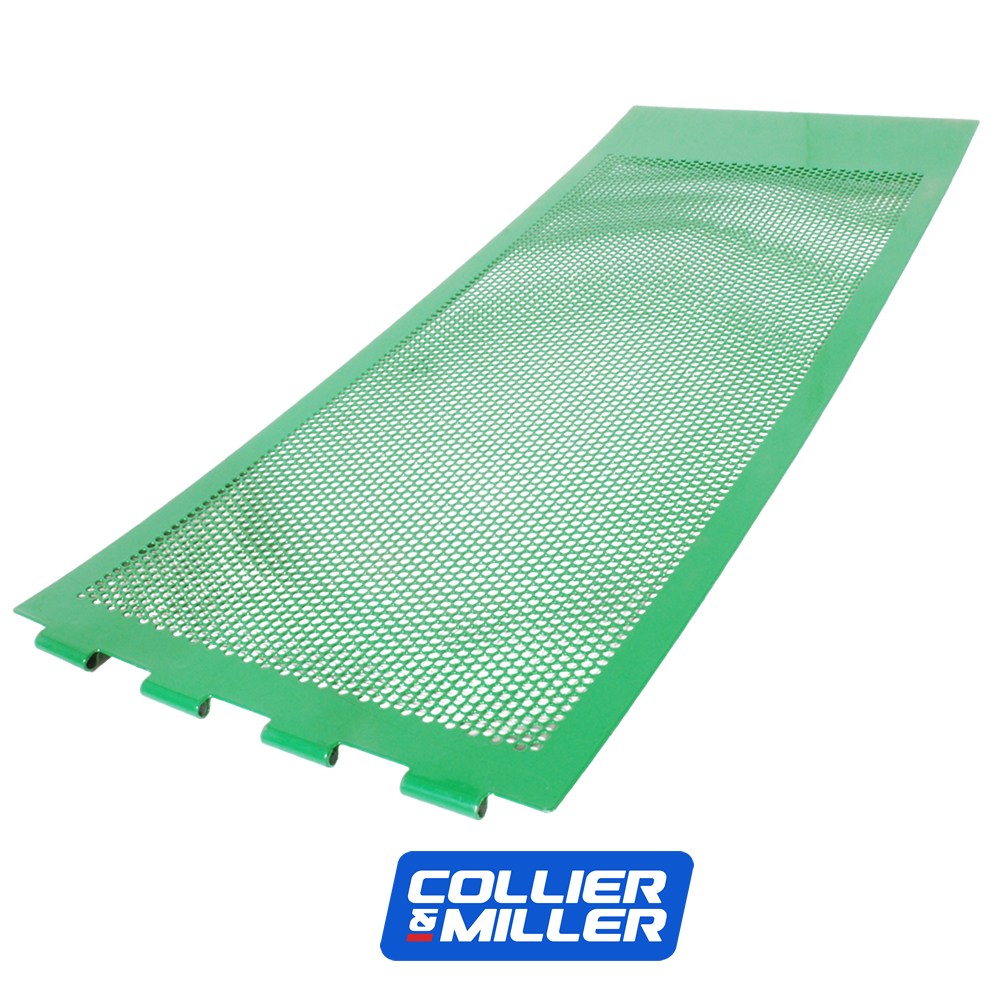

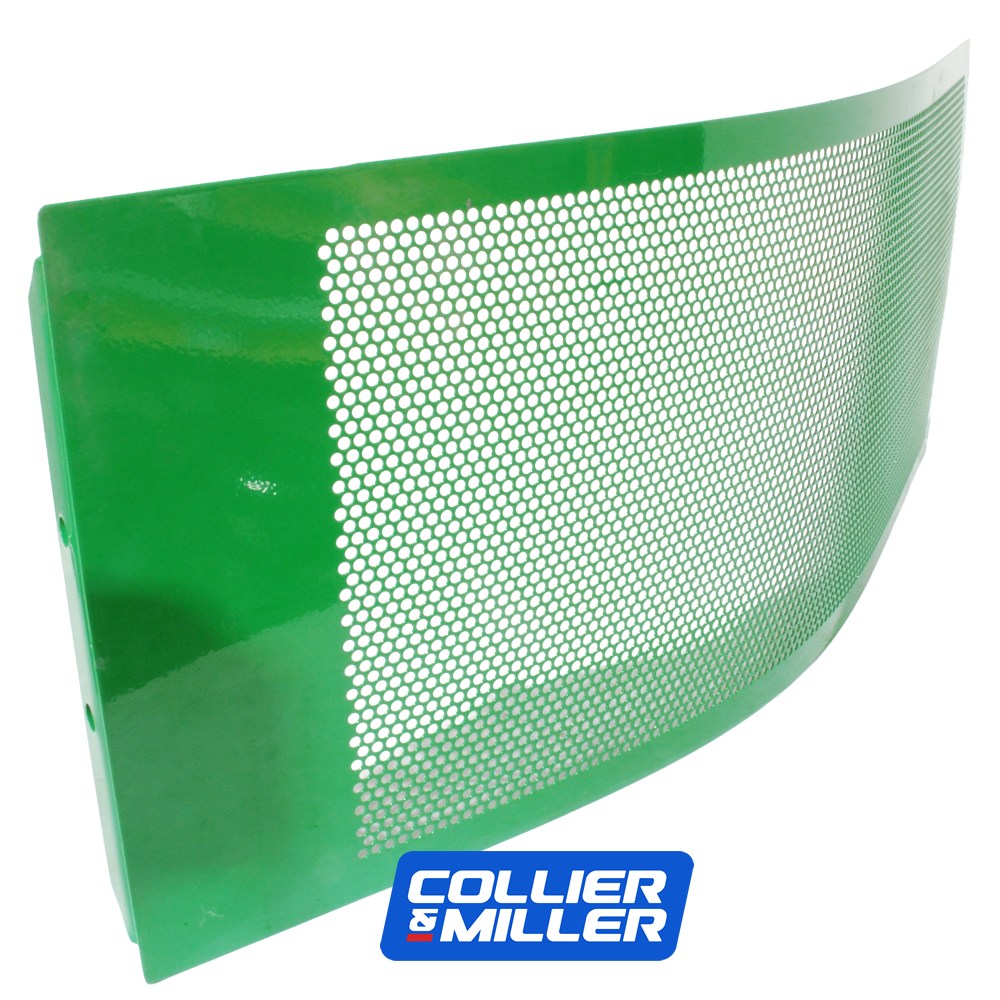

John Deere® Compatible Stainless Steel Elevator Door (X9 Series - Perforated)
Optimise your grain handling system with this premium C&M Australian-made perforated stainless steel elevator door. Specifically engineered for John Deere® X9 Series combine harvesters, this high-performance perforated door panel is the professional solution for repairing worn components at the base of the elevator boot while providing efficient screening action.
Manufactured in our Griffith factory from grade 304 stainless steel, this perforated boot door delivers superior abrasion resistance compared to standard factory parts. While stainless steel offers natural protection against the elements, its primary benefit is maintaining a high-density, low-friction surface under constant crop flow. The precision-punched perforations allow fine dirt, dust, and micro-debris to screen out of the clean grain leg before it moves to the tank, keeping your loading system in top condition for a significantly longer service life.
John Deere® OEM Cross-Reference
Replaces OEM Part Number / Upgraded Core: AXE88559 (C&M Premium Perforated Variant: CMAXE88559)

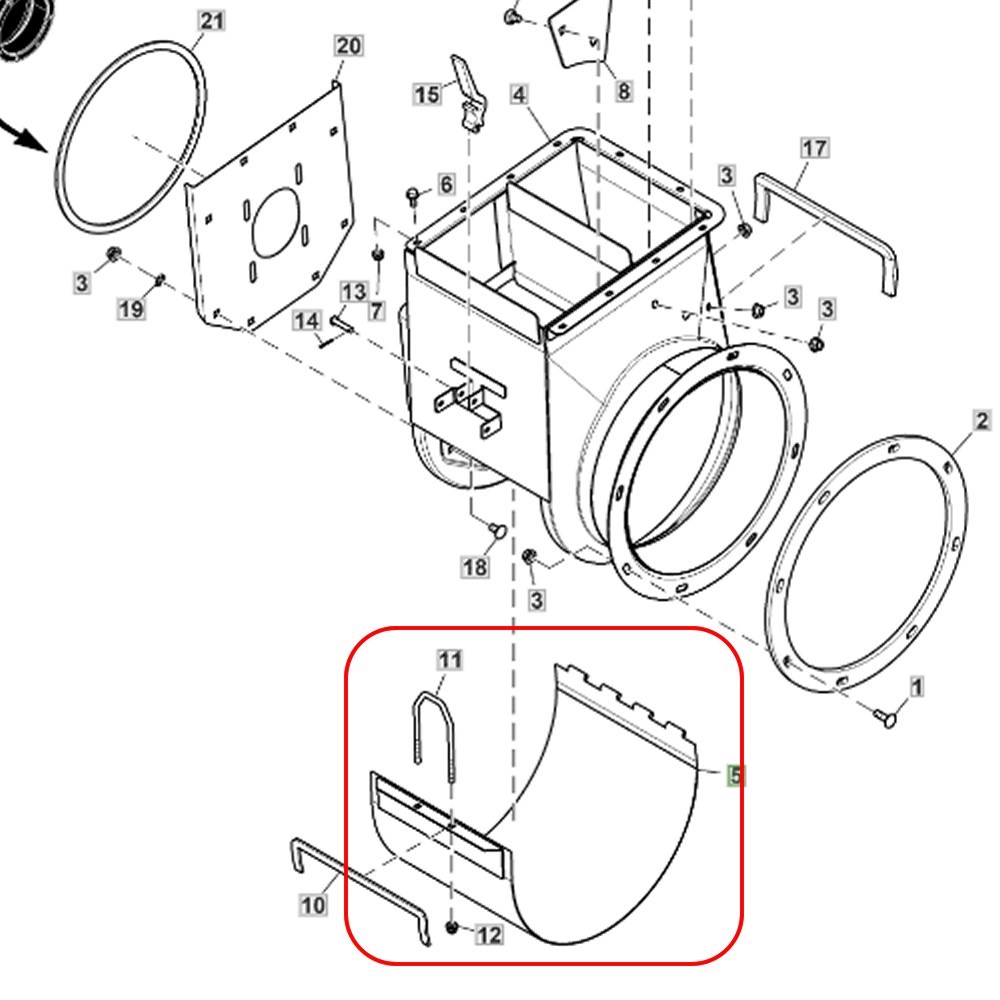

Clean Grain Elevator Door Compatibility: John Deere X9 Series
| Series |
Models |
Specification |
| John Deere® X9 Series |
X9 1000, X9 1100 |
Perforated Debris-Screening Clean Grain Leg |
Technical Specifications & Features
- Manufacturer: Proudly C&M Australian made by Collier & Miller.
- Design: Perforated face variant for self-cleaning and small-debris screening.
- Material: Heavy-gauge Grade 304 Stainless Steel for high-wear protection.
- Fitment: Precision-cut direct replacement for original factory boot doors.
- Wear Rating: Extended wear configuration designed for high-capacity harvesting.
- Dispatch: Available for fast Australia-wide shipping from Collier & Miller.
Expert Maintenance Review
The perforated door on the clean grain elevator boot operates in a high-intensity friction zone where high-capacity elevator paddles sweep grain upward. On ultra-high-throughput machines like the X9 series, standard steel doors thin out rapidly under intense grain abrasion, leading to structural fatigue and material loss. The perforated design is highly beneficial for screening out small field dirt, but requires close attention. We recommend inspecting the perforated holes for edge burring or thinning during every preventative maintenance window to catch issues early.
Upgrading to this high-performance stainless steel door is a strategic choice to save money on maintenance overheads. The dense grade 304 material preserves the original contour of the elevator boot, preventing the drag and "rust-pitting" that can occur during the off-season. This ensures the entire assembly remains in top condition, securing a trouble-free and reliable longer service life.
Installation Tip: Flush Hinge Fitment
When installing your new CMAXE88559 stainless steel perforated door, thoroughly clear the boot frame flange of all packed scale and old crop debris. A perfectly flush, high-strength seal is vital to prevent high-speed grain leaks around the door edges. This is the ideal time to check your clean grain elevator chain and paddles for wear to ensure your high-capacity system handles the upcoming harvest at maximum throughput.
