John Deere® Compatible

Feeder House Conveyor Chain 12 Pitch

NEW PRODUCT DUE OCTOBER 2026

C&M aftermarket feeder house chain assembly to fit the John Deere X9 series combine harvesters. This is a set of four (4) replacement chains fitted with X9 style non-serrated and hardened u-bar slats with the same spacing as the John Deere® original chain.

This complete chain assembly is supplied with connectors and half links for each strand. We supply these chains in Australia from premium grade chrome pin chain and high performance non-serrated U-Bar slats. We guarantee the quality of these unit, however we recommend you fit a new sprocket at the time of installation.

Part numbers

• AXE91155 AXE87822 AXE81314

Series	Models	Serial/Year
John Deere® X Series	X9 1000, X9 1100	12 Pitch

Features

• C&M quality product
• Feeder bar spacing 12 pitch same JD OEM
• Premium grade chrome pin chain
• Identical heavy duty K1 style attachment
• Identical non-serrated U-bars
• Connectors & half links supplied with dome nuts
• Class 10.9 bolts pre-treated with locking compound
• Torque prevailing lock nuts
• Assembled eady to install

C&M Technical Specifications

Item	Details	Notes
CMAXE91155	John Deere® X9 Series
Chain Brand	AMEC	Stamped C&M
Chain Type	CA557	Chrome Pin
Chain Assembly	4 Chain with bars
Attachment Pattern	12-6/6-12	Same as Case-IH OEM
Number of Pitches	105	Including Connectors
Supplied Connectors	4 x Conns 12 x Offset Links	Threaded with crown nuts
Assembly Width (Overall)
Number of bars	27	Non-serrated U-Bar
Chain centre to centre	435mm - 543mm - 435mm	centre bar is wider
Bar Type	non-serrated u-bar	special JD type
Bolts	108 x M10X25 Class 10.9	Threadlocker pre-treated
Nuts	108 x M10 Cone lock	Torque prevailing

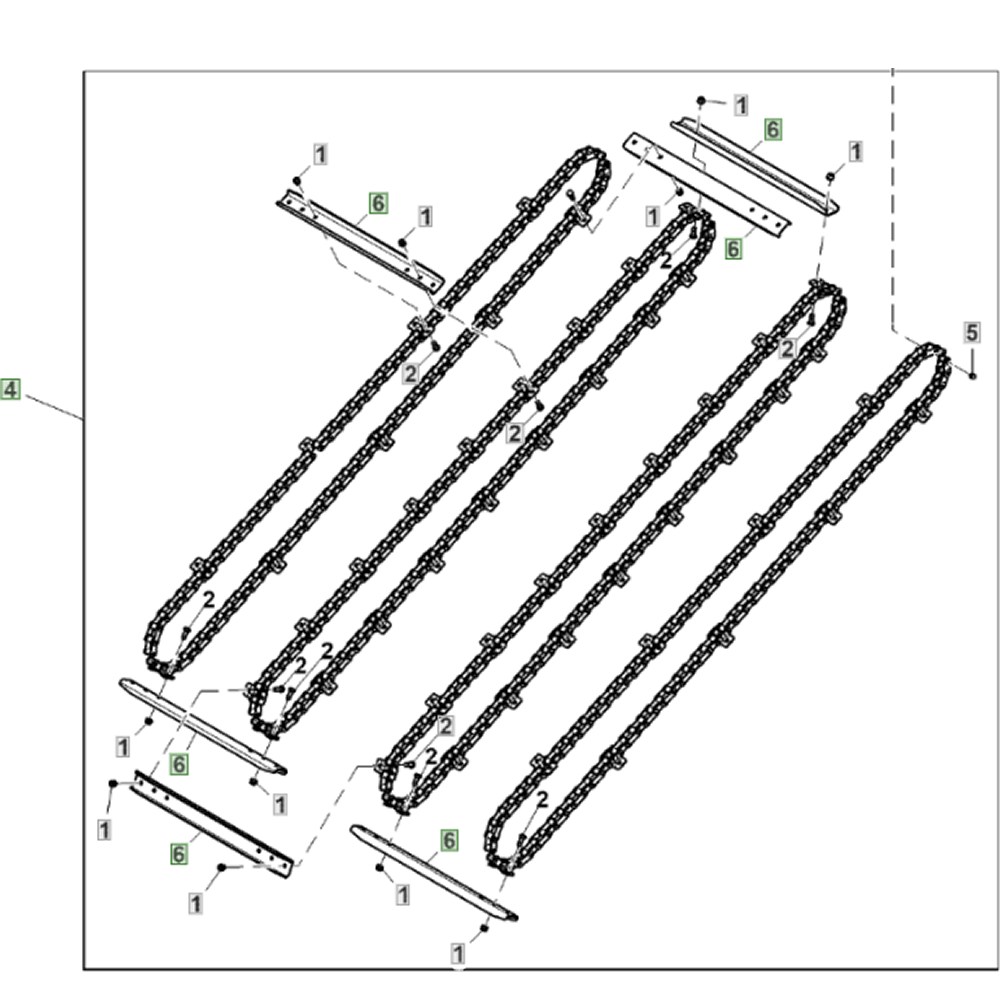

Build Sheet

AXE91155 AXE87822 AXE81314

Warranty Policy

Collier & Miller’s warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrants to the purchaser, that each material and workmanship for 12 months after delivery and installation.

This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.

Conditions of warranty

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR AND FITTED WITH NEW SPROCKETS. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

1. The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
2. At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
3. The Warranty is not transferable to any third party or subsequent purchaser.
