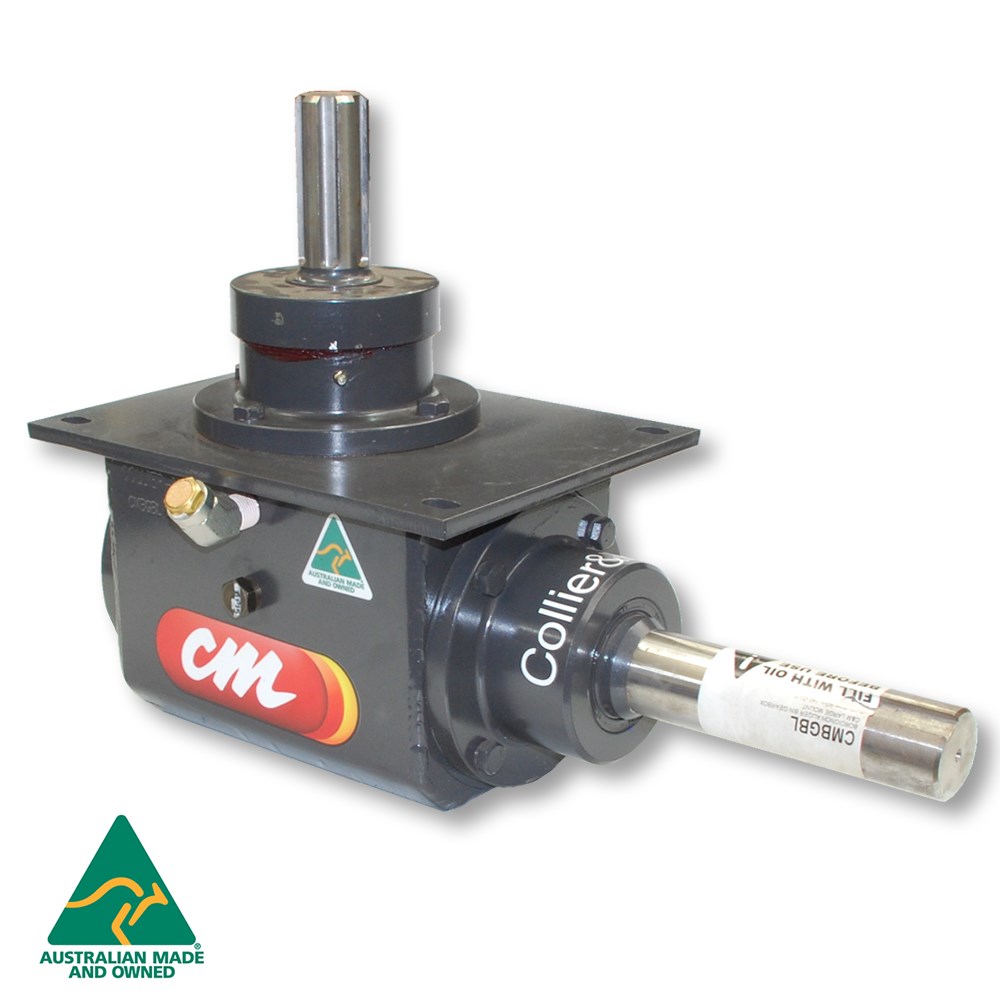

C&M replacement gearbox to suit the Bordignon Chaser Bin. This box has been designed as a direct replacement for the existing gearbox that was supplied on the original Bordignon Bin. Taking into account the variable designs fitted to these bins over the years, we offer this gearbox to fit the larger of the two options that were manufactured.

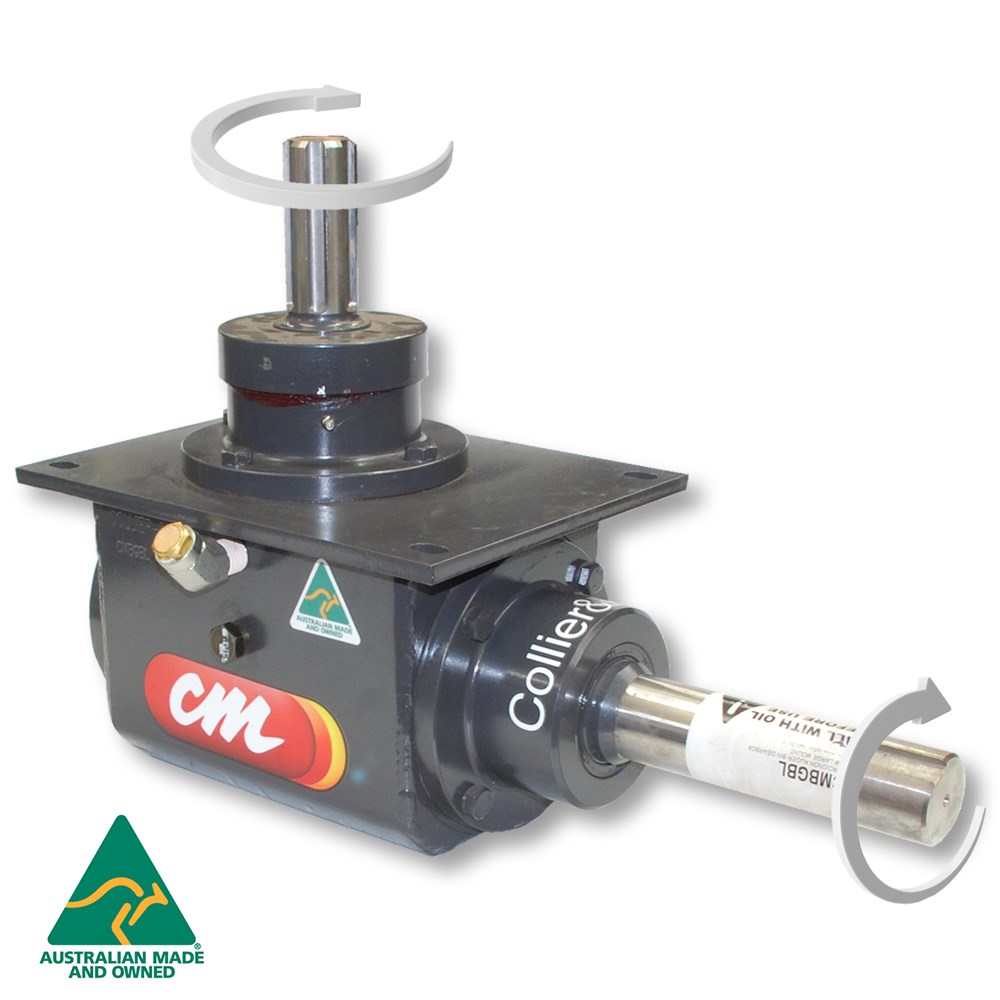

C&M's heavy duty replacement gearbox includes several design features to ensure simple fitment and long lasting performance. The gearbox rotation is the same as the original setup, however you should compare your gearbox rotation with the one illustrated on this website.
Features
- Modern engineering ensures long lasting and trouble free operation
- Heavy duty top seal cover with greasable cavity eliminates grain ingress & contamination
- Slotted mounting holes
- Standard gearset
Specifications
| Specification |
Option |
| Input Shaft |
M50 Shaft x M14 Key |
| Output Shaft |
1-3/4" x 6 Spline |
| Ratio |
1:1 |
| Rotation |
Clockwise In / Clockwise Out |
| Oil Capacity |
5.75L 85W-140 |
| Oil Type |
API GL-5 |
| Oil |
* Gearbox is supplied with no oil (You must fill gearbox with recommended type and capacity before operation) |
We suggest you carefully consider the output shaft size / type prior to ordering and either give us a call or include a note on the order.
