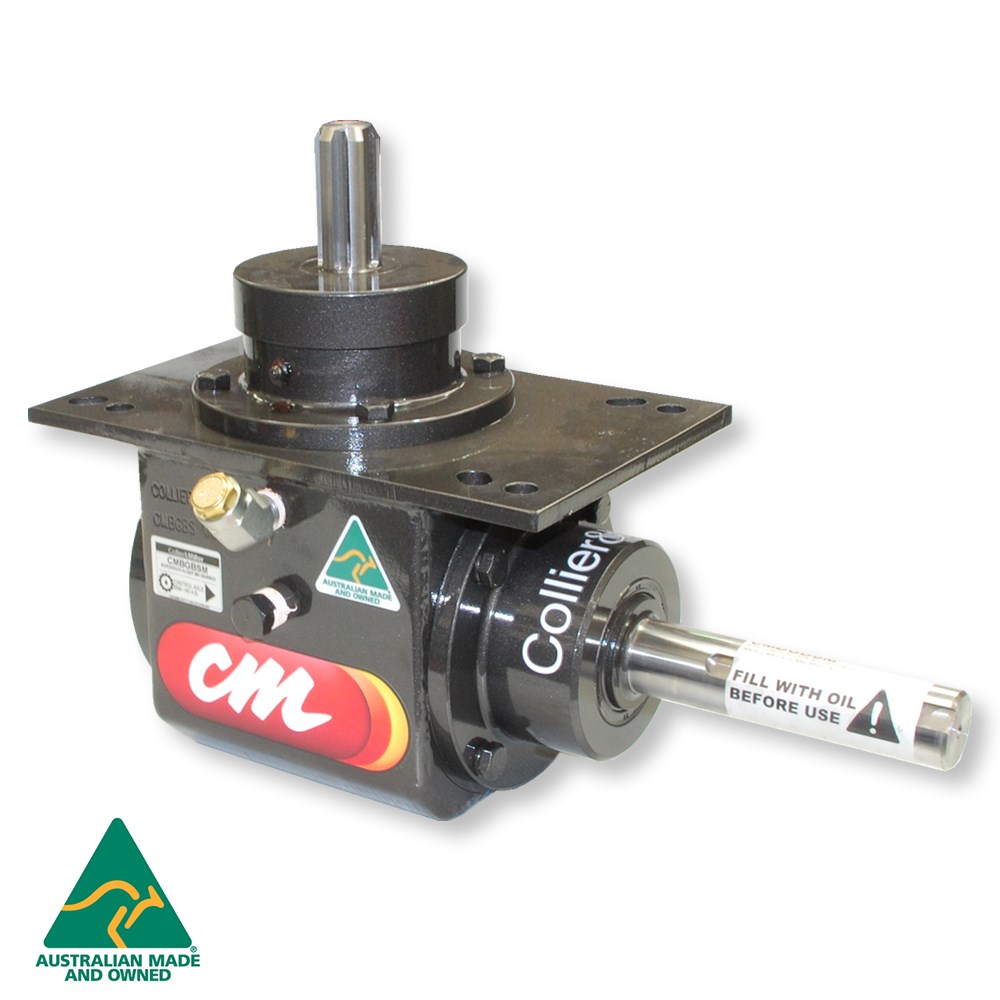

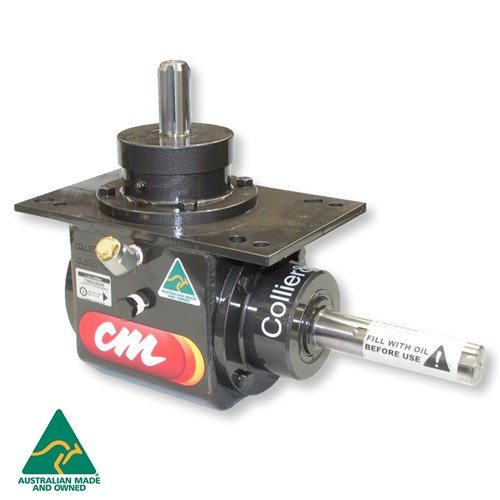

Complete Bordignon Replacement Gearbox (Small-Medium Frame 1-3/8-Z6)
C&M replacement gearbox to suit the Bordignon Chaser Bin. This box has been designed as a direct replacement for the existing gearbox that was supplied on the original Bordignon Bin. Taking into account the variable designs fitted to these bins over the years, we offer this gearbox to fit the small or medium mounting options that were manufactured.
C&M's heavy duty replacement gearbox includes several design features to ensure simple fitment and long lasting performance. The gearbox rotation is the same as the original setup, however you should compare your gearbox rotation with the diagram illustrated on this website. The mounting plate features two sets of holes to match existing gearbox units fitted to various models of bordignon chaser bins.
Features
- Modern engineering ensures long lasting and trouble free operation
- Heavy duty top seal cover with greasable cavity eliminates grain ingress & contamination
- Slotted mounting holes
- Standard gearset
- Custom mounting holes to fit various model styles
- C&M Made in Australia
Specifications
| Specification |
Option |
Option 2 |
Option 3 |
| Input Shaft |
M40 Shaft x M12 Key |
| Output Shaft |
1-1/4" Square Output Shaft |
M40 Square Output Shaft |
1-3/8-Z 6 Spilne output shaft |
| Ratio |
1:1 |
| Rotation |
Clockwise In / Anti-Clockwise Out |
| Oil Capacity |
4.0L 85W-140 |
| Oil Type |
API GL-5 |
| Oil |
* Gearbox is supplied with no oil (You must fill gearbox with recommended type and capacity before operation) |
We suggest you carefully consider the output shaft size / type prior to ordering and either give us a call or include a note on the order.
