Process Systems Condensate Drain Solenoid

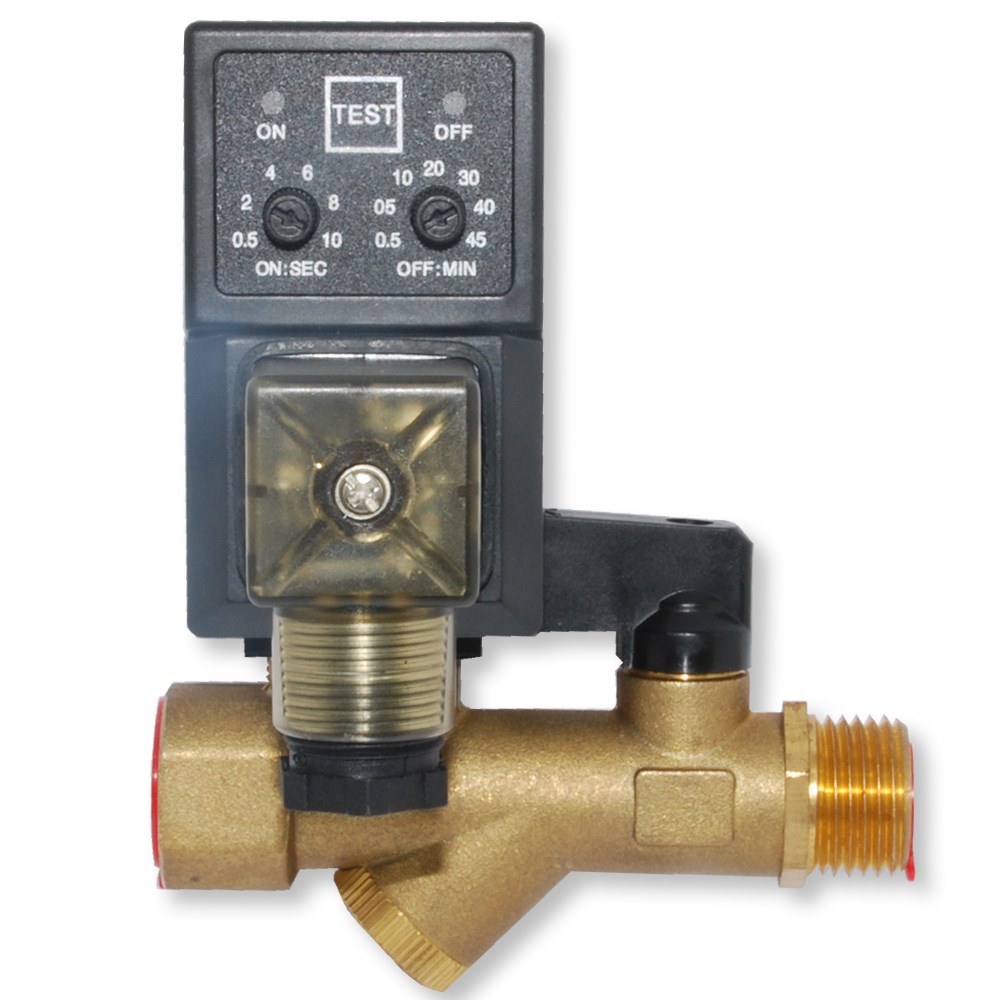

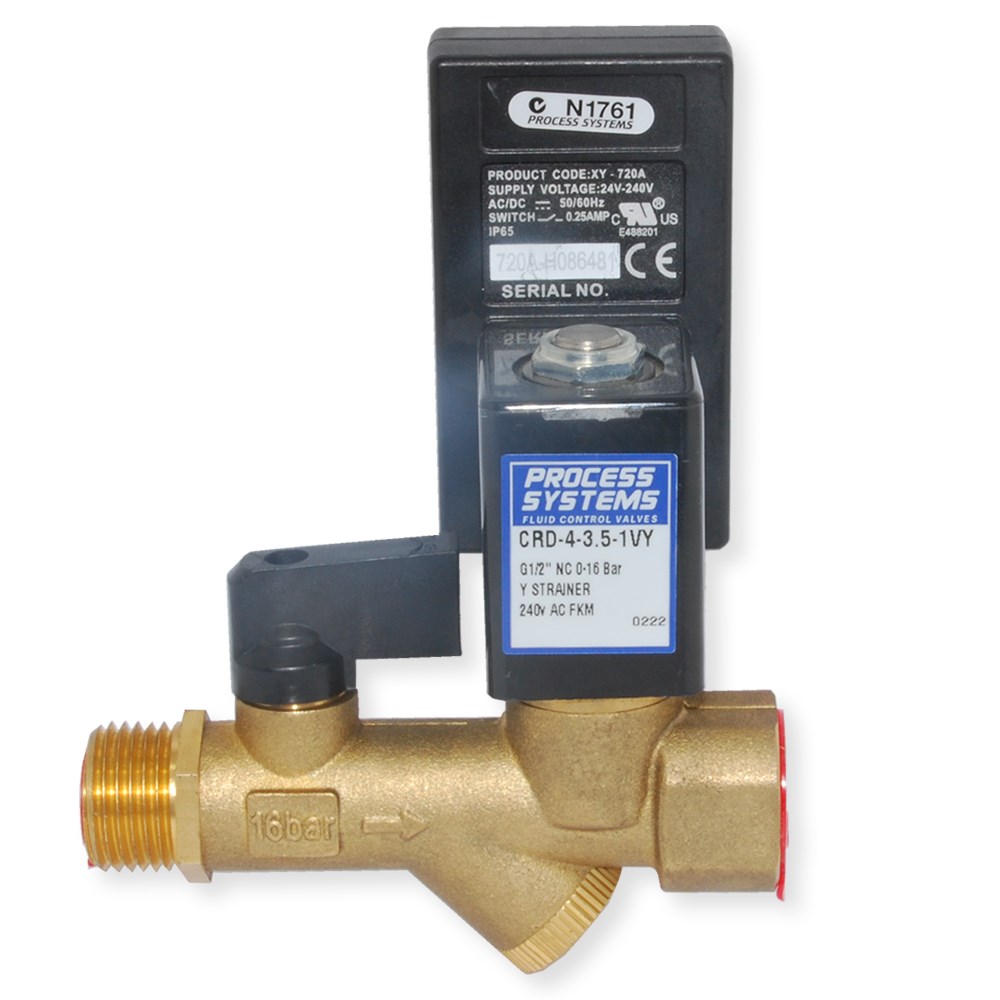

Process Systems Condensate Removal Drain Solenoid Valve (CRD). This condensate removal valve is designed to reduce the risk of human error by providing a regular controlled system of draining, on time, every time, automatically. The analogue timer is programmable from .5 to 10 seconds on and 0 to 45 minutes off. The valve comes standard with isolating ball valve, Y-Strainer for easy cleaning and coil with DIN plug (IP65).
Suitable for draining
- Ring mains
- Filters
- Separators
- After-coolers
- Dryers
- Receivers
- Drip legs
Specifications
- Port Size 1/2" BSP
- Orifice 3.5mm
- CV .27
- Media Pressure 0-16 BAR
- Media Temperature -10°C to 100°C
- Weight .085Kg
- Coil SC-CRD 22 Volt Amps 20 Watts Class H Insulation 100% ED
- Voltage 240v AC FKM
- Function Normally Closed (Power to open)
- Vave operation - Direct Acting
- Body - Brass
- Seal - FKM
