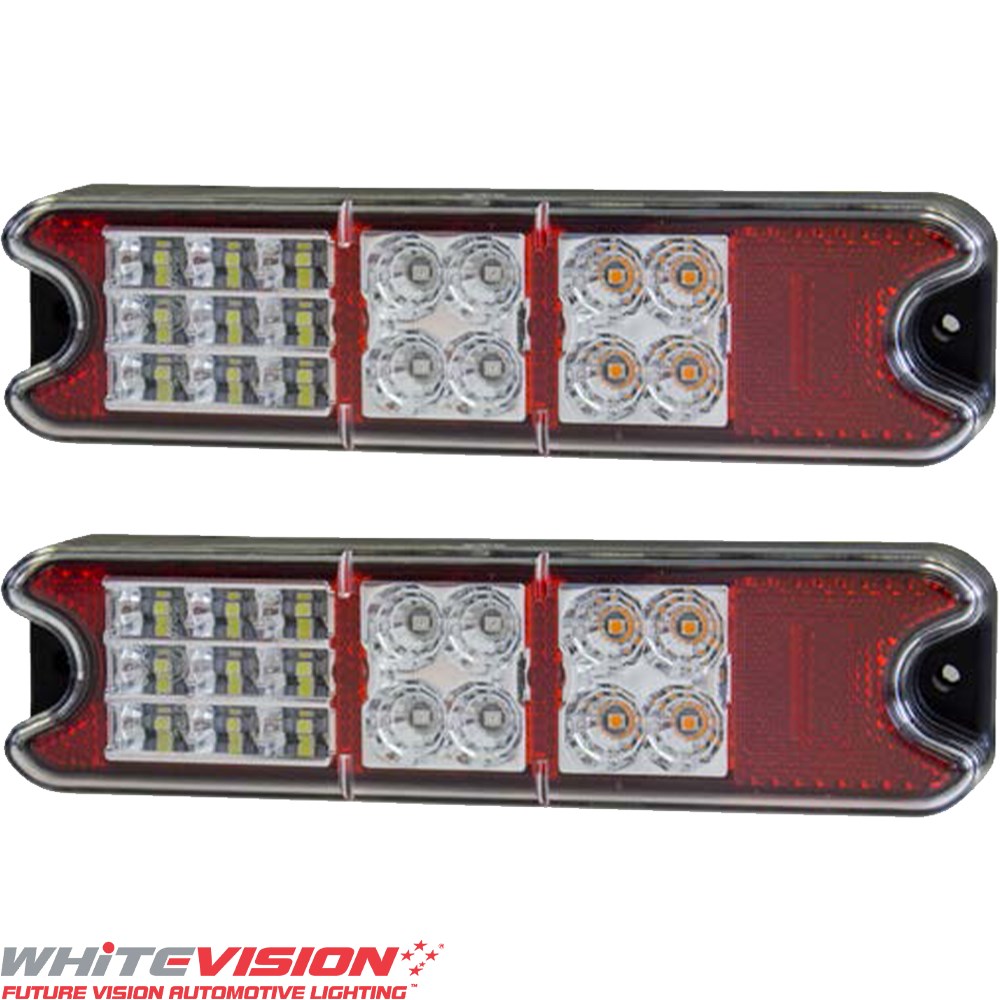

Whitevision CRL190 Series Slimline Combination Lamp - Twin Pack

The Whitevision CRL190 series combination lamps feature a sleek, slimline design with free-form optics. These robust, multifunction lamps can be surface-mounted in areas where space is limited. Utilizing Varivolt® 10-30V circuit technology, they incorporate stop, tail, indicator, reverse, and reflector functions, providing an all-in-one solution. The high output SMD LED technology, combined with the smart optic design, allows these lamps to meet all required functions within their slim dimensions. Fully ADR compliant, they are excellent for mine bars, trailer/ Ute lamps, and commercial, industrial, or retrofit applications.

Features

• Sleek, slimline design
• Free-form optics
• Surface-mountable in limited spaces
• Varivolt® 10-30V circuit technology
• Functions: stop, tail, indicator, reverse, and reflector
• High output SMD LED technology
• Fully ADR compliant
• Suitable for mine bars, trailer/ute lamps, and commercial, industrial, or retrofit applications

Specifications

• Functions: Stop / Tail / Indicator / Reverse / Reflector
• Voltage: 9-33V DC Varivolt®
• Wattage:
  • • Rear Direction:1.5W@12V
    • Rear Position: 0.5W@12V
    • Stop Lamp:2.5W@12V
    • Reverse:2.0W@12V
• Mounting: Surface Mount
• Lens: Polycarbonate Lens
• Body: ABS Body
• Environmental: IP67 Hermetically Sealed
• Cable Length: 0.4m Standard
• Dimensions: 191x49x28mm
• ADR Compliance:
  • • Stop & Rear Position: 49/00
    • Rear Direction Indicator: 6/00:Cat2a
    • Rear Retro Reflector:47/00
    • Reverse:1/00
