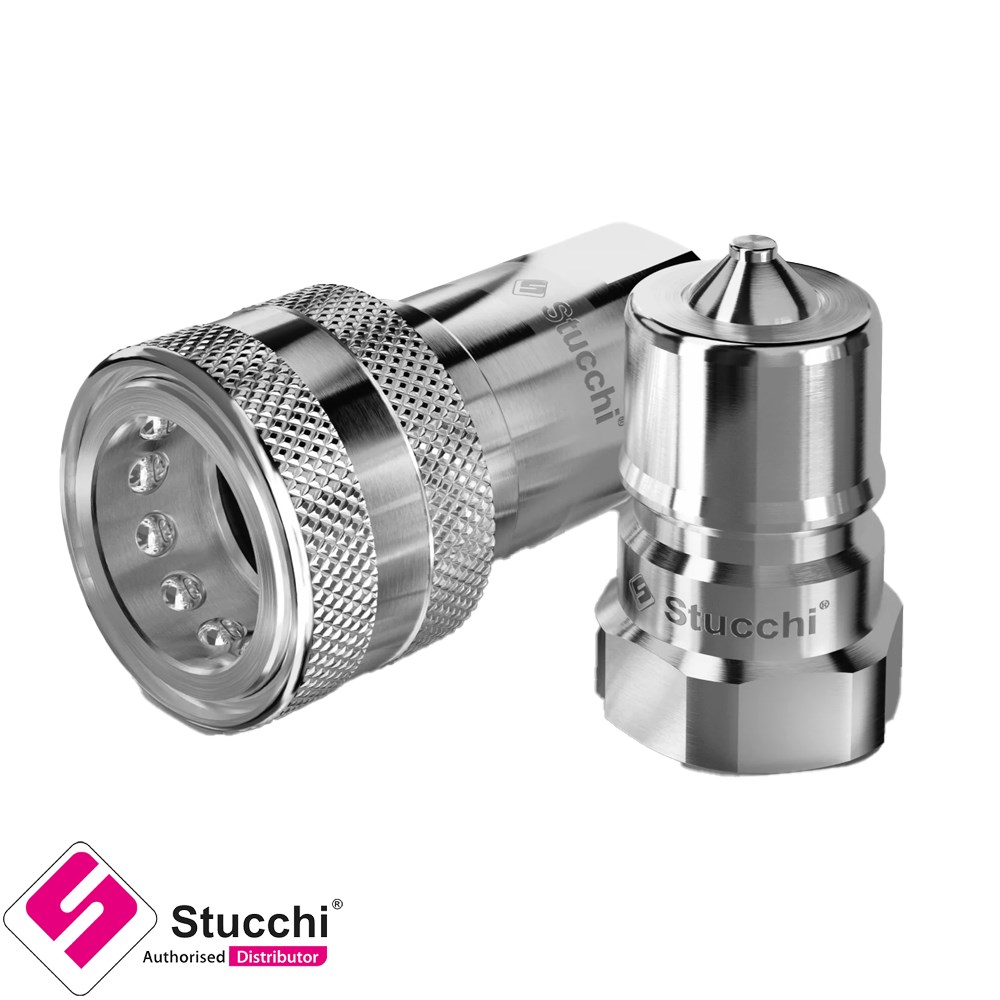

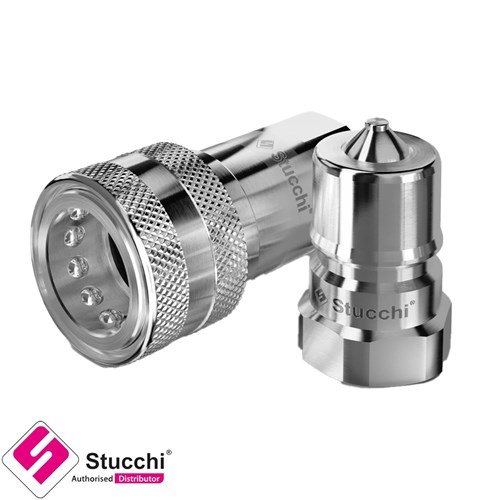

Hydraulic Quick Coupling BSP-F 3/8" IRBX
The IRBX Series Quick Coupling is a stainless steel hydraulic connector designed for use in demanding applications where corrosion resistance and durability are essential. Made from AISI 316L stainless steel and featuring a poppet-style sealing system, this coupling ensures reliable performance in industries such as oil & gas, chemical processing, and food manufacturing.
Features
- Poppet valve for secure sealing
- ISO 7241-1 Series B interchangeable
- Stainless steel AISI 316L construction with brass retainer
- FKM (Viton) sealing for chemical and thermal resistance
- Pull-back sleeve connection system
- Ideal for corrosive and aggressive environments
Specifications
- Thread: BSP-F 3/8" (NPT ANSI B1.20.1)
- Max operating pressure: 20 MPa (coupled/uncoupled)
- Burst pressure: 100 MPa (coupled/uncoupled)
- Max flow rate: 46 L/min
- Seal type: FKM (Viton)
- Temperature range: -15°C to +180°C
- Connection force: 90 N
- Disconnection force: 35 N
- Spillage: 2.2 mL
- Overall length (M+F): 82.7 mm
- Length: 66 mm
- Max diameter: 34 mm
- Weight: [insert weight if available]
- Material: Stainless steel AISI 316L + brass retainer
- Standard: ISO DN 10
