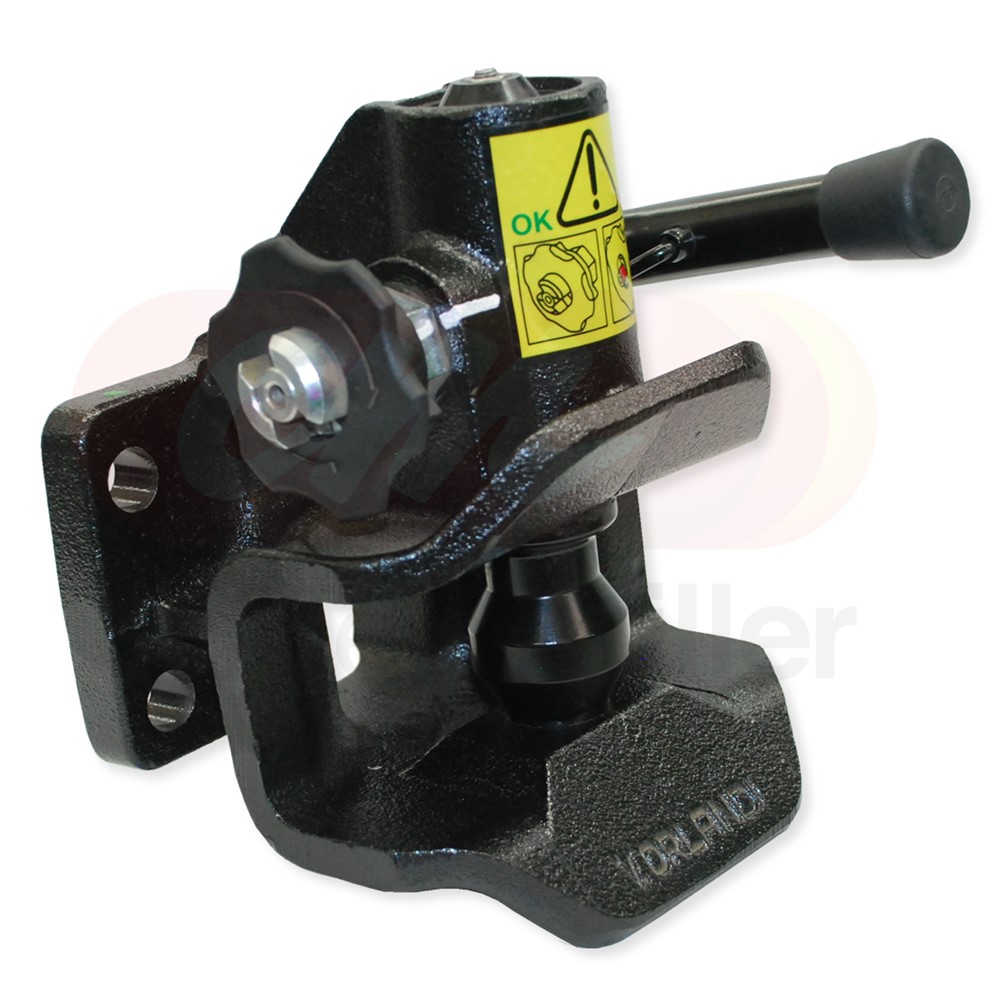

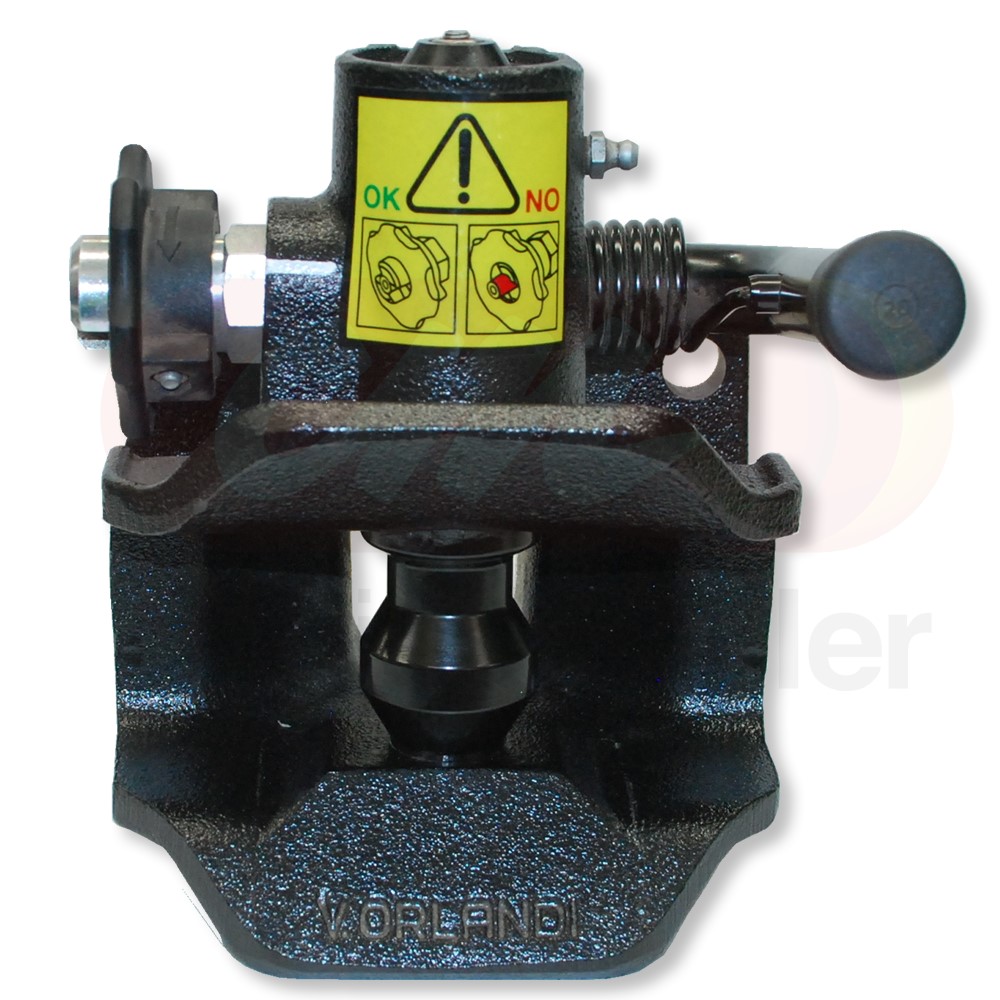

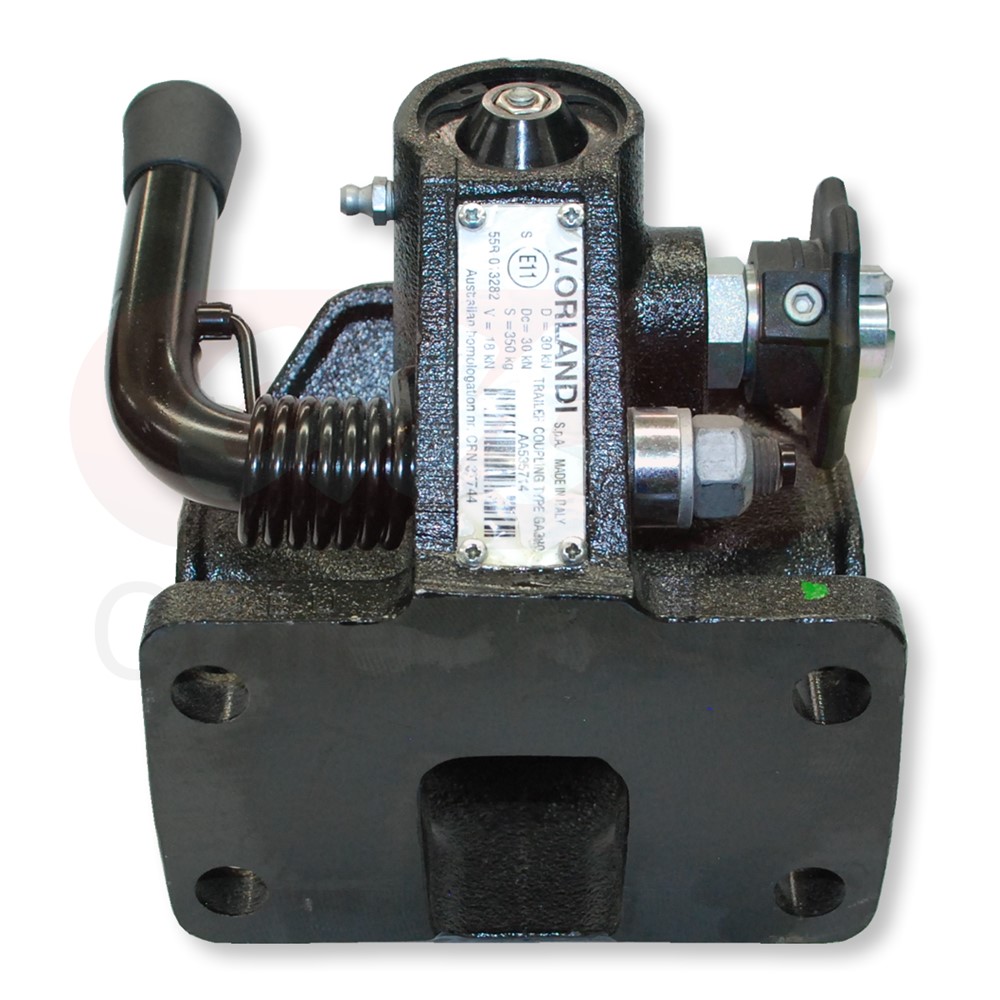

V.Orlandi GA38 automatic coupling for light vehicles. The V.Orlandi GA38 in an automatic pin type coupling for use with light duty vehicles. Commonly used to tow combine harvester comb trailers these units can be attached to machinery tow hitches and vehicles with a suitable GVM combination rating.
The GA38 coupling has a nominal rating of 30Kn, however we recommend customers have all installations calculated by a certified engineer. We have sold many of these couplings into the agricultural industry and suggest this is the ideal unit for towing comb trailers, with the appropriate engineering design . If you require assitance with the rating and design aspects please contact us and we can assist.
Technical Details
- Flange Hole Pattern 380 120mm x 55mm x 15mm Hoile Diameter
- Lever Action
- Weight = 6Kg
Applications
- Agricultural comb trailers
- To suits drawbar eyes: ø 40 mm - DIN 74054
