JOST TOWING EYE WELDON 40MM

EYE 40MM SHANK 65MM SQUARE

Product Code: ROE57374
  $199.00
EACH inc GST
Afterpay Logo
4 payments of $49.75
In Stock Low Stock Contact Us Please See Attributes 10
Increase value Decrease value

  • Detail
  • Downloads

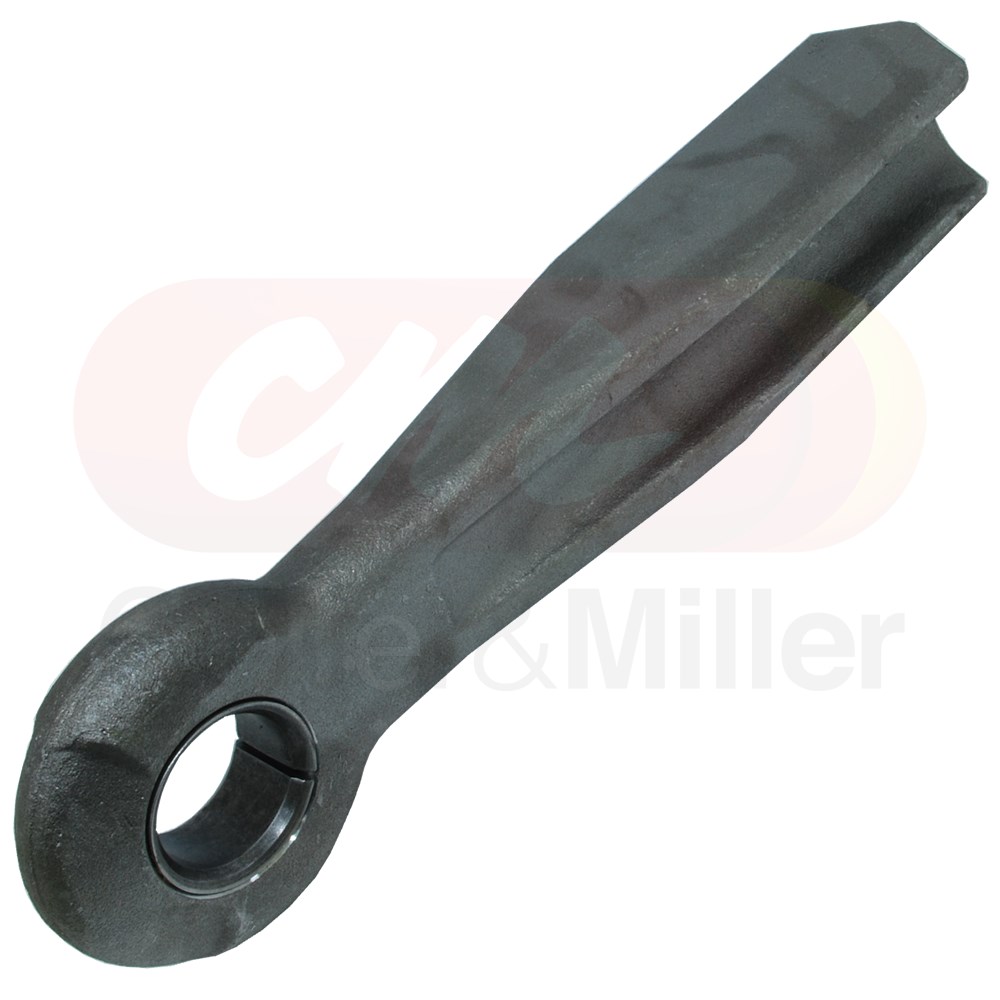

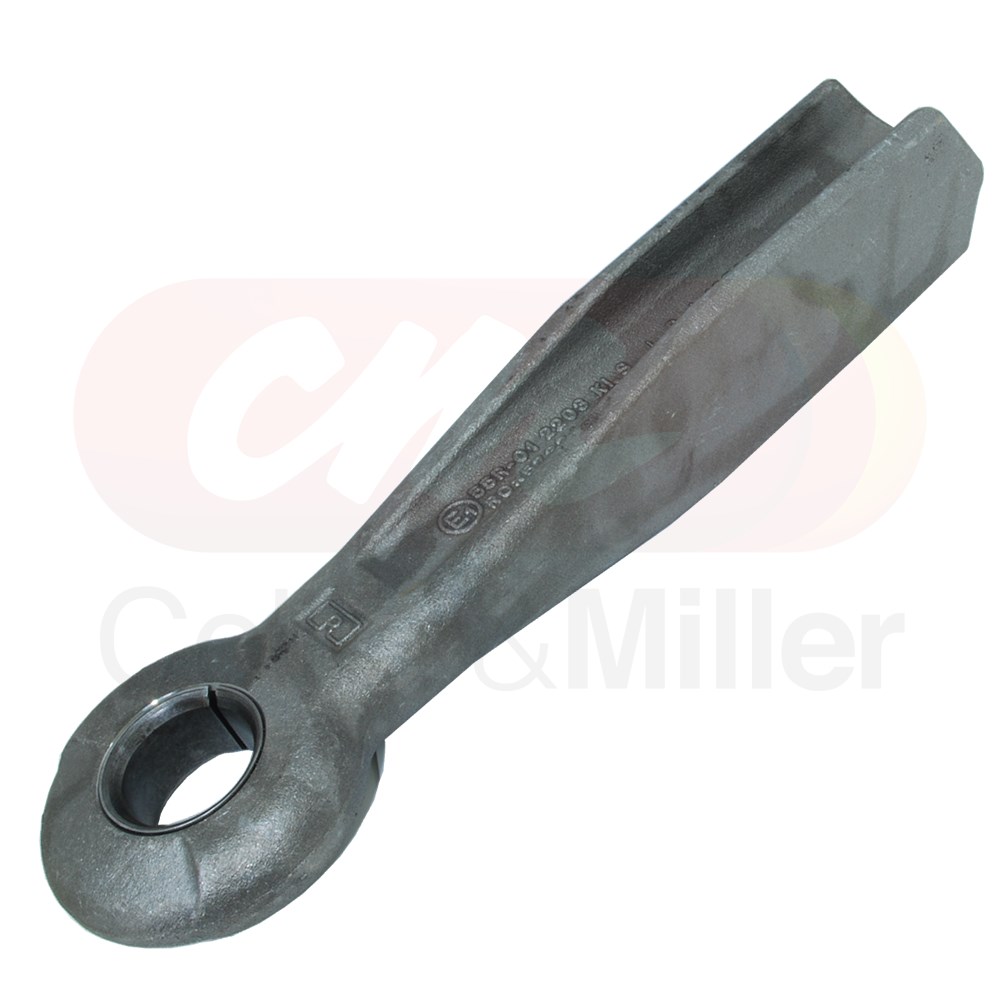

JOST ROE57374 towing eye used in conjunction with V.Orlandi GA38 automatic coupling. Commonly used on combine harvester comb trailers it is welded into place. The ROE57374 drawbar eye a nominal rating of 125Kn, and is to used in conjunction with an engineered GA38 installation.We recommend all customers have all installations calculated by a certified engineer.

We have sold many of these couplings into the agricultural industry and suggest this is the ideal unit for towing comb trailers, with the appropriate engineering design . If you require assitance with the rating and design aspects please contact us and we can assist.

Specifications

D-value 125kN
Weight 5Kg
Download 250Kg
Approval Number ECE E1 55R-01 2203
Hole Diameter 40mm
Material H=65mm B=57mm
Length 335mm center of eye to end
