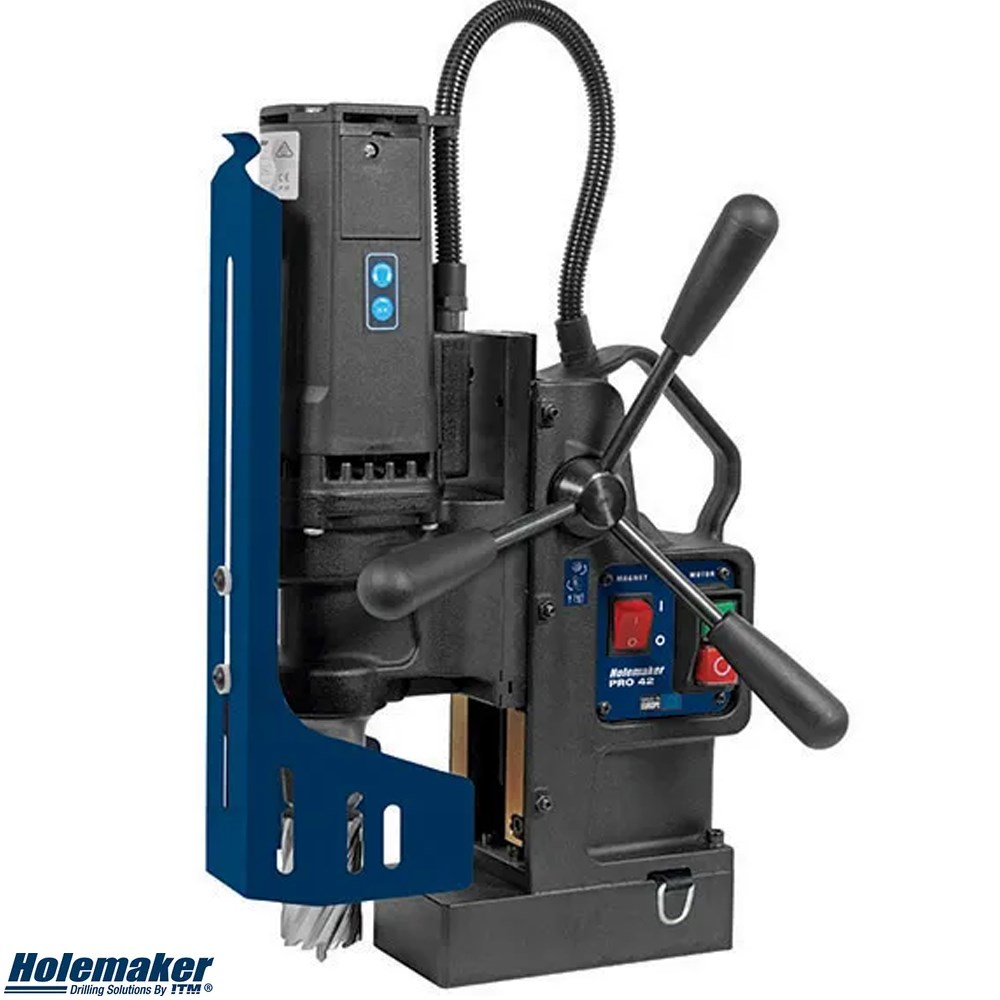

Holemaker PRO42 Magnetic Drill

The Holemake PRO42 Magnetic Drill features a new rigid frame design which provides increased life of the cutting tools. Other features include a new extra large 165mm stroke which enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc. The Magnetic Field Shape Control (MFSC) Provides maximum holding power on thin materials. This new generation Holemaker machine are lighter and more powerful than other brands on the market.

Features

• European made machine
• Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck
• Through spindle coolant system, with an external side mounted gravity feed coolant tank
• The feed handles can be placed on either the left or right hand side, for increased versatility
• Smart magnet technology to ensure sufficient magnetic adhesion
• Integrated cutter guard for increased user safety
• Supplied in a blow mould plastic carry case
• Grub screw arbor system, which fastens positively onto Holemaker cutters
• 13mm drill chuck SADCA-13 available separately

Specifications

• Capacity (Diameter): 42mm
• Capacity (Depth): 52mm
• Capacity (Twist Drills): 10mm (Jobber Drills)
• Capacity (Twist Drills): 13mm (Stub Drills)
• Capacity (Twist Drills): 16mm (Weldon Shank Drills)
• Motor Power: 1020 Watt
• Input Power: 1100 Watt Single Phase 240V
• Speed: 440rpm
• Weight: 12.5kg
• Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
• Stroke: 165mm
• Height (Min. / Max.): 346 / 511mm
