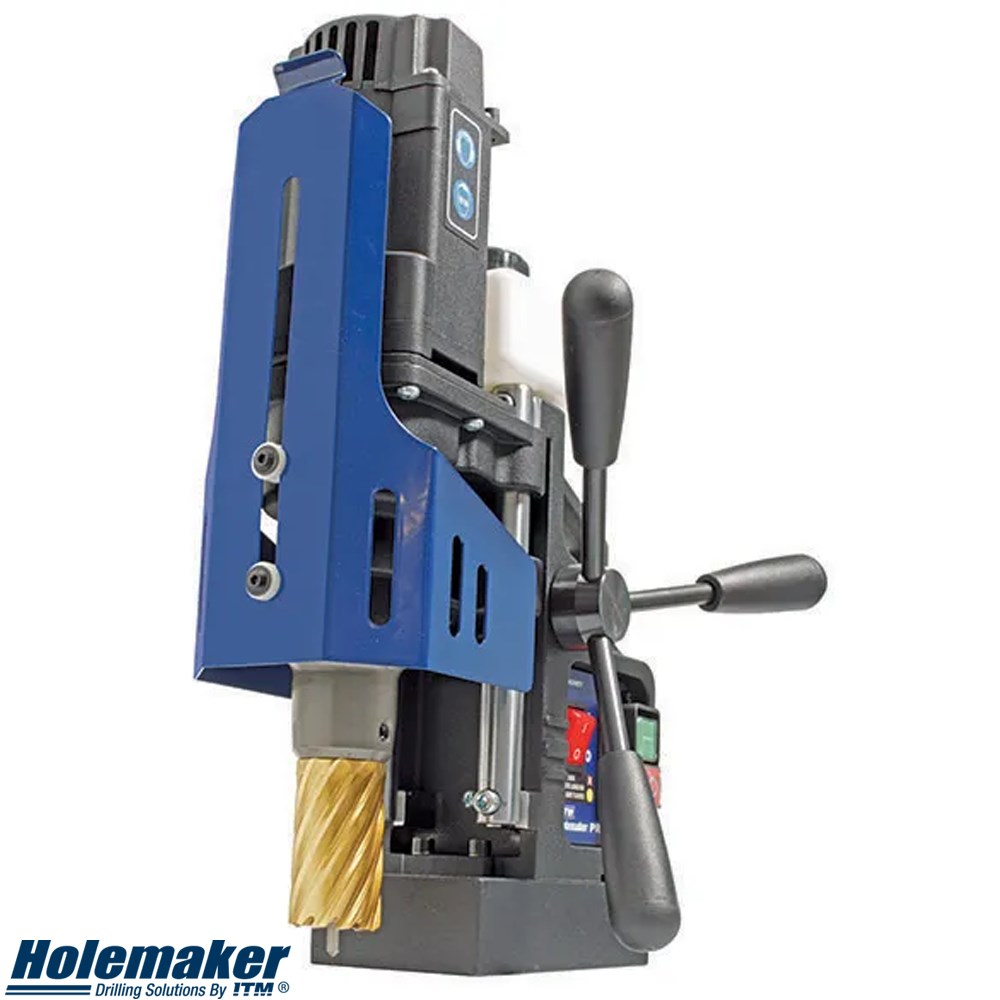

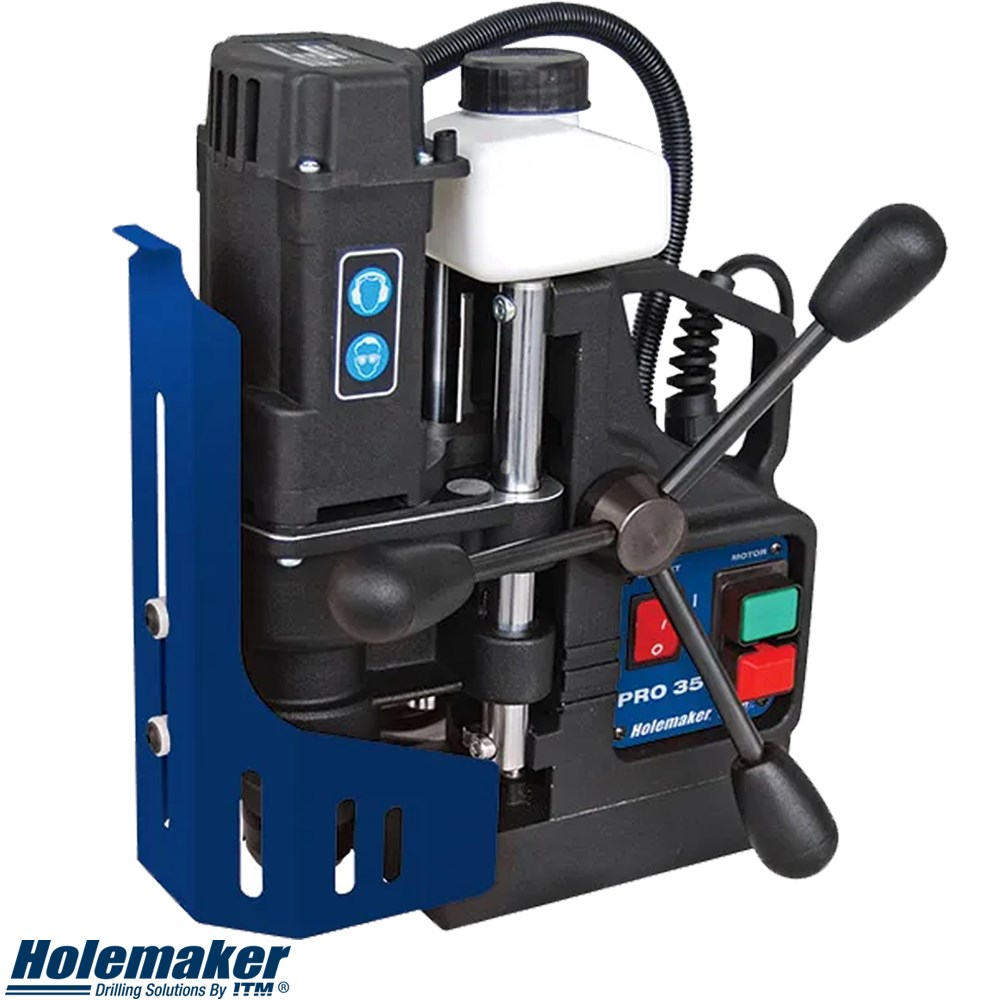

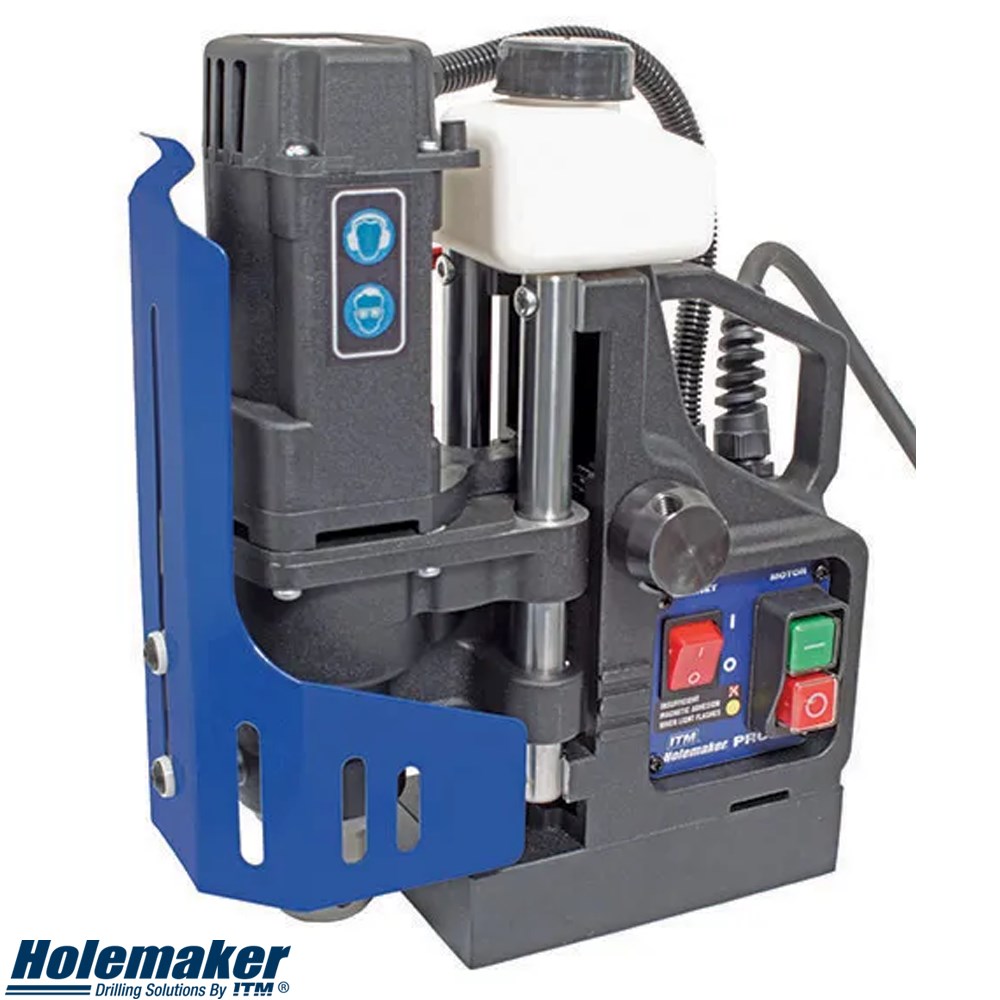

Holemaker PRO 35 Magnetic Base Drill
The Holemaker PRO 35 magnetic base drill boasts a compact yet robust design that incorporates a comprehensive range of features. Weighing just 10kg, it's tailored for on-site and overhead tasks, while its sturdy construction ensures suitability for everyday manufacturing needs.
With a cutting capacity of 35mm diameter and 52mm depth, this drill meets most standard holemaking requirements with ease. It features Smart Magnet technology, guaranteeing secure magnetic adhesion, and a gravity feed coolant system equipped with a magnetically attached bottle for seamless coolant application during horizontal drilling tasks. Furthermore, its versatile design allows for placement of feed handles on either the left or right side, enabling flexibility in confined spaces.
The inclusion of a dual rail slide system not only enhances rigidity but also eliminates the necessity for gib adjustments, streamlining operation. Complementing these functionalities is a well-designed cutter guard system, prioritizing user-friendliness, and practicality.
Features
- High-quality, compact, and robust magnetic base drill
- Weighs only 10kg, making it suitable for on-site and overhead tasks
- Ideal for everyday manufacturing applications
- 35mm diameter and 52mm depth cutting capacity
- Smart magnet technology ensures secure magnetic adhesion

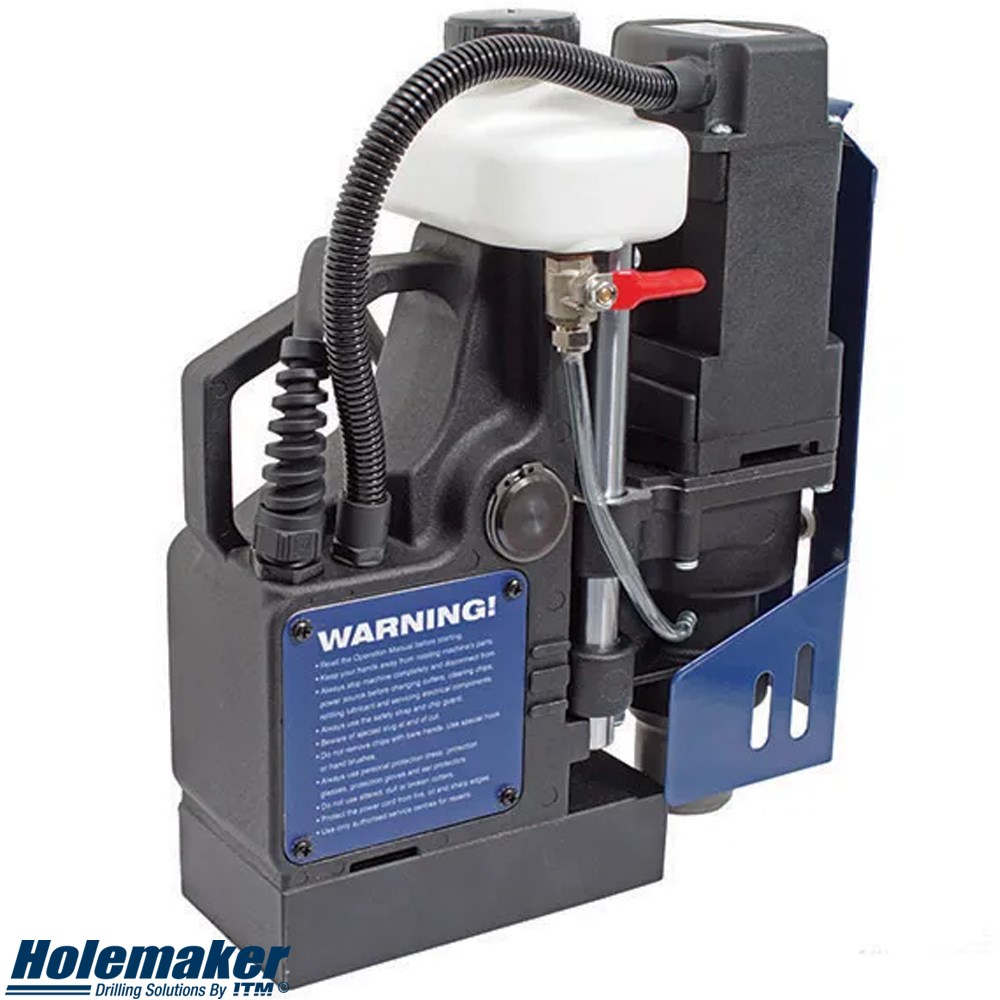

- Gravity feed coolant system with magnetically attached coolant bottle
- Feed handles can be placed on left or right side for versatility
- Dual rail slide system provides rigidity and eliminates gib adjustments
- Well-designed cutter guard system for ease of use and practicality
Specifications
- Capacity (Diameter): 35mm
- Capacity (Depth): 52mm
- Motor Power: 920 watt
- Input Power: 1000 watt Single Phase 240V
- Speed: 350rpm
- Weight: 10.0kg
- Magnetic Dead Lift: 9500Nm On 25mm Steel Plate
- Stroke: 70mm
- Height: 306mm min / 376mm max
