CASE-IH® Compatible 1420 Clean Grain Elevator Chain Kit
Keep your
product feeding and grain handling systems in top condition with this premium aftermarket clean grain elevator chain kit. Specifically engineered for the Case IH® 1420 Axial-Flow combine, this all-in-one overhaul kit ensures efficient crop transition from the cleaning shoe to the grain tank.

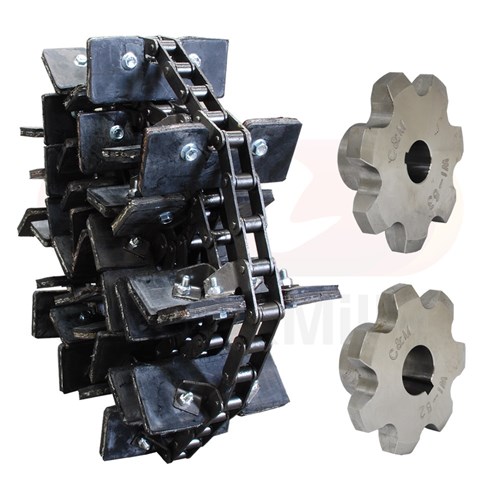

This comprehensive kit includes quality CA550 elevator chain with pre-installed paddles, alongside precision-machined upper and lower sprockets. Implementing a complete system replacement is the gold standard for
preventative maintenance, providing a significantly
extended service life by ensuring all drive components operate together at peak efficiency.
CASE-IH® OEM Cross-Reference Kit Details
Clean Grain Elevator Overhaul Kit for Case IH 1420 Axial-Flow
| Component |
OEM Part No. |
Technical Specification |
| Elevator Chain |
1302201C91 |
CA550 (150 Links) | 6210mm Total Length |
| Lower Sprocket |
1302200C1 1319176C1 |
7-Tooth (7T) | 1.250" Bore |
| Upper Sprocket |
168683C1 |
7-Tooth (7T) | 1.00" Bore | 1/4" Keyway |
Technical Specifications & Features
- Quality Assurance: Chains are precision assembled by the C&M team in Griffith, Australia to keep your equipment in top condition.
- Chain Construction: Premium CA550 chain with waterjet-cut paddles and high-tensile fasteners.
- Sprocket Material: C&M Australian made from Grade 1045 steel with a corrosion-resistant electroplated finish.
- Ready to Install: Chain assembly supplied with 1 x connector and 2 x offset links for immediate fitment.
- Precision Engineering: Paddle spacing and sprocket tooth profiles match original Case IH® specifications.
- Available for fast Australia-wide dispatch from Collier & Miller.
Expert Maintenance Review
To keep your grain handling system in top condition, we recommend a total system replacement using this kit. Replacing just the chain while leaving worn sprockets in place often leads to premature chain "stretch" and accelerated component failure.
Standard preventative maintenance for the 1420 series includes checking the elevator boot tension and the auger shaft bearings during installation. Servicing these drive components as part of regular inspections ensures an extended service life and prevents costly downtime during the peak harvest window.
Recommended Maintenance Upgrade
For a complete elevator overhaul, we specifically recommend inspecting your Grain Tank Loading Auger and Elevator Boot Bearings when installing this kit.
