CASE-IH FEEDER CHAIN KIT NRT
7140 22B 8628 87L 9T NON ROCK-TRAP
Product Code: KIT7150-F-22B
$2779.00
EACH inc GST
In Stock
Low Stock
Contact Us
Please See Attributes
0
Increase value
Decrease value
Case-IH® Compatible

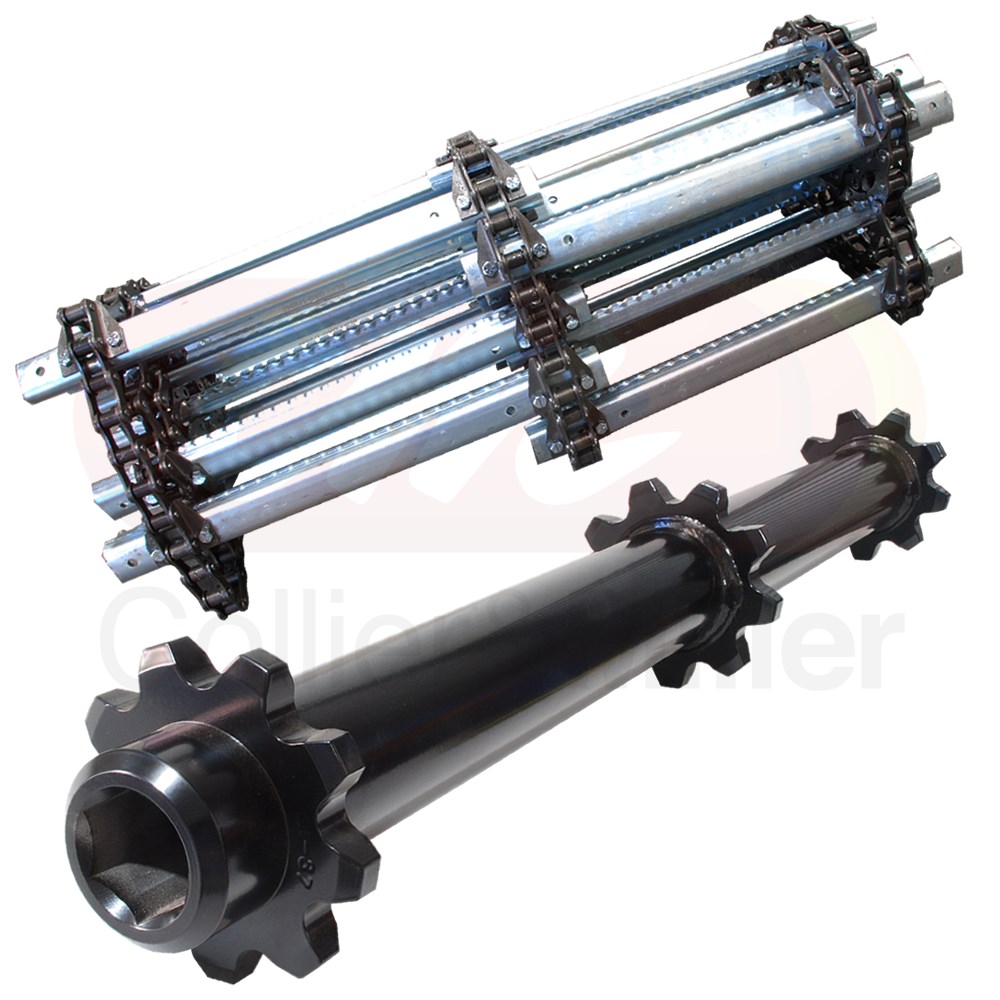

7150 Feeder House Chain Kit (Non-Rock-Trap)
Aftermarket 3 strand feeder house chain and sprocket kit to fit the feeder house on CASE-IH 7150 model combine harvester with a standard feeder house without a rock-trap. This kit contain 1 x feeder chain set and 1 x tube style feeder sprockets. Order this kit to refurbish your feeder house.
This chain assembly has the bar spacing of later model 140 & 150 Series combine harvesters. Later models were supplied with wider spacing (less bars) than the 130 Series and early 140 series machines.
Brand |
Part No. |
Description |
CASE-IH |
47596677 |
CHAIN 87 Links x 41.4mm = 3602mm; Conveyor Chain,22 Bars |
CASE-IH |
84122242 |
SPROCKET, feed conveyor chain, 9T |

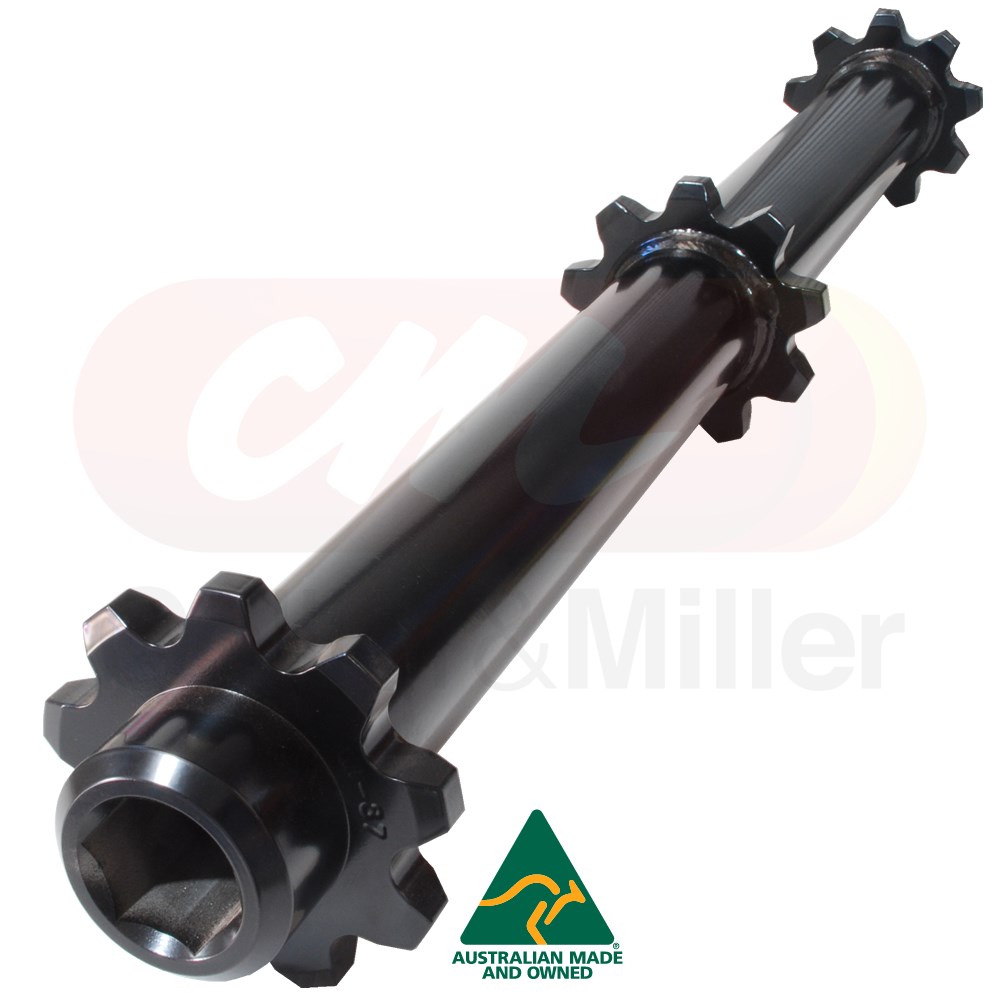

Sprocket Features
- C&M Made in Australia
- Grade 1045 sprocket material
- 9T x 1-1/2" Tube Style Hex Bore with extended hubs
Chain Features
- Quality A557 Chain
- Same spacing as the OEM chain
- Roll-Serrated Electroplated Bars
- 3 x Connectors 6 x Offset Links
- High tensile fasteners
- Ready to install
47596677
Kit Components
CM47596677
CASE IH FEEDER CHAIN ASSY NRT
1
WI87
CASE IH FEEDER SPROCKET ASSY
1
