CASE-IH 9250 FEEDER 4CHAIN KIT
36B 862628 101L 15T ROCK-TRAP
Product Code: KIT9250-F-36B
$10600.00
EACH inc GST
In Stock
Low Stock
Contact Us
Please See Attributes
0
Increase value
Decrease value
Case-IH® Compatible

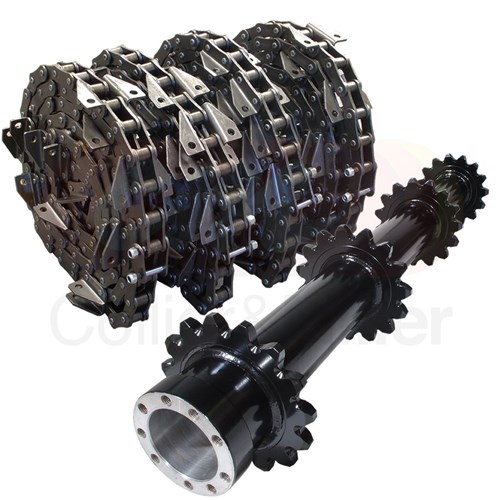

9250 Feeder House Chain Kit (With Rock-Trap)
C&M aftermarket 4 strand feeder house chain and sprocket kit to fit the feeder house on CASE-IH® 9250 model combine harvesters where rock-trap is fitted. This kit contain 1 x feeder chains only set to fit the existing Case-IH® cast bars, and 1 x tube style feeder sprocket kit. Order this kit to refurbish your feeder house using your existing CASE-IH® cast bars.
| Brand |
Part No. |
Description |
| CASE-IH® |
48073894 |
CHAIN; Outer (2 Supplied) |
|
48073895 |
CHAIN; Inner (2 Supplied) |
|
48101428 |
Sprocket; 15T, Non Clutched |
Sprocket Features
- C&M Made In Australia
- Sprocket supplied ready to accept 48150111 Hub
- Special heavy wall seamless tube to cope with high radial loading
- Special design tooth relief
- Grade 1045 sprocket material
- Powdercoat black finish
- Non-Clutched
Chain Features
- Fits Feeder House Non-Rock-Trap
- C&M quality product
- Premium 960D Chrome Pin Chain
- Ready to accept original cast Case-IH® bars
- Supplied with 4 x threaded connectors
- No fasteners included
51434632 48101438
Kit Components
CM032OEMCOCP
CASE IH FEEDER CHAINS ONLY
1
CM032OEMCP
CASE IH FEEDER CHAIN ASSY
1
CM48101428
CASE FEEDER SPROCKET ASSY 15T
1
