NH CR6090 FEEDER 3 CHAIN KIT
36B 6246 112L 12T NEW HOLLAND 17.125" CENTER FEEDER HOUSE
Product Code: KITCR6090-F
$3496.00
EACH inc GST
In Stock
Low Stock
Contact Us
Please See Attributes
1
Increase value
Decrease value
-
Detail
-
Interchange
-
Downloads
New Holland® CR6090 Compatible
Feeder House Chain Kit

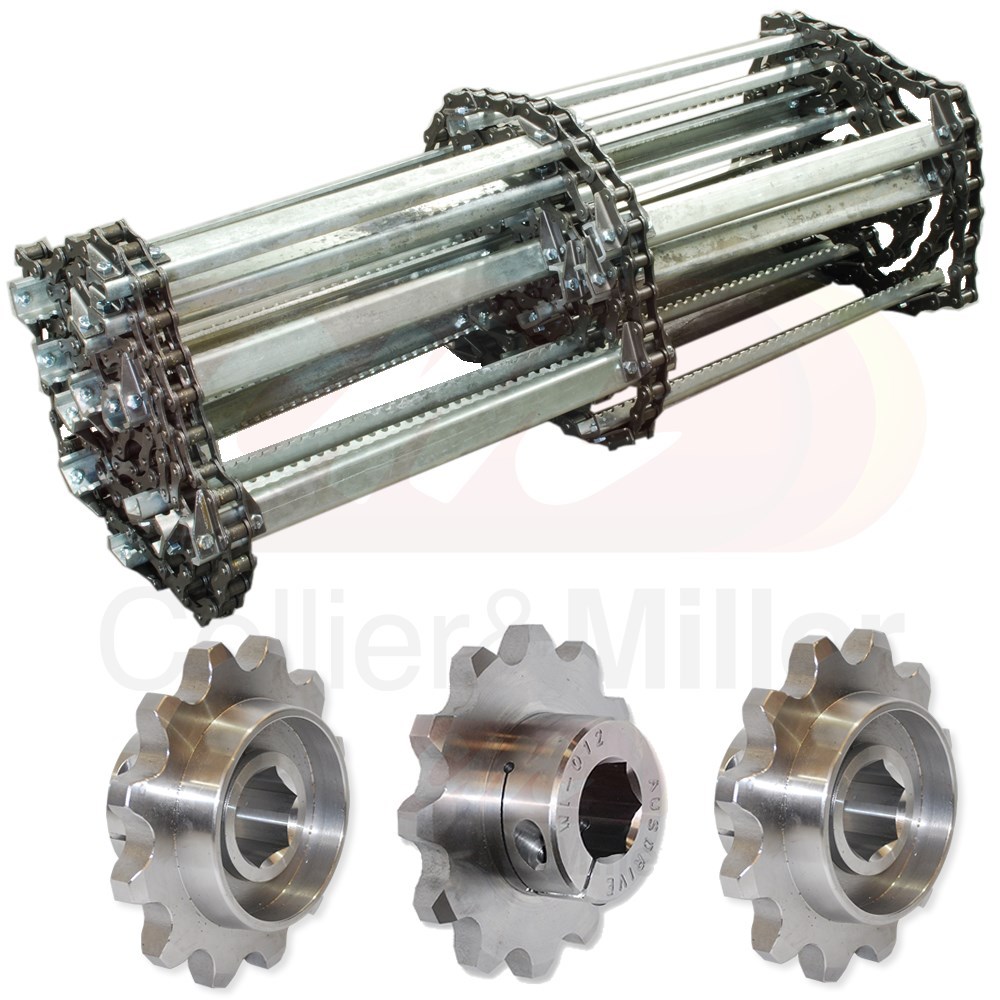

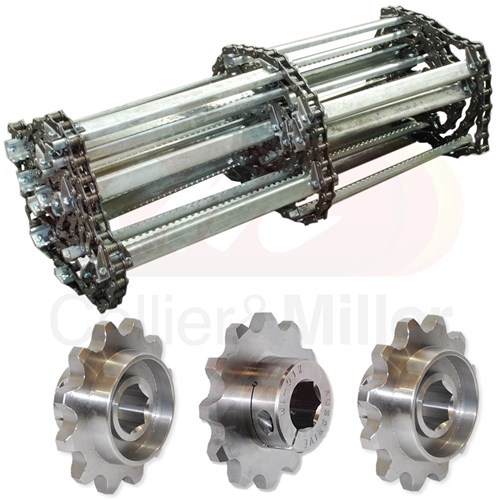

C&M aftermarket feeder house chain and sprocket kit to fit the feeder house on New Holland® CR6090 model combine harvesters. This kit contain 1 x feeder chain set including bars and 3 x feeder sprockets.
* This chain assembly bar spacing 17.125" (425mm) center to center on sprockets.
| SERIES |
MODEL |
SERIAL/YEAR |
| New Holland® CR |
CR6090 |
A4 - TIER4 COMBINES (12/11 - 11/13) |
| BRAND |
PART NO. |
DECRIPTION |
| New Holland® CR6090 |
87372056 |
CONVEYOR Feeder, 112 Links, x 41.4mm = 4636.8mm; Incl 2 - 15;MAINTENANCE PART |
| New Holland® CR6090 |
87665225 (84236902) |
2 X Outer Sprockets 12T x 1.750" Hex Bore |
| New Holland® CR6090 |
87665224 (84275669) |
1 x Inner Sprocket 12T x 1.750" Hex Bore |
Chain Features
- Quality CA557 Chain
- Same spacing as the OEM chain
- Roll-Serrated Electroplated Bars
- 3 x Connectors 6 x Offset Links
- High tensile fasteners
- Ready to install
Sprocket Features
- C&M Made In Australia
- Electroplated Finish
- 12T x 1-3/4" Bore Sprocket
- Grade 1045 Sprocket Material
87372056
Kit Components
CM059OEM
NEW HOLLAND FEEDER CHAIN ASSY
1
WI011
NEW HOLLAND FEEDER SPROCKET
2
WI012
NEW HOLLAND FEEDER SPROCKET
1
