New Holland® Compatible

Feeder House Chain Kit (WITH DFR)

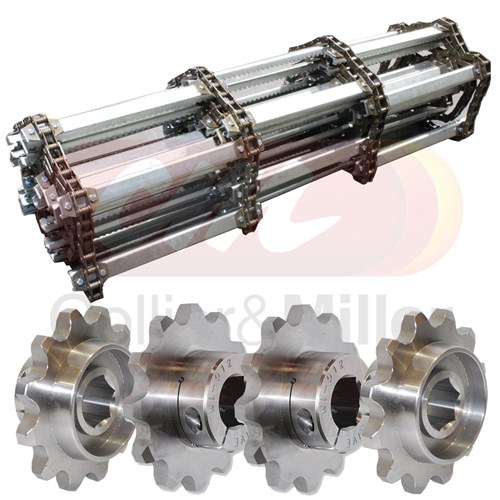

C&M aftermarket feeder house chain kit to fit New Holland® CR9.90 combine harvester fitted with Dynamic Feed Roll (DFR). This kit is supplied as a complete chain assembly and feeder house top shaft drive sprockets.

This kit uses chain and sprocket that fits model years (MY) 2015-2019.

Part Number	Locatiion	Quantity
48103500	Elevator Chain Complete 112L 42 Bars	1
87665225	Feeder Sprockets - Outer	2
87665224	Feeder Sprockets - Inner	2

Series	Models	Years
New Holland® CR9.	CR9.90 A4A - REVELATION COMBINE - TIER 4A (NAFTA)	(10/17 - 08/18)
	CR9.90 D4 COMBINE - TIER 4A (APAC)	03/15 10/17
	CR9.90 D4B COMBINE - TIER 4B (APAC)	09/17 12/17
	CR9.90 E 4B REVELATION COMBINE - TIER 4B (EMEA)	10/18 07/19
	CR9.90 E2 REVELATION COMBINE - TIER 2 (EMEA)	10/18 08/19
	CR9.90 E4B COMBINE - TIER 4B (EU) - 2016	01/16 09/17
	CR9.90 E4B REVELATION COMBINE - TIER 4B (EMEA)	10/17 08/18
	CR9.90 TR4 COMBINE, TRACK - TIER 4A (APAC)	03/15 08/17
	CR9.90 TR4B COMBINE, TRACK - TIER 4B (APAC)	09/17 12/17
	CR9.90 TRA4A REVELATION COMBINE, TRACK - TIER 4A (NAFTA)	10/17 06/18
	CR9.90 TRE 4B REVELATION COMBINE, TRACK - TIER 4B (EMEA)	10/18 08/19
	CR9.90 TRE2 REVELATION COMBINE, TRACK - TIER 2 (EMEA)	10/18 10/19
	CR9.90 TRE4B REVELATION COMBINE, TRACK - TIER 4B (EMEA)	10/17 10/18

Sprocket Features

• C&M Made in Australia
• Machined from 1045 billet
• Electroplated finish
• Precision timed for perfect alignment
• 12T x 1.750" (1-3/4") Hex shaft

Chain Features

• Fits Feeder House where DFR is installed
• Premium grade chain
• Threaded connectors x 4
• Threaded half links x 8
• Fasteners not included
• Center stamped pins
• Solid bushings
• Chrome Pins

48103500 87665225 87665224

Product Warranty

The Collier & Miller warranty complies with the Australian Consumer law, this warranty and does not limit or replace your right Australian Consumer Guarantee. Collier & Miller warrant that it will repair or replace (whichever it deems advisable) any product manufactured or imported by Collier & Miller which proves to be defective in material or workmanship within a period on one (1) year from the date of the original purchase on the invoice. This warranty is in lieu of all other warranties (except those of title), expressed or implied, and there are no warranties of fitness for the particular purpose.

Conditions

1. The warranty covers normal use and does not cover damage or defect which is the result of alteration, accident , neglect, improper installation, operation or maintanance.
2. In no event shall Collier & Miller be liable for downtime expenses, loss of machine use, loss of crops, loss of profits, injury or damage arising from accident, direct or indirect loss, or other incidental, consequential or special damages.
3. Collier & Miller neither assumes or authorizes any other person to give any warranty or to assume any other obligation on its behalf

FEEDER HOUSE CHAINS ARE SUBJECT TO VARIABLE CONDITIONS. THESE INCLUDE FITMENT, SPROCKET CONDITION AND OPERATIONAL CONDITIONS. EACH CHAIN MUST BE FITTED TO EQUIPMENT THEY WERE DESIGNED FOR, FITTED WITH NEW SPROCKETS AND INSTALLED BY A SUITABLY QUALIFIED PERSON. WEAR OF CHAIN OR FAILURE DUE TO FOREIGN OBLECTS IS NOT COVERED BY WARRANTY.

Process

In the event of a defect which may result in a warranty claim:

The Owner must provide the Collier & Miller with written notice of the defect within 14 days of its occurrence, and allow reasonable time for replacement or repair.
At Collier & Miller’s request, the owner will ensure any failed parts are freighted to the Collier & Miller or other location advised by an authorised representative.
The Warranty is not transferable to any third party or subsequent purchaser.
